Sida 1/4

KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E- -Mail: info@kern sohn.com
Tel: +49- - -0 [0]7433 9933
Fax: +49- - - [0]7433 9933 149
Internet: www.kern- sohn.com

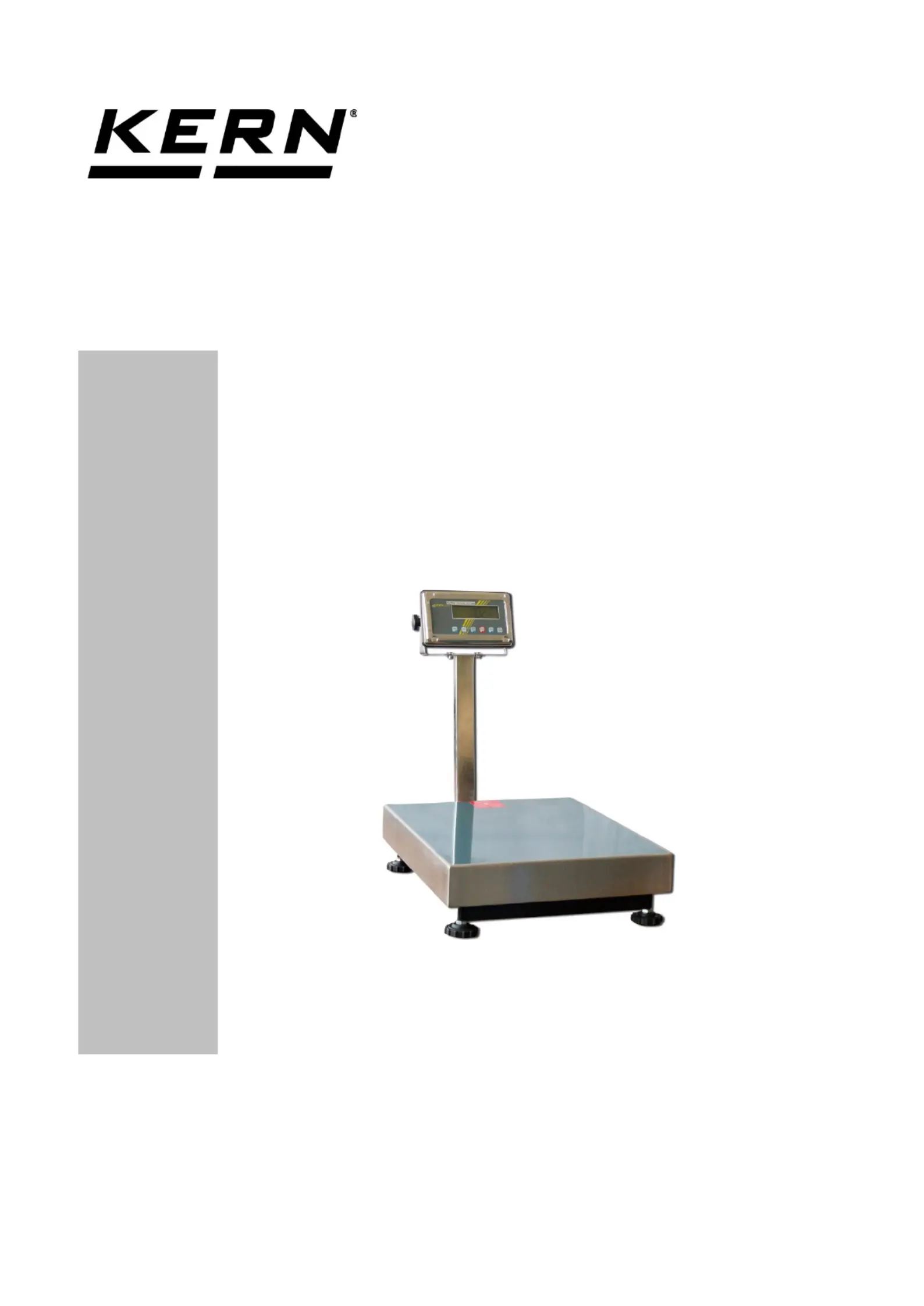

Assembly instructions Tripods
KERN SFE / A02 / A03-A01
Version 2.0
04/2014
GB
Example -SFE A02
SFE-A01/A02/A03-IA-e-1 0 42

GB
KERN SFE /A02 / A03- A01
Version 2.0 04/2014
Assembly instructions Tripod
Contents
1 Technical data .......................................................................................................... 2
2 Scope of delivery ..................................................................................................... 3
3 Assembly .................................................................................................................. 3
3.1 Assemble the tripod to the balance .................................................................................. 3
3.2 Assemble the display unit to the tripod ............................................................................ 4
1 Technical data
KERN - 1 - - 3SFE A0 SFE A02 SFE A0
Tripod height 20 cm 40 cm 60 cm
Net weight 800 g 1600 g 2400 g
For SFE models with
weighing plate (mm)
all sizes
400 x 300 x 118
500 x 400 x 137
650 x 500 x 142
500 x 400 x 137
650 x 500 x 142
SFE-A01/A02/A03- -e-IA 1420 2

2 Scope of delivery
1. Tripod
2. Support screw
3. 4 screws (large) with securing
disks and washers for assembly
to a balance
4. 4 screws (small) with nuts for
assembly of the display unit
3 Assembly
3.1 Assemble the tripod to the balance
Attach the tripod to the platform acc. to
illustration using the 4 large screws, the
securing disks and the washers.
Screw-out support screw till it is safely
fixed.
3 - - -e-1 0SFE A01/A02/A03 IA 42
