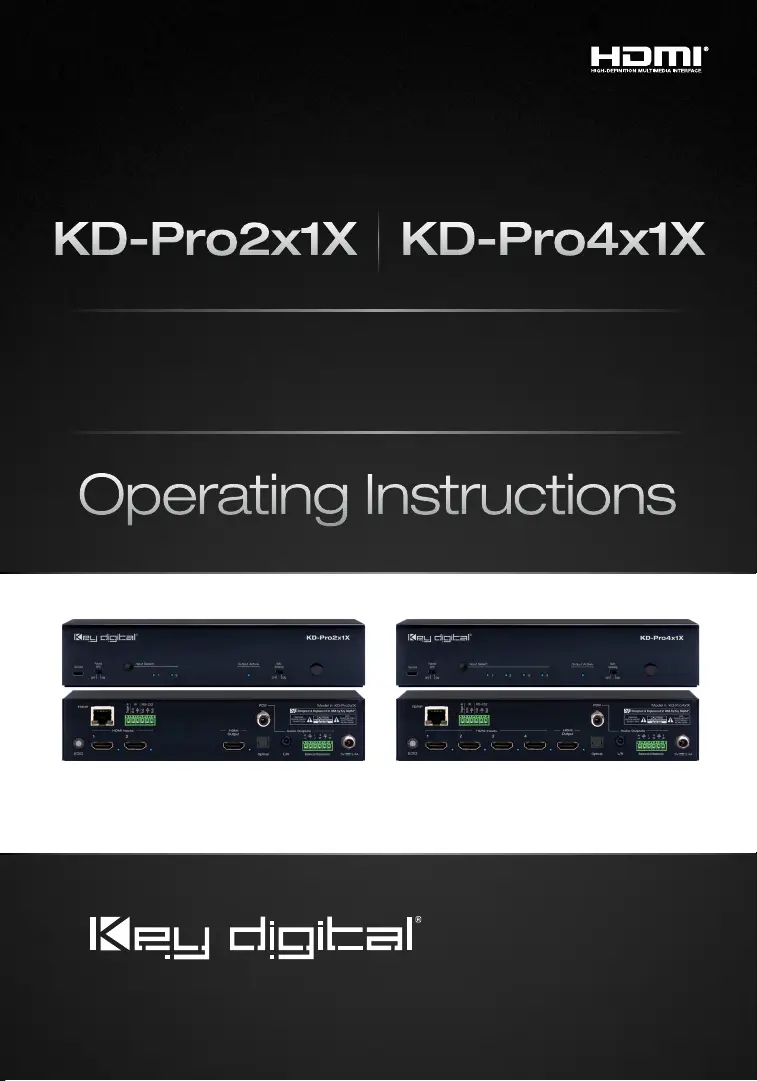

2x1/4x1 4K/18G HDMI Switchers
with Analog & Digital Audio De-Embed Output,
IR, RS-232, IP Control
The Experts in Digital Video Technology and Solutions
™
Operating Instructions
KD-Pro2x1X KD-Pro4x1X
KD-Pro2x1X KD-Pro4x1X
4
Table of Contents
Introduction .................................................................... 4
Quick Setup Guide ............................................................... 2
Control ........................................................................ 4
Rack Mounting:..................................................................5
Application Example .............................................................. 6
Connections, LEDs, Buttons, Slide Switches, Rotaries ...................................... 7
Integration with KD-AMP220 ....................................................... 13
IR Remote Control............................................................... 15
TCP/IP & RS-232 Commands ...................................................... 15
Specifications .................................................................. 19
Important Product Warnings & Safety Instructions: .......................................20
Contacting Key Digital ............................................................ 21
Warranty Information............................................................. 21
Always follow the instructions provided in this Operating Manual.
KD-Pro2x1X KD-Pro4x1X
Default IP Address: 192.168.1.239
Please visit www.keydigital.com for the latest
product documentation and software downloads.
Product features and specifications are subject
to change without notice.
Introduction
Key Digital
®
KD-Pro2x1X/KD-Pro4x1X are 4K/18G HDMI switchers with analog and digital audio
de-embedding, auto switching, and app-ready controllability. Designed for professional audio video
installations in conference rooms, huddle spaces, classrooms, theater and gaming spaces, KD-Pro2x1X/
KD-Pro4x1X enables multiple video sources to connect to a single video display while analog (3.5mm &
balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected
source into and amplifier, DSP, or sound bar. Integrating KD-Pro2x1X/KD-Pro4x1X with KD-Amp220
will enable an app-ready all-in-one solution for control of video switching with sound and speech
enforcement. KD-Pro2x1X/KD-Pro4x1X HDMI switchers support all SD, HD, VESA and Ultra HD/4K
video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to
IR, RS-232, and TCP/IP control, KD-Pro2x1X/KD-Pro4x1X can also be controlled via trigger voltage and
features status-monitoring LEDs.
