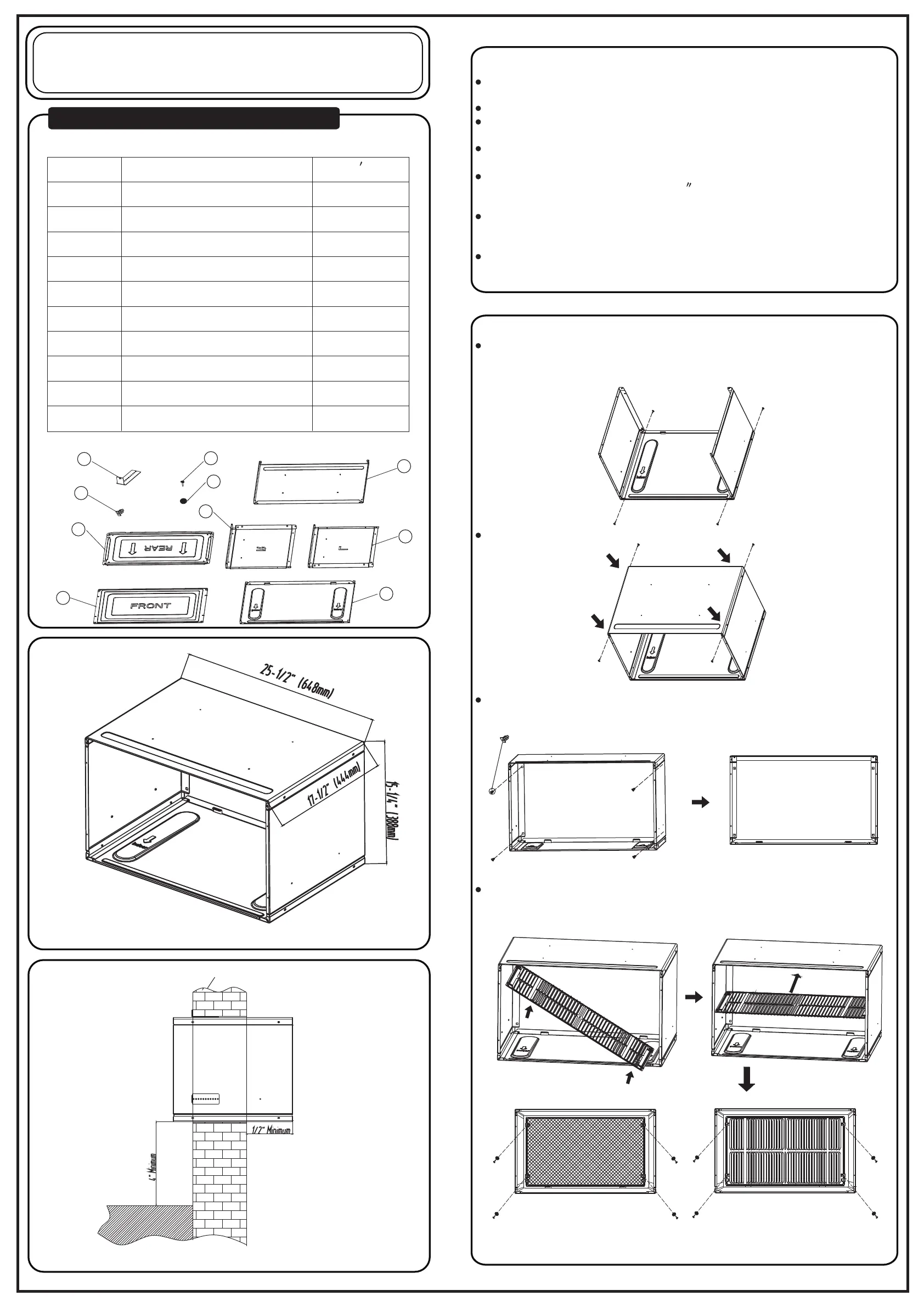

THROUGH-THE-WALL AIR CONDITIONER

SLEEVE INSTALLATION INSTRUCTIONS

HOW TO ASSEMBLE THE WALL SLEEVE

SLEEVE HARDWARE

ITEMDESCRIPTIONQT Y

1

TOP PANEL

1

2

BOTTOM PANEL

1

3

4

5

6

7

8

9

10

LEFT SIDE PANEL

RIGHT SIDE PANEL

FRONT COVER PANEL

REAR COVER PANEL

BRACKET

CLASP FOR SLEEVE

SCREW ST3.9*10

WASHER

1

1

1

1

4

4

28

8

SLEEVE DIMENSION

SLEEVE INSTALLATION

INSTALL THE UNIT

ASSEMBLE THE WALL SLEEVE

Use four screws to fasten the side panels on the bottom panel as shown

below.

NOTE:The arrow marks on the bottom panel indicate the direction of

indoor side

Place the top panel on the top and fasten with four screws as shown

below.

CLASP FOR SLEEVE

Insert the four clasps for sleeve into the quadrate holes in the side panels

as shown below.

SLEEVE

INSIDE

OUTSIDE

WALL

Remove the old air conditioner from the existing wall sleeve and remove

the existing wall sleeve.

Prepare and install the new wall sleeve into the wall opening.

The wall sleeve must be fastened in the wall secuerly before installing the

new air conditioner.

Keep the cover panels for later use to protect the sleeve from rainy or

windy weater.

To avoid distortion to the front panel of the air conditioner,the sleeve

should be installed at a distance of 4 minimum from heating source.

(e.g.Baseboard heating,radiator.etc.)

After sleeve has been installed,caulk where necessary entire perimeter

around exterior wall opening and sleeve.Use a good grade of caulking

compound to seal all cracks against air and water infiltration.

The rear grill and washer scerws should be kept well until the air conditio-

ner is installed.

Insert the louvered rear grille or the expanded rear grille (packed with air

conditioner you purchased) and fasten with 4 washer screws as shown

below.

Expanded rear grilleLouvered rear grille

or

1

2

5

6

7

9

10

8

3

4
