PS4 COAXIAL SPEAKERS

Owner’s Manual

PERFORMANCE

INSTALLATION

Authorized KICKER Dealer:

Purchase Date:

Woofer Size | in [mm] 4 [100]

Tweeter Size | in [mm] 3/4 [20]

Frequency Response | Hz 100–20,000

Max Recommended Ampliﬁ er Power [Watts] | PEAK/RMS 100/50

Sensitivity [SPLo] | dB @ 1W, 1m 85.756

Nominal Impedance [Zn] | ohm 2 (40PS42), 4 (40PS44)

Weight | oz [g] 11.9 [338]

Mounting Hole Diameter | in [mm] 3 5/8 [93]

Mounting Depth | in [mm] 1 11/16 [43]

Top Mount Height | in [mm] 3/4 [19]

Please refer to your bike’s factory service manual for disassembly/installation information. Typically, you should

retain all factory screws, hardware, and grilles when upgrading your bike to a KICKER system. The KICKER PS4

is compatible with factory locations and 4” or 5” (with adapter plate) audio systems. If you are doing a custom

installation, be careful not to drill into wiring or vehicle mechanisms. You are solely responsible for securely

mounting the speakers. Use the included grilles after performing a custom installation.

Package Contents:

(2) PS4 Speakers (2) 12” wiring harnesses

(8) M4 x 25mm pan cross head woodscrews (8) M4 speed nuts

(4) 22ga, red crimp-style butt connectors (2) 4” to 5” Adapter plate

(2) Grilles (2) Kicker badges

2013 PS4 Rev C.indd 22013 PS4 Rev C.indd 2 6/17/2013 5:02:01 PM6/17/2013 5:02:01 PM

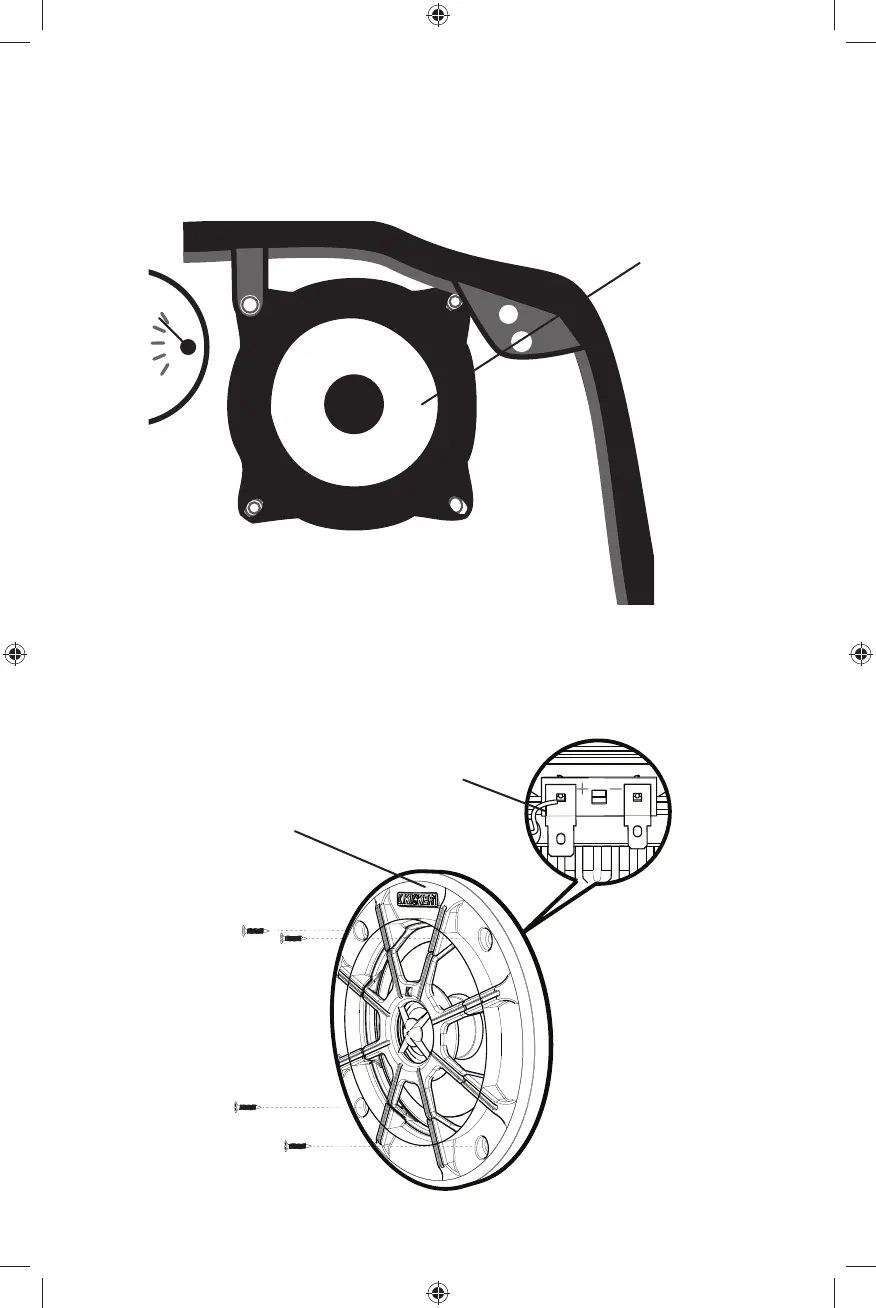

1. Remove your bike’s instrument panel per manufacturer’s service

manual.

2. Remove factory speakers.

Remove the screws securing the factory speakers.

Remove the speaker connectors while removing the factory speaker.

3. Install PS4 in factory location.

Connect the factory speaker connectors to the PS4 terminals.

Mount the PS4 to the desired location and secure using the 25mm screws and nuts. Use the adapter plate if

you’re installing the PS4 in place of a 5” speaker.

Re-install your bike’s access panel in the reverse order you disassembled it.

factory speaker location

KICKER PS4

speaker terminals

2013 PS4 Rev C.indd 32013 PS4 Rev C.indd 3 6/17/2013 5:02:01 PM6/17/2013 5:02:01 PM

Produktspecifikationer

Varumärke:	Kicker
Kategori:	högtalare
Modell:	PS 4"
Vikt:	338 g
Djup:	164.3 mm
Form:	Rund
Impedans:	4 Ω
Känslighet:	85.8 dB
Toppeffekt:	60 W
Märkeffekt:	30 W
Förstärkare ingår:	Nej
Produktens färg:	Svart
diskanthögtalare:	Ja
Frekvensområde:	100 - 20000 hz
Woofer diameter:	100 mm
Separata komponenter:	Nej
Monteringsdjup:	43 mm
Subwoofer ingår:	Nej
Högtalartyp:	1-vägs
Disktanthögtalare diameter:	20 mm
Monteringshål diameter:	93 mm
