Sida 1/7
English

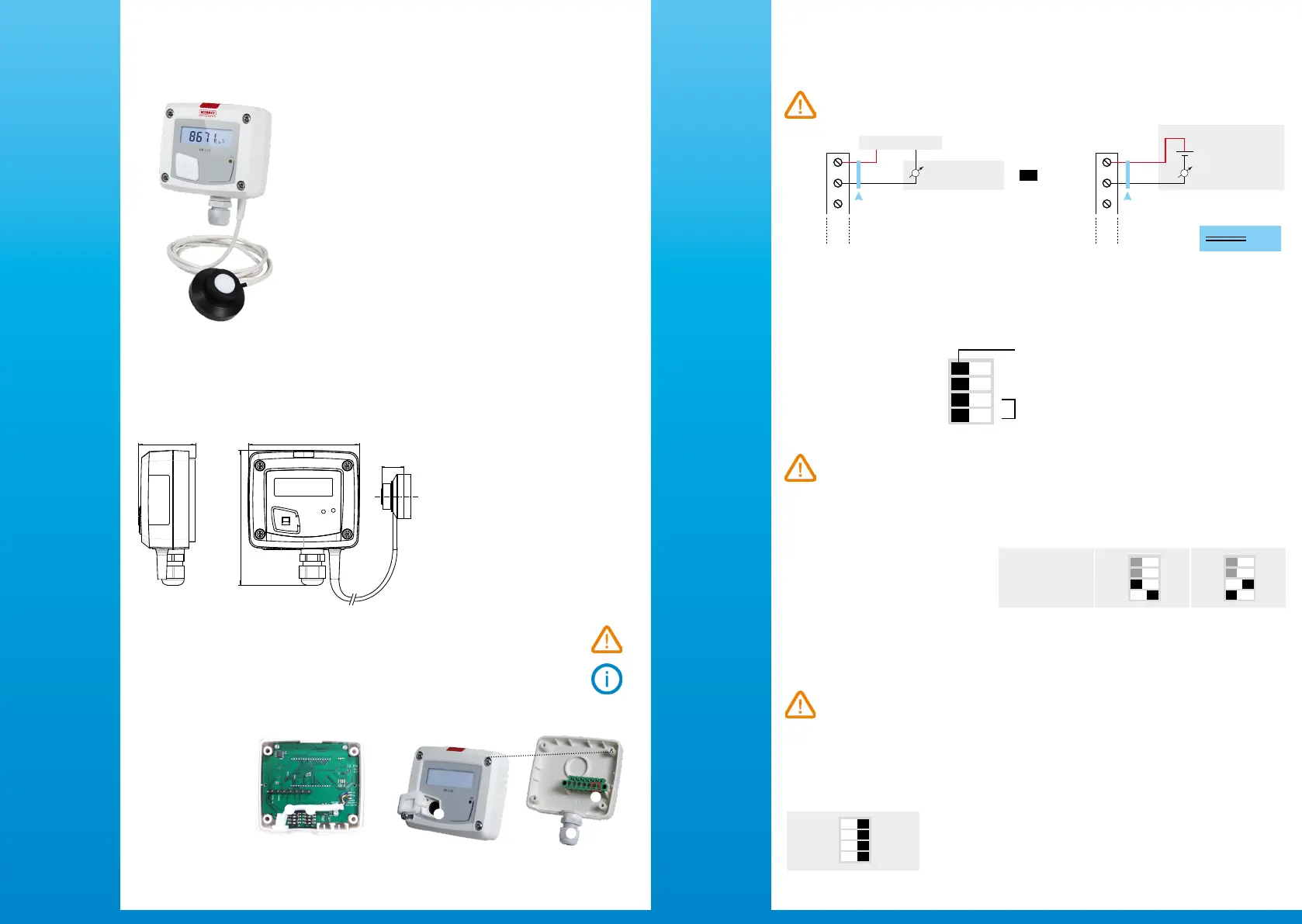

Quick Start Guide
Light transmitter
Operating temperature, protection of the instruments and information about storage
Conditions of use (°C/%RH/m): from -10 to +50 °C; in non-condensing conditions. From 0 to 2000 m.
Protection: IP65
Storage temperature: from -10 to +70 °C.
Dimensions
Symbols used
For your safety and in order to avoid any damage of the device, please follow the procedure described in
this document and read carefully the notes preceded by the following symbol:
The following symbol will also be used in this document, please read carefully the information notes
indicated after this symbol:
Connections
LR 110 light sensor has a measuring range from
0 to 10,000 lux.
46 mm 90 mm
109 mm
26 mm
Ø52 mm
Inside the front housing
1. Active switch
2. Inactive switch
3. LCC-S software
connection
4. Power supply and
output signal
5. Cable gland
1
2
Removable front face Fixed back housing
3
5
4
This connection must be made by a qualied and trained technician.
To make the connection, the transmitter must not be energized.
Vdc
ILUX
or
+
-
Vdc
ILUX
+
-
+
+
-
... 5 6 7
Power supply 16-30 Vdc
A
+
-
... 5 6 7
A
16-30 Vdc
2 wires
Display/regulator/PLC
passive type
2 wires
Display/regulator/PLC
active type
2 wires
Settings and use of the transmitter
Conguration
To congure the transmitter, unscrew the 4 screws of the housing then open it. DIP switches allowing the different
settings are accessible.
To congure the transmitter, it must not be energized. Then you can make the required settings
thanks to the DIP switches as shown on the drawing below. When the transmitter is congured, you
can power it up.
1
2
3
4
Off On
Setting of the measuring unit
On-off switch
Electrical connections – as per NFC15-100 standard
Measuring unit setting – Active switch
Congurations lux fc
Combinations
To set the unit of measurement, put the on-
off switches 3 and 4 as shown in the table:
1
2
3
4
1
2
3
4
Conguration via PC
1
2
3
4
Conguration via LCC-S software (optional)
An easy and friendly conguration with the software!
Caution: The conguration of the parameters can be done either by
DIP switch, or by software (you cannot combine both solutions).
To access to the conguration via software:
- Set the switch as shown below.
- Connect the cable of the LCC-S to the connection of the transmitter
To congure the
transmitter, please
refer to the LCC-S user
manual.
Switch 1
