Wireless Presentation Solution
Ref.-No. 7488000300, 7488000301
Installation and User Manual
Release: Firmware 2.2.3C
7.2018

2
Overview
Kindermann Klick & Show makes connecting or participate in a meeting by a most simple way, clicking a button.
It also allows the other to join in the meeting more actively. The result is to make the meeting more efficient and
productive. The Content is transmitted via WLAN from the mobile transmitters or mobile devices to th Base-e
unit. Additionally a HDMI Signal can be directly attached to the Base-unit .
The Klick & Show K-10S Kit (7488000300) contains of one Base-unit and two Senor-buttons TOUCH
(7488000301). Additional Sensor-buttons TOUCH (7488000301) are available.
The current version of this manual can also be downloaded from the website www.klickandshow.com.
Contents Klick & Show K-10S Kit (7488000300)
1 x Kindermann Klick & Show Base-unit
2 x Antenna
2 x Wireless ck & Show Sensor-buttons TOUCH Kli
1 Universal power-supply 100 240 VAC, 12 VDC/2A, with different adapters –
1 Mounting set for installation at wall
1 Quick-start-guide
Main features
Wireless transmission of Windows or Mac laptops / PCs to central screen a
Can transmit PC’s mirror/extended desktop or Macbook's mirror desktop to the Base-unit
Preview function of connected laptops (max. 14)
Can transmit smart devices' mirror, photos, videos, music etc., supports AisPlay
Transmits USB-HID (f.e. mouse) for interactive units (Touch-displays, interactive WhiteBoard)
Support VESA PC resolution input, auto-detecting
Support remote mouse to control the active source devices ( ) from other smart devices “Remote Control”
Can remote monitoring the active display on screen from smart devices ( a “Remote View”)
Support "Airplay" for apple device
External HDMI-Input at Base-Unit for cable-linked connection to another video-source (document camera, DVD, …)
Sensor-buttons TOUCH
Sensor-button with "Show-me" function with fast signal switching (app. 1s)
Status display with colored LEDs:, green indicates active source signal, red indicates power/link.
Support USB plug-in auto configuration/pairing at Base-Unit
“Show-me" button can independently step in/out the source of PC

3
Accessory:
Klick & Show TOUCH T1 Transmitter (7488000301)
Sensor-button for expansion of Klick & Show K-10S Kit
Klick+Show TRAY (7488000303)
Tray for four Sensor-Buttons TOUCH
Safety instructions
Please read the instructions carefully and store them
The Kindermann Klick & Show K-10S can only be operated with a safety low voltage via the associated
power supply unit
The device must only be stored and used in a dry, closed environment without mechanical stress
Install the unit in a place with adequate ventilation
Do not use any liquids or thinners for cleaning (remove the power supply beforehand!)
Remove the power supply for long periods of non- use
The use of unsuitable accessories may result in damage or malfunction
Please observe the safety instructions of the devices to be connected
WARNING

5
4.3.2 Mobiles .......................................................................................................................................... 29
5. Menu “General setting” ................................................................................................................................ 31
5.1 Ethernet ................................................................................................................................................. 32
5.1.1 IP address ...................................................................................................................................... 32
5.1.2 Ethernet MAC address ................................................................................................................. 32
5.1.3 Proxy & IP settings ....................................................................................................................... 32
5.1.4 PPPoE settings .............................................................................................................................. 33

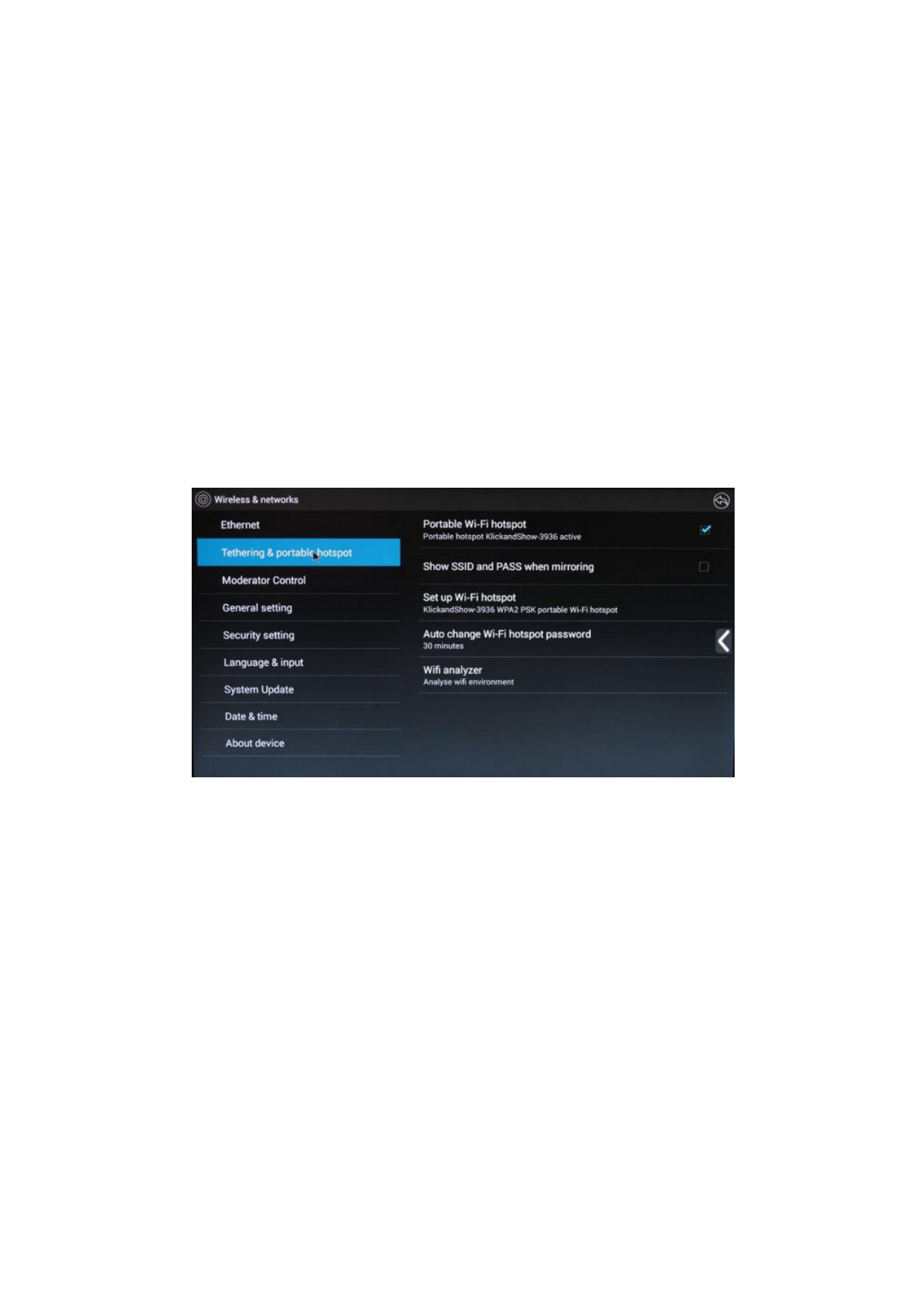

5.2 Tethering & portable hotspot ............................................................................................................ 33
5.2.1 Portable Wi-Fi hotspot ................................................................................................................ 33
5.2.2 Show Wi- name and Wi-Fi password in main screen Fi ........................................................... 33
5.2.3 Set up Wi-Fi hotspot .................................................................................................................... 34
5.2.4 Auto change Wi-Fi hotspot password ....................................................................................... 35
5.2.5 -Fi analyzer Wi ............................................................................................................................... 36
5.3 Moderator Control ............................................................................................................................... 39

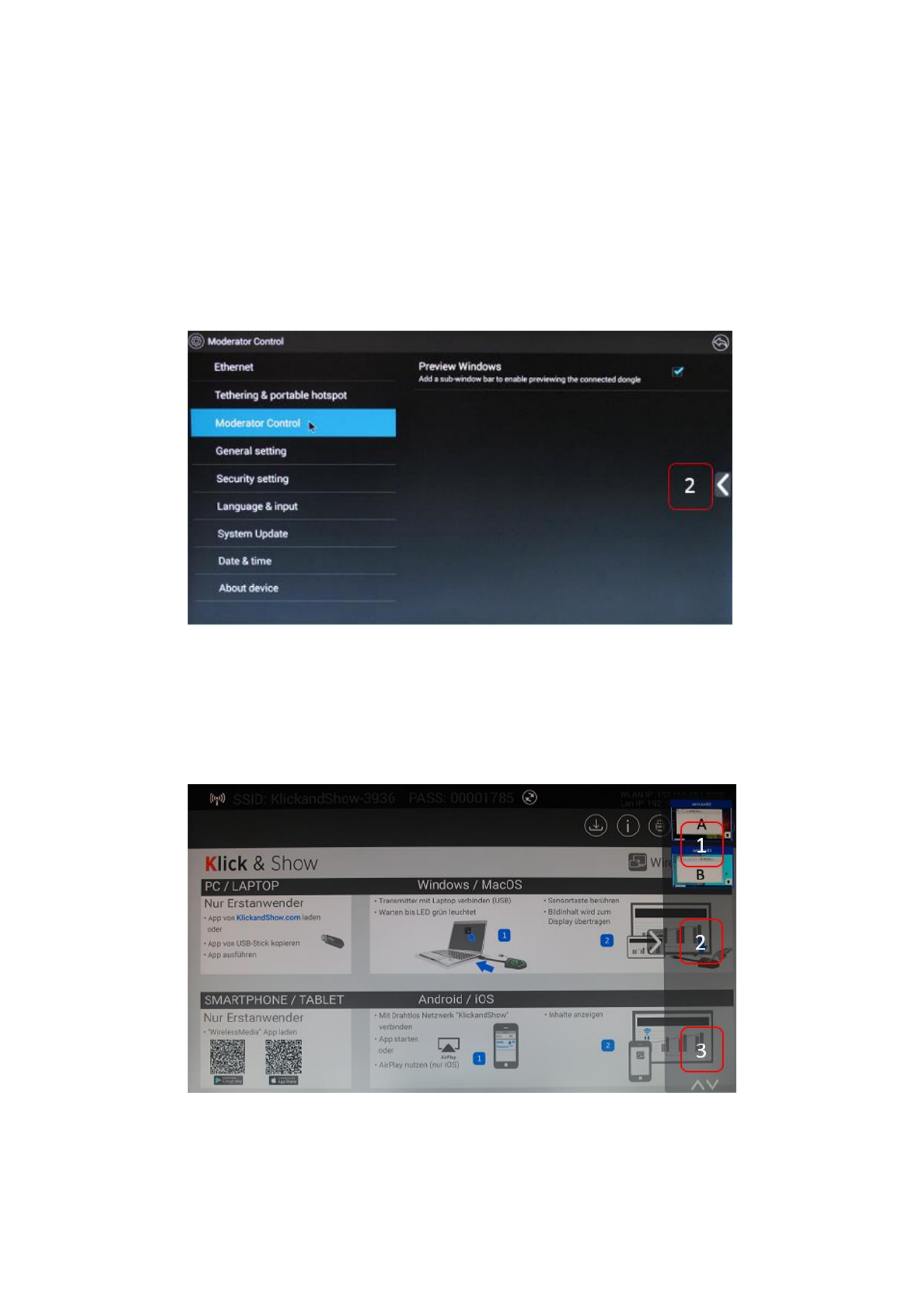

5.3.1 Preview window ............................................................................................................................ 39
5.4 General settings ................................................................................................................................... 40
5.4.1 Automatic creation of Starter-program .................................................................................... 40
5.4.2 Auto Standby ................................................................................................................................ 41
5.4.3 Airplay screen quality .................................................................................................................. 41
5.4.4 HDMI output resolution .............................................................................................................. 41
5.4.5 HDMI input AUTO switch ............................................................................................................ 42
5.4.6 Background image Home screen ............................................................................................... 42
5.4.7 Volume .......................................................................................................................................... 42
5.5 Security setting ..................................................................................................................................... 42
5.5.1 LAN discovery & Connection ..................................................................................................... 42
5.5.2 lock “Remote View” ..................................................................................................................... 43
5.5.3 Clear History after meeting ......................................................................................................... 43
5.5.4 Change admin password ............................................................................................................. 43
5.6 Language & input ................................................................................................................................ 44
5.7 System Update ..................................................................................................................................... 44
5.8 Date & Time .......................................................................................................................................... 44
5.9 About Device ........................................................................................................................................ 44

7

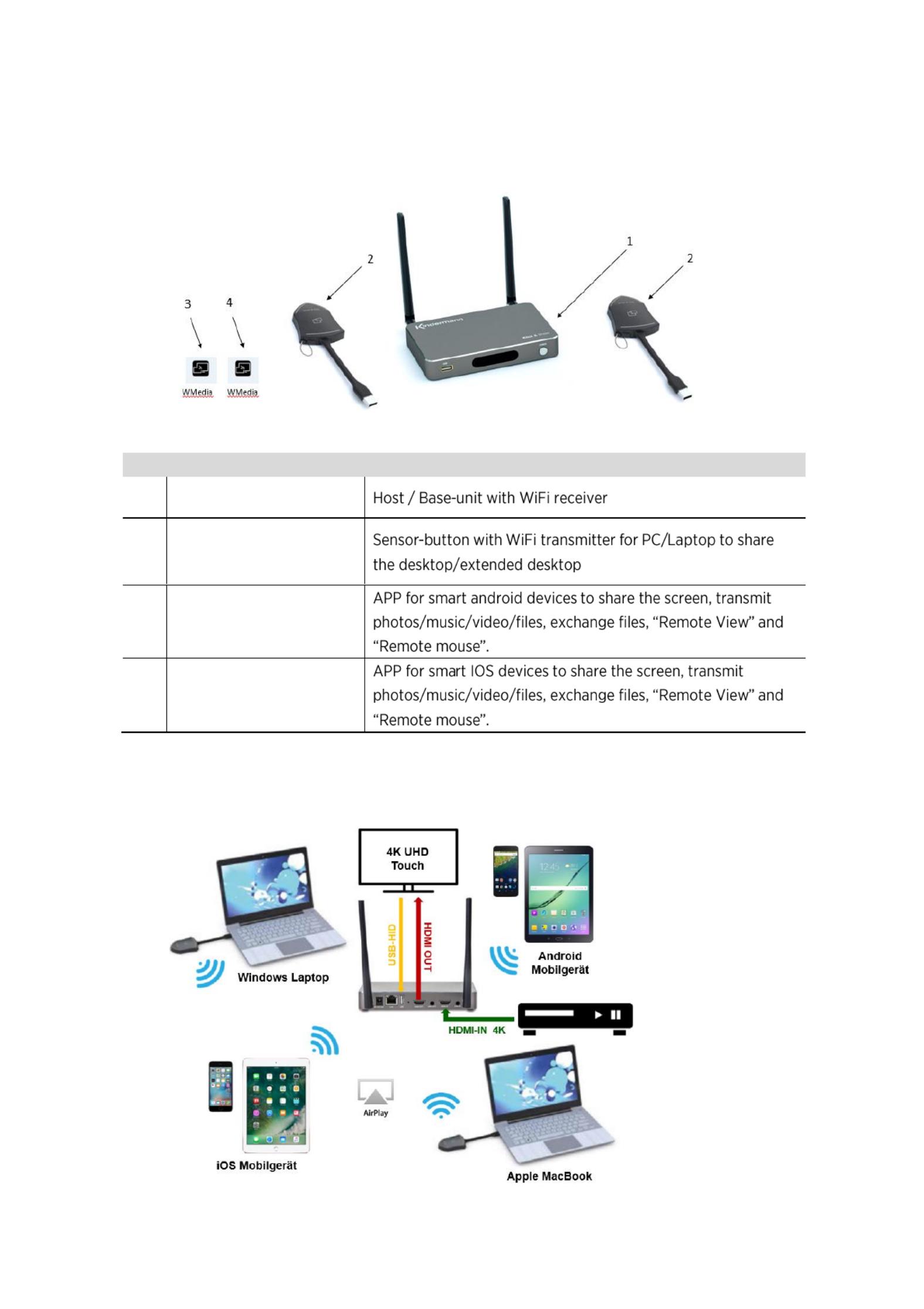

1. Overview
ID
Name
Description
1
Klick & Show Base-Unit
2
Sensor-button TOUCH
3
WirelessMedia for
Android
4
WirelessMedia f IOS or
1.1 Action chart:

8

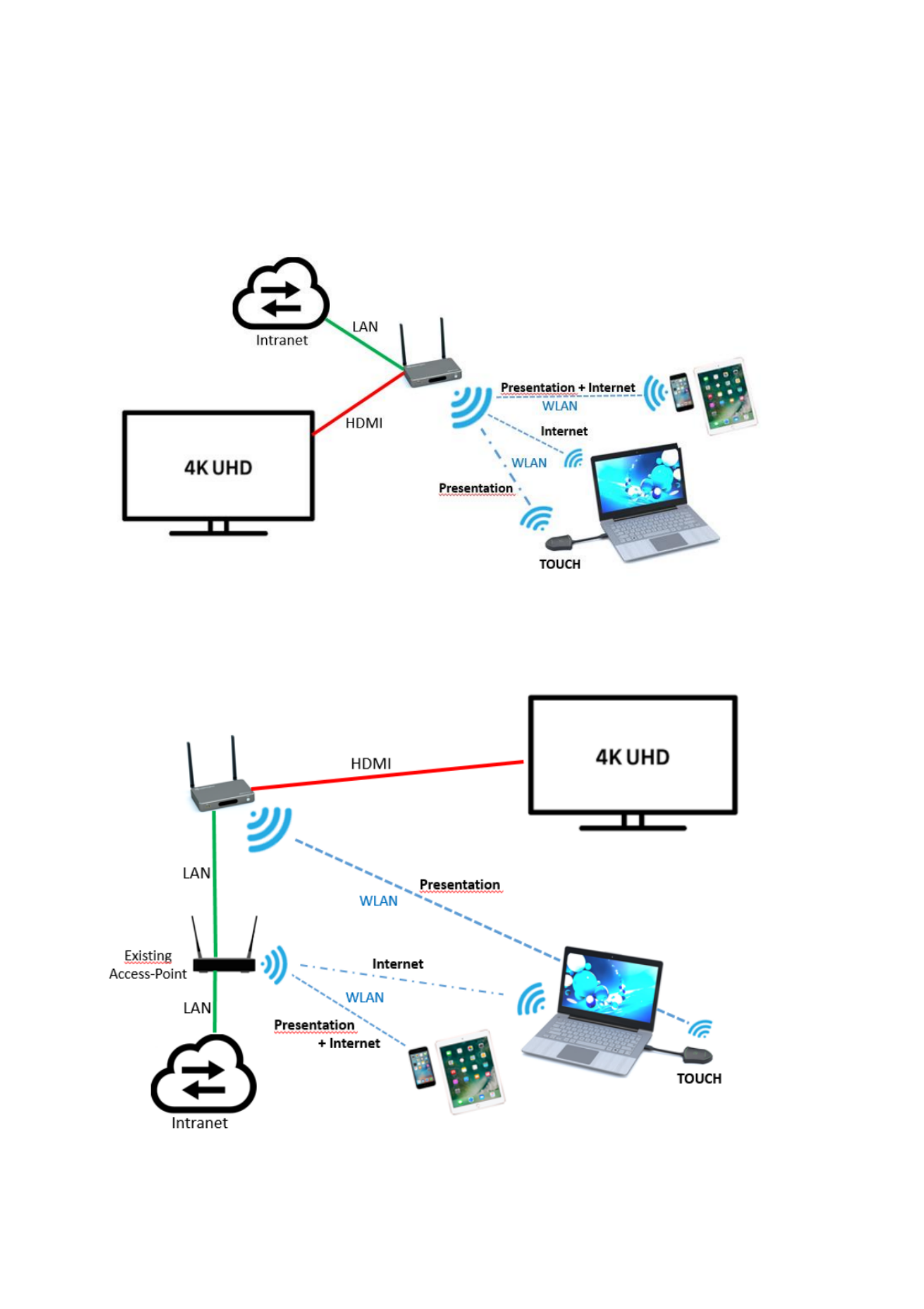

1.2 Network-Integration:

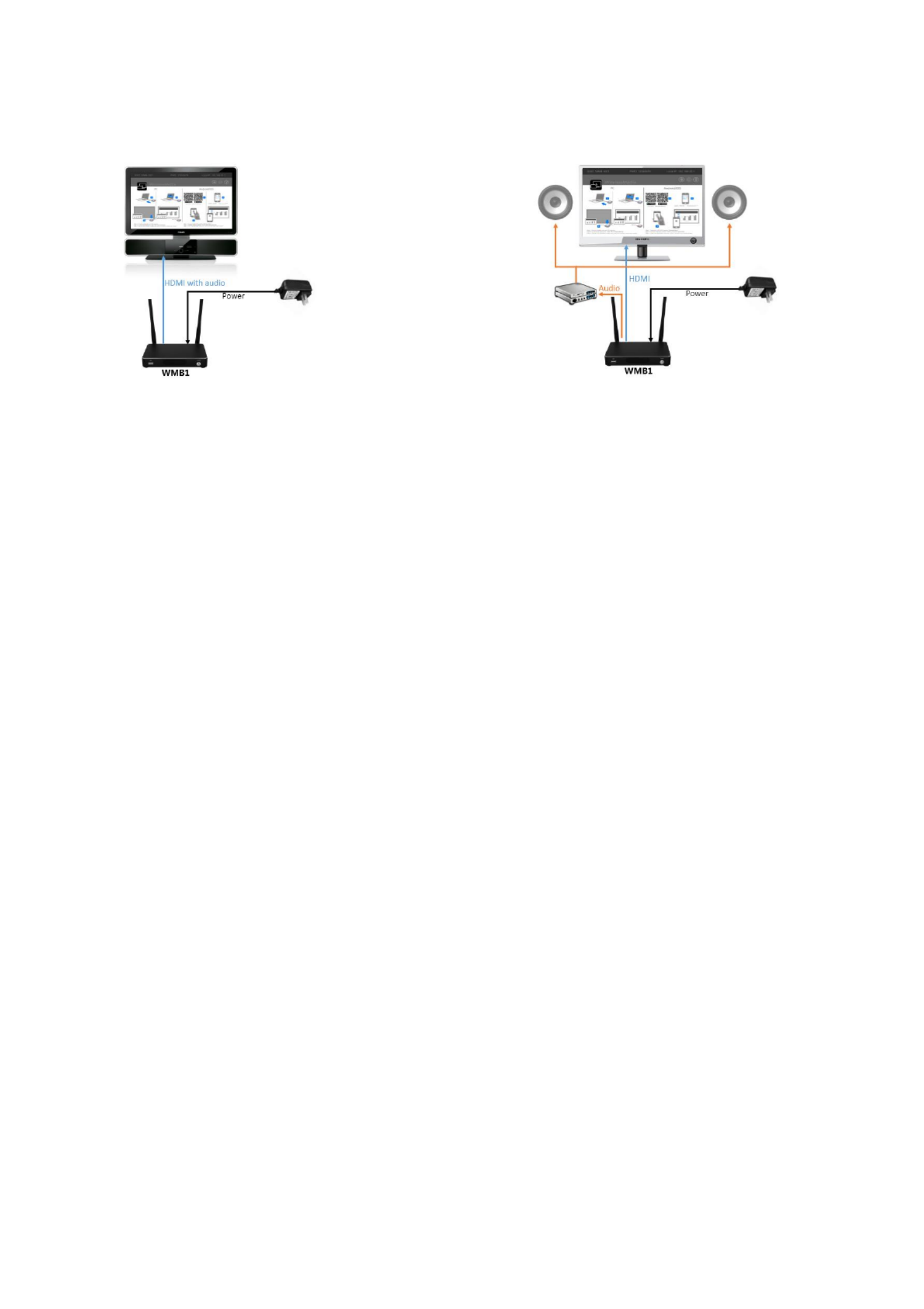

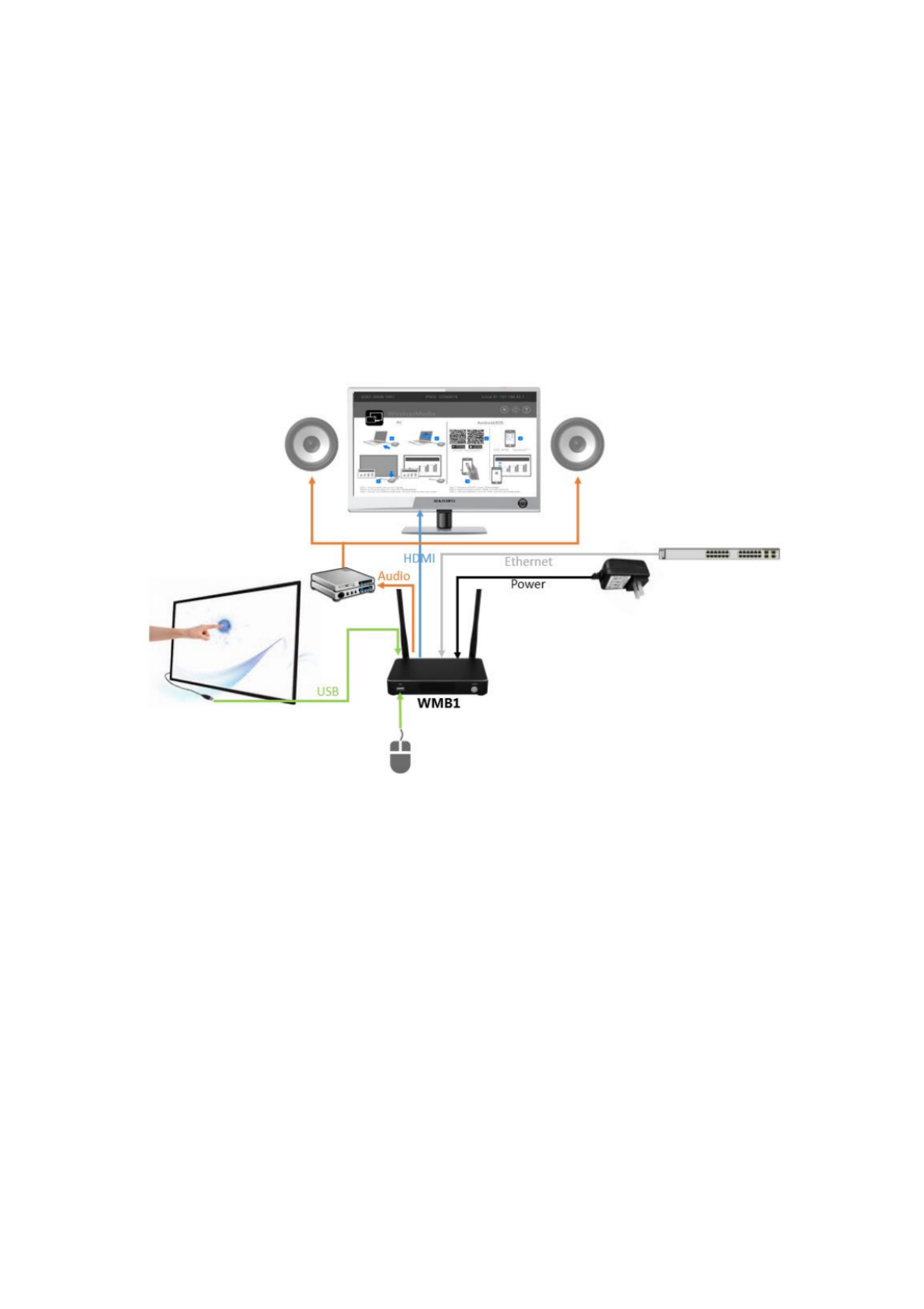

1.2.1 Standard

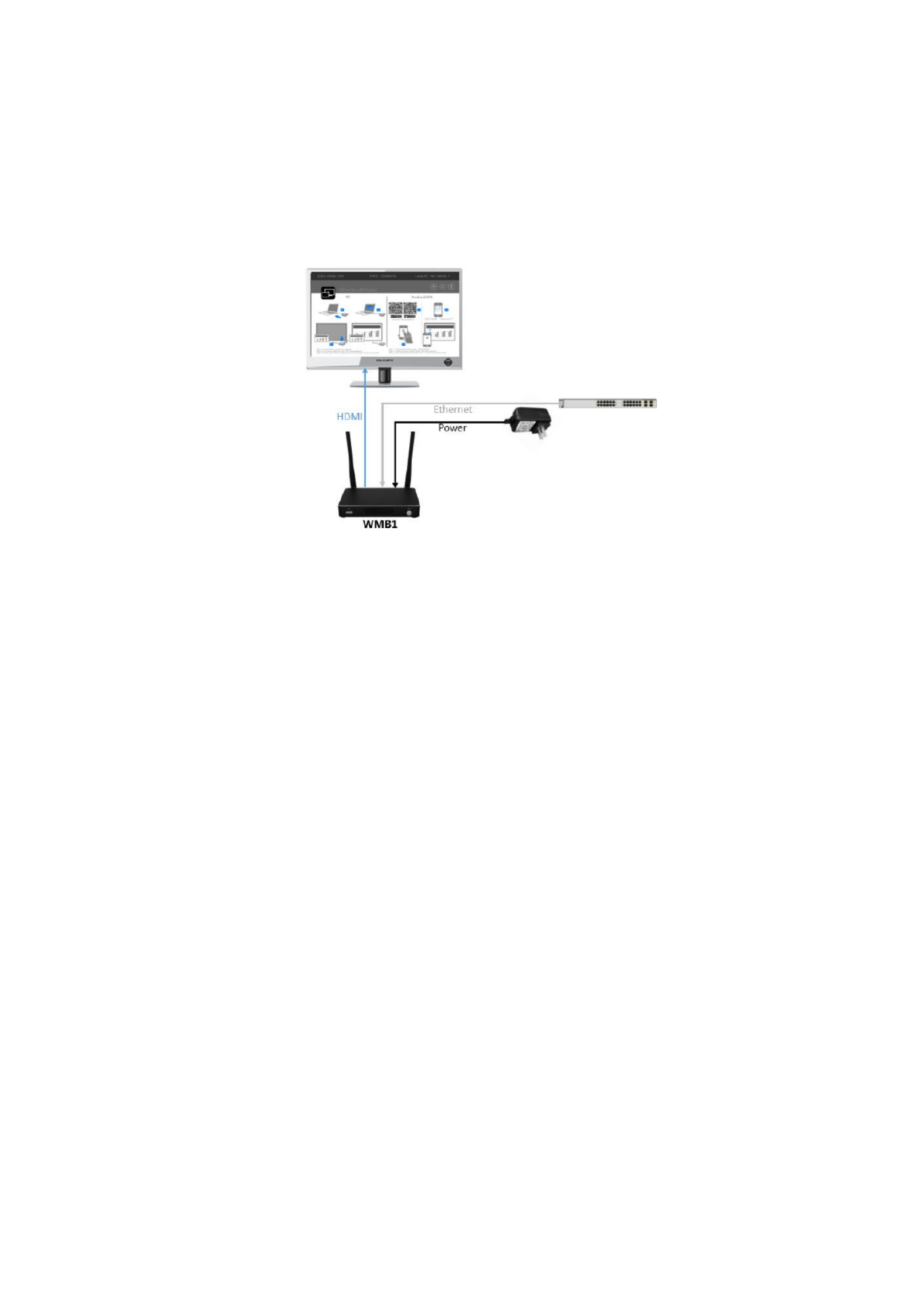

1.2.2 Standard with separate Access Point

10
Instead of a Mouse also a local connected touch Screen can be used
Via this USB Port you can create a USB Stick containing the Starter-Program-Software for the Sensor-
button TOUCH
POWER button
The button at the front of the Base-unit has a power on/off function once the Base-unit is powered.
Pressing the Button switches the unit on and off in Deep-Standby: the Base-unit shuts down completely and can
only be turned on by the POWER button. Green LED in button signals status.

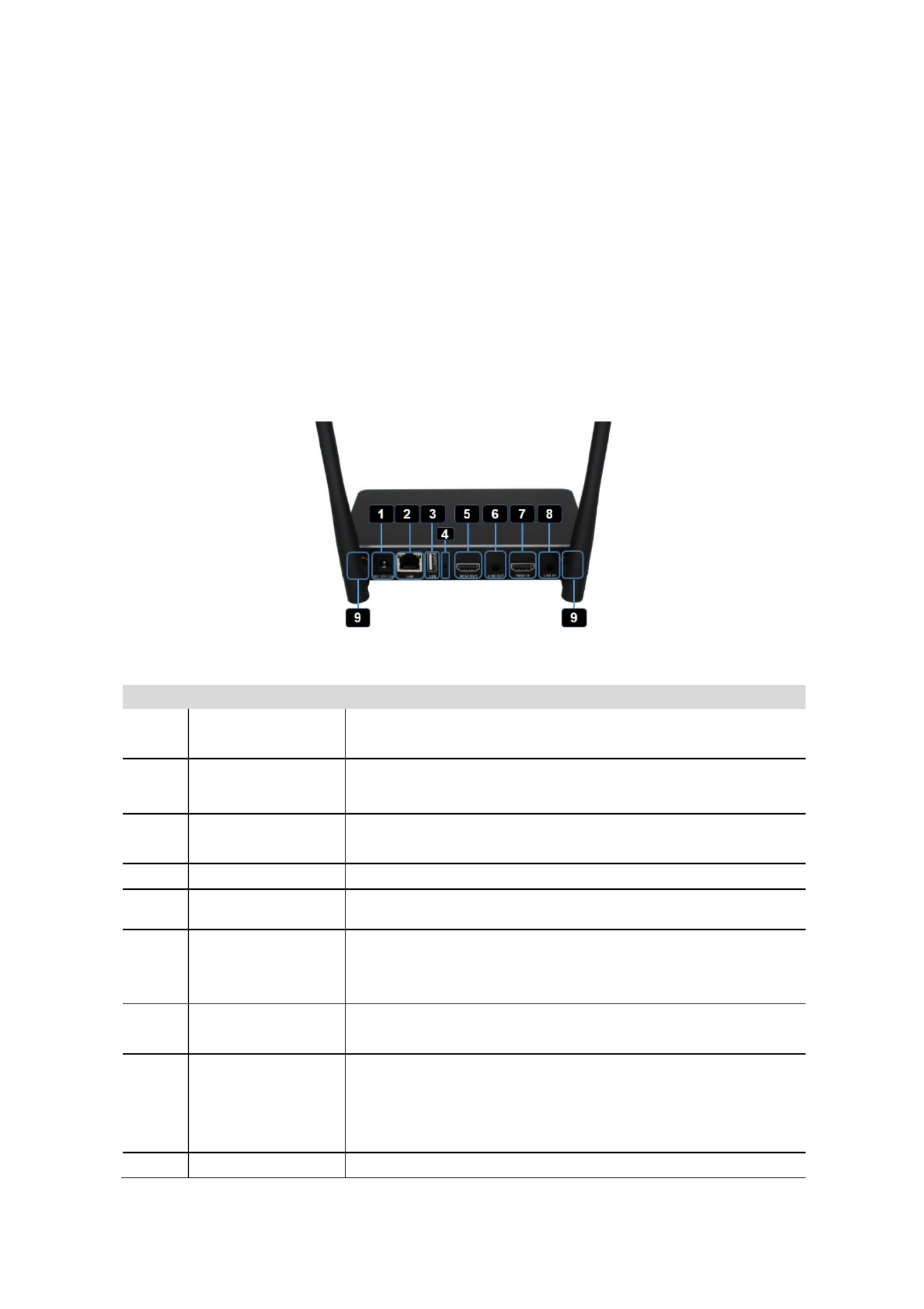

2.1.2 Rear Panel
ID
Name
Description
1
DC Power socket
Connect the included power adapter DC 12V/2A to this socket, and
connect the plug to an available electrical outlet
2
LAN
Connect an Ethernet cable between this jack and a LAN to connect the
Base-unit to LAN; PoE ready
3
USB port
USB port, for pairing Sensor-button TOUCH, mouse control, USB touch
screen etc.; same functions as front-USB
4
Reset
for restoring the factory default setting (needs tool)
5
HDMI OUT
To connect an HD or 4K/HDMI 2.0 output device
6
LINE OUT
2 channel analog audio output, de-embeded from HDMI OUT; connect
a 3.5 mm mini-jack PC connector from this jack to the LINE IN jack of
an audio system
7
HDMI IN
Connect a local HDMI output (PC, document camera, DVD) up to
4K/60Hz, HDCP 2.2 source device
8
LINE IN
2-channel analog audio input is only active, when it detects no audio
signal in HDMI IN data flow, like DVI-Input. Connect a 3.5 mini-jack mm
PC connector from this jack to the Line Out jack of external audio
source devices
9
ANT.
Screw up the included two antennas to these two ports

11
Reset button

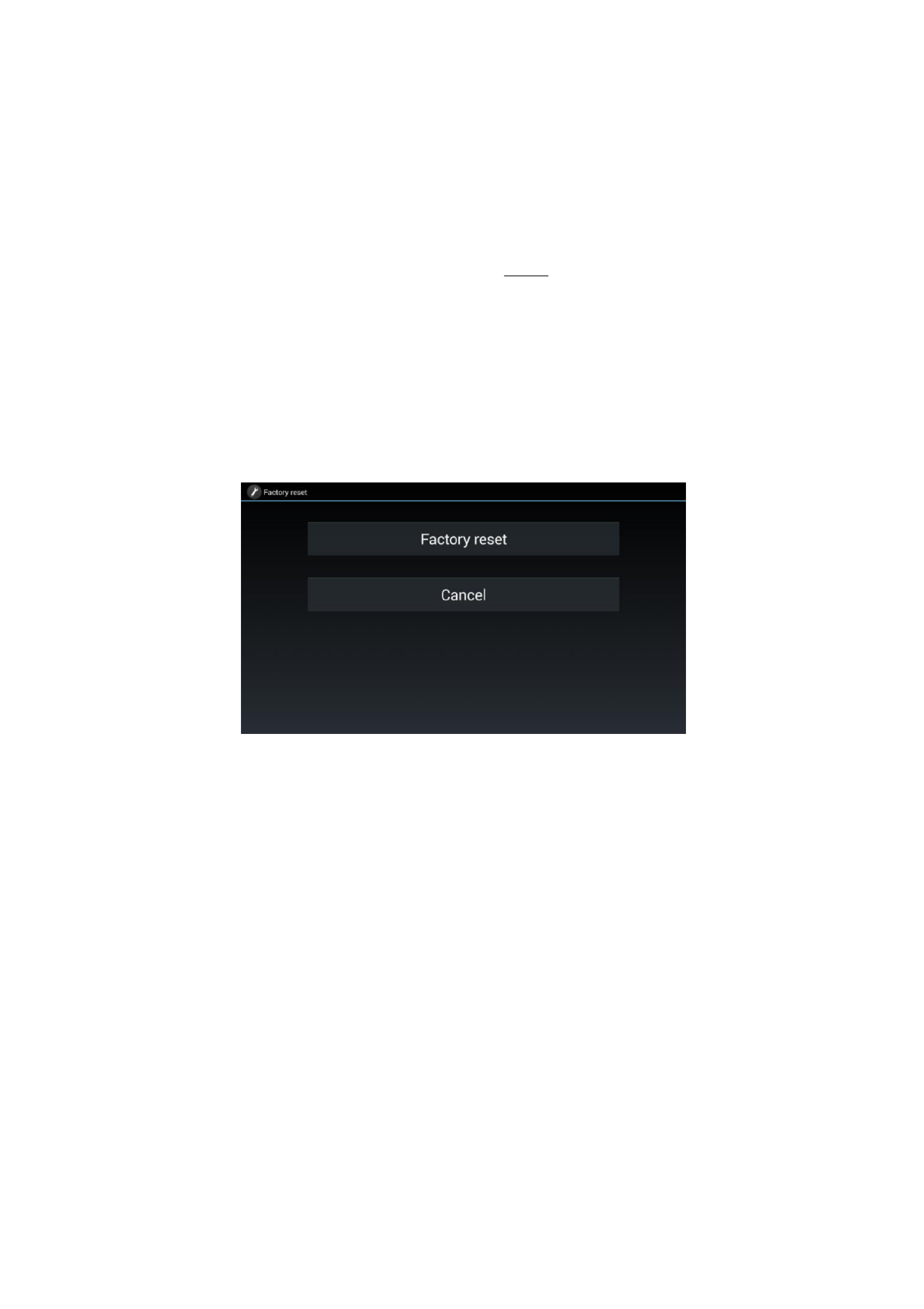

On pressing the Reset button, a Hardware-reset . FACTORY RESETis initiated at Base-unit A „ “, can also be
performed via the menu . Both types will be set the unit back to default. „ “ / „System Update Factory reset”
All data of configuration will be lost. So that you do not have to re-configure all data in an elaborate
process, therefore note all settings within the Sub-menus before doing Factory reset.
Start up the Base-unit.
When the is shown up, press the reset button at the rear panel of Base-unit. Press this button Home screen
with a pointed object, e.g. an unbent paper clip, until the is shown up as below, for at least factory reset page
2 seconds.
The Base-unit will reboot after 3 seconds to be default configuration. All previous settings will be lost and
you will need to do the set-up once more.
After Reset, all Sensor-buttons TOUCH must be paired again to Base-unit, because SSID has changed (see
chapter 4.2).
Default Configuration after Reset
Ethernet
o Proxy: None
o IP setting: DHCP
Tethering & portable hotspot
o Portable Wi-Fi hotspot: ON
o SSID: KlickandShow-xxxx,
o Security: WPA2 PSK
o Frequency: 5 GHZ

12
o Channel: 40
o Auto change of Wi-Fi password: 5 minutes
Moderator Control
o Preview windows: Off
Settings
o Auto Standby: Never
o Airplay quality: High
o Resolution HDMI OUT 1920x1080, 60Hz :
o HDMI-input AUTO switch: Manual
o Background image Home screen Standard :
o Volume: 100
Security setting
o LAN connection: Disable mobile devices can discover/connect the Base-unit in same LAN
o Presenter Lock: Disable the main screen from mobile device application “Remote View”
o Clear history after meeting: Always
o Password for menu: admin
Language: English
Date & time Automatic date & time: use network-provided time
Mechanical fixture points
Brackets for wall-mounting are in delivery. The mechanical fixture points are located at the bottom of the Base-
unit Wall-mounting see chapter 3.1. .

13

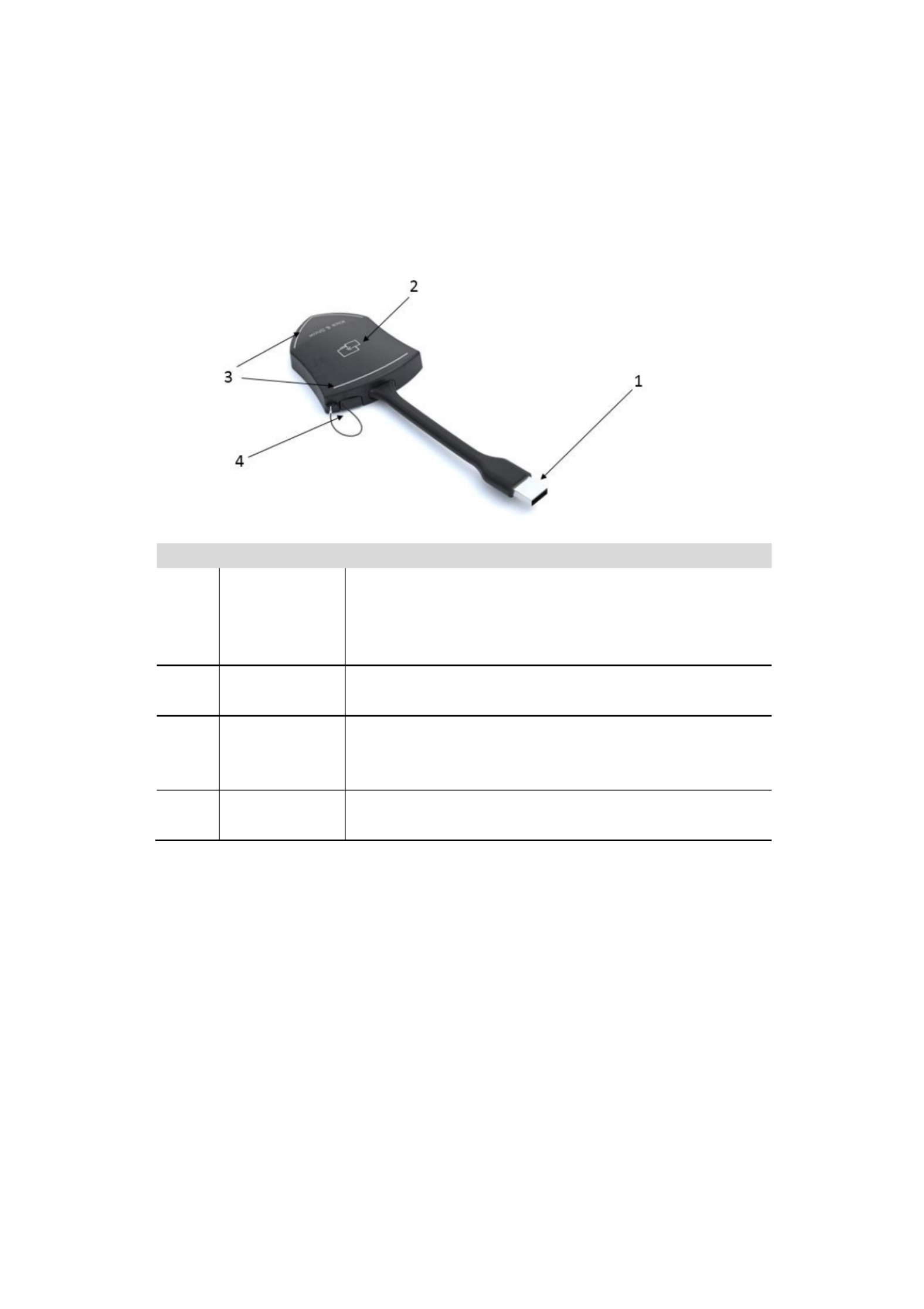

2.1.3 Sensor-Button TOUCH
The Klick & Show Sensor-button TOUCH is a dongle, which is used for extending or mirroring the desktop from a
personal or desktop to the Base-unit and the main screen in a meeting. The button can be connected to PC MAC
the to update the software or for pairing. Base-unit
ID
Name
Description
1
USB connector
- To connect to an USP-port of a PC/Laptop ( for sharing
your screen) or
- ng the Button to the Base-unit pairi or
- for updating its software)
2
Sensor-button
TOUCH
Touch-function with tactile response,
for switching On and Off the presentation of the screen
3
Status LED
Indicates the status of the button
4
USB-Stick
USB-s ck with Starter-program for copying of ti „WirelessMedia.***“
to PC or MAC; printable PDF of User manual.
Status LED
LED indicator is static green ready to transmit a picture, waiting on USER for touch. :
LED indicator is static red: 1. Transmits a pictu , re
2. Pairing is done ( the Base-unit). You can now unplug the Button at
from the Base-unit .
LED indicator is flashing green: The button is plugged in the laptop and initializing, 1.
2. Pairing/software upgrading of the button in the Base-unit is in
progress.
LED indicator is flashing white: the button is locked ( for future expansions) („Do not disturb“ –
LED indicator is Off: the button is not plugged in the PC/Laptop, defective or
USB port or computer might be defective.

15

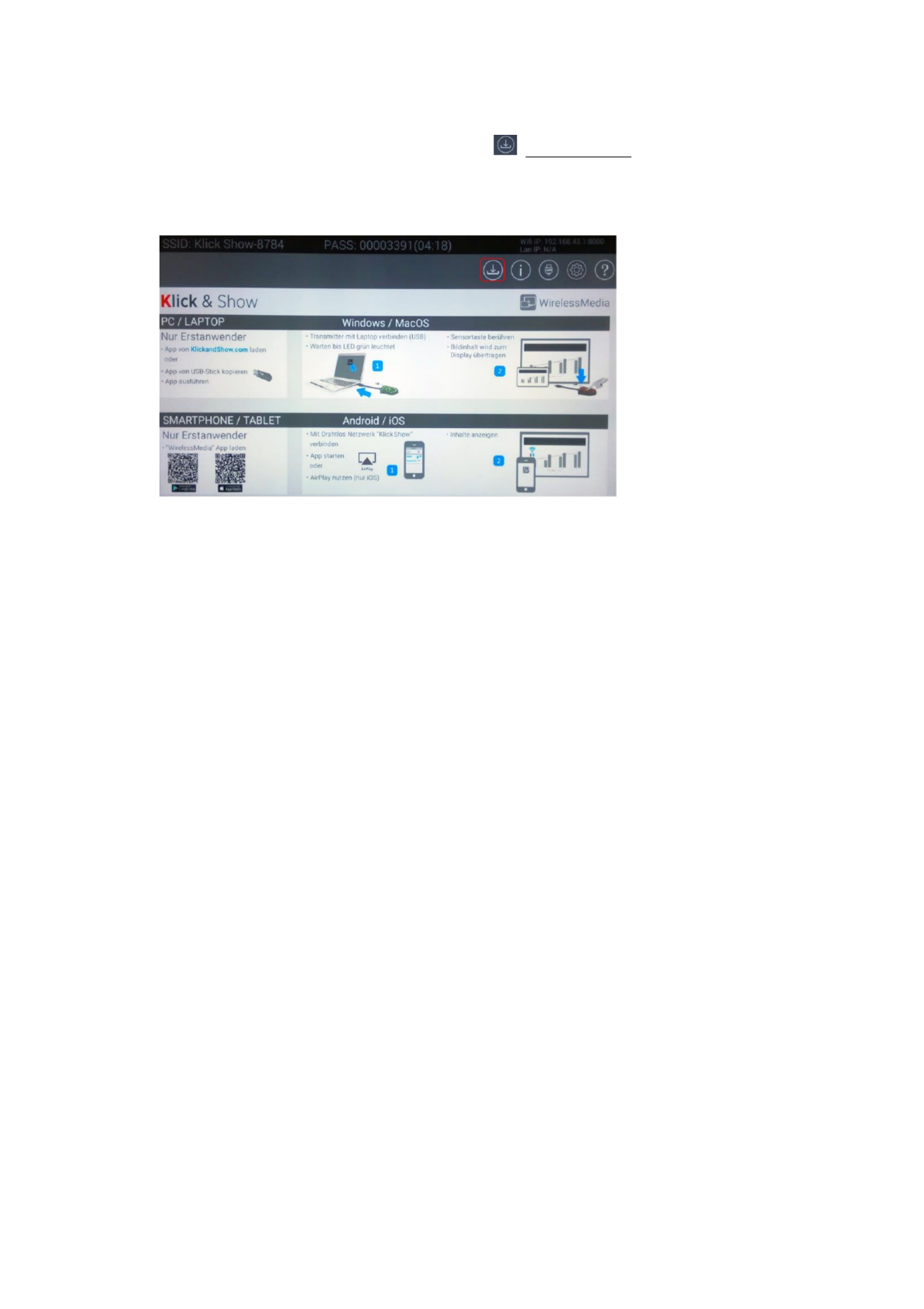

9
Windows /MacOS
Quick Start
Steps to instruct how to transmit with Laptop / Mac,
First-time-user must copy and execute one time the Starter-
program to Laptop / Mac
10
Android/IOS
Quick Start
Steps to instruct how to transmit smart mobile devices either
powered by Android or IOS, onto the main screen.
First-time-user must download the APP from appropriate Store

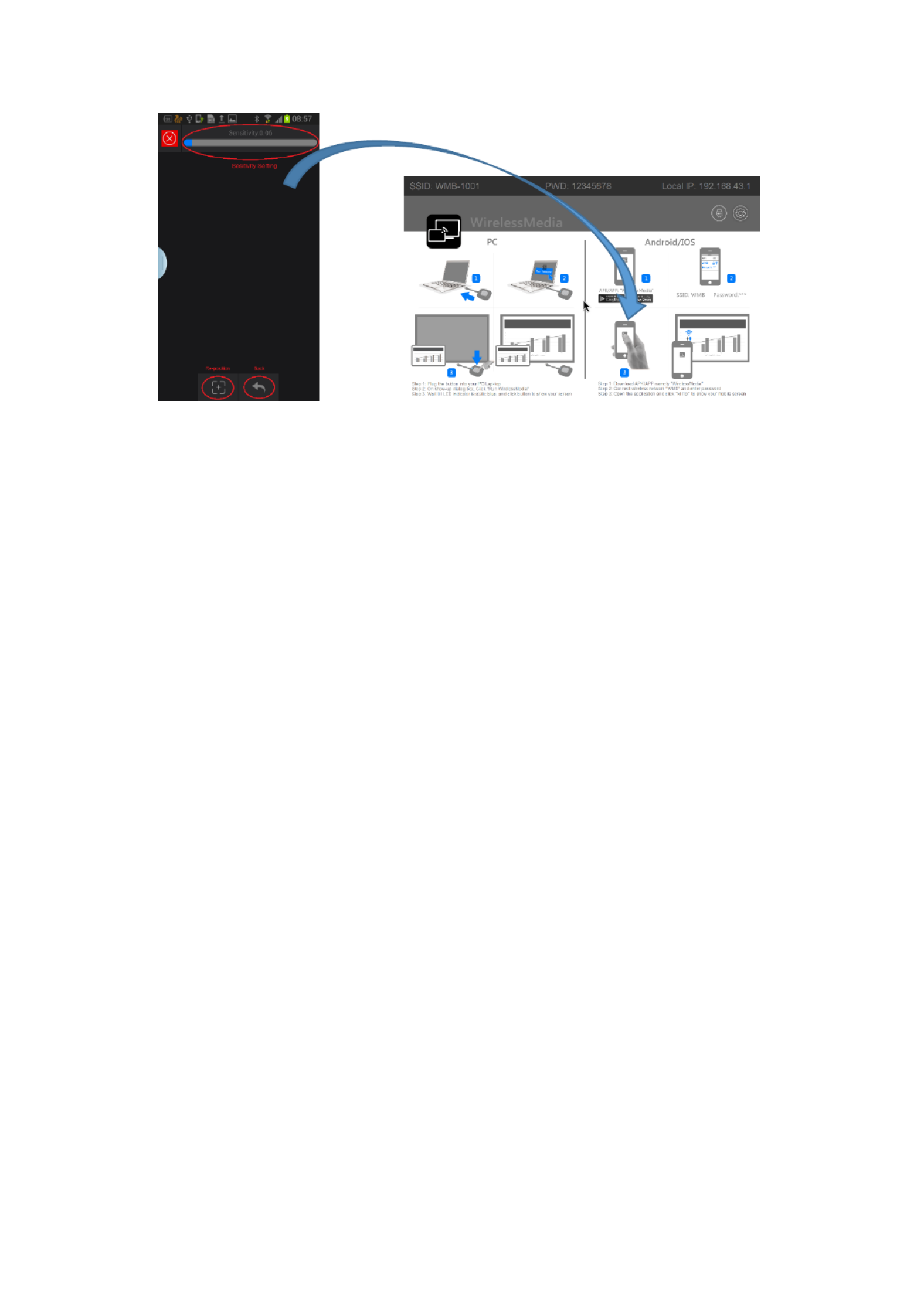

(for ex. scan -code in Home screen) QR
11
Change WiFi
password
Generate new password for securing your WiFi network
12
WiFi-indicator
WiFi hotspot is activated or deactivated

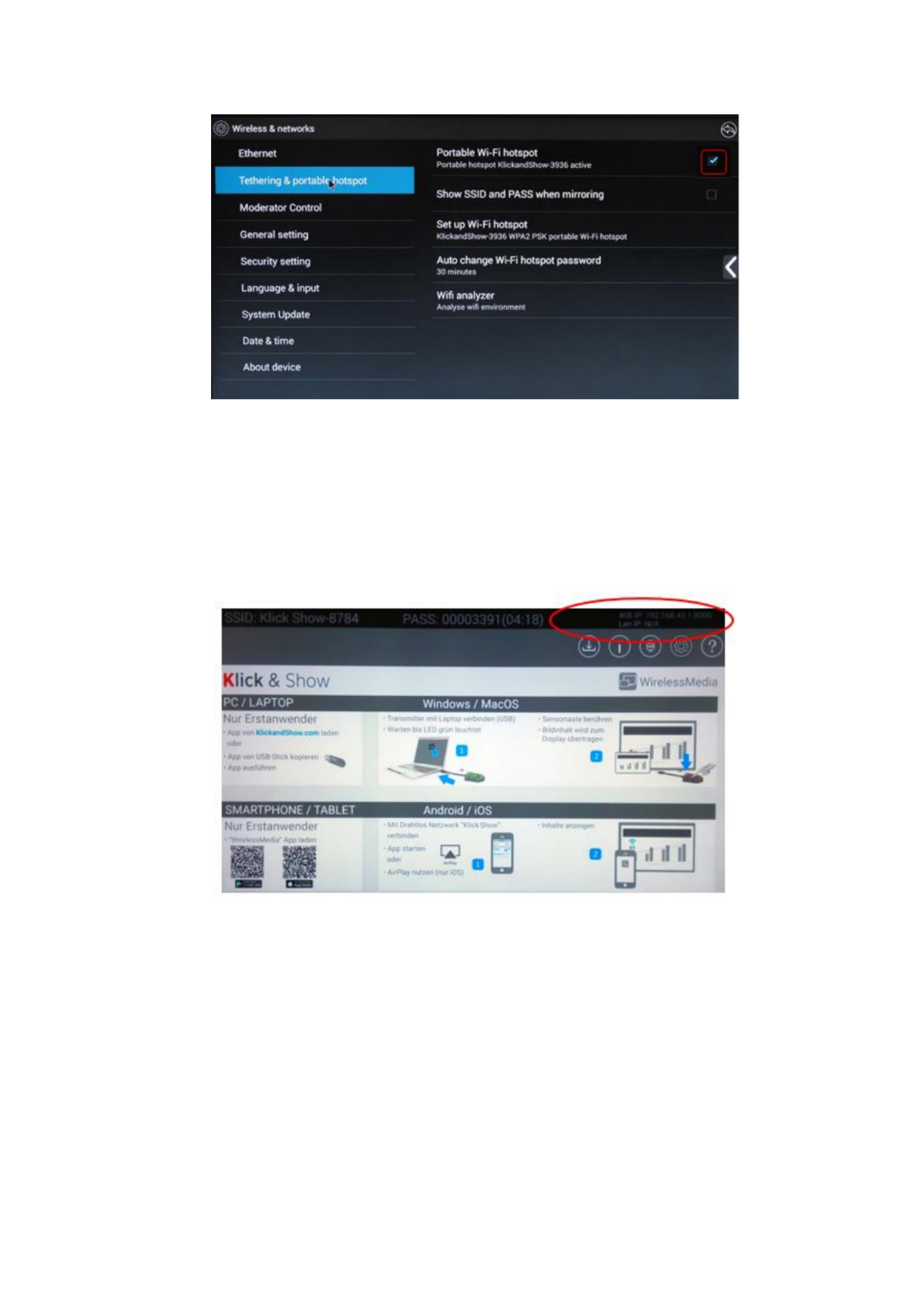

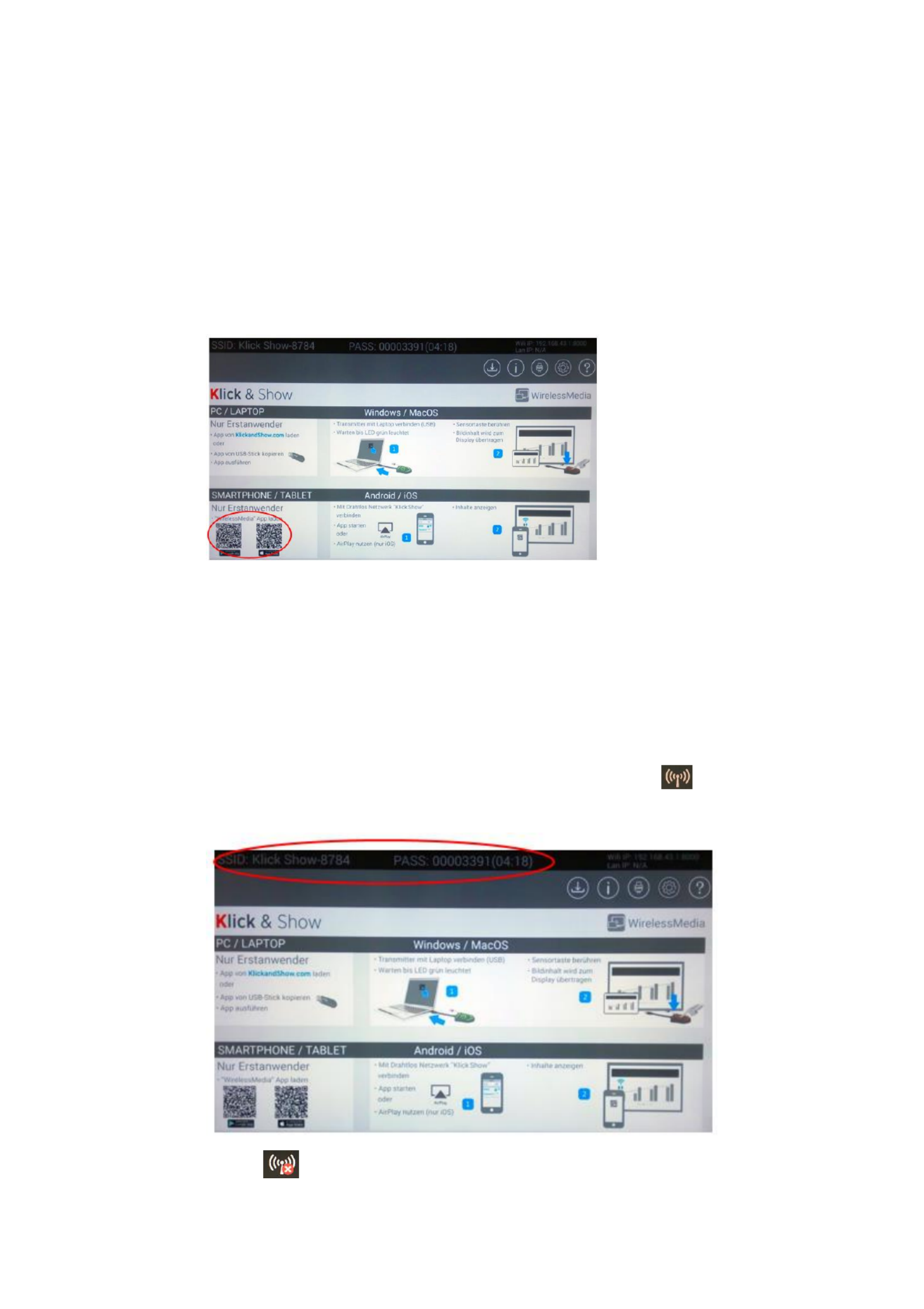

WiFI-network name (SSID) password +
To connect the Hotspot of Klick & Show Base-unit by - Wi Fi.
Note: If WiFi-indicator Setting(12) shows please click the page, find Tethering & Portable hotspot and “ ”
check on the Portable WiFi hotspot.
Password
Authentication with a password secures the connection of wireless LAN for authorized users only. To avoid that a
participant of last meeting can view an actual meeting with the APP Remote View , the WiFi “ ” of WirelessMedia
password can change automatically on a certain configurable time in settings menu, unless at least one button is
connected to the Base-unit see chapter 5.2.4. A click on the button (11) in Home screen will generate a –
new password directly. This function is mainly used at the end of a meeting, to safely Remote interrupt the “
View meeting-history is cleared, LAN is interrupted. ” function,
LAN IP
It shows the IP address in the LAN (Local Area Network). Via LAN-port mobile devices can be connected to the
Internet.
Note:
when it shows N/A means the Base-unit is not connected to the LAN by by CAT cable or it failed to get an “ ”,
available IP address by the corporation router.
WiFi IP
It shows the WiFi-address in the network.

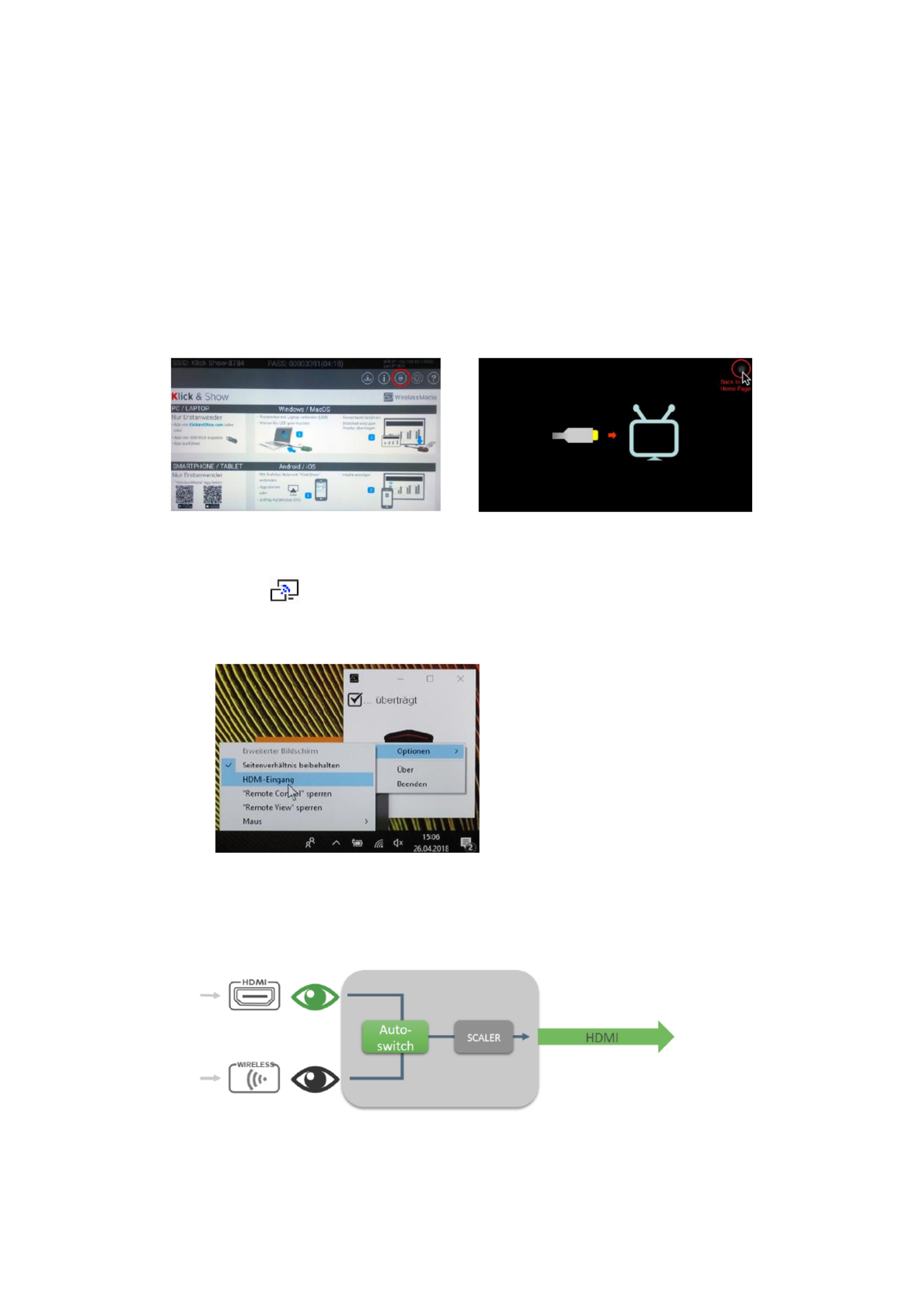

HDMI Input
Click this button to toggle the local HDMI input on the Klick & Show

16
Main menu settings
User shall use the USB connected mouse or the Remote Mouse function in the APP for Android „WirelessMedia”
Apk or APP -mouse connected to the Base-“WirelessMedia for iOS” ”. It is always recommended to have a USB
unit. If possible, use a wireless mouse.
It includes the sub-menu as below:
Ethernet
Tethering & Portable hotsp ot
Moderator Control
General setting
Security setting
Language & input
System Update
Date & Time
About Device
Help
User Manual (printable in PDF format). The latest version of this manual can also be downloaded from the
website www.klickandshow.com.
2.3 Klick & Show TOUCH quick- -start steps to
When you are using Klick & Show for the first time on your laptop of for guests, you have to copy the Starter-
program first on your Laptop / PC. Run this Starter-program. “WirelessMedia“
Note:
You do not need Admin-rights for installing the Starter-program.
When the Starter-program is pre-installed one time, Klick & Show is ready to use, continue with Step 5.
There are 4 possibilities for loading and executing the App for “WirelessMedia-windows.exe“ Windows or
„WirelessMedia-macOS.app“ for MAC:
1. The best and safest way: LAN WiFI download the APP via or of Base-unit enter -address (3) of status-, IP
bar of Home screen in a browser, download APP, continue with 5.
2. Download APP from Internet continue with 5 www.klickandshow.com , .

17
3. Store APP on a at Base-unit plug a USB-stick to USB port of Base-unit and copy Start-program USB-stick :
„WirelessMedia.exe“ to USB-stick by clicking on symbol continue with 5. ,
4. Copy the APP on PC. from integrated USB-stick of Sensor-button TOUCH
Copy Starter-program at a on . USB-stick Base-unit
5. Plug the Sensor-button TOUCH into your PC/Laptop via USB.
6. Wait until LED indicator is static green.
7. Touch Sensor-button to share your screen: LED is static red.
8. Touch Sensor-button again, to stop transmission: LED is static green.
Smart mobile devices quick- -start steps to
1. Download APK/APP namely from appropriate store (use -code scanner for Home “ ”WirelessMedia QR
screen ).
2. Connect your mobile device with the wireless network of Base-unit.
3. Open the application and click “ ” to show your mobile screenMirror . Further functions see section 7.2, 7.3.

18
3. Installation Klick & Show
Overview
Installation methods for the Base-unit
Table mounting
Wall mounting
Antenna placement and orientation
Wiring Diagram
Power Connection
Video Connection
Audio Connection
LAN Connection
USB Connection
3.1 Installation methods for the Base-unit
The Base-unit can be placed on a table in meeting room or be mounted on the wall.
The antennas are removable. They can rotate or tilt for better wireless connection.
Note:
For optimum function, install the Base-unit near monitor. Avoid obstacles between Sensor-button TOUCH and
Base-unit.
Necessary tools
• A drill (type of drill depends on the type of wall/table)
• Flat screwdriver
• Additional screwdriver that matches the mounting screws (mounting screws not included in the package).
Necessary parts
• 2 mounting screws (the head of the screw has to be smaller than the whole of the bracket)
• 2 plugs fitting to Wall and Screws
• 2 mounting bracket (included in the box).
How to install
1. Drill two holes in the wall as indicated on the drawing. Horizontal distance: 177 mm ± 0.15.
2. At the bottom of Base-unit, place the bracket on the 4 holes and turn in 4 delivered flat screws to be fasten
enough.

19
3. Drive in 2 screws. Please leave at least a dimension 0.15mm space to place the bracket between the screw
header and wall.
4. Place the Base-unit on the wall, so that the holes on the bracket matches the 2 unfixed screws on the wall..
Hoop the bracket on the screw and slide th Base-unit downwards until it is fixed in the 2 screw on the wall. e
Antenna placement rules
The antennas should be oriented vertically, so perpendicular to the ceiling and parallel to the walls.
The antennas should be installed far enough (at least 50cm/1.6ft) from metallic surfaces to avoid
unwanted reflections and far enough (at least 1m/3.3ft) from other radio equipment that operates in the
same frequency range, e.g. other Wi-Fi access points, cordless telephone, microwave ovens,…. It is also
best to install antennas at least 15 cm (6 inches) from concrete walls.
The most favorable situation is a direct line of sight between antennas and Sensor-buttons TOUCH. Any
obstruction will cause the signal to follow a longer propagation path, which can result in performance
degradation.
Due to the particular radio pattern of the dipole antennas, the antennas should not be placed just above
potential positions of Sensor-buttons users. As a result, the advised position for the obstruction antennas
is at the side of the meeting room.

21
Note:
Once the Base-unit is powered, it starts up (booting). From now on please use the POWER button with Status LED
on front of Base-unit to switch on or off.
Power over Ethernet
If the LAN Ethernet switcher support (Power over Ethernet), it could power up the Base-unit instead of using PoE
the external power adapter.

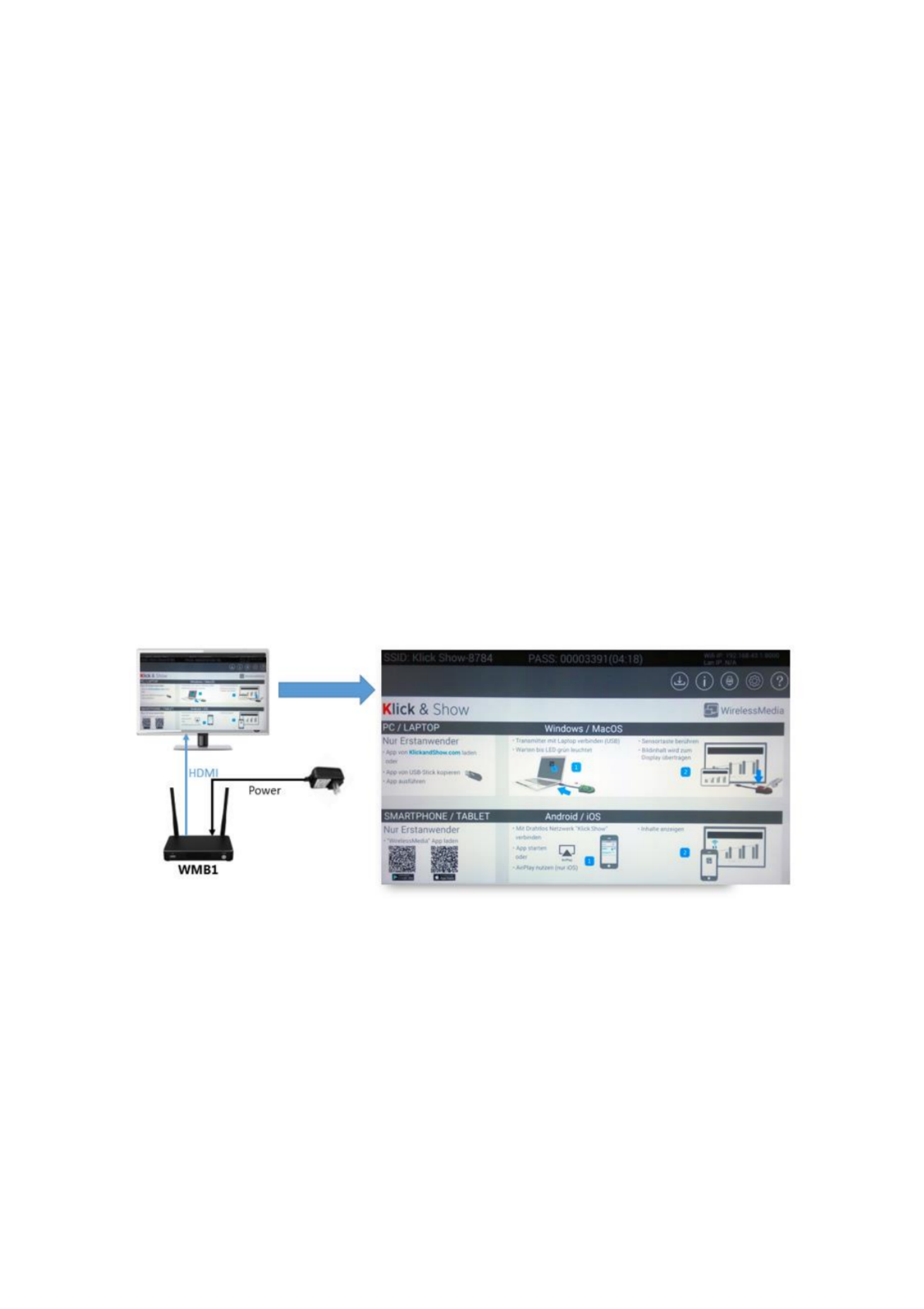

3.4 Video connection
1. Connect the of Base-unit to a Full- -/4K display by a quality HDMI cable. HDMI-Output HD
2. Switch the Base-unit . ON
3. After started, the system shows the Home screen.
3.5 Audio Connection
The WiFi of Sensor-button TOUCH transmits the audio output of the PC/Laptop, -direct and send to the Base-re
unit together with the video signal. The audio will be output at line levels from mini jack socket 3.5 mm
connector and via the HDMI output connectors simultaneously.
Audio via HDMI output
When your display/projector is connected via HDMI and it support audio together with video than a separate

22
audio connection is not necessary. The audio signal is sent together with the video signal to the display.
Note:
If there is no sound from speaker check the settings of volume-mixer in taskbar of laptop, “WirelessMedia” or
“Video layback” must be activated.-P
Audio Output
Connect the analog audio (mini Jack 3.5mm) the Base-unit “LINE OUT” of with the meeting room’s sound system
by using a fitting cable.
PC/Laptop Sound
As default set, Klick & Show will mute the internal speaker of PC/Laptop and route the audio to the Base-unit,
after PC/Laptop is successfully mirroring desktop to the main screen, in order to avoid the repeated audio. When
transmission is stopped at Sensor-button, local loudspeaker will return to previous status.
Note:
If there is no sound, check the volume control on your laptop's taskbar, see in"Mixer" "WirelessMedia" or "Video if
Playback" is activated..
To keep the internal speaker of PC/Lap muted while route the audio to the Base-unit, use the audio mute icon in
the status bar.

23
3.6 LAN connection
The Base-unit can be connected to a local network or directly to a PC/Laptop. For normal operation, a LAN
connection is not necessary. When needed, it is suggested to connect the Klick & Show to the internet.
The LAN connection can be used for:
network integration of Base-unit
telnet control of the Base-unit
maintenance purpose (in preparation)
Telnet commands
Telnet is a relatively simple, text-based protocol by which a computer of another person can connect via internet
to Klick & Show. Control via TCP/IP (port 5656) is possible. You can find the list of commands in chapter 8.
LAN indicator
LAN connected or disconnected is shown in a message in lower/right corner on the Home screen. “ ” “ ”

24
3.7 Usage of USB devices
Please use a USB Mouse or Touchscreen:
1. For configuration of Klick & Show,
2. to control the sharing PC/Laptop - can be blocked in settings („Remote Control“ ),
3. for white board or annotation during a presentation, Klick & Show transmits Video, Audio and the USB-
HID function for mouse-control and click-function of a touchscreen. Connect touch-interface of your
screen to the USB-port on your laptop or PC,
4. To run a system upgrade.
USB control
USB mouse for configuration menu
Single click to select
Right-click to back the Home screento
Touchscreen
Single click to select
Long press to open the contextual menus, as double-click or click the right button of a USB mouse.

25
4. Starting-up of Klick & Show
4.1 Mobile units: Wireless Connection
Download the application namely for example scan -Code in Home screen in Android Play “WirelessMedia” ( QR )
Store or Apple App Store.
“WirelessMedia” provides two ways to discover the Klick & Show:
1. Tethering & portable hotspot, to connect the hotspot to the Klick & Show,
2. LAN connection, to connect Klick & Show and mobile both in LAN network.
4.1.1 Enable portable hotspot:
Check the and (Password) on the Home screen. WiFi should be activated: . SSID PASS
If the WiFi indicator shows , activate the WiFi in Configuration menu.

26
4.1.2 Enable LAN Connection :
Be sure the Klick & Show is connected to the Network. When Local IP shows an active IP address, such for
example like 192.168.3.1, it indicates the Base-unit is successfully connected to the LAN and get an appointed IP
address.
Note:
when it shows N/A means the Base-unit is not connected to the LAN by by CAT cable or it failed to get an “ ”,
available IP address by the corporation router.
For basic function a LAN connection is not needed.
Please refer to the “LAN port connection’ page, check on the LAN discovery & connection, as below.
Default password admin for entering the Main menu is “ ”.

27
4.2 Pairing Sensor-button with Base-unit
Connect the USB-connector of Sensor-button TOUCH to either of one USB port of Base-unit, to pair both units at
same WLAN Follow all OSD messages A successful pairing is shown at OSD and static red LED. . .
Then, please disconnect the Sensor-button TOUCH.
Pair all buttons in the same way.
If error-message shown, please check the connection of USB to keep stable after plug-in, “Configuration fail” is
and try again.
Note:
After changing the SSID/WIFI channel in menu, all the Sensor-buttons TOUCH must be pair again! each ed

29
4.3.2 Mobiles

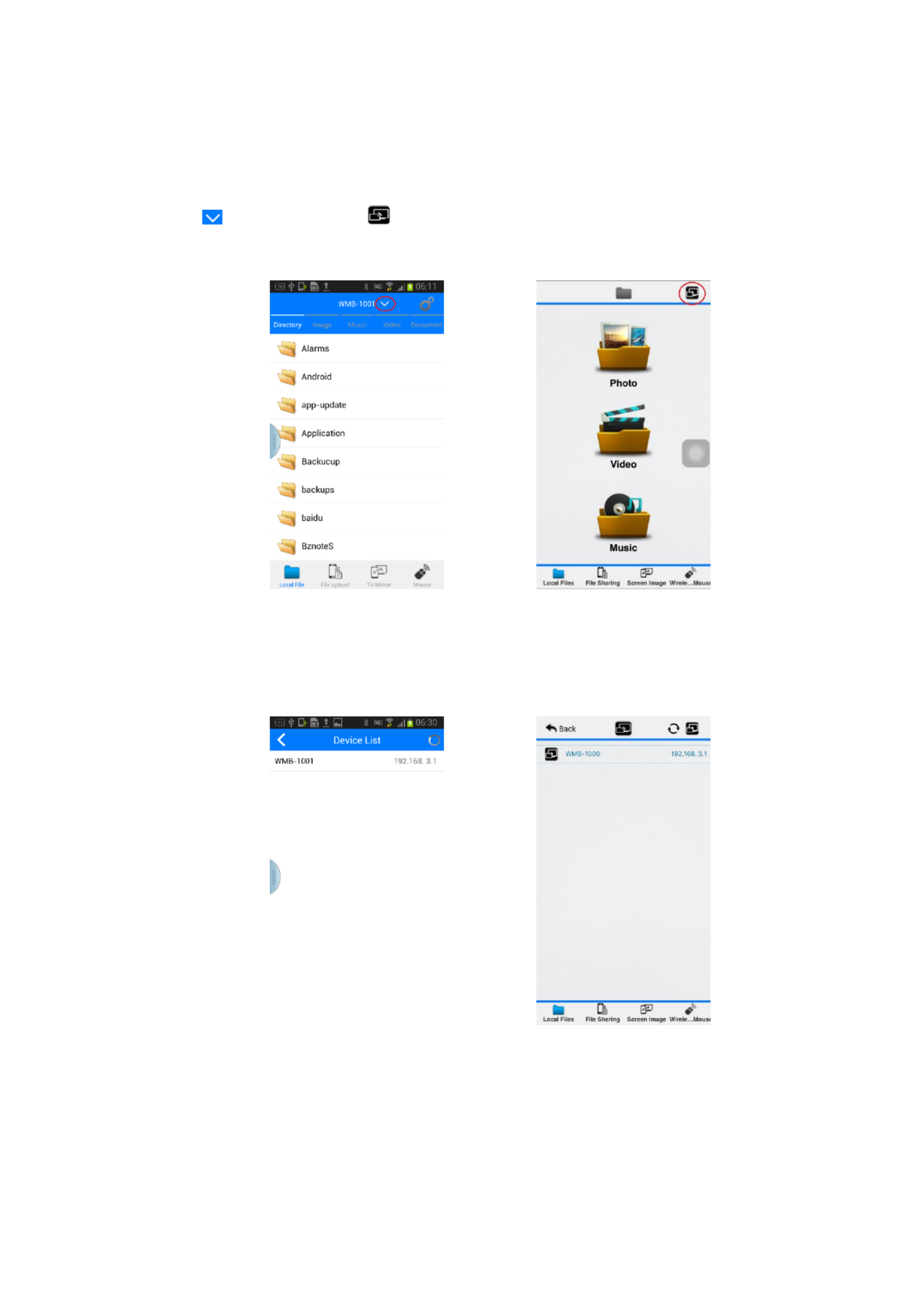

1. Connect your Mobile with the LAN of Klick & Show. Open the App “WirelessMedia” on your phone. Press
symbol “ ” for Android, or “ ” for iOS in start page, to get a list of available devices of Klick &
Sho w.
Android IOS
2. Click the right device to connect.
Android IOS

30
3. After complete the pairing, it ome scre . For example, it shows a shows OSD “Welcome ***” on the H en
“Welcome GT I9300”, as shown below.-
4. With technology, user can stream his screen wireless to Base-unit. Airplay
For , please swipe from bottom on desktop, to activate the control center. Click the iOS devices Airplay
icon on your Apply device and select the target (SSID of Base unit) to start „KlickandShow-xxx“
mirroring to the main screen.
5. For above devices, please click the devices list to select the target Klick & Show Base-unit, Android 5.0
click the icon main interface of the Apk for Android. For lower Mirror on App „ “WirelessMedia
than Android devices than 5.0, please click the icon to select the sharing picture, music Local Files
and video.

31

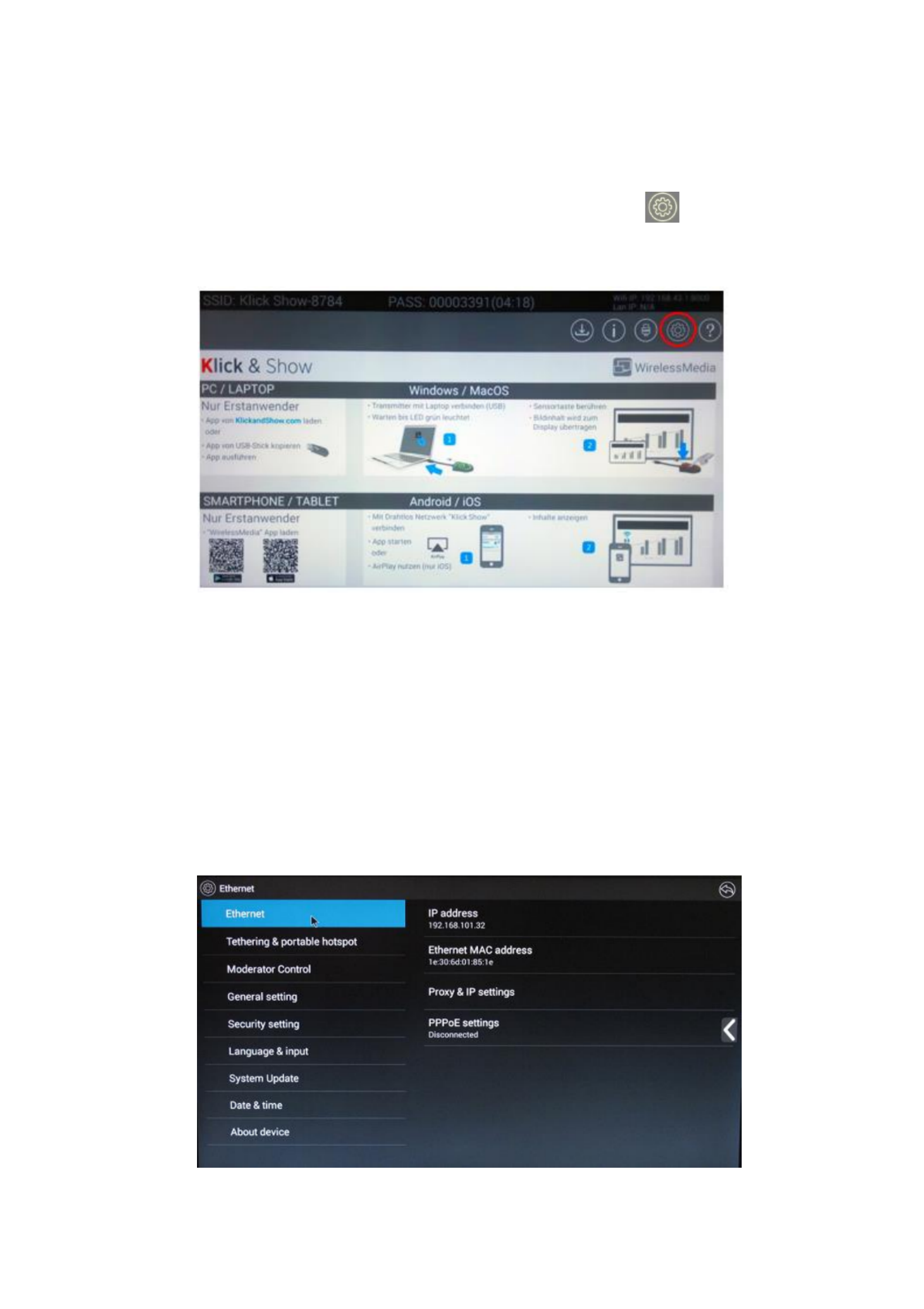

5. Menu General setting “ ”
Connect a mouse to the Base-unit. Click the setting button on the top right corner , to open the
configuration menu.
A password is required to enter the configuration menu. The default password at delivery or after Reset is
“ ”. You can change the password in menu “Safety” or eliminate password with “space admin the entering of the
bar” as new password.
Note:
If user has forgotten his password, you need to make a Factory Reset to restore “admin” as password.
The main interface of Setting is shown as below, including Ethernet, Tethering & portable hotspot, Moderator
Control, General setting, Security setting, Language & Input, System Update, Date & time, About Device.

33
5.1.4 PPPoE settings
Click to configure the PPPoE settings.
PPPoE Setting:
User name: Fill in the appropriate user name.
Password: Fill in the right password for this user.
Check box to choose “Save Account and Password” and “Show Password”.
After finish, please click the “connect” to save and return. Or, please click “Cancel”.
5.2 Tethering & portable hotspot
5.2.1 Portable -Fi hotspot Wi
Activate or deactivate WLAN. When WLAN is deactivated, the Sensor-buttons TOUCH do not work, as well as the
usage of mobiles are not possible.
5.2.2 Show -Fi name and -Fi password in main screen Wi Wi
Name (SSID) and WiFi-password can be shown or hided at top status-line of . main screen
Note:
The picture of the external HDMI input does not show.

35
5.2.4 Auto change Wi-Fi hotspot password
Authentication with a password secures the connection of wireless LAN for authorized users only. To avoid that a
participant of last meeting can view an actual meeting from outside with the APP of “Remote View”
WirelessMedia, the WiFi password will change on a certain configurable time, unless at least one button is
connected to the Base-unit.
The password remains unchanged for all participants of the meeting, while at least one Sensor-button TOUCH or
a WLAN-network of a mobile device are connected with base-unit. After the user is disconnected, a configurable
time runs.
The changeable password will be fixed by connecting a Sensor-button TOUCH to PC/Laptop or connect a
mobile unit to the WLAN of the base-unit, and continue to be changeable after 15s after disconnecting the
last Sensor-button TOUCH or disconnect the WLAN of a mobile unit.
User do not need to re-pair the Sensor-button TOUCH again, if only the password is changed. A Smart
mobile device has to enter the correct SSID and password to connect to the Base-unit hotspot, in order to
access all functionality.
When the last Sensor-button TOUCH (or mobile device) is disconnected for s, it will open up a dialog box 15
for user to confirm whether to clear the meeting history, including all data/files to be temporarily
memorized in the Base-unit.
Configure to automatically change - password to a random number every period of time. Wi Fi
Click to set the configuration, including
Never: never change Wi-Fi password.
5 minutes: change Wi-Fi password every 5 minutes.
30 minutes: change Wi-Fi password every 30 minutes.
1 hour: change Wi-Fi password every 1 hour.
2 hours: change Wi-Fi password every 2 hours
hours: change Wi-Fi password every 4 hours
24 hours: change Wi-Fi password every 4 hours
Important Notes:
A new WiFi-password for securing your WiFi network can be generated also manually by pushing Home in
screen also see chapter 2.2. ,
Even a switched-off mobile unit can hold a WLAN-connection to Klick and Show in the background, and inhibit the
automatic password-change and/or going to Standby-mode!
A change of WoFi-password does only affect the user of mobile units, the sensor-button TOUCH! NOT
Every new WiFi network name SSID needs a new re-pairing of all Sensor-button TOUCH, see chapter 4.2.

36
5.2.5 - analyzer Wi Fi
Various influences can lead to bad performance of the Klick & Show system. A careful frequency planning can
avoid interferences with other electronic devices. - analyzer is an embedded application tool Klick & A Wi Fi in
Show, to provide an advice for the deployment and - configuration. Wi Fi
Klick & Show TOUCH supports 2.4 GHz- and 5 GHz-band. The 2.4 -band has a greater range; the 5 GHz-band GHz
is less sensitives to interferences.
At 5 GHz band, you can choose the channels 36, 40, 44, und 48, 149, 153, 157, 161, 165
At 2.4 GHz you can select the channels 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, and . 11
Default for Klick & Show is 5 GHz, channel 40. The 5 GHz band should be preferred.
Find the optimal Wi-Fi channel
Wireless communication signals travel over the air. Therefore, two devices transmitting at the same time, on the
same frequency, and within range of one another, will disturb each other. This causes a decrease in the actual
data rate achieved between the transmitting and the receiving Wi-Fi devices. The built-in Wi-Fi analyzer tool
helps for the configuration.
Analyze of the installation location
A WiFi scan shows all WiFis in area of Klick & Show. Based on the data of the scan, you can find the least
occupied channel for each meeting room.
The analyzer works in two modes:
- : you can analyze, which channels are suggested (unused channels have a high number of Simple mode
stars).
- : check received WiFi-spectrum and signal-strength (RSSi). Expert mode
Based on the results from the site survey, the least occupied channel can be found and selected for each meeting
room.

37
General rules for WiFi-networks
In case no site survey can be made, the following rules of thumb should allow for a correct configuration:
The Klick & Show access point in a particular meeting room should not re-use a Wi-Fi channel that
overlaps with one of the channels used in the corporate WLAN infrastructure. Ideally, at least two
channels in the corporate WLAN should be reserved exclusively for Klick & Show. In case many Klick &
Show systems are located closely to one another, more channels may be required. When Klick & Show
Base-units, we recommend checking with the local IT department which channels are not used by the
corporate WLAN infrastructure.
In an ideal setup, overlapping channels should not be used for two Klick & Show Base-units within

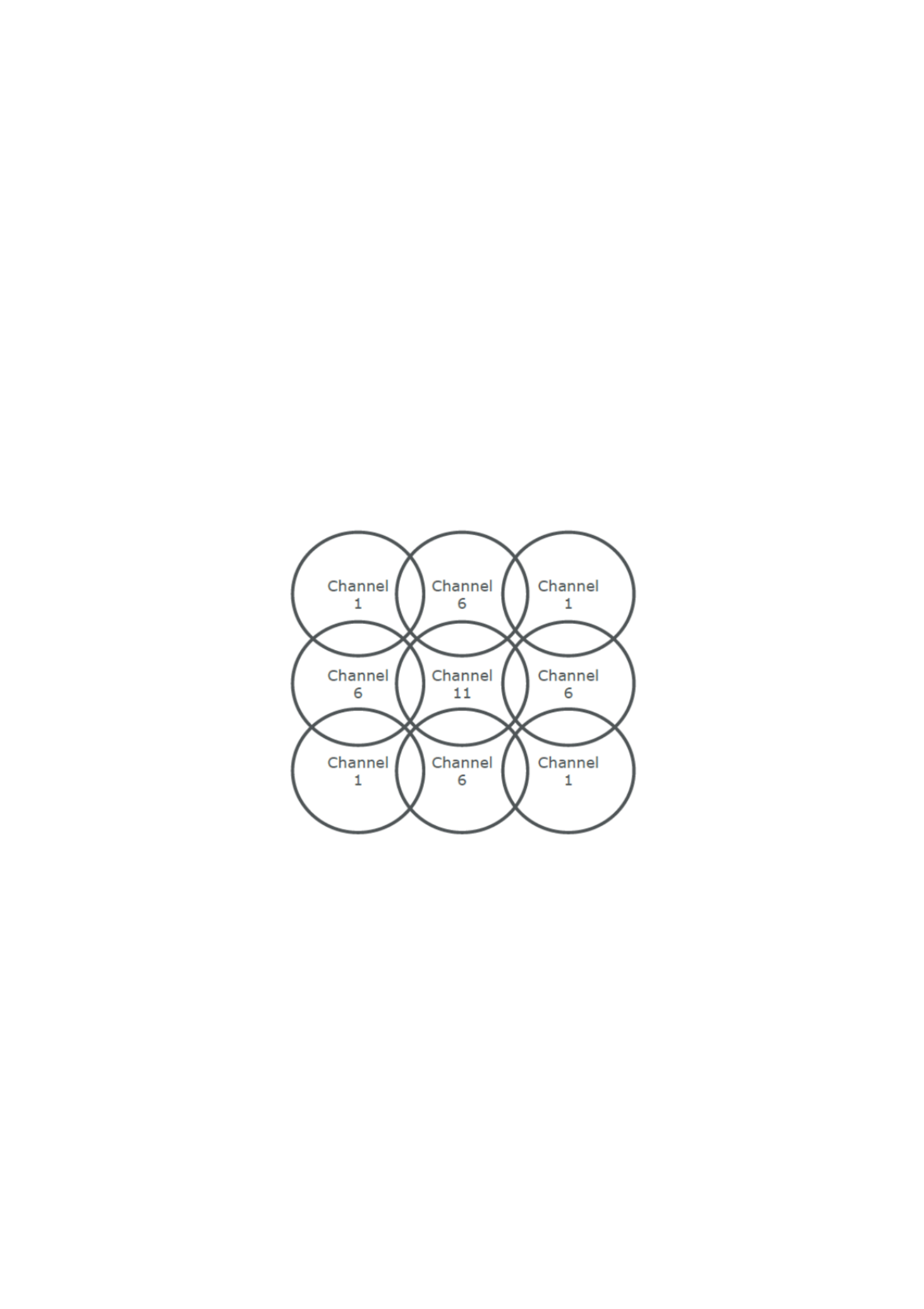

range of each other. As the channels in the 2.4 GHz band overlap with each other, best practice is to use
channels 1, 6 and 11 on a single floor. On floors above and below, the channel pattern will be shifted to
avoid overlap between floors (e.g. by placing channel 6 at the center of the illustrated pattern).
In case there are not enough channels available, two or more Klick & Show can be placed on the same
channel. This will of course have an impact on the quality of the link when several clients are sharing
simultaneously.
As stated above, the 5 GHz channels do not overlap with each other and are less used by non Wi-Fi
devices than the 2.4 GHz channels. Moreover, 5 GHz signals are more rapidly damped than 2.4 GHz
signals.
Therefore the use of a 5 GHz channel is recommended.

38
Remarks about the Klick & Sh system installation ow
A correct installation of the Base-unit is of critical importance to ensure good performance and a robust
communication between the Sensor-buttons TOUCH and the Base-unit. When installing the Klick & Show, please
follow the rules below:
Do not use the Klick & Show Base-unit without the shipped antennas. Removing the antenna will cause
severe degradation of the signal quality and may result in connection issues.
The most favorable setup is a direct line of sight between Base-unit and buttons. Any obstruction will
cause the signal to follow a longer propagation path, which can degrade performance.
Due to the particular radio pattern of the dipole antennas used with Base-unit, the antennas should not
be placed above Klick & Show users. In case of wall-mounted setup, the advised position for the Klick &
Show Base-unit antennas is at the side of the meeting room.
Place the Base-unit in an open emplacement and avoid installing in a metallic shell. A metallic shell (or
even shelf) could act as a Faraday cage and block the RF signal. In case this is unavoidable, please use
external antennas.
Once the Klick & Show Base-unit is installed, it is best to control the signal strength at the potential Sensor-button
TOUCH. For correct performance, signal strength of -70dBm at Base-unit is needed. (-60dBm would be a stronger
signal).
Wi-Fi Troubleshooting
Check the RSSi from each connected Buttons. Even if the selected channel is free of any
interference, a coming from Sens -button TOUCH or the mobile device can too weak signal or
result in an unstable link. In such cases, we recommend:
Measuring the RSSi from the Klick & Show Base-unit at different Button locations. This can
be done by means of a free Wi-Fi survey tool like the Android Application “Wifi analyzer” or
another Base-unit - analyzer. ’s embedded Wi Fi
As explained above, the RSSi should be at least - dBm. 70
If the measured RSSi is too low, check above paragraph “Important remarks about the Klick &
Show system installation”.

39
5.3 Moderator Control
5.3.1 Preview window
A sub-window of screen content of every connected sensor button TOUCH can be switched on or off in the
menu.
At touch-screen or with mouse of base unit, you can click on LEFT or RIGHT-arrow (2), to show the small preview-
windows , or to hide them, if they are disturbing. Once the preview as a bar on the right edge of the screen
windows are activated, you see live-pictures (1) of all connected sensor buttons TOUCH at the right edge of the
screen. Just scroll UP or DOWN (3) to see further preview pictures.
Note:
You can call this function directly with touch-screen also.

40

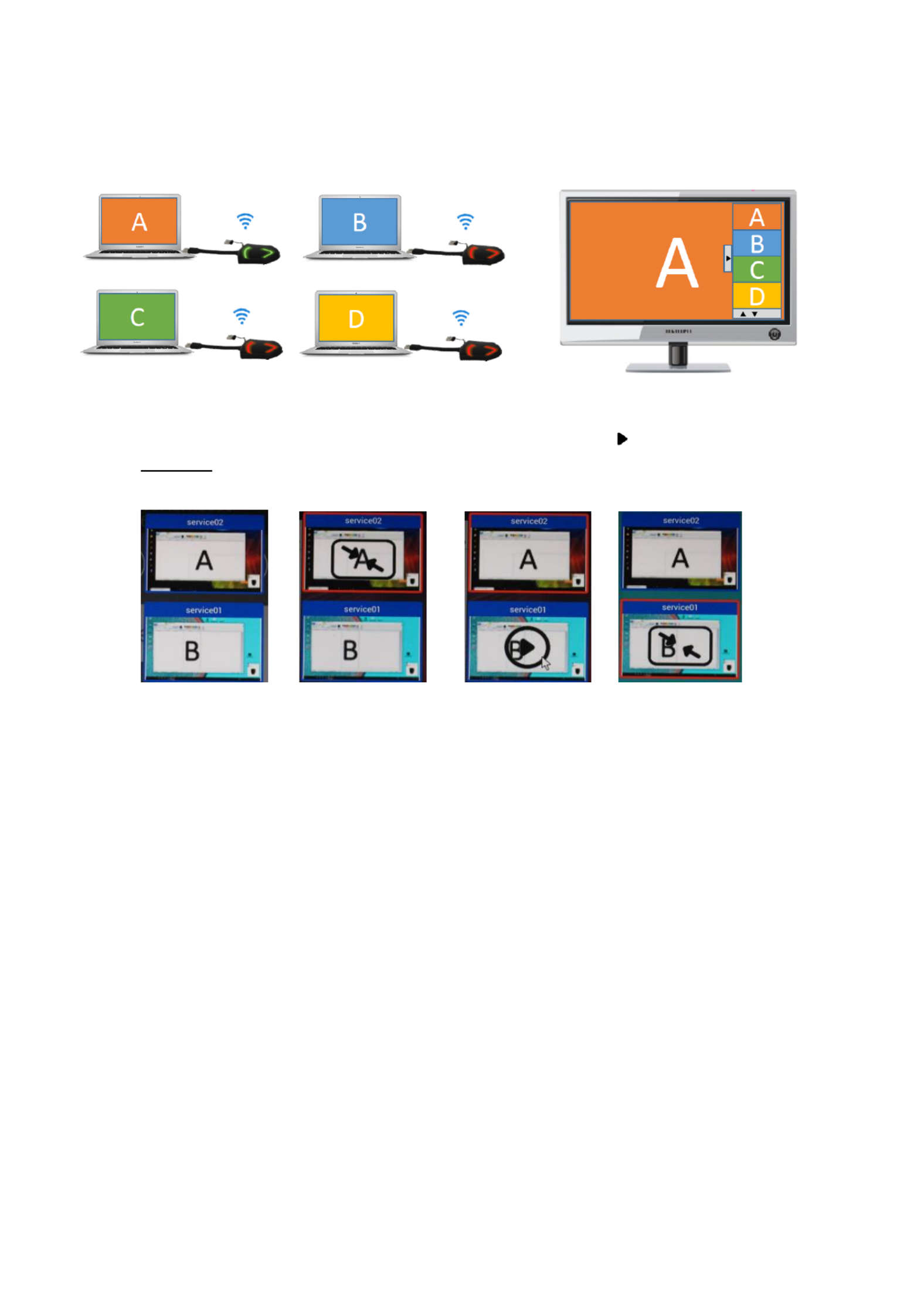

Principle illustration:
As soon as speaker or moderator is clicking with mouse of base unit, clicking with finger at uch-screen, the or to
appropriate participants of the meeting is activated, another click at the arrow shows his picture at the main
screen in full format. A red frame is shown for the active picture.
5.4 General settings
Includes: automatic creation of Starter-program on an USB-stick, Standby, Airplay screen quality, HDMI output
resolution, individual Home screen, volume at display.
5.4.1 Automatic creation of Starter-program
Determines, when using a USB memory at one USB-port of Base-unit, the Starter-program will be copied
automatically on USB memory. Activate or deactivate the corresponding box.

42
5.4.5 HDMI input AUTO switch
You can set, if HDMI-signal at HDMI-input of Base-unit is active, main screen is switched manually, automatically
or with changing of status of sensor button TOUCH the wired HDMI source is displayed.
User can select three options:
“ ”Manual switching of external HDMI input, see chapter 7.4.
“ ”, Last connect switch switch to HDMI- when Base-unit detects active HDMI signal, auto-switch to IN,
Home screen, when HDMI signal at input is inactive.
“Switch to active HDMI input when Home screen is shown longer than 5 sec:” when sensor button is
active, the Home screen is shown for 5 sec., and then switched to external active HDMI-input. During the
5 sec. of Home screen, settings can be made in the Menu. When there is no active HDMI-IN signal,
Home screen is shown.
5.4.6 Background image Home screen
User can change background image of Home screen. Select the image (jpg, bmp, png with resolution 1920x1080
p.) from suitable directory and activate box for selection. You can return to Standard home screen every time.
5.4.7 Volume
User can select volume of display from 0 to 100.

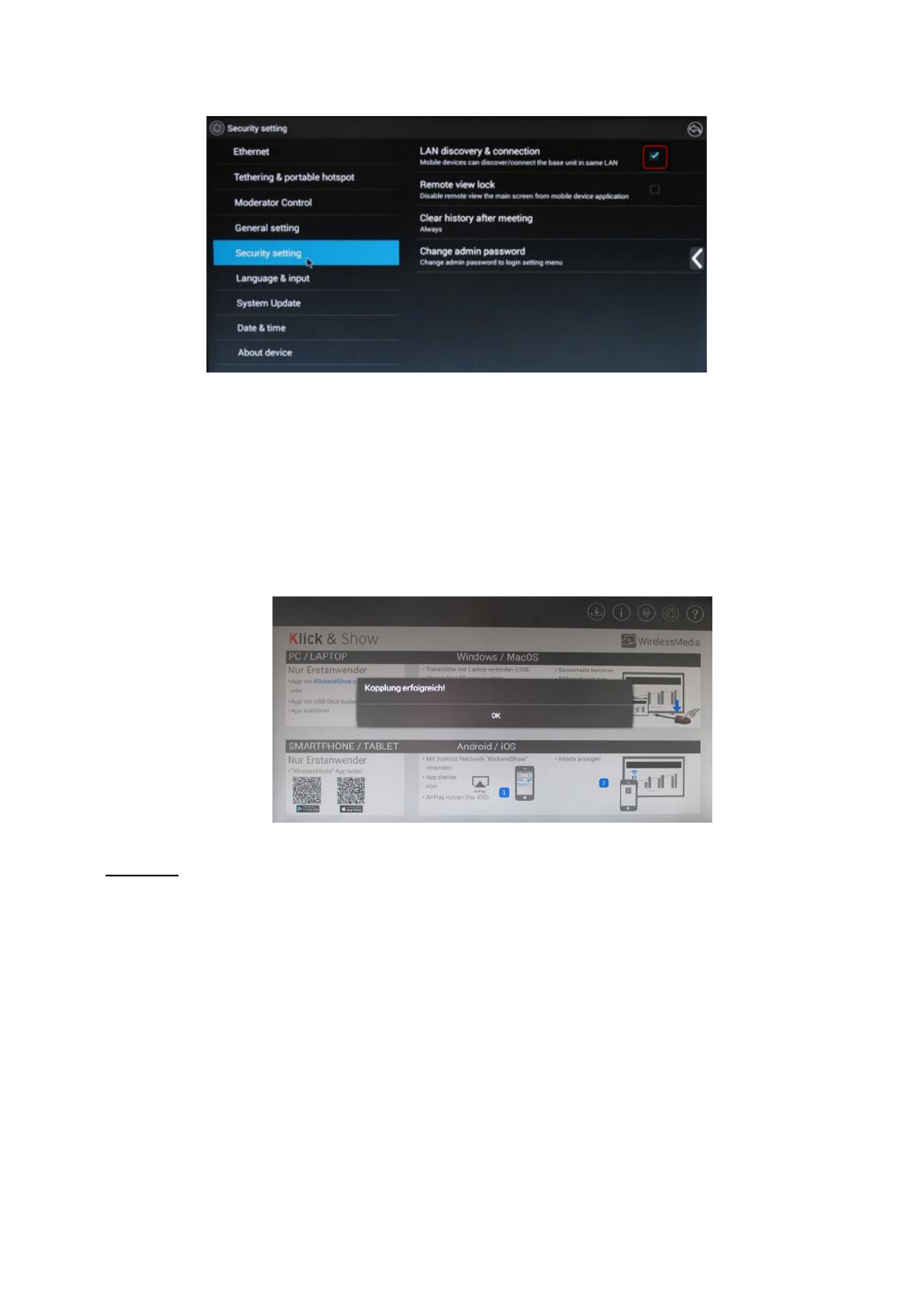

5.5 Security setting
Includes LAN discovery & connection access, clear history, Admin password., “Remote View”
5.5.1 LAN discovery & Connection
Allow the PC/Mobile/tablet to discovery the Klick & Show unit in LAN and connect it, instead by WiFi.
For example, a guest may connect through the guest WLAN in a company. If Klick & Show is also integrated into
this guest network, the guest can also connect with Click & Show.

43
5.5.2 lock “Remote View”
Presenter is able to turn on/off the “ ”, to enable/disable the Remote View Klick & Show APK/APP to remotely
watch the main screen (mirrored screen), for example with of WirelessMedia APP in WLAN (or “Remote View”
LAN in same network).
Please note active, that each attendee of a meeting can overwrite the Right-click PC-“Remote View” setting at “
menu at symbol in taskbar also, and it will be effective for all attendees until next person overwrites again, ”
see chapter 6.1.
Important Safety-Notes:
When is active watch the main-screen“Remote View” , a user can connect his mobile to the Base-unit and ,
when he , see WLAN password chapter 5.2.4. knows the momentary WLAN-password
If and activated, mobile users can control mirroring content and change or “Remote View” “Remote Control” is
interrupt presentation by unintentional actions from their mobile device. Therefore each active user can block
“Remote Control” individually at his laptop in Right-click PC-menu, see chapter 6.1.
When is active, it has consequences for the speed and performance of USB-HID feedback from a “Remote View”
touchscreen to the laptop or pc, with a slower reaction of the mouse.
5.5.3 ar History after meeting Cle
Pictures, videos, music of mobile units will be stored in memory of Base-unit This memory can optionally be .
erased, at the end of a meeting, when the Sensor-button is pulled from the Laptop / PC.
Settings are:
Decide User dialog appears, when Sensor-button TOUCH is pulled by –a
Never storage space is automatically erased, when memory is filled for 90% –
Always memory is automatically deleted. –
5.5.4 Change admin password
Change admin password for entering setting menu. Default password, or after a RESET, is “admin”. You can
change the password, as you like or leave field blank, and deactivate the password request. Click to open on-
screen keypad and enter signs.

45
6. Operation Guide for Klick & Show
6.1 Transmitting PC desktop
6.11 Microsoft Windows PC / Laptop
Operating system requirement: Windows XP/Vista/7/8/8.1/10 32 & 64 bit.
When you are using Klick & Show on your laptop or for guests, you have to copy the for the first time Starter-
program “WirelessMedia“ first on your Laptop / PC. Run this Starter-program.
When the Starter-program is pre-installed one time, Klick & Show is ready to use, with plug-in of Sensor-
button. Continue with Step 2.
1. When Starter-program is not yet been installed on PC, please proceed, „WirelessMedia-windows.exe“
as is explained in chapter 6.4, 6.5.
2. Plug The Klick & Show application is a Sensor-button TOUCH to the USB port of your PC or Laptop.
starting automatically and a symbol is displayed in the task bar of the PC/laptop .
3. Until the Sensor-button shows a static LED indicator, or until you see a message table showing up green
at the right botto Klick & Show is ready. m corner of desktop “ ”, Ready to share
A Klick & Show status icon is added to the Windows status bar at the right bottom corner . If icon
is not visible, click on the arrow up “show hidden icons”.

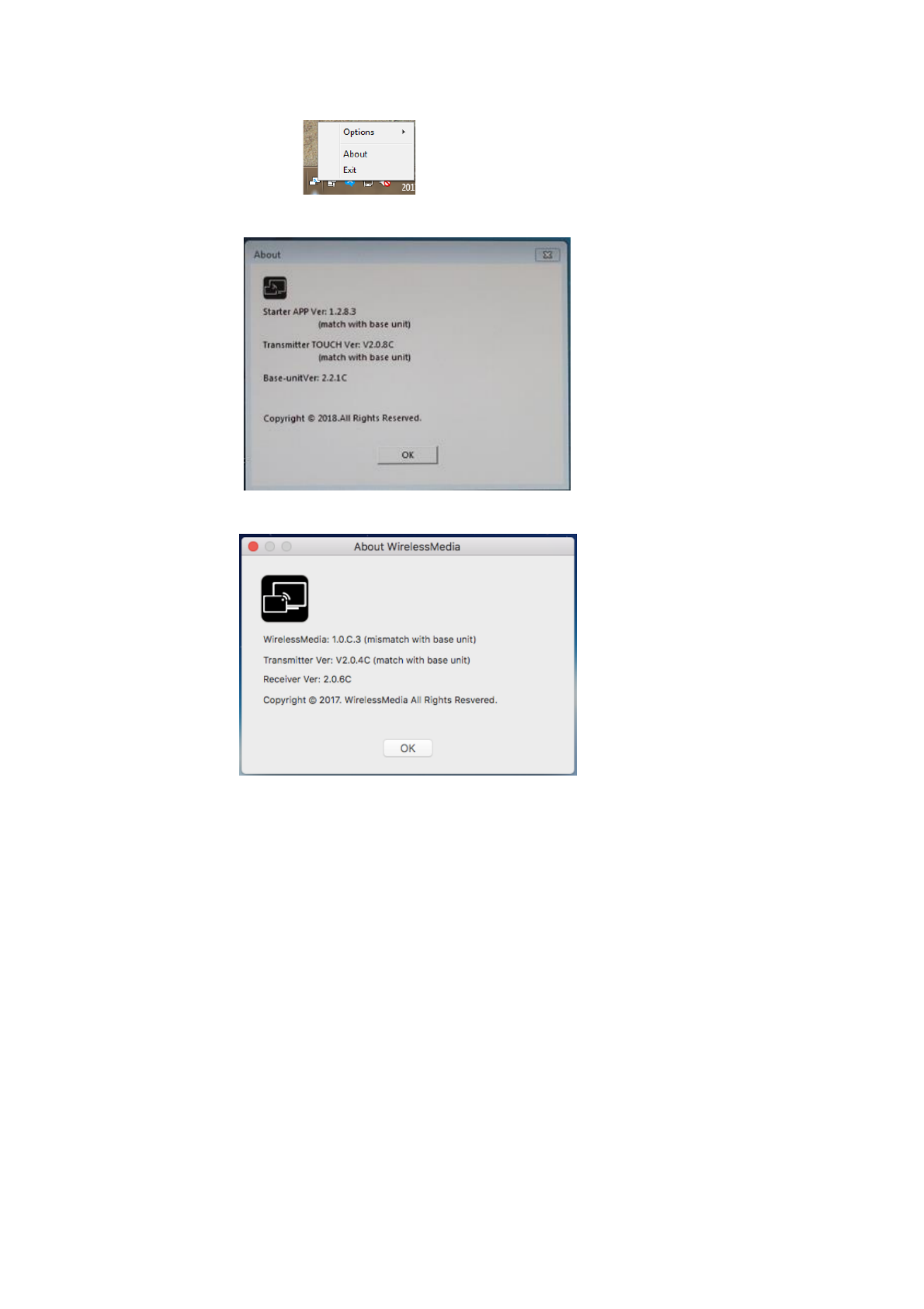

Right click it to open up the with setting of Klick & Show, including: context menu
a. “ ”About : click to check the software version of Base-unit, Sensor-button TOUCH and Starter-
program.

46

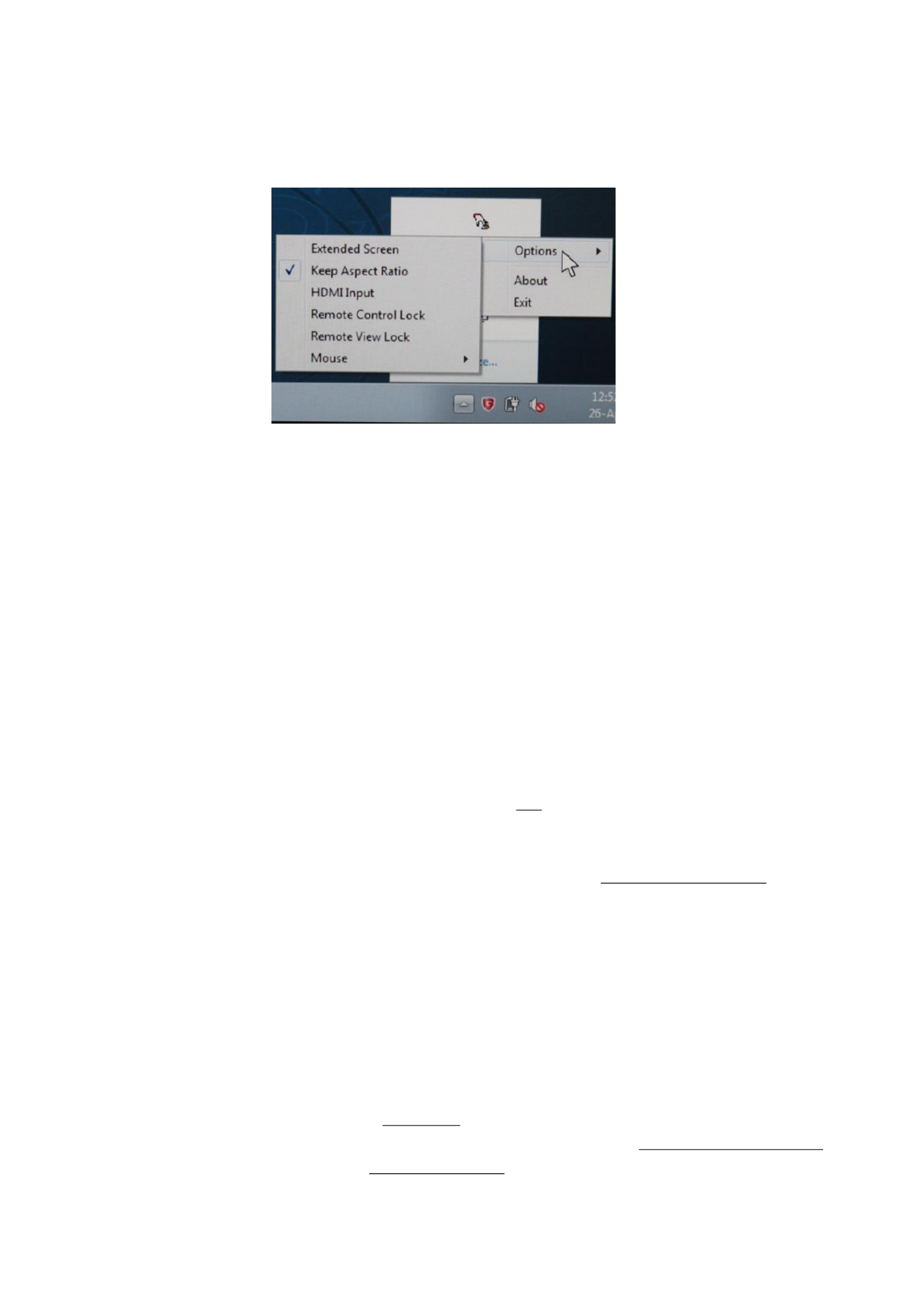

b. change various settings from the context menu of the PC/Laptop. “ ”Options :
: „Options“
transfers extended desktop, when source is active. Extended Screen:
(Currently not available for Windows 10).
is not possible for “Remote Control” “Extended Desktop”.
keep the original aspect ratio to display on the main screen. Keep Aspect Ratio:
enables HDMI-Input at Base-unit. HDMI-Input:
Remote Control Lock: Remote control the mouse of ((„Remote View“, „Remote Mouse“) of
active presentation laptop with WirelessMedia APP for mobile unit, can
be unlocked (no check) / locked (check mark).
When and is unlocked, other “Remote View” “Remote Control”
participants can control the presentation, but also interrupt or do some
consciously or unintentionally actions. Therefore, each user of a
meeting can configure this setting individually at his laptop when he is ,
actively sharing his presentation. Otherwise setting cannot be changed
(greyed out). Default setting is ‘ON’, when connecting the Sensor-button
TOUCH.
Remote View Lock: is -locked / locked (check „Display ‚Main screen‘ on mobile device“ un
mark) .
At the begin of a meeting, the setting is adopted of “Remote View”
configuration in Setting menu in Home screen. Each user can overwrite
it for all users, when he is actively sharing his presentation. Otherwise
setting cannot be changed (greyed out). The setting is taken over in
configuration menu. It is effective until another person overwrites it.

47
Mouse: The setting is applied individually for this laptop only.
Native: The shape of mouse-pointer is equal the shape in application. There
may be a small delay in movement of the cursor (approx. 150 ms).
Lowest Latency (Mouse): hardly The movement of mouse-pointer is displayed very smooth with
noticeable delay (about 20 ms) on the main screen, which significantly
improves the operation of the application from the main screen. The
look of the mouse pointer is every time, in all applications, like a typical
cursor arrow.
4. Click the Sensor-button or the symbol at desktop of PC to start mirroring the desktop on the main
screen, LED is static red. An OSD message shows: logged in user name and whether REMOTE-desktop
control ( Remote View is locked or unlocked. “Remote Control” and “ ”)
5. Click the Sensor-button again, to stop mirroring, LED shows green
6. Disconnect the Sensor-button at end of meeting.
6.1.2 Mac OS PC/Laptop
At least is required. operation system macOS 10.9
When you are using Klick & Show on your MAC or for guests, you have to copy the for the first time Starter-
program “WirelessMedia“ first on your Laptop / PC. Run this Starter-program.
When the Starter-program is pre-installed one time, Klick & Show is ready to use, with plug-in of Sensor-
button. Continue with Step 2.
1. When Starter-program is not yet been installed on PC, please proceed, „ WirelessMedia-macOS.app “
as is explained in chapter 4, 6.5.6.
2. Plug The Klick & Show application is starting a Sensor-button TOUCH to the USB port of your MAC.
automatically and a symbol is displayed in the task bar of the PC/laptop .
3. Until the Sensor-button shows a static LED indicator, or until u see a message table showing up green yo
at the right botto Klick & Show is ready. m corner of desktop “ ”, Ready to share
A Klick & Show status icon is added to the MAC status bar at the right bottom corner .

49
4. Click the Sensor-button or the symbol at desktop of PC to start mirroring the desktop on the main
screen, LED is static red. An OSD message shows: logged in user name and whether REMOTE-desktop
control ( Remote View is locked or unlocked “Remote Control” and “ ”) .
5. Click the Sensor-button again, to stop mirroring, LED shows green.
6. Disconnect the Sensor-button at end of meeting.

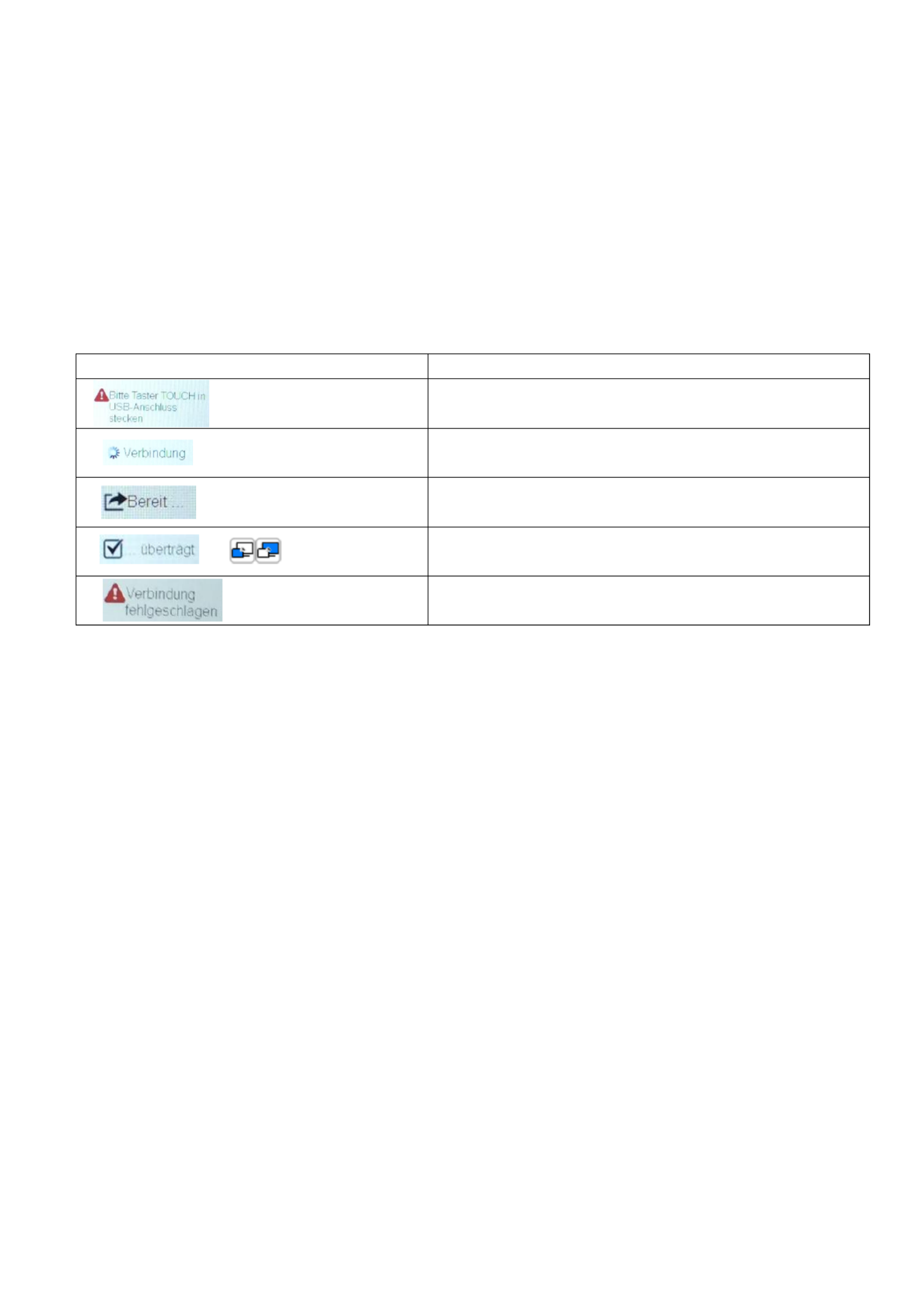

Zeichen Status
Beschreibung
Starter-APP is running. Please connect a sensor button
TOUCH.
Button TOUCH is connecting to the Base unit
Ready to share
(Task bar)
Button TOUCH is sharing
Disconnecte or abnormal; do pairing of Button TOUCH d
again

50
6.2 Transmitting iOS mobile device
6.2.1 How to use airplay?

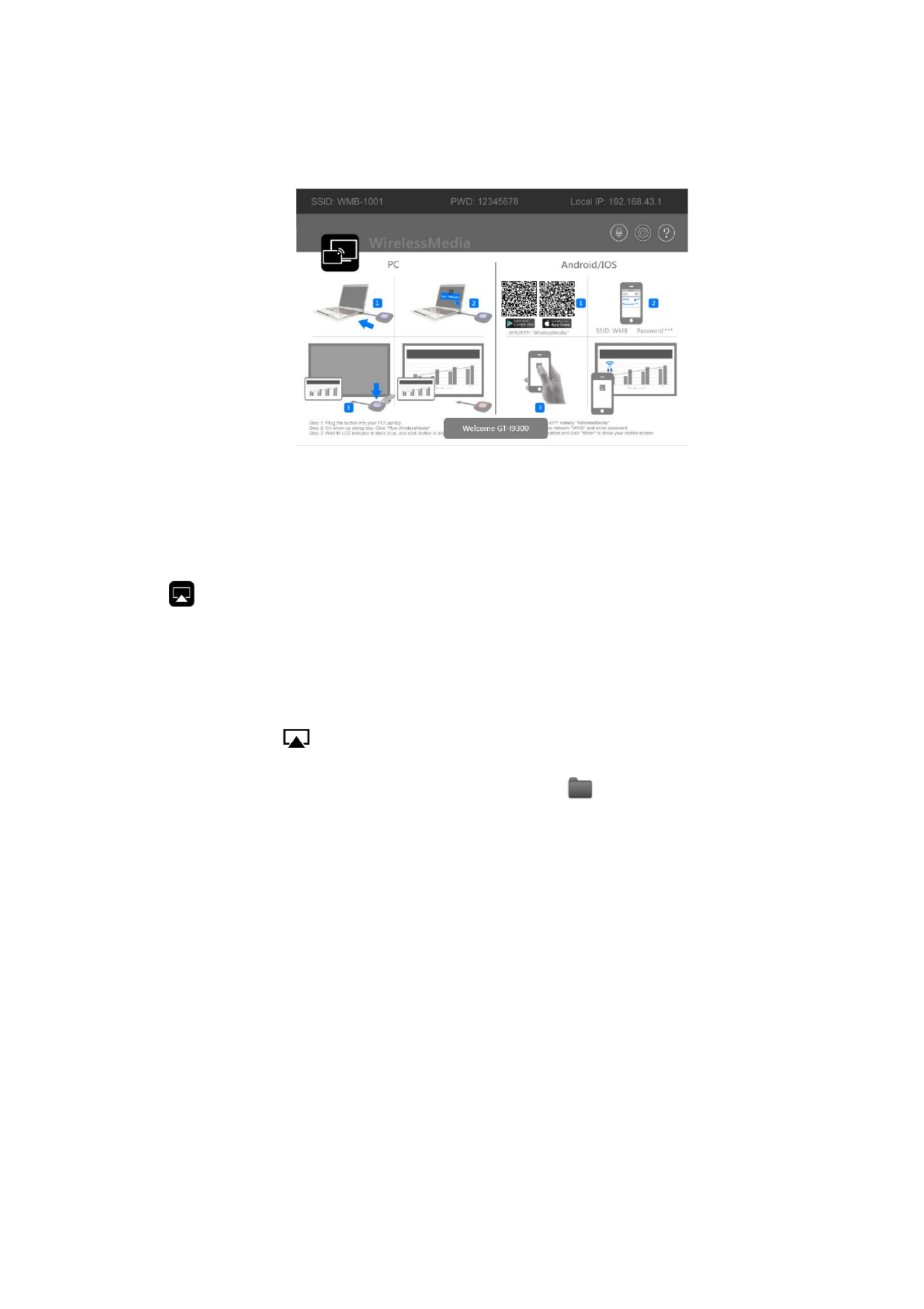

Airplay: Klick & Show of the desktop of your Apple device to the supports “Airplay”, which enable mirroring
airplay receiver.
Please swipe from bottom on desktop, to activate the control center. Click the airplay icon on your Apple
device and select the receiver device Klick & Show to connect. Then you could mirror your screen content
wireless through the Base-unit to the main screen.
6.2.2 App for i “WirelessMedia” OS
Operating system requirement: iOS 7.0 and later.
Download App via the internet , or download from www.klickandshow.com Apple-Store:
https://itunes.apple.com/de/app/wirelessmedia/id1116104784?mt=8 , execute App.
1. Open the application. “WirelessMedia”
Note: permit access of photos and pictures, when installing.

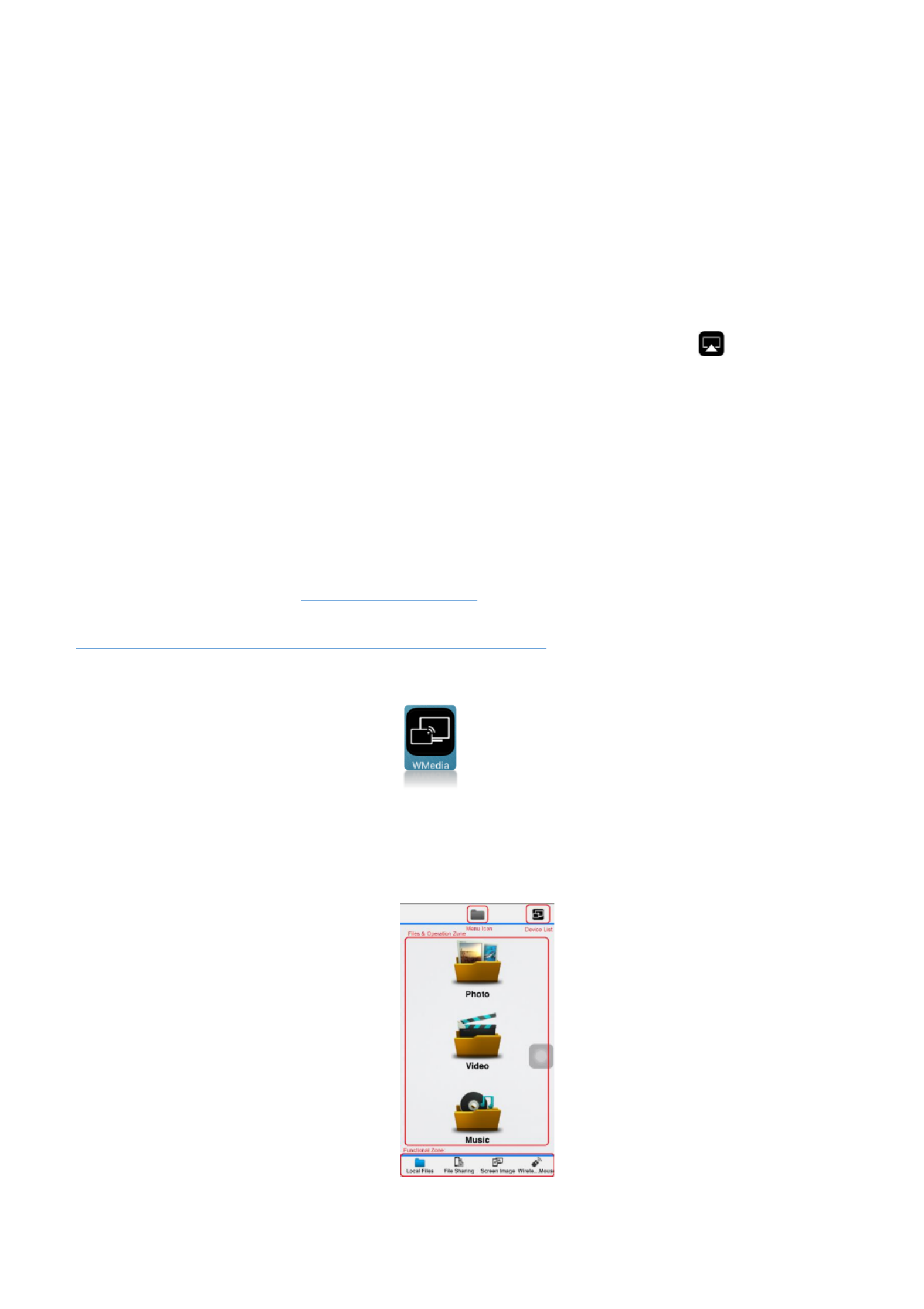

2. The of is shown as below. It includes the features including: main interface “WirelessMedia”

51
Functional Zone:
Local Files: Can transmit the local file, including Photos, Video, Music to the Base- for playback. Unit
File Sharing : Can setup a storage for the PC/Laptop to access/transmit files to the mobile device.
“Remote View”: Shows main screen at mobile device. Allows of mouse of active signal “Remote Control”
on main screen, and control the PC/Laptop device like a wireless mouse.
Remote Mouse : Can control the Base-unit or the sharing device, like -movements of an air-mouse.3D
Menu Icon: show the directory menu icon, like photo, video, music, file sharing.
Device list: Click to discovery the available Klick & Show Base-units to connect them. (Note: Mobile devices have
to be connected with Klick & Show WLAN first).
Files & Operation Zone: Select the file to transmit.

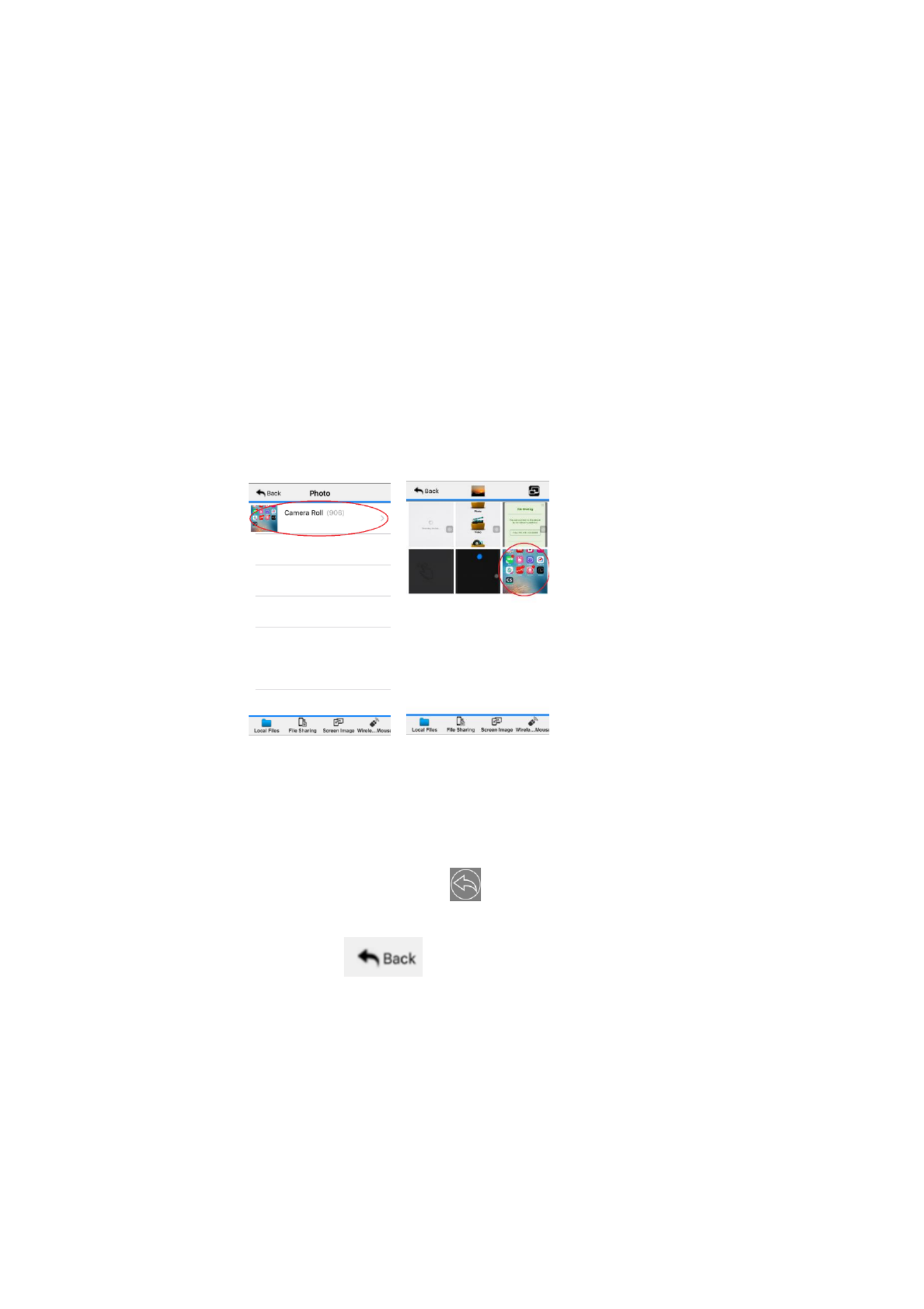

3. Local Files: select the file stored in local iPhone / iPad, as shown below:
Note:
The last displayed image remains in Klick & Show memory, until the unit is turned off. To protect the privacy it is
recommended to delete manually the last image, before leaving the meeting.
Click with left-mouse into the picture, the Return-icon appears, click to return and delete the shown picture
in display.
Click at iPhone / iPad the Return-icon to create the same effect.

52
4. File Sharing: Exchange data between a laptop and the mobile unit. The files are stored within the
WirelessMedia APP in all iOS units, which are connected to Klick & Show. Click the symbol (Help) to get ?-
the IP-address in WLAN of Klick & Show for the meeting. Close the window with the cross-icon.

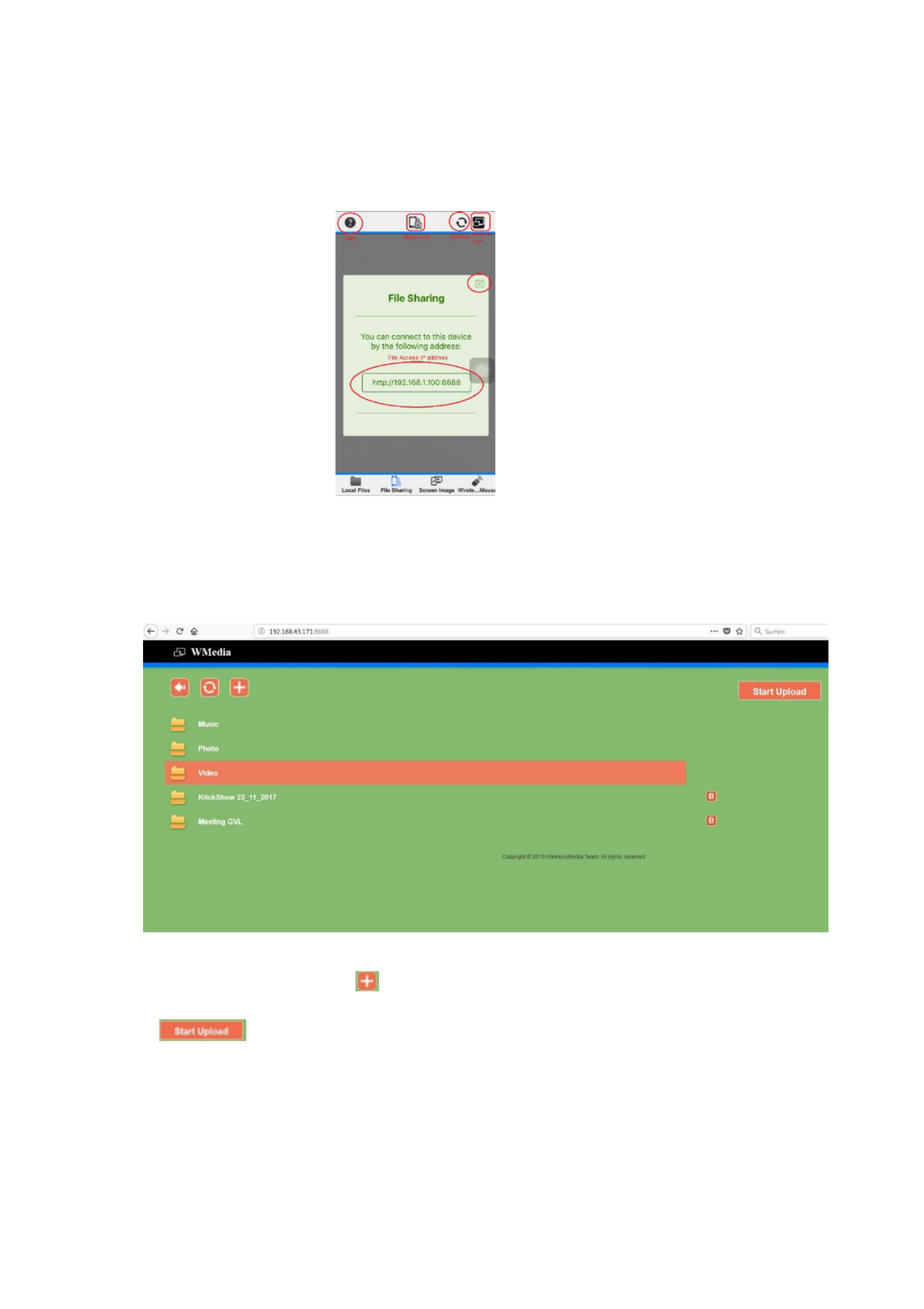

To access the files, enter the IP address by our PC/Laptop Laptop has ’s web browser while your PC/
connected to Klick & Show by hotspot connection or LAN connection.
PC/Laptop page (iOS)
At website you can create folders ( select files (pictures, videos, word- ), doc, PPT, PDF,…).
Click , to load data from the laptop and transfer to the iOS mobile unit, which can be shown
in “File Sharing”. This data can be shown with media player of the APP. Data of the mobile units can be
uploaded to the given folders “Music, Photo, Video”.
Select the desired data, which should be shown at the main screen.

53

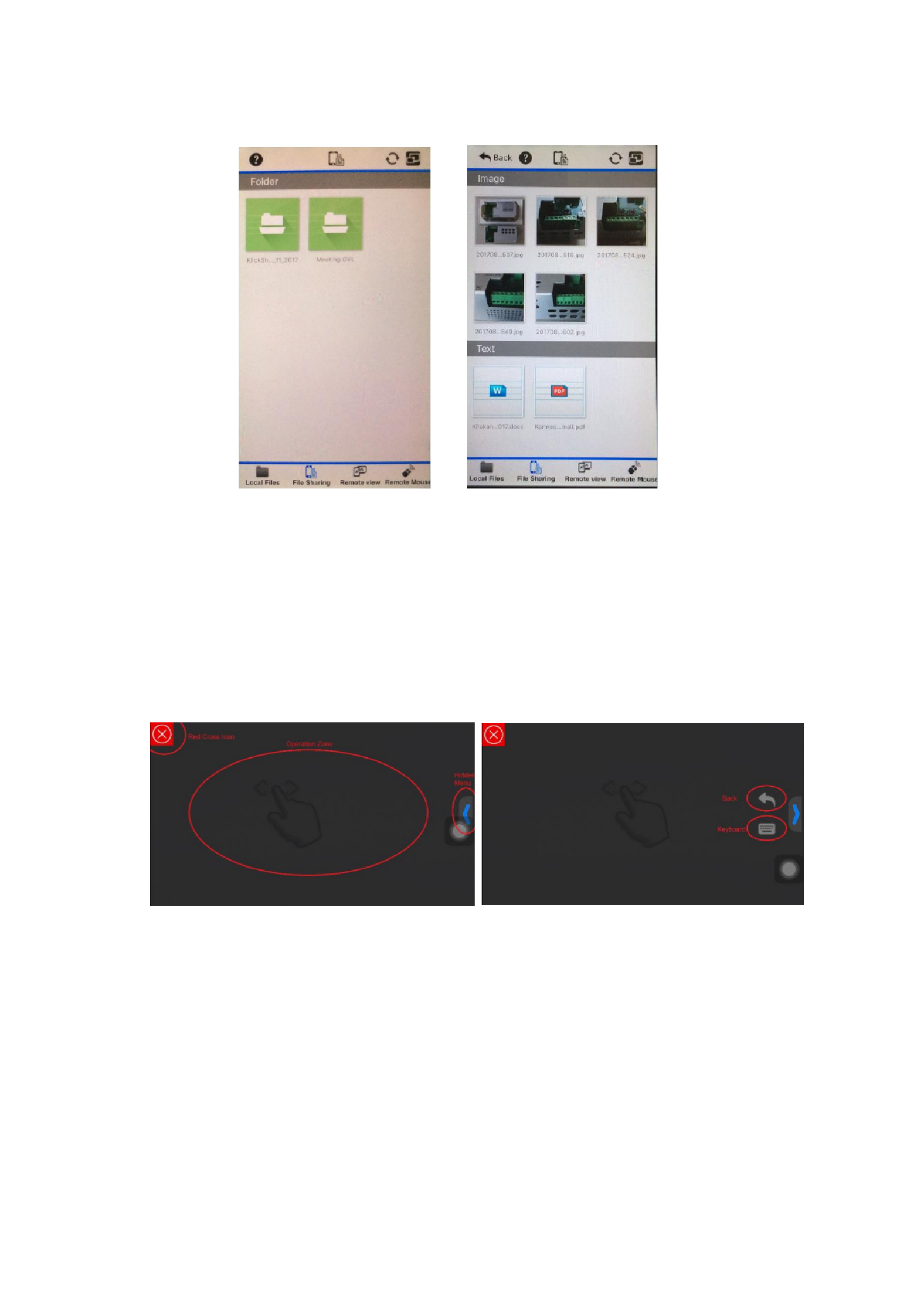

Folder list File list
Klick , to control your application with mouse, or edit data with displayed „ “ in menu bar“Remote View
keyboard of WirlessMedia APP. All changes can be stored, to capture all results of a meeting.
5. “Remote View”: Control of mouse and keyboard via WLAN. Click the in menu bar to “Remote View”
show the main screen of Klick & Show on your mobile where you can control the mouse of PC or laptop
(Remote Mouse).
When there is no connected Klick & Show, it shows:

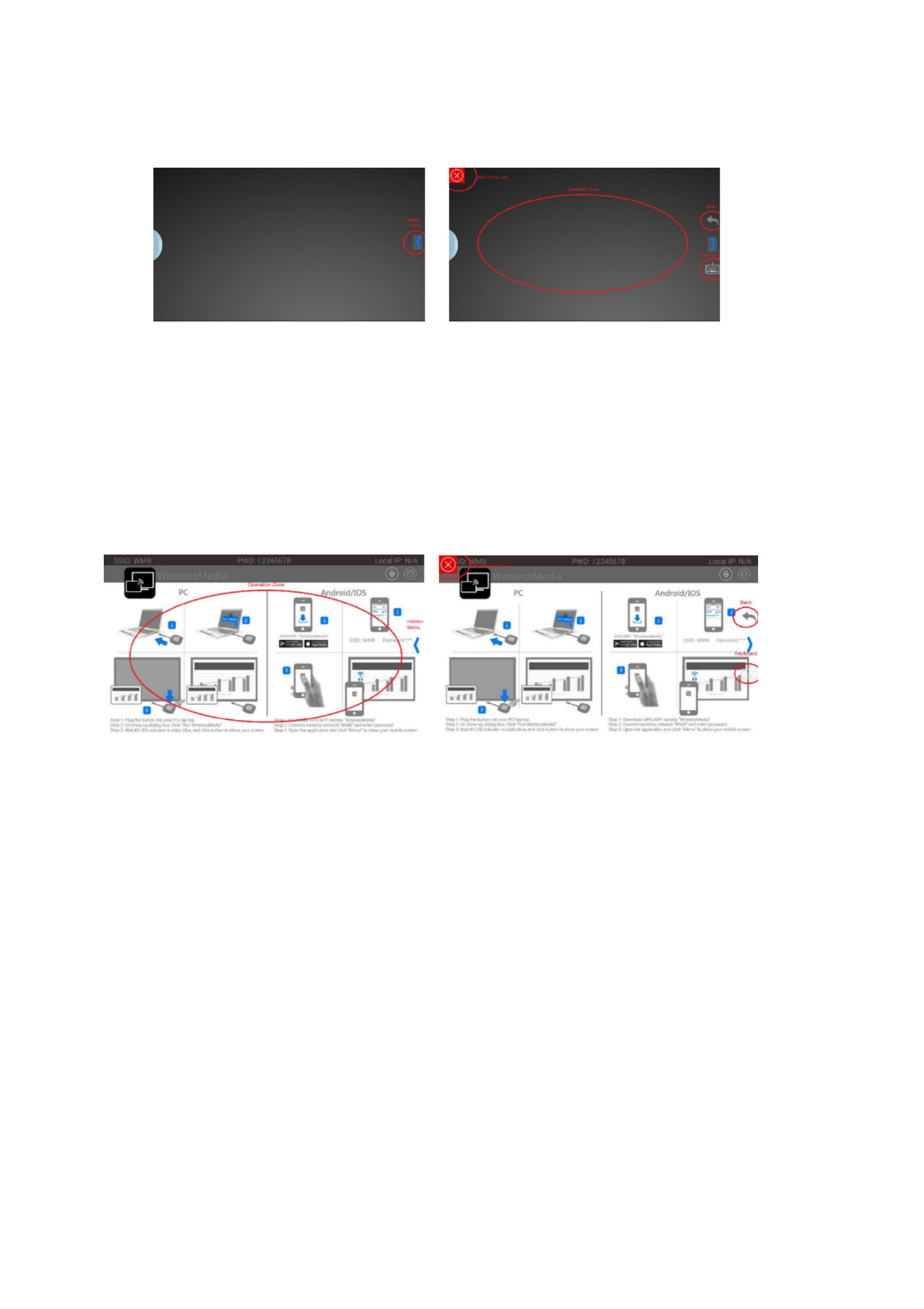

Operation Zone: Zone to the active signal and control it as a mouse. “Remote View”
Hidden Menu: Click to open the hidden function features, including Back and Keyboard when available.
Back: It sends a “Return” command to the Klick & Show to go back to the previous directory menu.
Keyboard: Open the keyboard to enter character/number.
Red Cross Icon: return to the main interface.

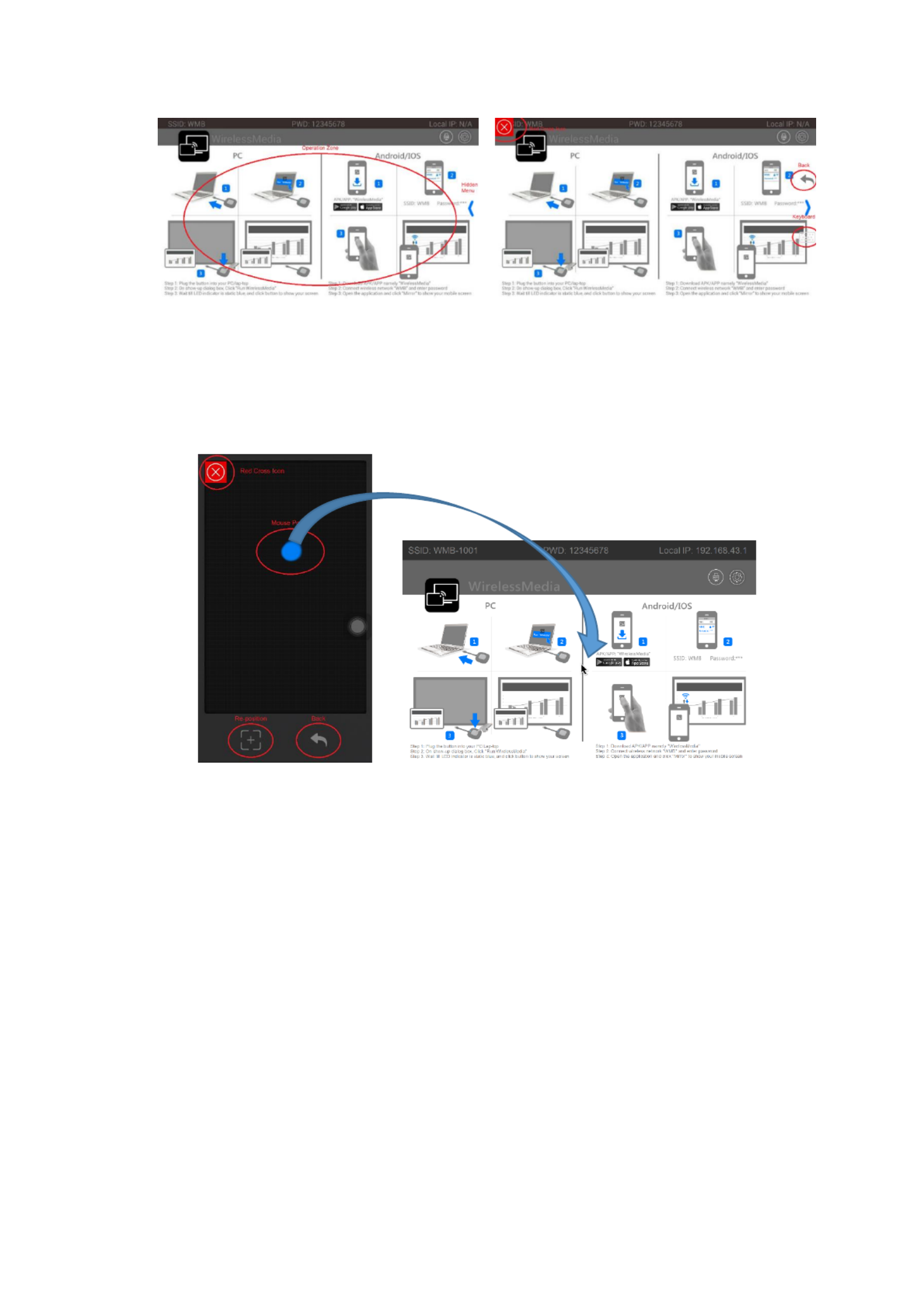

When there is an active signal showing on the main screen, you see it, and click the screen to control will
it as a mouse, as shown below.

54
Click the Red Cross icon to return.
6. Remote Mouse: click the Mouse -icon to generate a mouse pointer to control the Klick & Show “Remote ”
Base-unit with 3D-movements like an air-mouse. Hold the phone horizontally in front of you, touch Re-
Position to center the mou -pointer and begin with movements out from the wrist. se
Mouse Pointer: represent the relative position of the mouse on the main screen.
Re-position: reset the positon to be the center of the screen.
Back: sends a “Return” command to the Klick & Show Base-unit to go back to the previous directory menu.
Red Cross Icon: return to the main interface.
Note:
In “Remote Mouse” the accelerations sensors are active. This has the consequence of a higher power current
consumption in mobile unit.

55
6.3 Transmit Android device wireless
6.3.1 W Apk for Android “ irelessMedia”

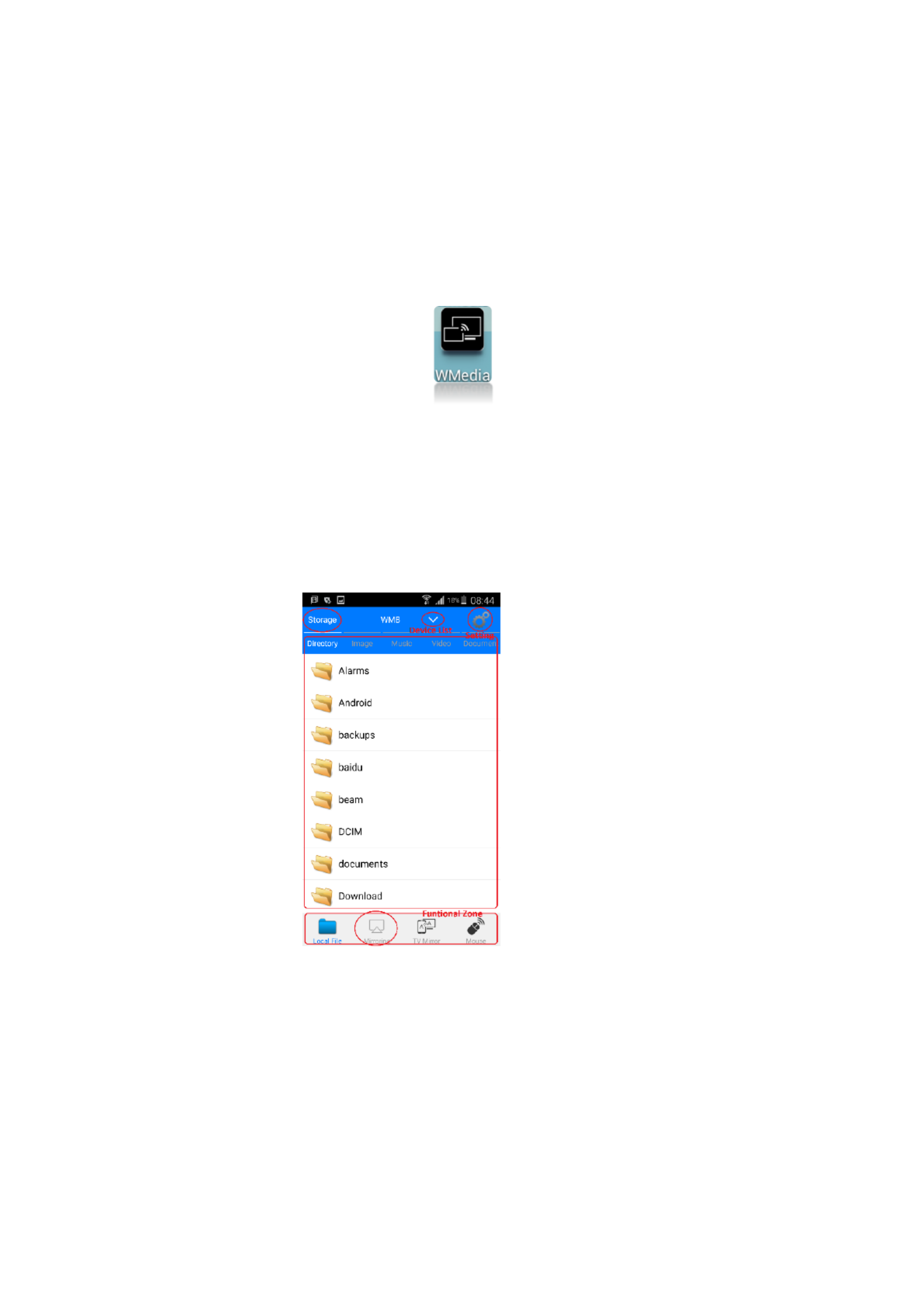

1. Open the application: “WirelessMedia”
Note: permit access of photos and pictures, when installing.
2. The main interface of is shown as below. It includes the features includi : “WirelessMedia” ng
Android above 5.x
Menu Bar (Functional Zone):
Local Files: Can transmit the local file, including Photos, Video, Music to the receiver for playback.
Mirroring: Shows screen of Android-phone on main-screen of Klick and Show.
TV Mirror: Shows main screen of Klick & Show on screen of Android-phone, and can control the
PC/Laptop device like a remote mouse.
Mouse : Can control the Klick & Show unit or screen of the sharing device, like a wireless air-mouse.
Device list: Click to discover the available Klick & Show Base-units to connect them. (Note: Mobile devices have to
be connected with Klick & Show WLAN first).

56

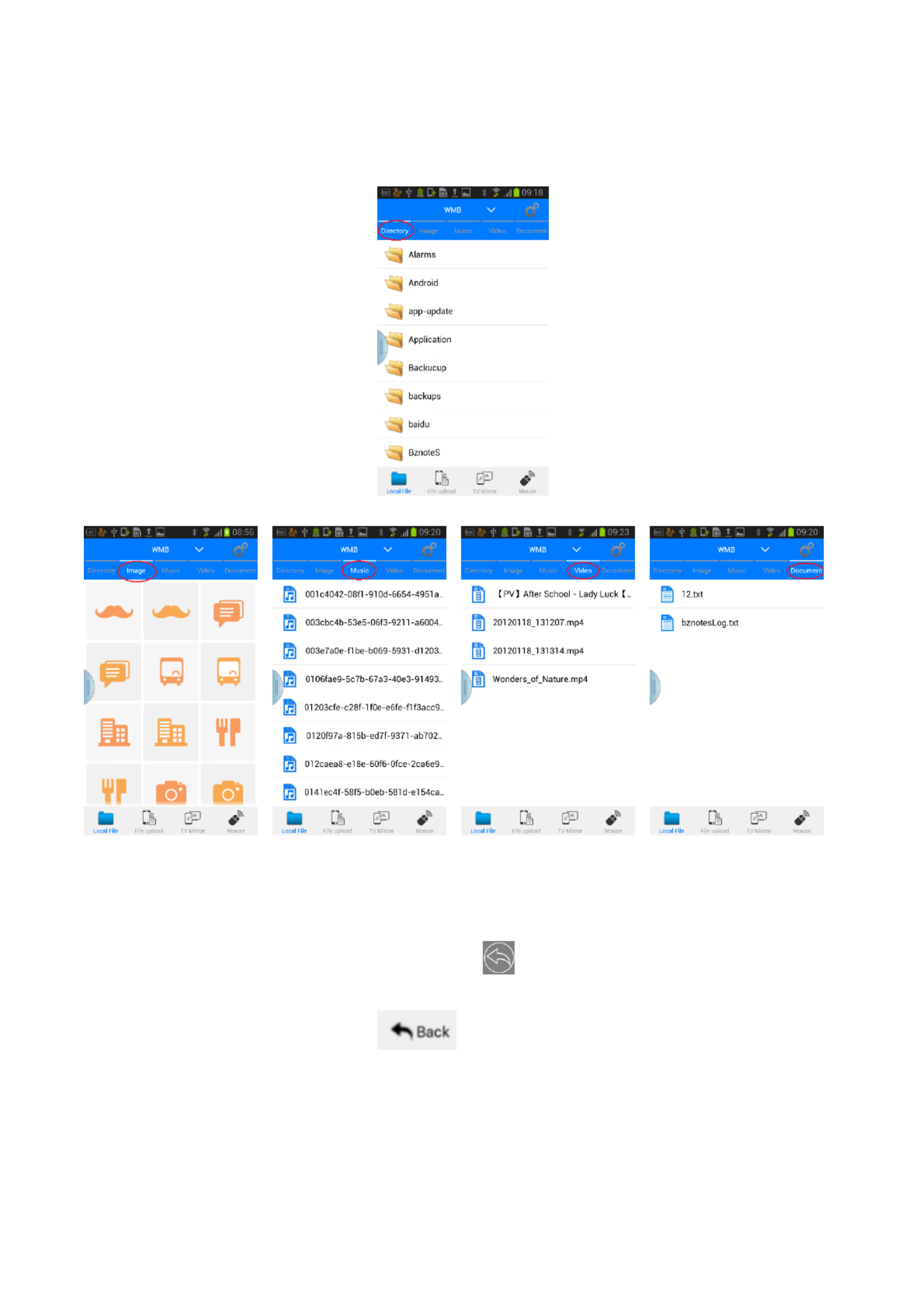

3. Local Files: select the file stored in local Android phone as shown below (Note: at the actual version the
memory of internal memory card is not shown).
Note:
The last displayed image remains in Klick & Show memory, until the unit is turned off. To protect the privacy it
is recommended to delete manually the last image, before leaving the meeting.
Click with left-mouse into the picture, the Return-icon appears, click to return and delete the shown
picture in display.
Click at iPhone / iPad the Return-icon to create the same effect.
4. TV Mirror: Click the icon in menu bar to shows main screen of Klick & Show on screen of Android-phone.
You can control the PC/Laptop device like a remote mouse with a finger.

57
When there is no connected Klick & Show, it shows:
Operation Zone: Zone to the active signal and control it as a mouse. “Remote View”
Hidden Menu: Click to open the hidden function features, including Back and Keyboard when available.
Back: It sends a “Return” command to the Klick & Show Base-unit to go back to the previous directory menu.
Keyboard: Open the keyboard to enter character/number.
Red Cross Icon: return to the main interface.
When there is an active signal showing on the main screen, you see it, and click the screen to control it as will
a mouse, as shown below.
Click the Red Cross icon to return.
5. Mouse: click the “Remote Mouse”-icon to generate a mouse pointer to control the Klick & Show Base-unit
with 3D-movements like an air-mouse. Hold the phone horizontally in front of you, touch -Position to “Re ”
center the mouse-pointer and begin with 3D movements out from the wrist.

58
Mouse Pointer: represent the relative position of the mouse on the main screen.
Re-Position: reset the positon to be the center of the screen.
Back: It sends a “Return” command to the Base-unit to go back to the previous directory menu.
Red Cross Icon: return to the main interface of WirelessMedia App.
Note:
In “Remote Mouse” the accelerations sensors are active. This has the consequence of a higher power current
consumption in mobile unit.

59
6.4 HDMI Input Select
When on Home screen, it is used for receiving PC or Mobile devices. Please connect a mouse to either USB 2.0
port of Base-unit, use the Klick & Show Wireless Mouse/Remote Mouse to click the local HDMI input icon, as
shown below.
When local HDMI input is used as HDMI switcher. Use a mouse use the Wireless Mouse/Remote mouse to or
click the Back to Home screen icon, as shown below.
A right click at the symbol status bar at the right bottom corner opens a window in desktop of PC,, in
where user can select external HDMI-Input also
A
ctivate HDMI-Input from desktop of laptop.
The Base-unit can also be configured in menu settings 5.4.5, whether it will switch or to manually automatically
an active source at the HDMI-input.
Note:
A right-click of the mouse button returns to Home screen also.

61
Choose in menu „ “About and read the version in message window.
Windows
MAC OSX
Note:
When Receiver version is shown as “n/a”, button TOUCH is not paired to Base-unit. Please pair again, see chapter 3.

63
The display device shows the home page after normal boot of the device, as shown below.
You can disconnect USB-drive.
4. Perform “Factory Reset”when the firmware update is complete?
Only when otes FACTORY RESET the associated “Release n ” are requiring an additional „ “, perform it via the
menu : „ “ / „System Update Factory reset”
all data of configuration will be lost. So that you do not have to re-configure all data in an elaborate
process, therefore note all settings within the Sub-menus before doing Factory reset.
5. The is finished. update of Base-unit
7.3 Upgrading and Pairing of Sensor-button TOUCH
1. Plug the to be updated Sensor-button TOUCH to either of the two USB port of Base-unit. It will
automatically show up a message to indicate if the installed firmware of Sensor-button is older, and needs
to be upgraded.

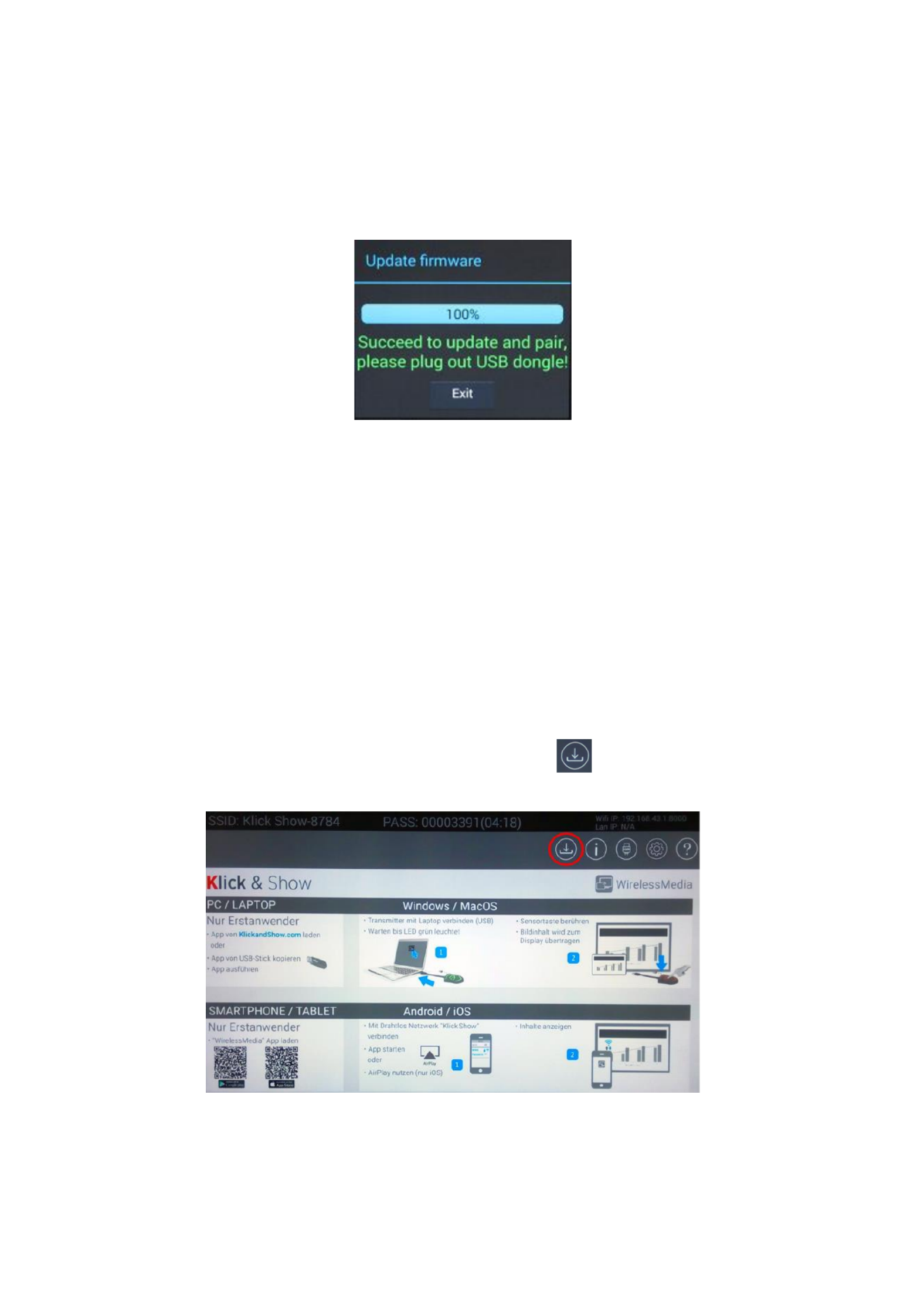

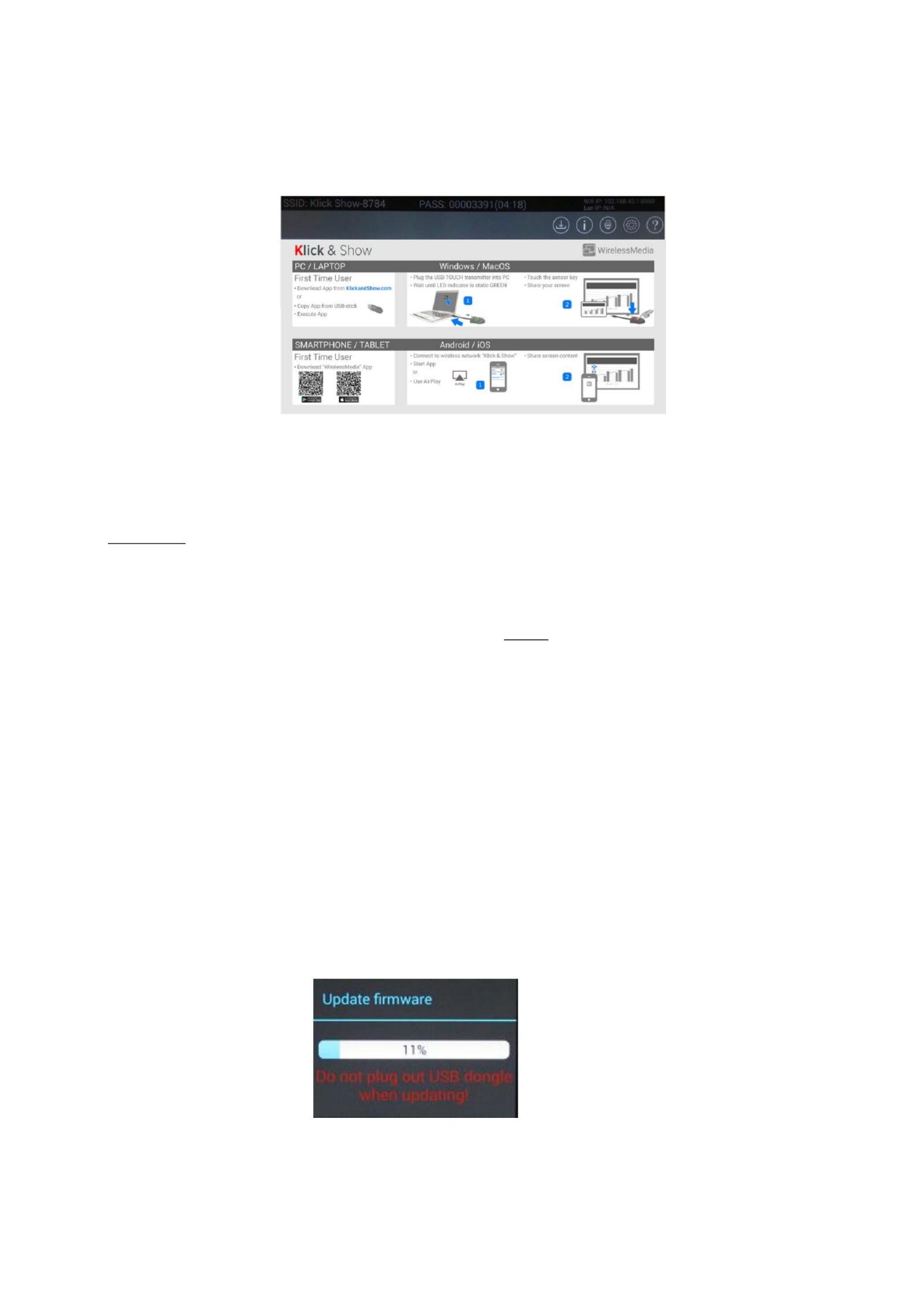

The upgrading progress starts automatically with the progress bar, as shown below.

64
2. “ ” to the BasePairing -unit is done automatically afterwards.
When you get the message:
you can plug out the Sens -button TOUCH. Update all other Sensor-buttons accordingly. or
7.4 Software update of USB-stick of Sensor-button TOUCH
After updating of and the USB-stick of the Sensor-button TOUCH should be written Base-unit Sensor-buttons
with the actual STARTER-program for Windows, MAC and APPs for mobile-units.
1. Plug the USB-stick of Sensor-button TOUCH to an USB port of Base-unit.
2. Enter Menu “Settings” of Klick&Show, and click on symbol :
3. The Starter-program is written tot he USB-stick, an OSD- ows shows the progress. wind
When ready, unplug the USB-stick.

65
7.5 Install newer version of Starter-Program at Laptop
If you get an error-message when connecting the Sensor-button TOUCH at the laptop, the version of the
STARTER program has also to be updated.
There are several possibilities doing this.
1. Best and safest possibility:

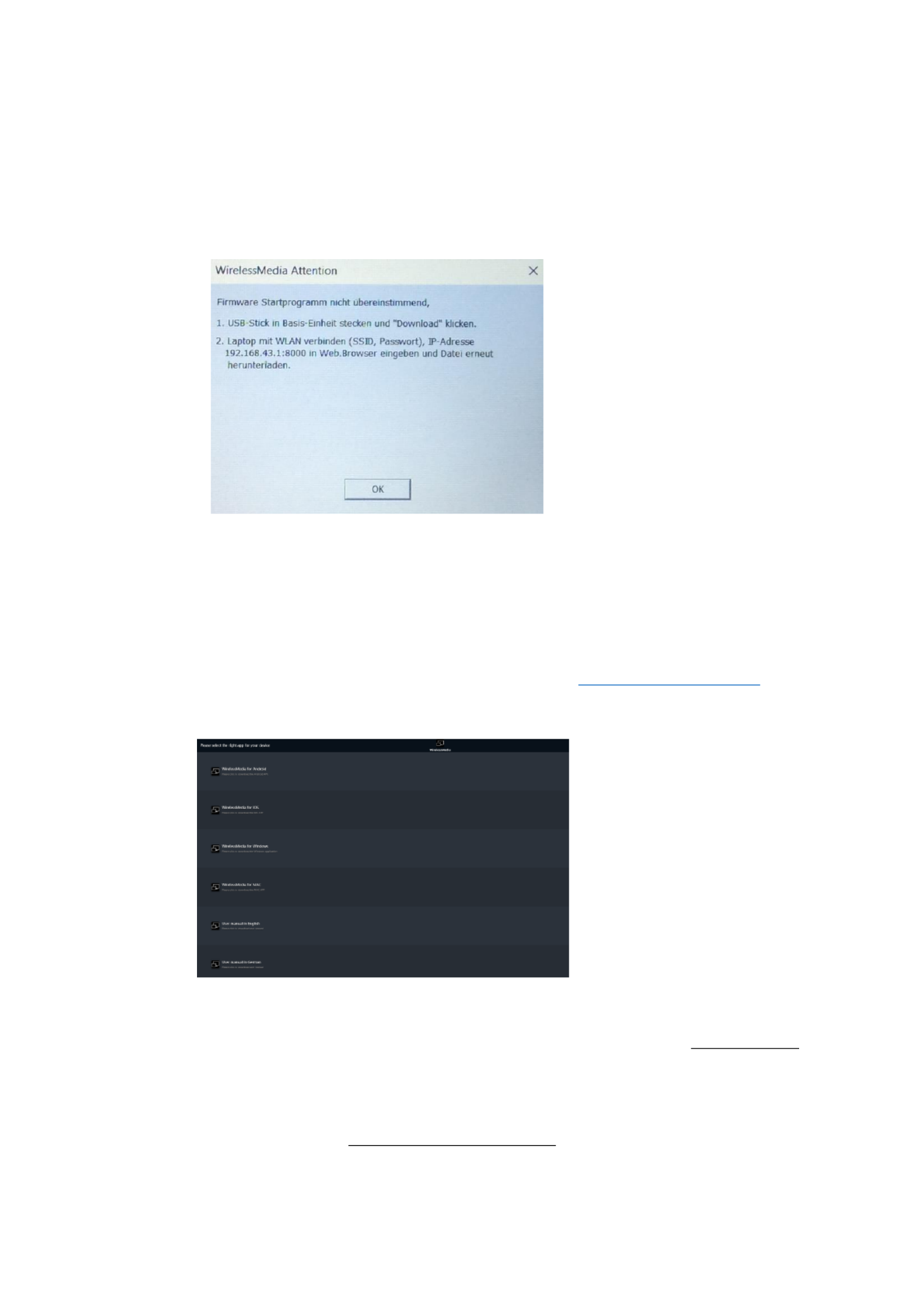

you can download the Starter-program by WiFi direct from the Base-unit .
See address in status-line of Home page of Base-unit. Connect your PC with the SSID, PASSWORD, WiFi-IP
WiFi of the Base-unit. Open a Browser on your PC and enter WiFi-IP http://192.168.43.1:8000 see
webpage of Base-unit below:
Select Sie Starter- Program „WirelessMedia for Windows“ or „WirelessMedia for MAC“.
Copy the file to a local directory or desktop of the laptop. Continue with 3. “ “WirelessMedia-xxx.exe
2. Copy the relating STARTER file .from the USB-stick of SENSOR-button TOUCH
3. Execute the Starter-program once You do not need admin-rights for this action. .

66
7.6 Clean left files of older versions of Starter-program in Laptop
If you still get an error-message, when connecting the Sensor-button TOUCH, it may possible that there are
some old version “WirelessMedia” files left in the laptop, which may influence the performance of the newer
“WirelessMedia” program. Currently, it needs to manually clear them, before start to use the newly updated
“WirelessMedia” firmware.
Steps required:

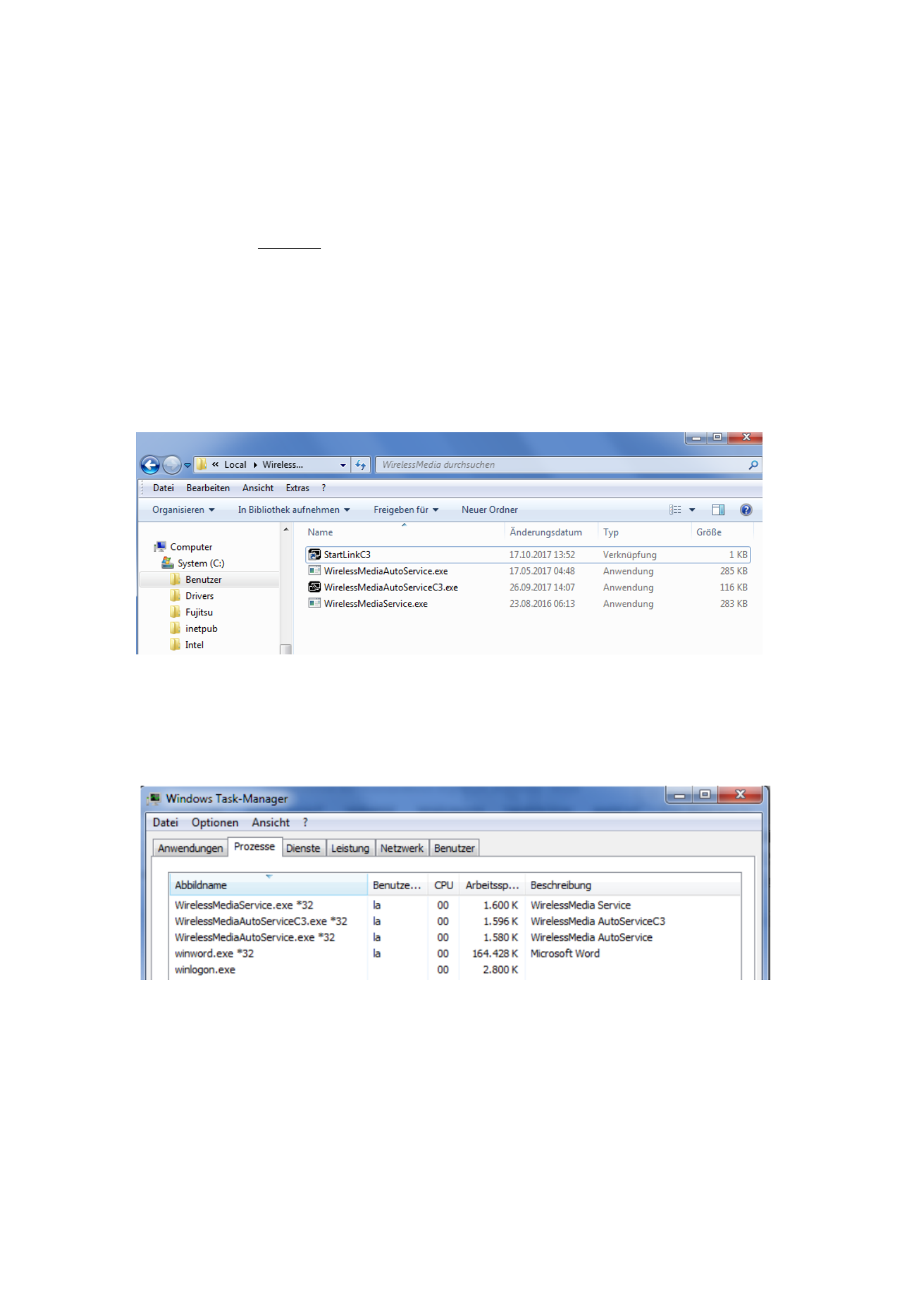

1. Find the place where „WirelessMedia“ programs are stored, normally in:
C:\User\ name)\AppData\Local\ , ***( ”WirelessMedia” (possibly enable “Hidden files”).for ex.:
2. If the files „*Service“ or „ServiceC3“ can not be removed and shows an alert message, „The action can’t be
completed because the file is open… “, please use combined hot key to open the task manager by pressing
„CTRL + Alt + Delete”, as shown below
Right- click on all “WirelessMedia* ” programs and ‘End Process’.
3. Go to step 1. and repeat deleting all „WirelessMedia“ Programs, if necessary.
4. Execute the actual version of STARTER-program.
Upgrading progress is completed.

68
param3: wi hotspot
ssid
param4: wi hotspot
password
mute
on
OK
mute volume
mute on
o
OK
unmute volume
mute o
?
#mute on
OK
query mute status
mute ?
standb
y
set
OK
set auto standby
meout me, as
menu general
seng->auto standby
standby set
o
standby set
1min
standby set
5min
standby set
10min
standby set
15min
standby set
30min
wakeup
OK
force system wake up
from standby
standby
wakeup
?
#standby 1min wakeup
OK
param1: auto standby
meout seng
param2: standby
status, wakeup means
system now is
working, sleep means
system is dreaming
standby ?
buon
listconnected
#buon 1513849033
c0a82b98,8:ea:40:5d:24:66,V2.0.5C.A1009,1,1,0,1513848909,1513848845,15138
48213,ter
list connected buon
info
lc
#buon 1513849033
c0a82b85,ec:3d:fd:3a:9c:2c,V2.0.5C.A1009,1,1,0,1513849008,1513849006,0,LYC
AN
the same as
listconnected
listdisconnect
ed
#buon 1513849033
c0a82b85,ec:3d:fd:3a:9c:2c,V2.0.5C.A1009,1,1,0,1513849008,1513849006,0,LYC
AN
list buons which had
ever connected to
base unit. These info
won't be saved to
disk, so when the
power of base unit is

70
9. Specification Klick & Show
Klick & Show TOUCH
Sensor-Button
Klick & Show K- 10S
Base-U nit
Input Formats
Video input format
1x USB
1x Wireless, 1x HDMI- IN
Video compliance / connector
USB 2.0 with type A connector
IEEE 802.11n/ac, HDMI 2.0 with -pin female connector 19
Video input resolution
VESA, maximum 4096 x 2160* pixels
HDMI 2.0, up to 4K/60Hz/4:4:4
Audio input
PC embedded digital
HDMI embedded Digital Audio IN, 1x DVI Analog Audio
IN via 3.5mm Stereo female connector IEEE 802.11n/ac ,
Output Formats
Video output format
1 x Wireless
1x HDMI-OUT
Video compliance / connector
IEEE 802.11n/ac
HDMI 1.4/HDMI 2.0 with -pin female connector 19
Video outpu resolution t
* Encoded to 1080p for wireless
transmission
1920x1080@60Hz, 1920x1200@60Hz, 3840x2160@30Hz,
3840x2160@60Hz, Chroma 4:4:4
Audio output
IEEE 802.11n/ac
HDMI embedded Digital Audio OUT, 1x Stereo Analog
Audio OUT via 3.5 mm Stereo female connector;
Digital-, Analog-Audio Out ist 2.0 (Stereo)
Additional Ports
Ethernet
LAN-RJ45
USB
USB-stick 8GB with Starter-program
(Launcher) for Windows and MacOS
2x USB Type-A connector
Features
Wireless transmission protocol
IEEE 802.11n/ac
Frequency band
2.4 GHz 5 GHz or
Encryption
AES WPA PSK, WPA2 PSK
Wireless data rate
Up to 1 Gbps
Transmission distance
Max. m without obstacle between Klick & Show TOUCH sensor-button and K-10S base-unit 35
Wireless transmission
video capacity:
1080P @ <30Hz
1080P @ <60 Hz via iOS/Android app
1080P @ < Hz via Airplay (for iOS devices) 60
1080P @ < Hz via Klick & Show TOUCH sensor-button 30
Simultaneous connections
Max. (TOUCH sensor-button or mobile device 14
together)
Content windows on main screen
1
Mobile device capability
Free iOS app, Free Android app
Remote Viewing
Remote mirroring of the main screen to mobile device
720P @ < 10 Hz via iOS/Android App
Remote Mouse
“Remote Control” of presenter's PC
Control
Operation
Sensor button with tactile response
(vibration)
Virtual buttons on OSD for USB mouse or touch display,
“Remote Control” with mobile device via iOS/Android
app

71
Status indicator
3 color back-lit LEDs: Red, Green, White*
* reserved for future use
On-Screen-Display menu (OSD)
for configuration and information overlay
Control protocol
Telnet, via Ethernet port
Mechanical
Dimensions (W x D x H)
80mm mm x 60 x 15mm, USB-cable 12cm
160mm x 105mm x 26mm, without antennas
Weight
0,09 kg (90 g) complete
0,45 kg, with antennas
Environmental
Operating temperature
+32° to +104° F (0° to +40° C)
Storage temperature
-4° to +140° F (-20° to +60° C)
Humidity (storage / operating)
20% to 90% (non-condensing)
Power
DC power
5V supplied via PC USB port,
(no battery required)
12 V / 2A universal power supply for mains 100-DC 240
VAC, with interchangeable power adapters t e A, C, G, I yp
(for Europe, UK, US, Australia)
Power consumption
2 W (max.)
Operation (typical) 10 W; Standby 5 W, Switch off < 1 W
Accessories included, Klick & Show K-10S Kit (7488000300)
Klick & Show K-10S Base-unit, 2x antennas, 2x Klick & Show TOUCH sensor-buttons, mounting brackets, quick-start guide, power supply

72
10. Trouble Shooting
Here you can find some fundamental problems and possible causes, which can be happen during the use of Klick
& Show. Find out the problem you have encountered in the table below and apply the solution. If you still have
difficulty, contact your technical support, your dealer or your IT-administrator.
Problem
Cause
Solution
Shows “SSID: N/A and Password: N/A”
on the Home Page, and user can not
find the Klick & Show WIFI by mobile
device.
Hotspot of Basic-unit is turned off:
the symbol is displayed in
upper left corner of main screen.
Use a mouse, or the “Remote Mouse”
feature of the “ OS” WirelessMedia for i
or “ for Android” to click WirelessMedia
the “ ” button on HSetting ome screen.
Under the menu of Tethering &
portable hotspot, Portable check on the
Hotspot to turn it on.
When the Sensor-button TOUCH was
plugged in USB of a Laptop, the
Sensor-button TOUCH is flashing
continuously green and the Software
“WirelessMedia” is not starting.
When you are using Klick & Show for
the first time on your laptop or for
guests, you have to copy the Starter-
program “WirelessMedia-
windows.exe WirelessMedia- “ or “
macOS.app” f first on your Laptop / or
PC. Run this Starter-program.
Or Starter APP is not latest version.
You can run the Starter APP without
Admin-rights.
There are 4 possibilities to load the
Starter-program, see chapter 4.3.1.
Best is: download the APP via LAN or
WiFI of Base-unit.
When the Starter-program is pre-
installed one time, Klick & Show is
ready to use later immediately.
Windows:
Executing of *.exe file is blocked from
administrator from antivirus or
software.
Check in Task Manager if
“WirelessMediaMain.exe” is
running.
Connect Sensor-button TOUCH to
USB, check in Device Manager, if
relevant HID drivers (mouse, HID
compatible device) are active.
Activate or update drivers.
De-activate the antivirus software,
when running Klick & Show or
configure it accordingly.
Mac:
Check in
preferences“ Security&Privacy“, if\
execution of APP from “APP-store and
identified developers” is permitted.

73
Using of USB-port on your computer is
blocked by admin, due to corporate
policy.
Change authorization by administrator.
When company policy prevents using
USB-port, you can use external HDMI-
IN port at Base unit with HDMI-cable.
Sensor button TOUCH is defective.
Take another button.
When plugging in the USB stick from
the TOUCH sensor button, a Windows
error message appears.
The USB stick was not previously
"safely removed" and simply removed.
In the Windows error message, click
“ ”Check and Repair to prevent future
messages. Always choose Eject Disk
from the context menu of the USB
drive’s icon.
When the Sensor-button TOUCH was
plugged in USB of a Laptop, Software
“WirelessMedia” is starting, but a
message shows: “Connection failed.”
The SSID was changed.
Did not do the pairing
successfully between the Sensor-
button TOUCH and Base-unit.
Pair Sensor-button TOUCH to the Klick
& Show Base-unit by connecting
Sensor-button to either USB port of
Base-unit, and follow OSD-messages.
Please refer to chapter 4.2.
It may possible that there are
some old version “WirelessMedia”
files left in the laptop, which may
influence the performance of the
newer “WirelessMedia” program.
Clean left files of older versions of
Starter-program in Laptop, see chapter
6.6. Run Starter-program, which should
be stored on PC.
Bad connection at USB port on the
Laptop.
Reconnect to the USB port.
Try another USB port.
Reboot the Laptop.
Some types of USB devices might
be blocked because of the
company policy.
USB port setting on the Laptop
might limit the usage of high
power USB device when on
battery power.
If possible, change the USB port
policy/settings on the Laptop.
OSD-message: “Firmware Launcher is
not compliant!”
Software-version of Starter-program
not actual.
Download actual Starter-program and
execute, see chapter 6.4, 6.5, 6.6
“WirelessMedia” (Android or iOS) for
mobile units does not work.
WiFi hotspot password changed, when
Android or IOS device is connected to
the WiFi hotspot of Base-unit .
Connect the mobile device with
WiFi of the Base-unit again.
Password of Base-unit has
changed automatically. Please
enter the changed password,
which is shown in Home screen.

74
The mobile unit was connected to
another Base-unit.
On Android or IOS devices application,
please click the and “ ”DEVICE LIST ,
click the desired device.
In APP “WirelessMedia” will be
displayed no pictures, videos.
When installing the APP on mobile
unit, the folders for pictures, videos
have not been confirmed.
Install APP again and confirm security
query for pictures, videos or permit in
settings of mobile unit.
The image quality on the main display
screen is not good.
The quality or length of the cable
between the Base-unit and the display
are insufficient.
Try another cable.
Check the cable to be fasten
properly.
Inappropriate resolution for the main
screen. The Basis-unit supports
3840x2160/60Hz, 3840x2160/30Hz,
1920x12000/60Hz. and
1920x1080/60Hz. Scaling has negative
impact on image quality.
Change the resolution on Menu
“ ” Best result is, set to ‘native Setting .
resolution’ of the main display.
Bad wireless connection. The
connection between the Sensor-
button TOUCH to the Base-unit is not
stable.
Wi-Fi problems.
• Interference in the radio channel.
• Overload in the radio channel.
Klick & Show does not automatically
jump to other channels when there are
changes in the RF environment
Use a Wi-Fi scanner to find a free
wireless frequency and channel and
select it via the setting configuration,
see chapter 5.2.5.
Regularly check the RF environment if
there are frequently changes in WiFi
networks in your environment. Add
your IT department to the WLAN
design in critical cases.
Low signal strength:
Metal cabinets, walls, construction
elements, …can cause reflections
deteriorating the wireless signal
Obstacles between Buttons and Base-
unit cause lowering of the wireless
strength and quality.
Put the Base-unit closer to the
main screen.
Change the orientation of the
antennas at Base-unit.
Remove or limit as much as
possible all obstacles between the
buttons and Base-unit.
Avoid to place the base-unit in
(metal) cabinets, suspended
ceilings, under tables or in
adjoining rooms.
Low video performance (sharpness,
audio and video dropouts, video
stream is jerking, …)
“Remote View” on mobile device
consumes bandwith and
performance and reduces speed of
Klick&Show
The media-player is not ideal.
Use another media-player (VLC-
player …), another browser.
Lock Remote View in the APP of “ “
mobile unit or lock “Remote
View”, see chapter 5.4.2

76
No LAN connection with the Base-unit
Wrong IP address
IP address is not within LAN range.
DHCP is not enabled.
Bad Wifi connection between Sensor-
button TOUCH and Base-unit.
Congestion of the wireless channel
Use wireless network scan tool to look
for free or the least congested
channels.
Move the Base-unit to another place in
the room.
Avoid placing it inside cabinets, false
ceiling, below the table, behind the
wall, in another room.
Re-orient the Base-unit Antennas
No Wi-Fi connection between mobile
device with Base-unit
Wrong Wi-Fi frequency
Check mobile device to select the
correct 2.4 GHz or 5 GHz
SSID or password not correct
Enter the correct SSID, password.
There is no sound at main-display.
No connected audio device.
Make certain, that Audio is turned on.
Volume is set to OFF.
Adjust level in menu configuration.
Audio signal may be muted.
Click with right-mouse button at
speaker icon In task-bar and switch on.
Audio is muted in mixer of volume in
taskbar.
Right-mouse click at speaker icon in
taskbar, open mixer and unmute
“WirelessMedia” or “Video Playback”.-
There is no sound with MacBook.
Problem of sound-flower APP
1. Go to the macOS System
Preferences and select the “Security &
Privacy” tab. Find the "allow to
run/install the sound-flower" there
click on next to “Allow” “Matt Ingels”,
in order to allow this sound-flower to
install on the Mac Book.
2. If it needs the admin password, user
need to enter it.
3. Run the WirelessMedia.app again,
it’ll auto-install the sound-flower to
the MAC Book.
There is no sound via AirPlay or the
"WirelessMedia" APP.
The volume is set too low, on the
mobile device,
Increase the volume on the mobile
device.
No audio when transmit local file to
Base-unit.
Unsupportive audio format, including
Dolby MS11, DDCO DTSLBR, DTSE,
DTS-Neo Ultra, -THEATERSOUND, SRS
DTS Studio Sound 3D, DTS HD.
If possible, reformat it to the other
audio format, like DD, DD+, HE-AAC,
DTS DMP, WMA, DRA, COOK
Can’t enter the File Sharing/File
Exchange when use Klick & Show for
iOS on mobile devices.
Klick & Show APP is set to run
background. Due to Apple policy, any
Put Klick & Show application back to
front stage
Produktspecifikationer
Varumärke: | Kindermann |
Kategori: | Trådlös presentatör |
Modell: | Klick & Show System |
Enhetsplacering: | Vrijstaand |
Typ av operation: | Knoppen |
Inbyggd display: | Ja |
Vikt: | 49300 g |
Bredd: | 598 mm |
Djup: | 600 mm |
Höjd: | 850 mm |
Antal platsinställningar: | 15 couverts |
Automatiska program: | Ja |
Torksystem: | Actieve ventilatie |
Dörrfärg: | Grijs |
Fördröjd starttimer: | Ja |
Startfördröjning: | 24 uur |
Barnlås: | Ja |
Cykelns längd: | 245 min |
Ljudnivå: | 43 dB |
Energie-efficiëntieklasse: | E |
Förpackningens vikt: | 51400 g |
Förpackningens bredd: | 644 mm |
Djuppackning: | 661 mm |
Förpackningshöjd: | 889 mm |
Lämplig för paneljustering: | Nee |
Vattenförbrukning per cykel: | 9.5 l |
Bulleremissionsklass: | B |
Antal tvättprogram: | 6 |
Energiförbrukning per 100 cykler: | 97 kWu |
Produktstorlek: | Volledige grootte (60 cm) |
Färgkontrollpanel: | Zwart |
Doseringsassistent: | Ja |
Tvättprogram: | Auto, Delicate 40°C, Eco 50°C, Intensive 70°C, Mini, Quick&Shine |
Energiförbrukning per cykel: | 0.965 kWu |
Övre korg justerbar höjd: | Ja |
Temperatur (max): | 70 °C |
Övre korg justerbar höjdnivåer: | 3 |
AC-ingångsspänning: | 220 - 240 V |
AC-ingångsfrekvens: | 50 Hz |
Type beeldscherm: | LED |
Energieffektivitetsskala: | A tot G |
Behöver du hjälp?
Om du behöver hjälp med Kindermann Klick & Show System ställ en fråga nedan och andra användare kommer att svara dig
Trådlös presentatör Kindermann Manualer
13 September 2024
27 Juli 2024
Trådlös presentatör Manualer
- Iiyama
- Kensington
- QNAP
- Satechi
- V7
- Optoma
- InFocus
- Arctic Cooling
- Elmo
- Vivitek
- ByEasy
- Allsee
- Konig
- Black Box
- Intellinet
Nyaste Trådlös presentatör Manualer
25 Februari 2025
20 Februari 2025
1 Januari 2025
20 December 2024
20 December 2024
19 December 2024
19 December 2024
19 December 2024
19 December 2024
19 December 2024
