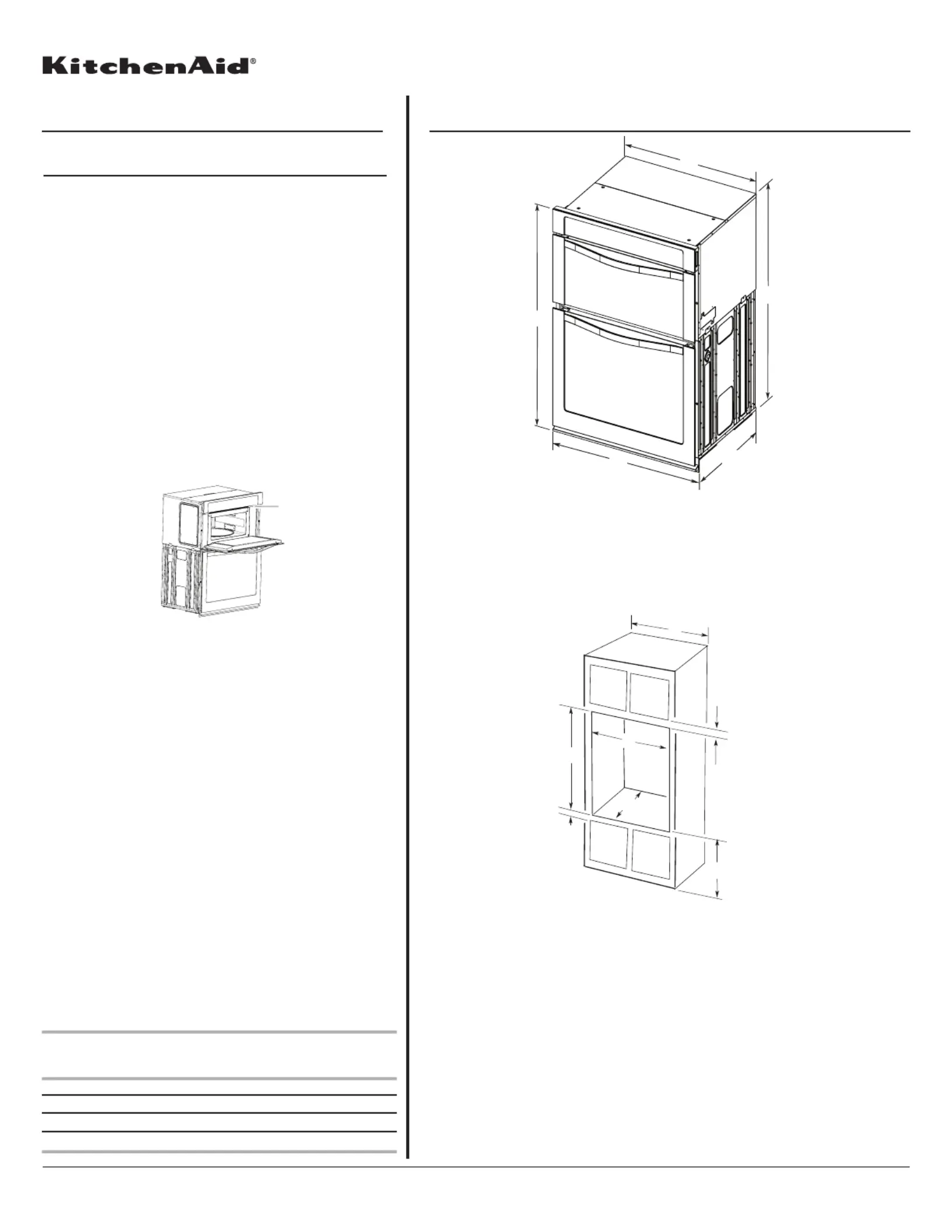

27" (68.6 cm) and 30" (76.2 CM) ELECTRIC BUILT-IN

MICROWAVE/OVEN COMBINATION

PRODUCT MODEL SERIES PRODUCT DIMENSIONS

KEMS309B KEMS379B

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrical installer determine that

the ground path and the wire gauge are in accordance with local

codes.

Check with a qualified electrical installer if you are not sure the

oven is properly grounded.

This oven must be connected to a grounded metal, permanent

wiring system.

Be sure that the electrical connection and wire size are adequate

and in conformance with the National Electrical Code,

ANSI/NFPA 70-latest edition or CSA Standards C22.1-94,

Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest

edition, and all local codes and ordinances.

To properly install your oven, you must determine the type of

electrical connection you will be using and follow the

instructions provided for it here.

●

Oven must be connected to the proper electrical voltage and

frequency as specified on the model/serial number rating

plate. The model/serial number rating plate is located near

center vent of the lower oven. See the following illustration.

●

Models rated from 7.3 to 9.6 kW at 240 volts (5.4 to

7.4 kW at 208 volts) require a separate 40-amp circuit. Models

rated at 4.8 kW and below at 240 volts (3.6 kW and below at

208 volts) require a separate 20-amp circuit.

●

A circuit breaker is recommended.

●

Connect directly to the fused disconnect (or circuit breaker

box) through flexible, armored or nonmetallic sheathed,

copper cable (with grounding wire). See “Make Electrical

Connection” section.

●

Flexible conduit from the oven should be connected directly to

the junction box.

●

Do not cut the conduit. The length of conduit provided is for

serviceability of the oven.

●

A UL listed or CSA approved conduit connector must be

provided.

●

If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.

2. Connect the aluminum wiring to the added section of copper

wire using special connectors and/or tools designed and UL

listed for joining copper to aluminum.

Follow the electrical connector manufacturer's recommended

procedure. Aluminum/copper connection must conform with

local codes and industry accepted wiring practices.

For power requirements for models WOC54EC7A, WOC54EC0A,

WOC95EC0A and MMW9730A, refer to the following table.

Voltage Microwave Oven and Microwave Oven and

Microwave Oven with Microwave Oven with

Single Thermal Oven Single Convection Oven

240 VAC 5490 W 5520 W

208 VAC 4590 W 4620 W

240 VAC 30.4 A 30.5 A

208 VAC 28.4 A 28.6 A

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10351241

7/26/12

Product Dimensions

Cabinet Dimensions

*NOTE: The cabinet height can be between 41" (104.1 cm) and

41½" (105.6 cm) for microwave/oven combination.

" (76.2 cm) min. cabinet width

B. 1" (2.5 cm) top of cutout to bottom

C. 19

¹⁄₄

" (48.9 cm) bottom of cutout to

4"-19

¹⁄₄

" (10.2-48.9 cm) bottom of

D. 28

¹⁄₂

" (72.4 cm) cutout width

E. 1

¹⁄₂

" (3.8 cm) min. bottom of cutout

F. 41

⁵⁄₁₆

" (105 cm)* recommended cutout

G. 24" (60.7 cm) cutout depth

30" (76.2 cm) models

42⁹⁄₁₆

" (108.0 cm) overall height

B. 28

¹⁄₂

" (72.3 cm) recessed width

C. 41" (104.1 cm) recessed height

D. 23

¹⁄₄

" (59.1 cm) max. recessed depth

E. 30" (76.2 cm) overall width

27" (68.6 cm) models

42⁹⁄₁₆

" (108.0 cm) overall height

B. 25

⁷⁄₁₆

" (64.6 cm) recessed

width

C. 41" (104.1 cm) recessed height

D. 23

¹⁄₄

" (59.1 cm) max. recessed

depth

E. 27" (68.6 cm) overall width

27" (68.6 cm) models

A. 27" (68.6 cm) min. cabinet

width

B. 1" (2.5 cm) top of cutout to

bottom of upper cabinet door

C. 19

¹⁄₄

" (48.9 cm) bottom of

cutout to floor is

recommended.

4"-19

¹⁄₄

" (10.2-48.9 cm) bottom

of cutout to floor is acceptable.

D. 25

¹⁄₂

" (64.8 cm) cutout width

E. 1

¹⁄₂

" (3.8 cm) min. bottom of

cutout to top of cabinet door

F. 41

⁵⁄₁₆

" (105 cm)* recommended

cutout height

G. 24" (60.7 cm) cutout depth

30" (76.2 cm) models

of upper cabinet door

floor is recommended.

cutout to floor is acceptable.

to top of cabinet door

height

A. 42 A. 42

A. Model/serial number plate

ELECTRICAL CONNECTION
