Instruction Sheet W10257618A 3/09
Instruction Sheet
for Backsplash Kit Installation
(30”/36”/48” Range or Cooktop Application)
1
1. Assemble rear panel to backsplash using 7 of the 10 screws
provide in kit.
2. Position the rear panel against the inner flange of the
backsplash as shown in .Figure 1
3. Install mounting screws (7) through the backsplash ange
mounting holes into rear panel and tighten securely, set
aside.
4. Remove the grates from range or cooktop.
5. Remove rear island trim from range or cooktop by removing
three (3) screws from the rear of the appliance. Retain screws
for future use. See Figure 2.
Kit Contains:
(1) Backsplash
(1) Panel, Rear
(10) Screws, 8-18 x .375”
(1) Instruction Sheet
6. Position new backsplash assembly where the island trim was
previously removed. Align holes in rear of range or cooktop
with backsplash assembly and secure using the three (3)
screws removed in step 5. See Figure 3.
7. Install the three (3) additional screws provided with kit to the
front side of the backsplash assembly and tighten securely.
See .Figure 4

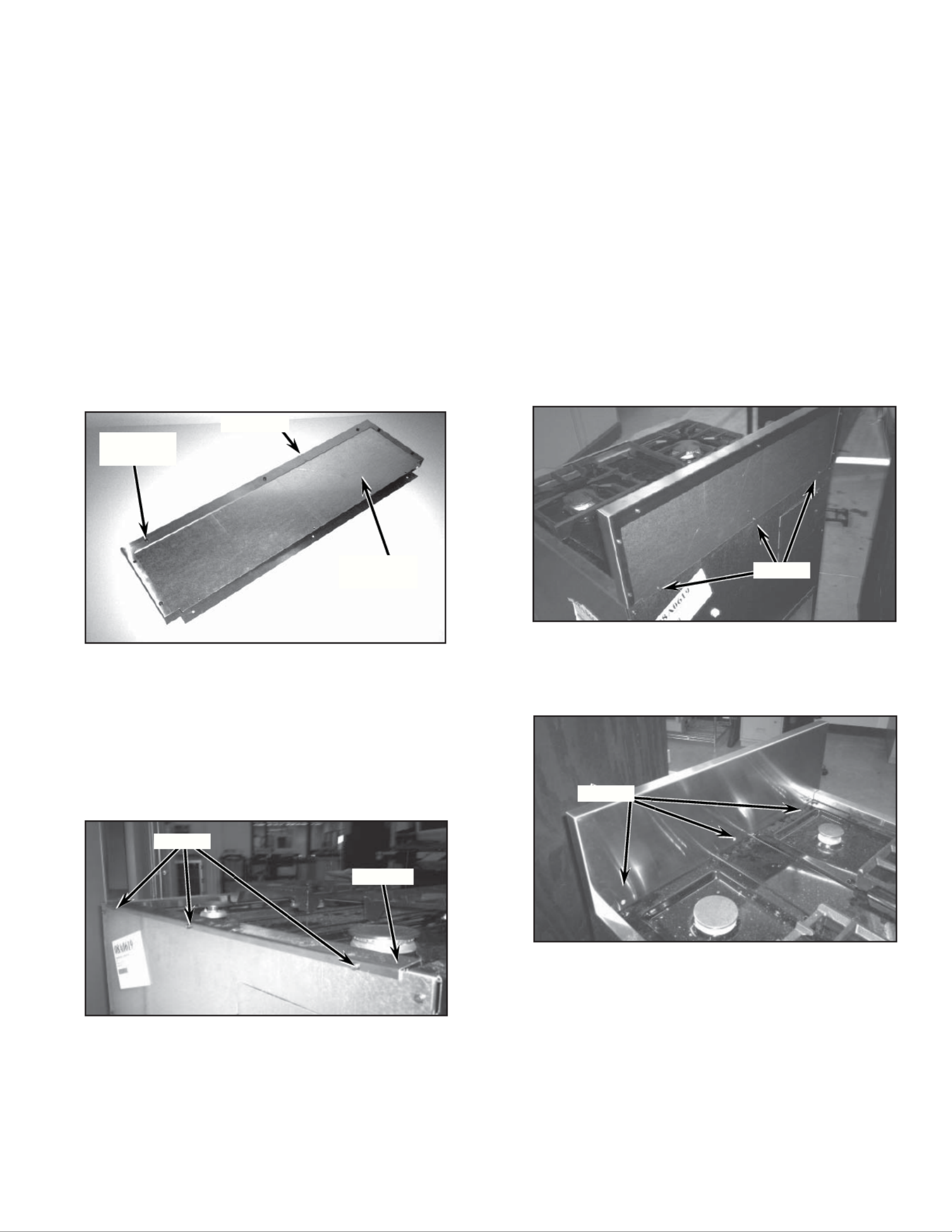

FIGURE 1
SCREWS
(7 LOCATIONS)
BACKSPLASH
REAR PANEL
(NOTE LOCATION)
FIGURE 2
SCREWS (3)
ISLAND TRIM
FIGURE 3
SCREWS (3)
FIGURE 4
SCREWS (3)
8. Reinstall the grates onto the range or cooktop.
© Whirlpool Corporation 2009
(All Rights Reserved)
