Sida 1/12

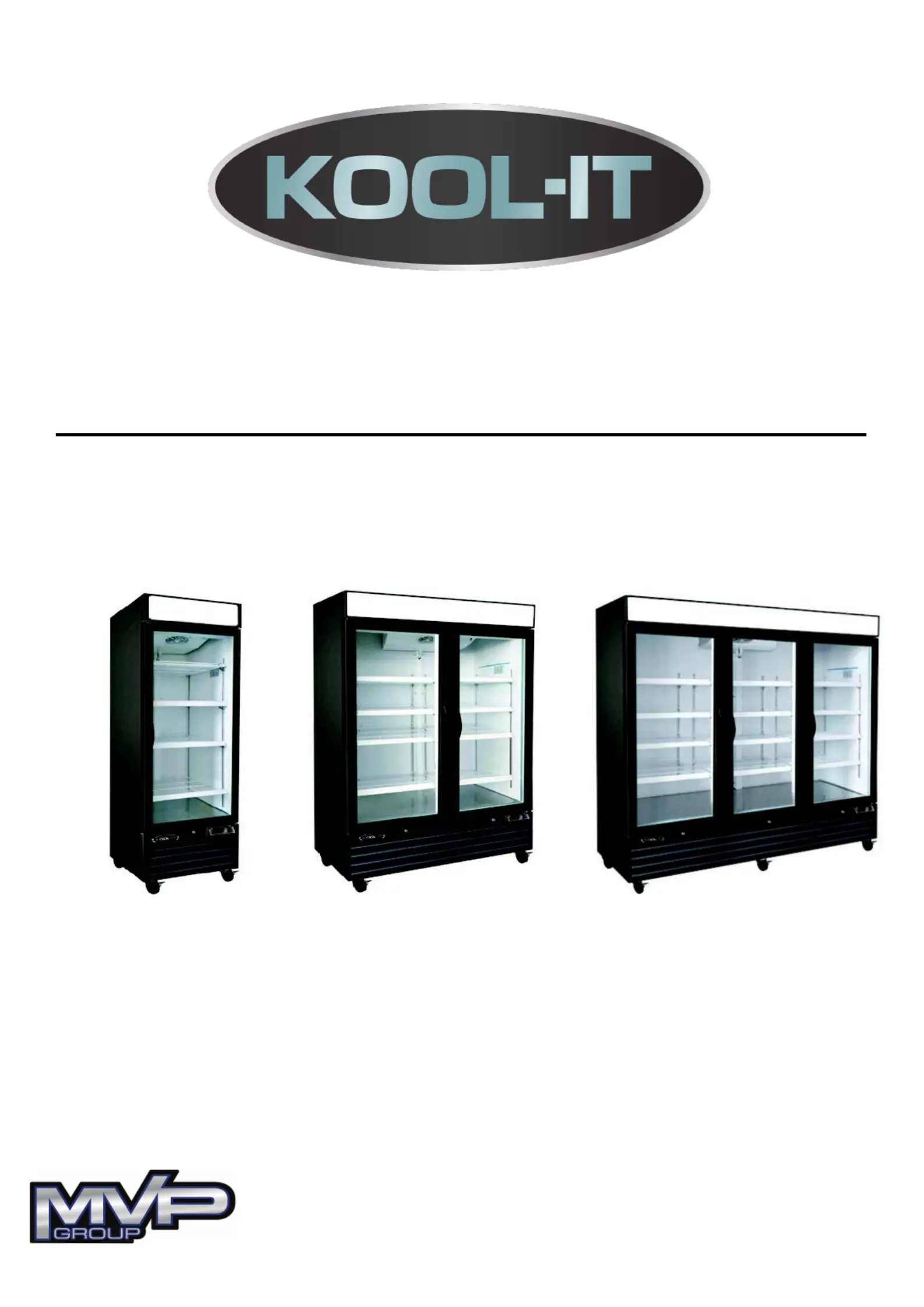

Glass Freezer Door Merchandiser
Service, Installation and Care Manual
Please read this manual completely before attempting to install or operate this equipment.
Notify carrier of damage! Inspect all components immediately.
IMPOR
TANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
sales@mvpgroupcorp.com www.mvpgroupcorp.com
KGF-23
KGF-48
KGF-72DV
Printed 05/2020
5659 Royalmount Avenue
Montreal, Qc, Canada H4P 2P9
Tel.: 514.737.9701 / Toll Free: 888.275.4538
Fax.: 514.342.3854 / Toll Free: 877.453.8832
3560 NW 56th Street
Fort Lauderdale, FL 33309
Tel.: 786.600.4687 Toll Free: 844.218.8477 /
Fax.: 786.661.4100
Service and Installation Manual
2
CONTENTS
RECEIVING & INSPECTING EQUIPMENT..2
SPECIFICATIONS..3
INSTALLATION....4
OPERATION....5
MAINTENANCE..6
STANDARD LABOR GUIDELINES.8
WIRING DIAGRAM10
All rights reserved. Reproduc without written permission is prohibited.ing this manual
SERIAL NUMBER INFORMATION
The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side
near the top on the wall.
Always have the serial number of your unit available when calling for parts or service.
This manual covers standard units only. If you have a custom unit, consult the customer service department at the
number listed in the back cover.
RECEIVING AND INSPECTING THE EQUIPMENT
Even though most equipment is shipped crated, care should be taken during unloading so the equipment is not
damaged while being moved into the building.
1. Visually inspect the exterior of the package and skid or container. Any damage should be noted and reported
to the delivering carrier immediately.
2. If damaged, open and inspect the contents with the carrier.
3. In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the equipment
notify the carrier. Notification should be made verbally as well as in written form.
4. Request an inspection by the shipping company of the damaged equipment. This should be done within 10
days from receipt of the equipment.
5. Be certain to check the compressor compartment housing and visually inspect the refrigeration package. Be
sure lines are secure and base is still intact.
6. Freight carriers can supply the necessary damage forms upon request.
7. Retain all crating material until an inspection has been made or waived.
Service and Installation Manual
3
SPECIFICATION
SWING GLASS DOOR FREEZERS R290 REFRIGERANT
MODEL# V/Hz/Ph AMPS
STORAGE
CAPACITY
Cu-ft
HP
BTU
CHARGE
OZ
SHIP
WEIGHT
LBS
NEMA
PLUG
115/60/1
8.0
23
1/2
2 3.90000
5-15P
KGF-23
115/60/1
9.0
48
1 3650
5.29
567
5- P15
KGF-72DV
115/208-230/60/1* 9.0
72
1-1/4 4500
5.29
829 L14-20P
KGF-48
353
*KGF-72DV-PLEASE NOTE THAT THIS UNIT REQUIRES DUO VOLTAGE, 115V AND 230V COMBINED
IT MUST BE CONNECTED TO A 4-WIRE L14-20R OUTLET.
