Sida 1/4
www.KRAFTWERKtools.com
Art. 3989
EN
Using-Instructions
Foldbable creeper and work seat 2 in 1
150
Max.
kg
2
SAFETY and GENERAL INFORMATION
For your safety, read, understand, and follow the information provided with and on this folding creeper. The owner
and operator shall have an understanding of this product and safe operating procedures before attempting to use.
The owner and operator shall be aware that use of this product may require special skills and knowledge. Make
certain that the operator thoroughly understands the inherent dangers associated with the use and misuse of the
product. If any doubt exists as to the safe and proper use of this product, remove from service immediately.
Inspect before each use. Do not use if there are broken, bent, cracked or damaged parts (including labels).
Any folding creeper that appears damaged in any way, or operates abnormally shall be removed from service
immediately. If the folding creeper has been subjected to a shock load (a load dropped suddenly, unexpectedly
upon it), immediately discontinue use until it has been inspected by KRAFTWERK authorized service center. It
is recommended that an annual inspection be done by qualified personnel. Labels and Operator’s Manuals are
available from manufacturer.
PRODUCT DESCRIPTION
This device is designed to be folded in a ‘Z’ shape for use as a mechanics seat or unfolded for use as a mechanics
creeper. It is intended to be used to support and move, along a smooth and level surface, rated capacity loads
consisting of a single person weighing no more than *150 kg for the purpose of performing automotive maintenance
or service. This device is not intended, designed or engineered to be used for any other purpose.
* Rated Capacity: One (1) person weighing 150 kg. or less- includes person, tools, equipment, personal items.
SPECIFICATIONS
Do not use this device for any purpose other than that for which it is expressly intended.
Model Capacity Seat Size Creeper Size
3989 *150 kg 380 x 270 mm 1020 mm
Head Frame
Middle Frame
Rear Frame
Locking Pin
Figure 1
Head Cushion
Casters (6)
Fasteners (6)
COMPONENTS
Art. 3989-04
3
• Read, understand, and follow all printed materials provided with and on this product before
use.
• Do not exceed rated capacity! Rated capacity is: 150 kg (includes person, tools, equipment,
personal items).
• Sit down gently! Avoid shock loads caused by jumping or falling onto seat.
• Do not stand on seat.
• Beware of pinch and crush hazards when folding and unfolding.
• Keep out of the reach of children! This device is not appropriate for children’s use.
• Use on smooth, level surfaces only.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list
and Figure 1 illustration. If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Contents: 1 creeper body, 6 casters, 6 fasteners
Dimensions: 1020 x 455 x 150 mm
ASSEMBLY INSTRUCTIONS (Refer to Figure 1)
1. Carefully unfold the creeper as seen in Fig. 1.
Keep hands away from pinch and crush points
that are created while folding and unfolding!
2. Use a suitable screwdriver to attach the head cusion to Head Frame. Hand tighten with screwdriver.
3. Use a 5 mm hex-key to attach the casters to the Rear Frame. Insert the threaded fasteners from above, the
casters from below (as seen in Fig. 1), then hand tighten with hex key.
4. Attach Parts Tray to Rear Frame channel as seen below.

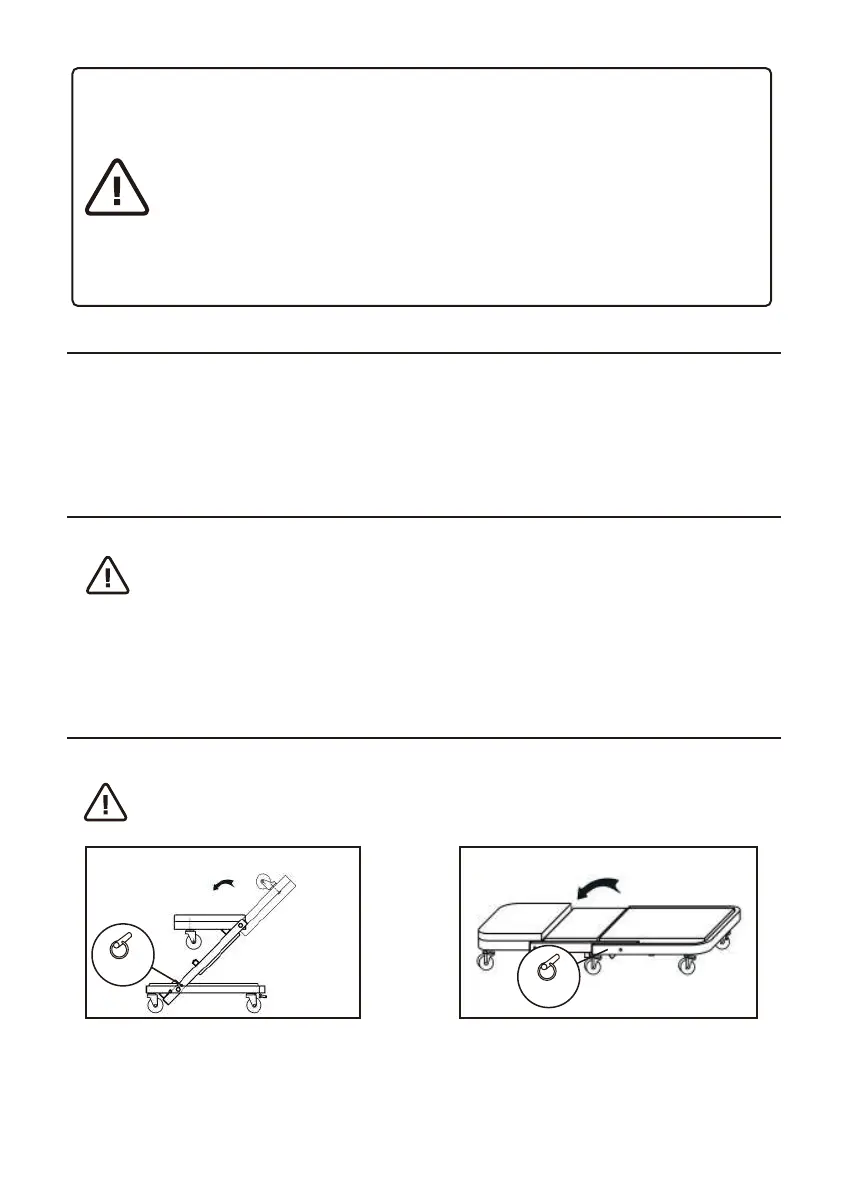

OPERATING INSTRUCTIONS (Refer to Figure 2, Figure 3)
Little instruction is necessary for the safe and proper use if all warning information is understood and followed.
Keep hands away from pinch and crush points that are created during use! Be alert and sober when
using this product! Never operate this equipment when under the influence of drugs or alcohol.
WARNING
To transform creeper into seat position To transform seat into creeper position
Figure 3
Step 1. Locate, then unlock the spring loaded lock
pin by pulling out until disengaged, at the same time
flip the Head Frame and Middle Frame upward and
back towards the Rear Frame section until the Lock
Pin can engage the Creeper Seat Locking Sleeve
(Fig. 3). Ensure Lock Pin is fully engaged.
Step 2. Flip the Head Frame forward until horizontal.
Figure 2
Step 3. Unlock the spring loaded Lock Pin by pulling
out until disengaged, then reverse steps 1, 2 to
convert Creeper Seat into Creeper.
lock pin
lock pin
