FS-1040/FS-1041
FS-1060DN/FS-1061DN
operatioN guide
This Operation Guide is for models FS-1040, FS-1041, FS-1060DN and FS-1061DN.
This Operation Guide is intended to help you operate the machine correctly, perform routine maintenance and take a
simple troubleshooting action as necessary, so that you can always use the machine in good condition.
We recommend the use of our own brand supplies. We will not be liable for any damage caused by the use of third party
supplies in this machine.
A label shown in the illustration assures that the supplies are our own brand.
Included Guides
The following guides are supplied with the machine. Refer to them as necessary.
Product Library disc
Quick Installation Guide Describes the procedures for installation of the machine.
Safety Guide Provides safety and cautionary information for the installation and use of
the machine. Be sure to read this guide before using the machine.
Safety Guide (FS-1040 / FS-1041 / FS-
1060DN / FS-1061DN)
Describes the machine installation space, cautionary space, and other
information. Be sure to read this guide before using the machine.
Operation Guide (This Guide) Describes how to load paper, basic print operations, and troubleshooting.

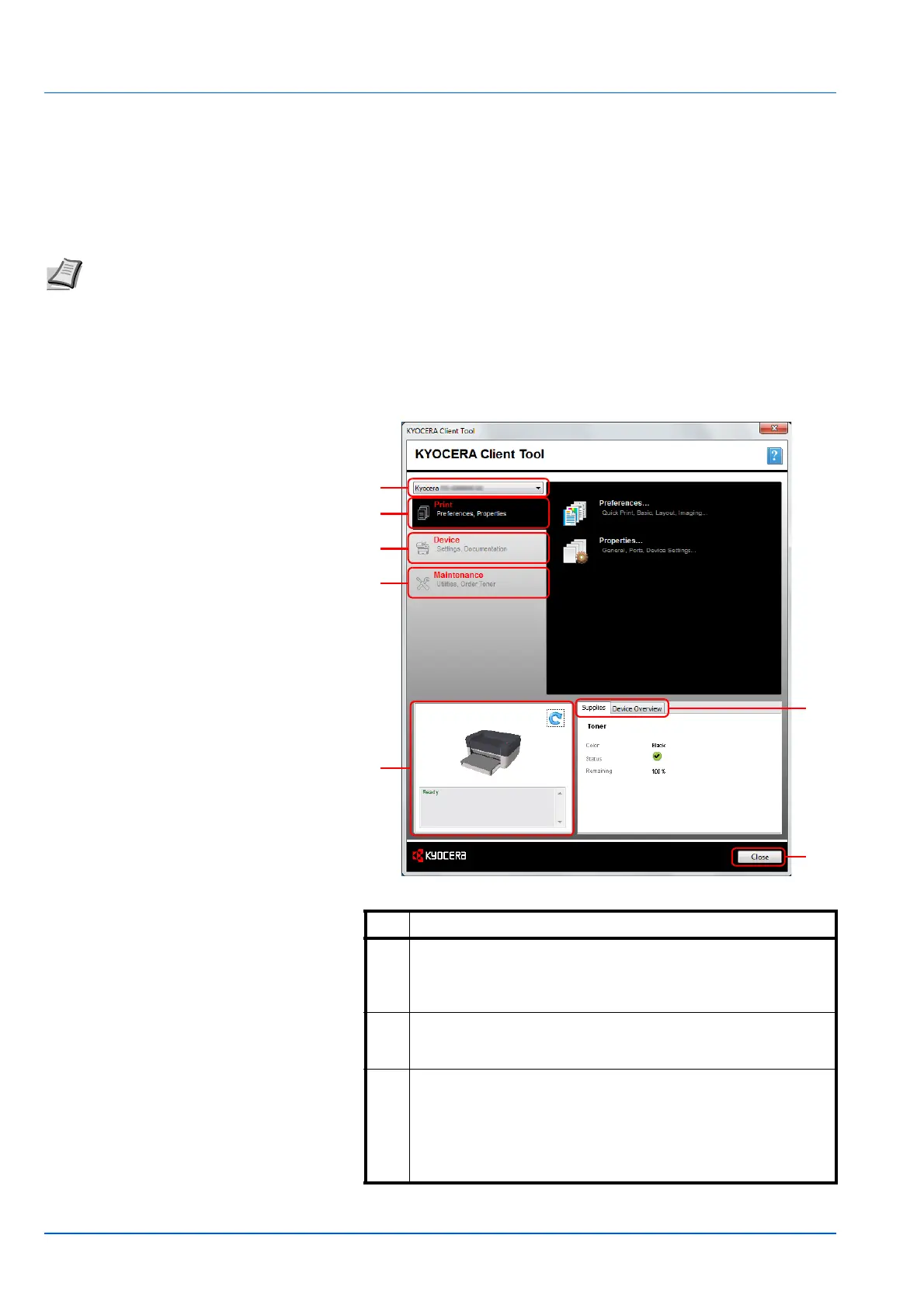

KYOCERA Client Tool User Guide Describes how to use KYOCERA Client Tool. KYOCERA Client Tool is a
software program that is installed on your computer to enable you to
configure machine settings.
Printer Driver User Guide Describes how to install the printer driver and use printer functionality.
KYOCERA Net Viewer User Guide Describes how to monitor the network printing system with KYOCERA
Net Viewer.
i
Contents
1 Machine Parts ................................................................................................................................................ 1-1

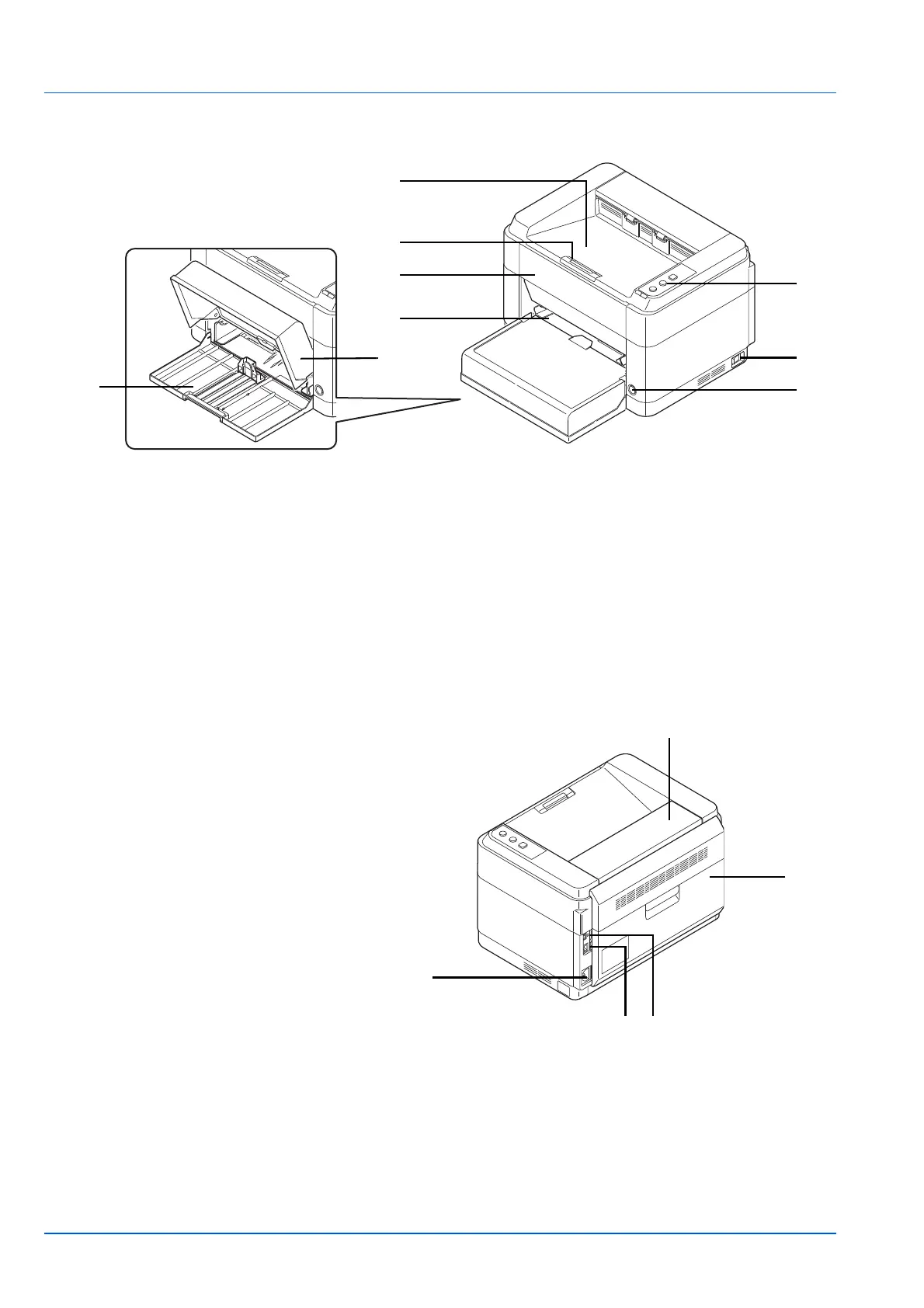

Front Printer Components ........................................................................................................................... 1-2
Rear Printer Components ............................................................................................................................ 1-2
Operation Panel ............................................................................................................................................ 1-3
2 Connecting and Printing .............................................................................................................................. 2-1

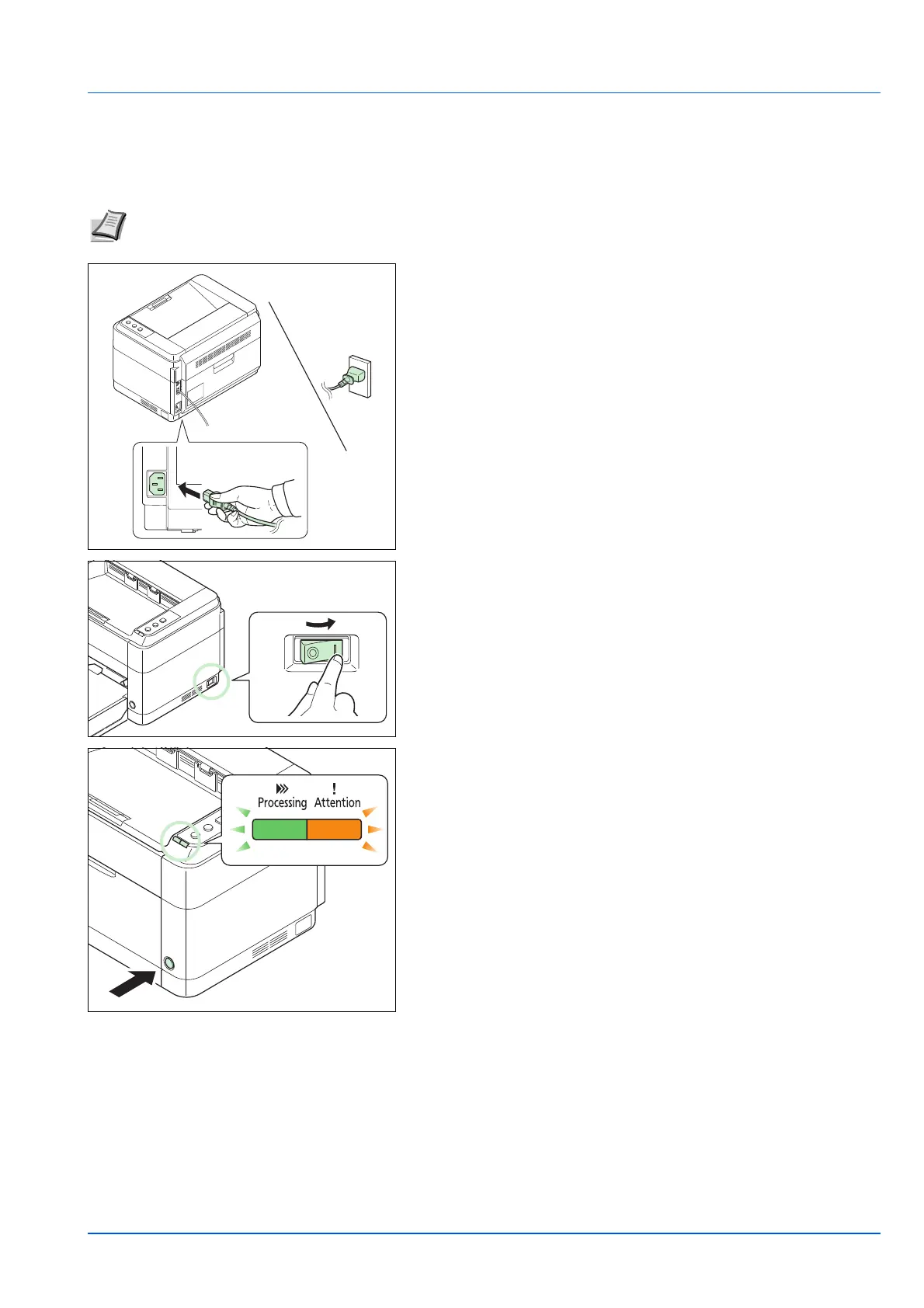

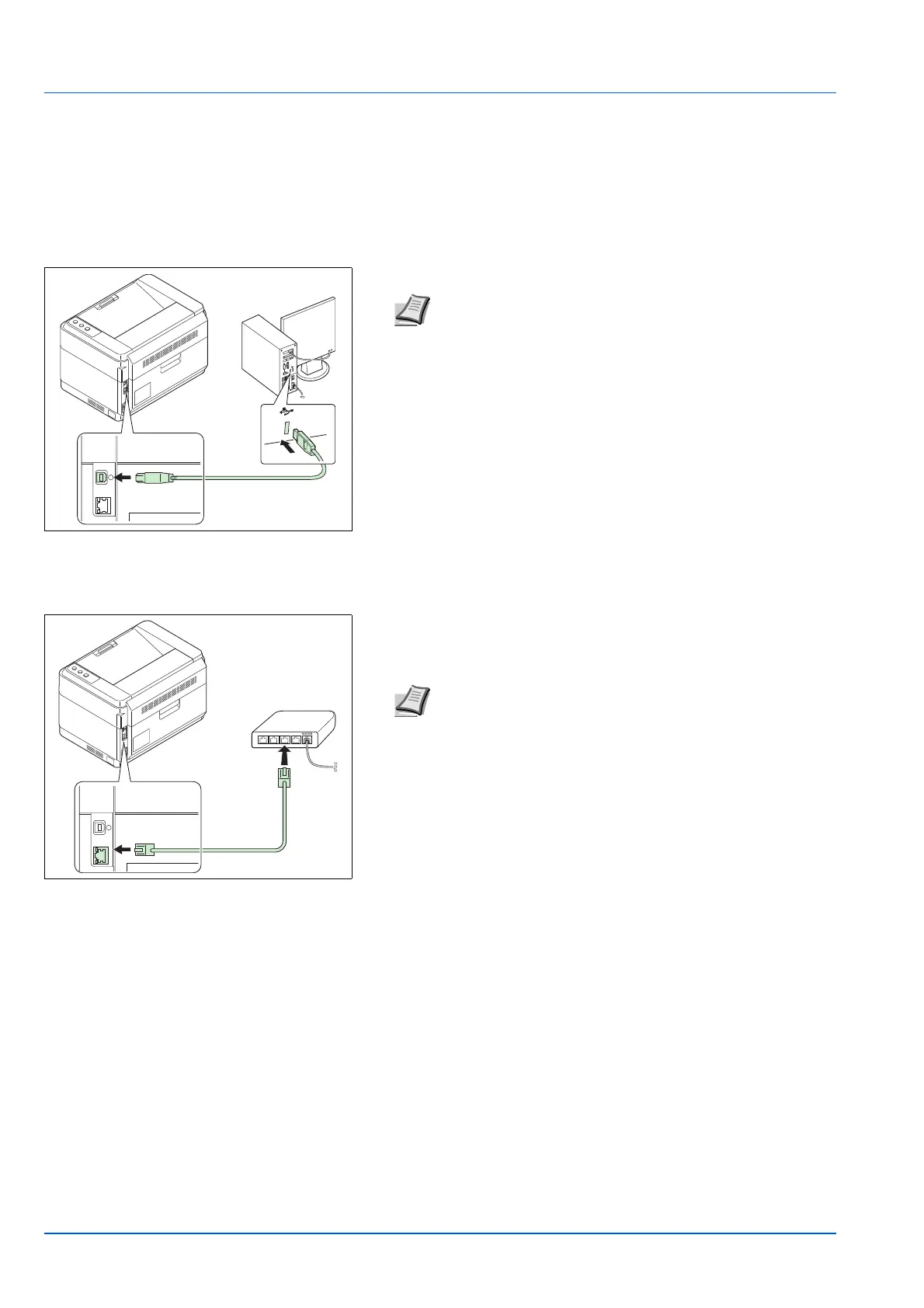

Connections .................................................................................................................................................. 2-2
Altitude Setting ............................................................................................................................................. 2-3

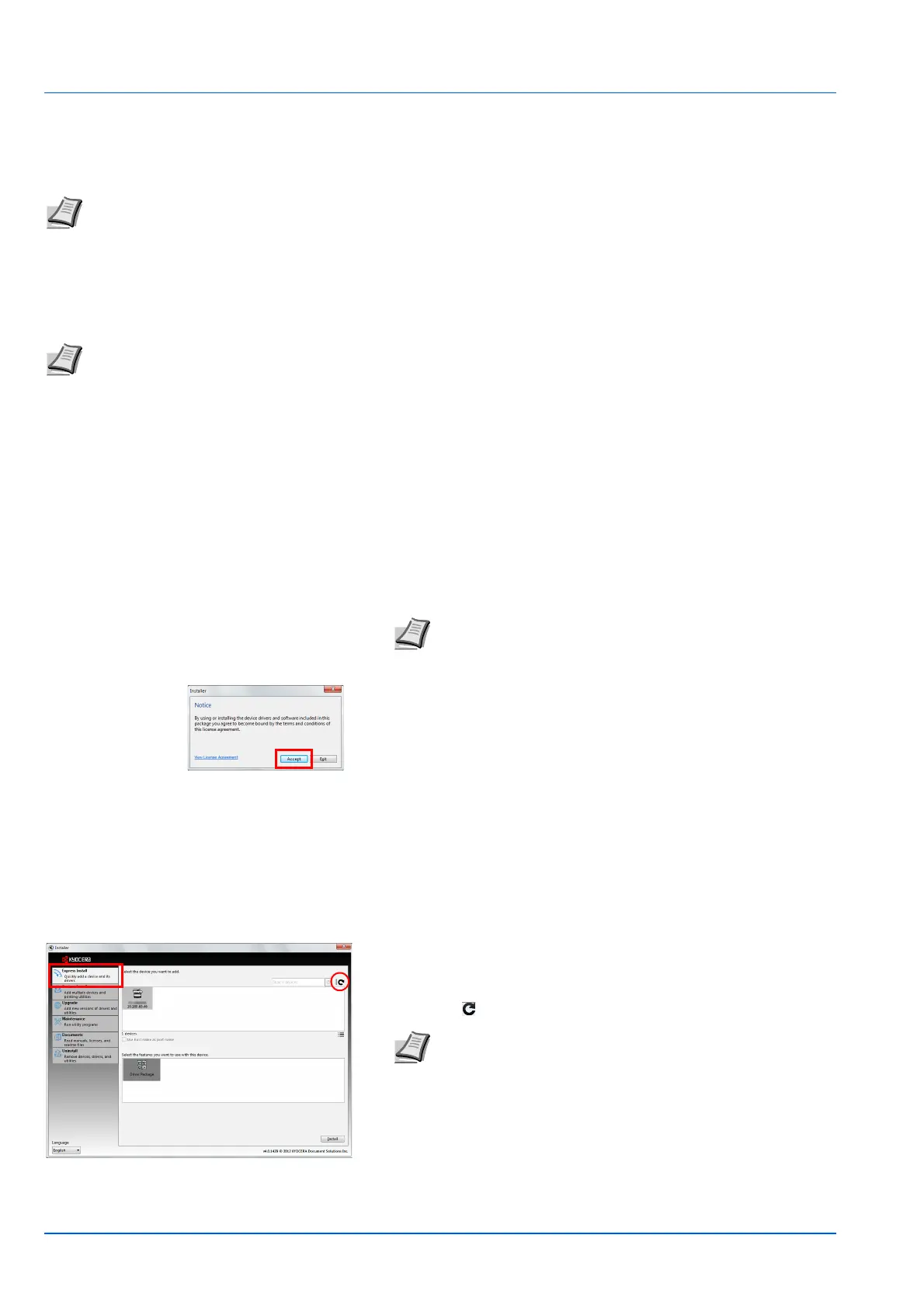

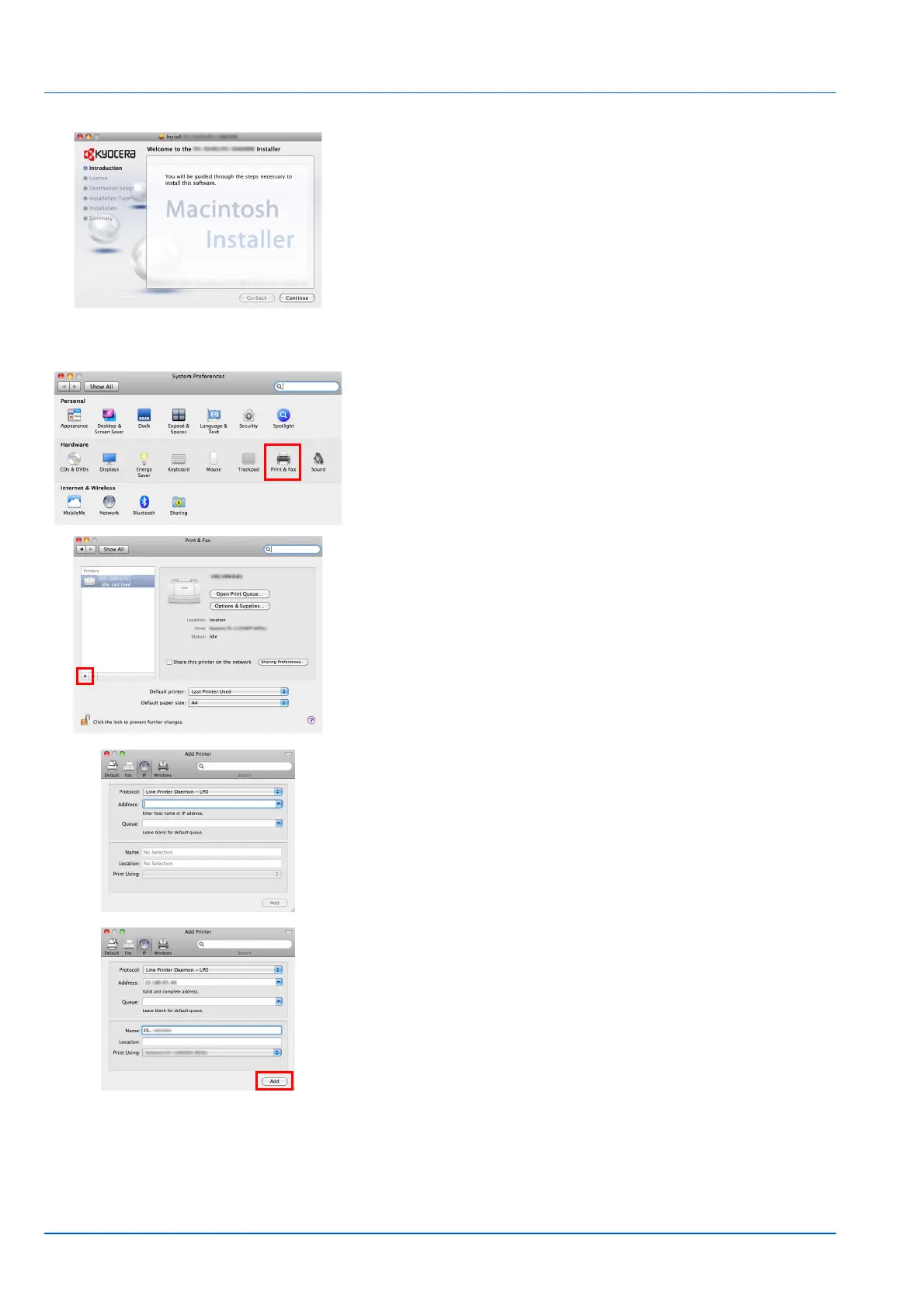

Installing the Printer Driver .......................................................................................................................... 2-4
Printing .......................................................................................................................................................... 2-7
KYOCERA Client Tool ................................................................................................................................ 2-10
Configuration .............................................................................................................................................. 2-12
Uninstalling Software (Windows PC) ........................................................................................................ 2-14
3 Loading Paper ............................................................................................................................................... 3-1
General Guidelines ....................................................................................................................................... 3-2
Selecting the Right Paper ............................................................................................................................ 3-4
Paper Type ..................................................................................................................................................... 3-9
Preparing the Paper .................................................................................................................................... 3-10

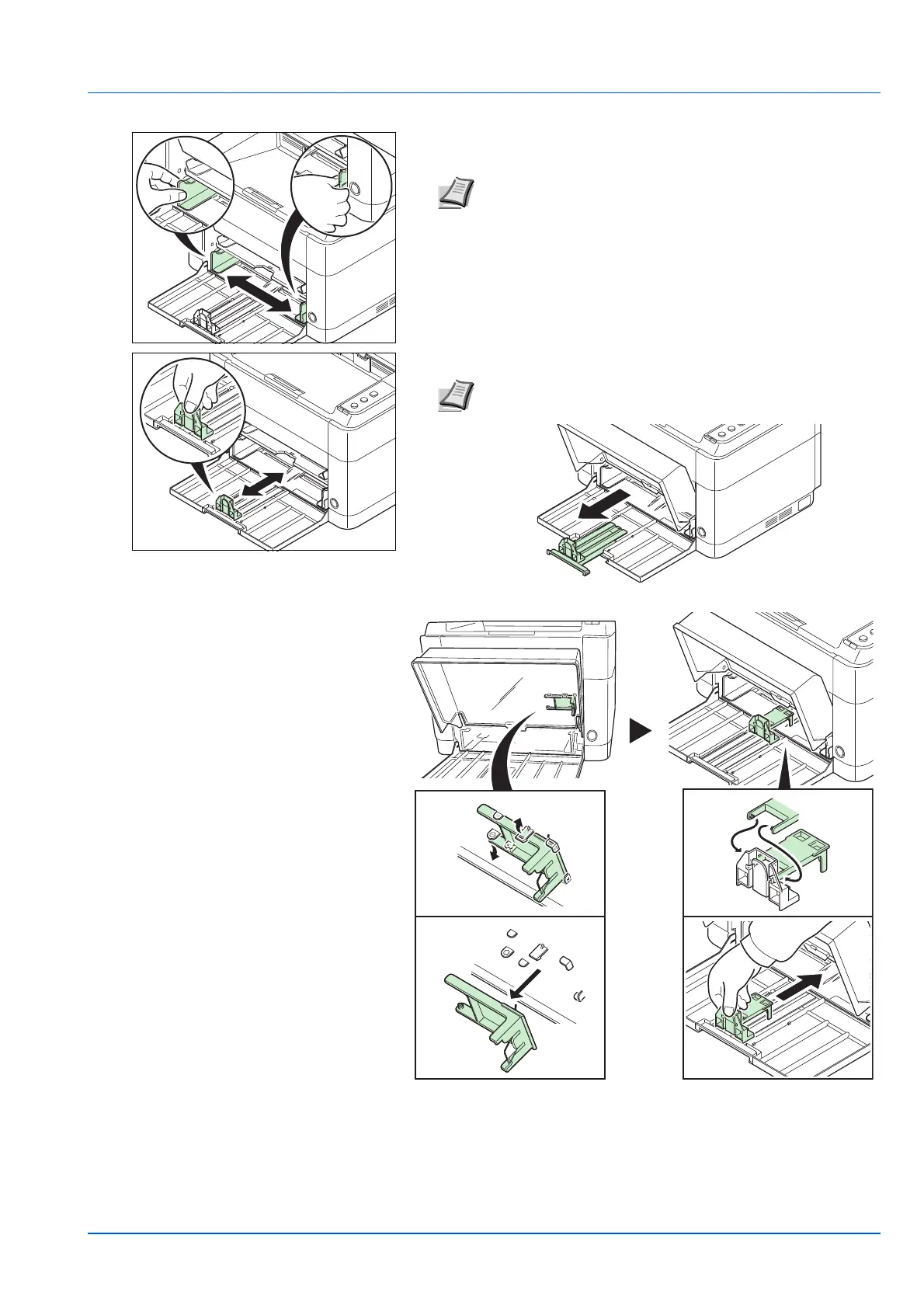

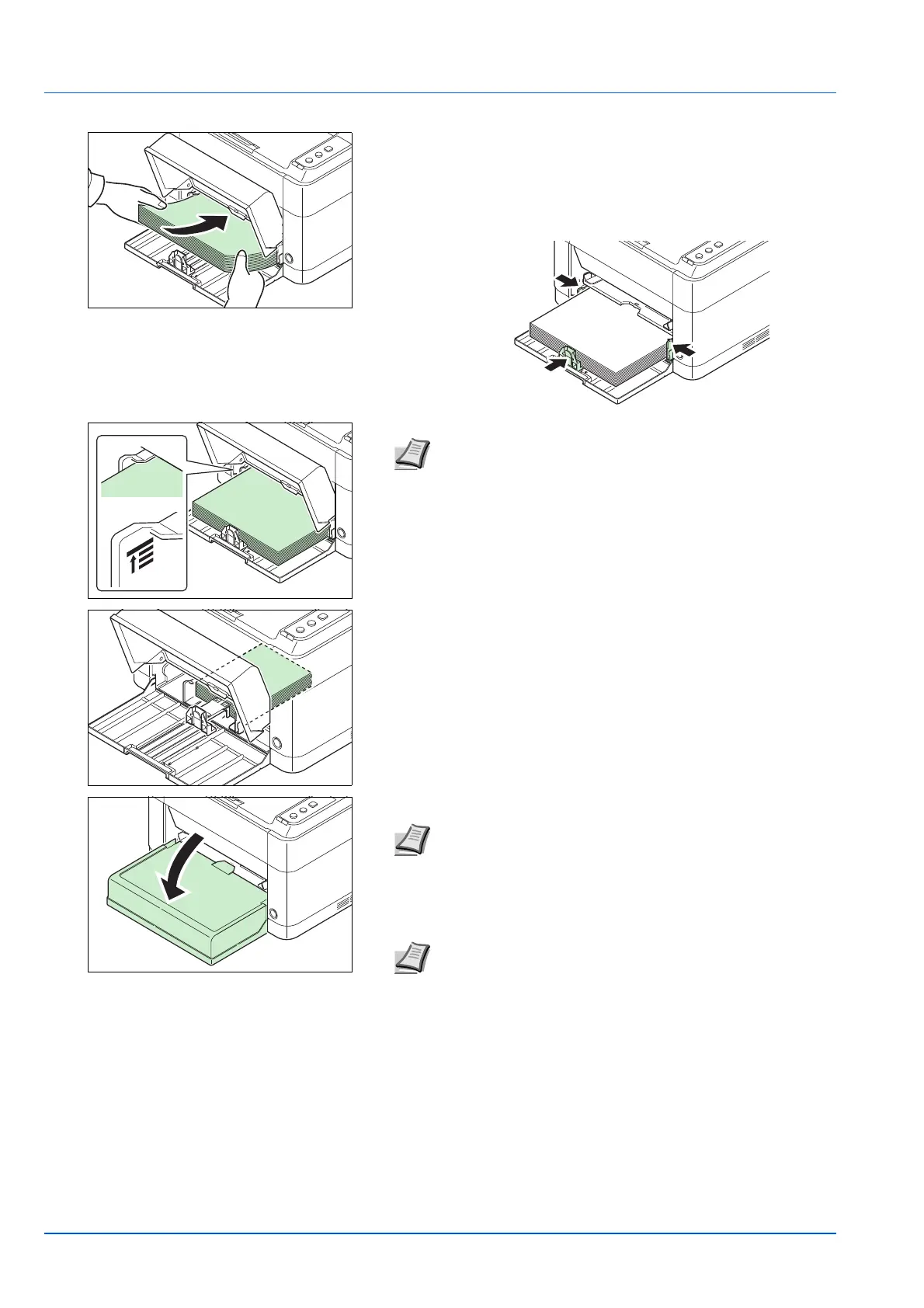

Loading Paper into Cassette ..................................................................................................................... 3-10

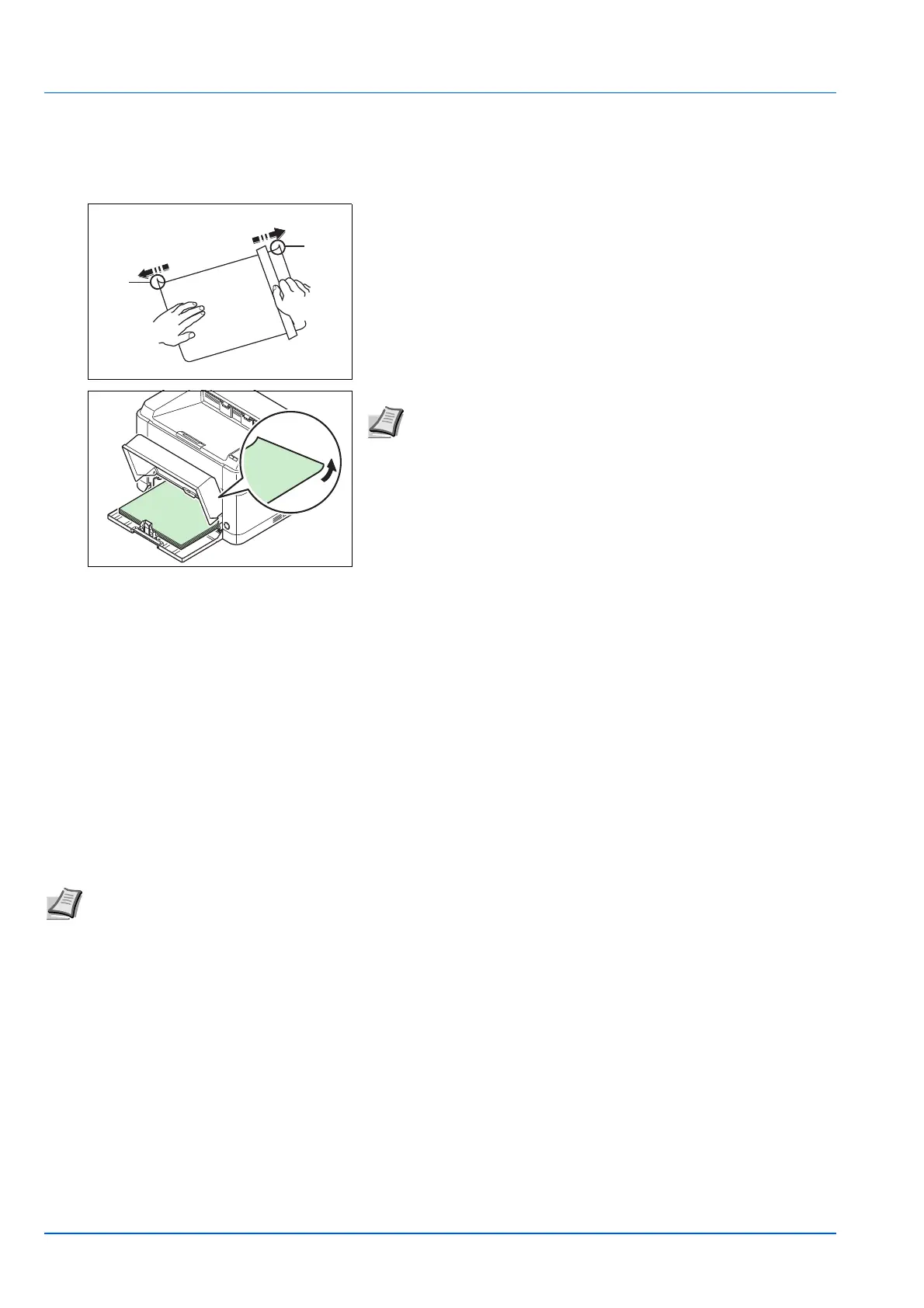

Loading Paper into Manual Feed Tray (FS-1060DN/FS-1061DN only) ................................................... 3-13
4 Maintenance .................................................................................................................................................. 4-1
General Information ...................................................................................................................................... 4-2
Toner Container Replacement ..................................................................................................................... 4-2
Maintenance Kit Replacement ..................................................................................................................... 4-4
Cleaning the Printer ...................................................................................................................................... 4-5

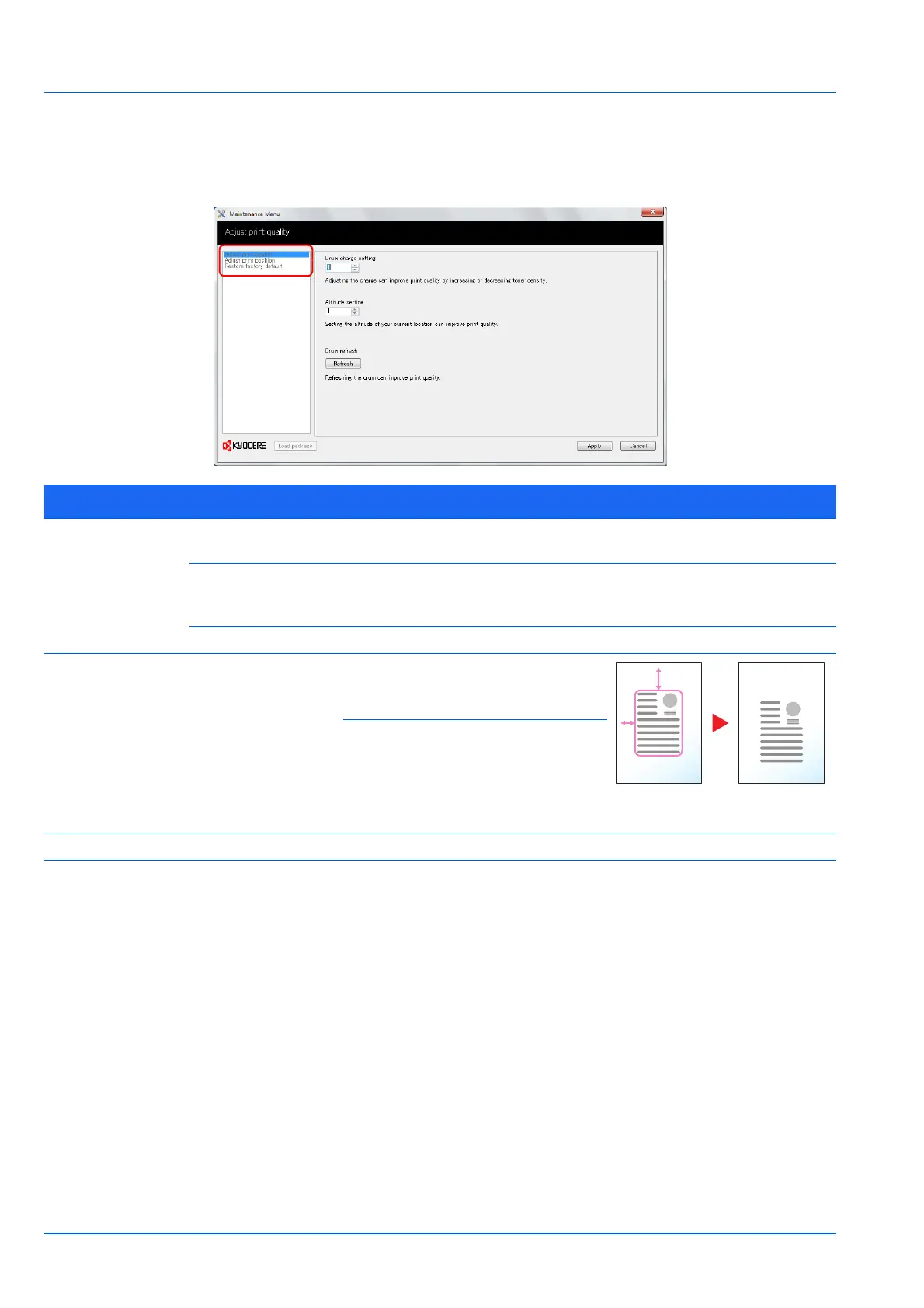

Maintenance Menu ........................................................................................................................................ 4-6
Prolonged Non-Use and Moving of the Printer .......................................................................................... 4-7
5 Troubleshooting ............................................................................................................................................ 5-1

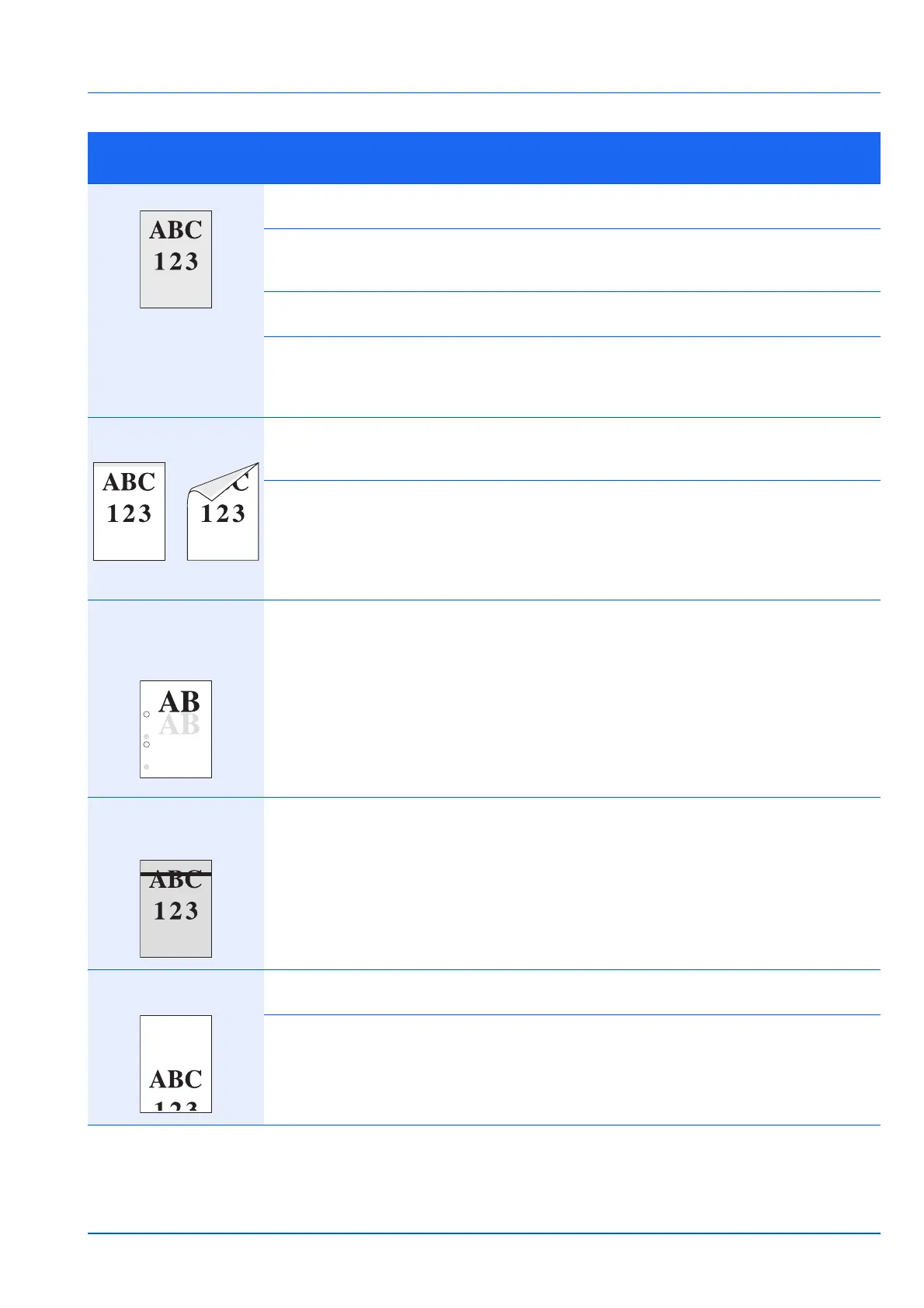

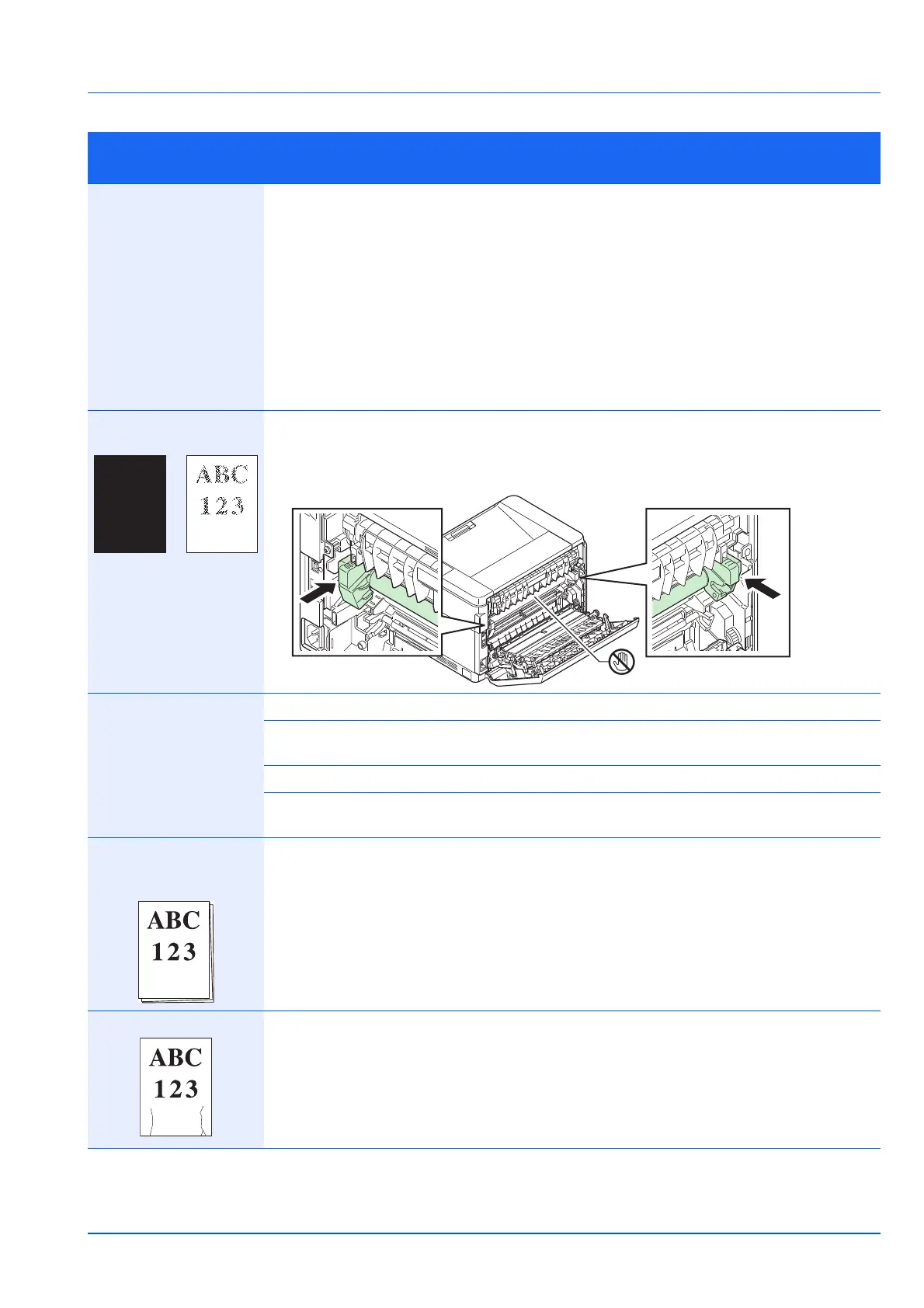

Solving Malfunctions .................................................................................................................................... 5-2
Error Messages ............................................................................................................................................. 5-6

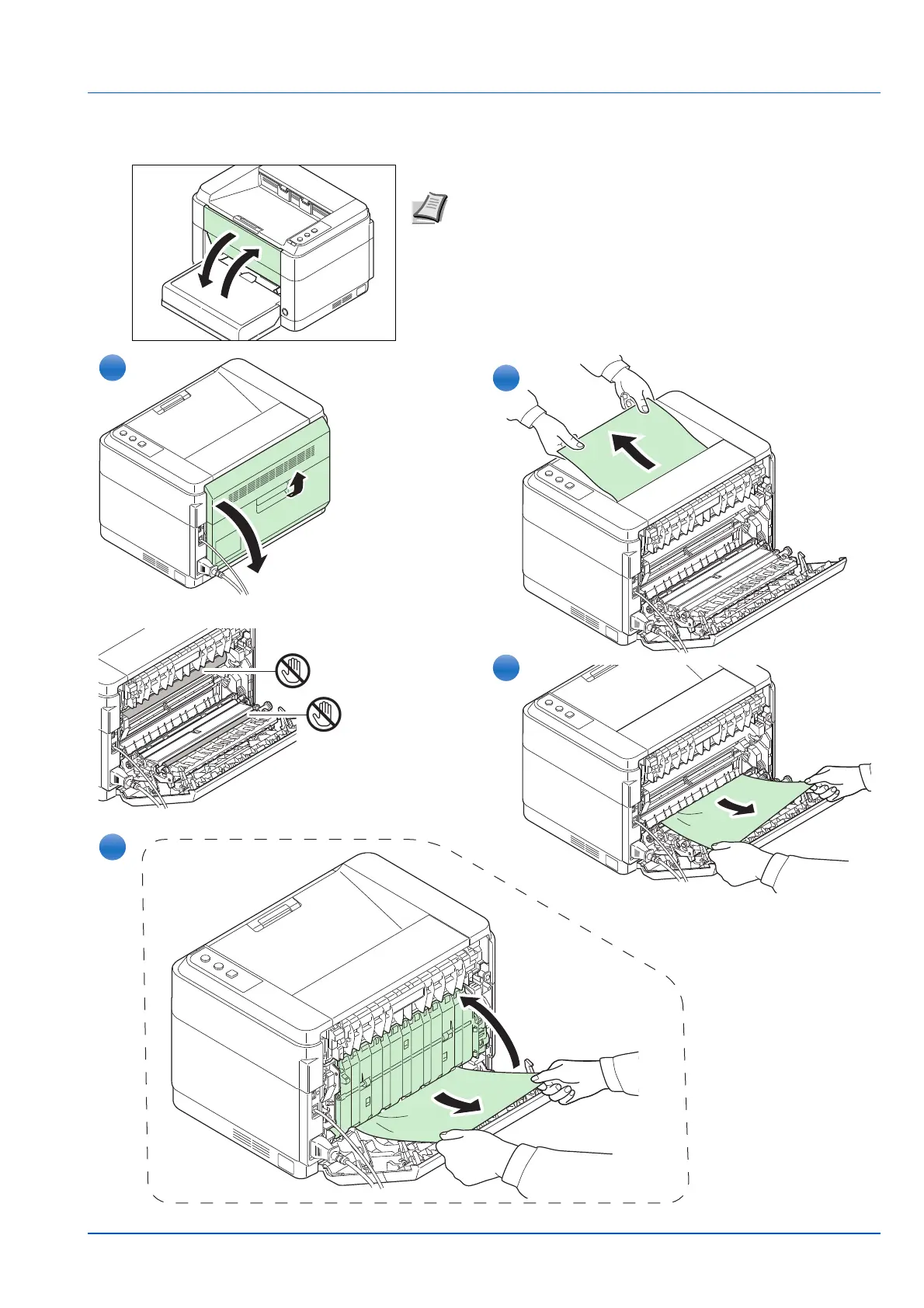

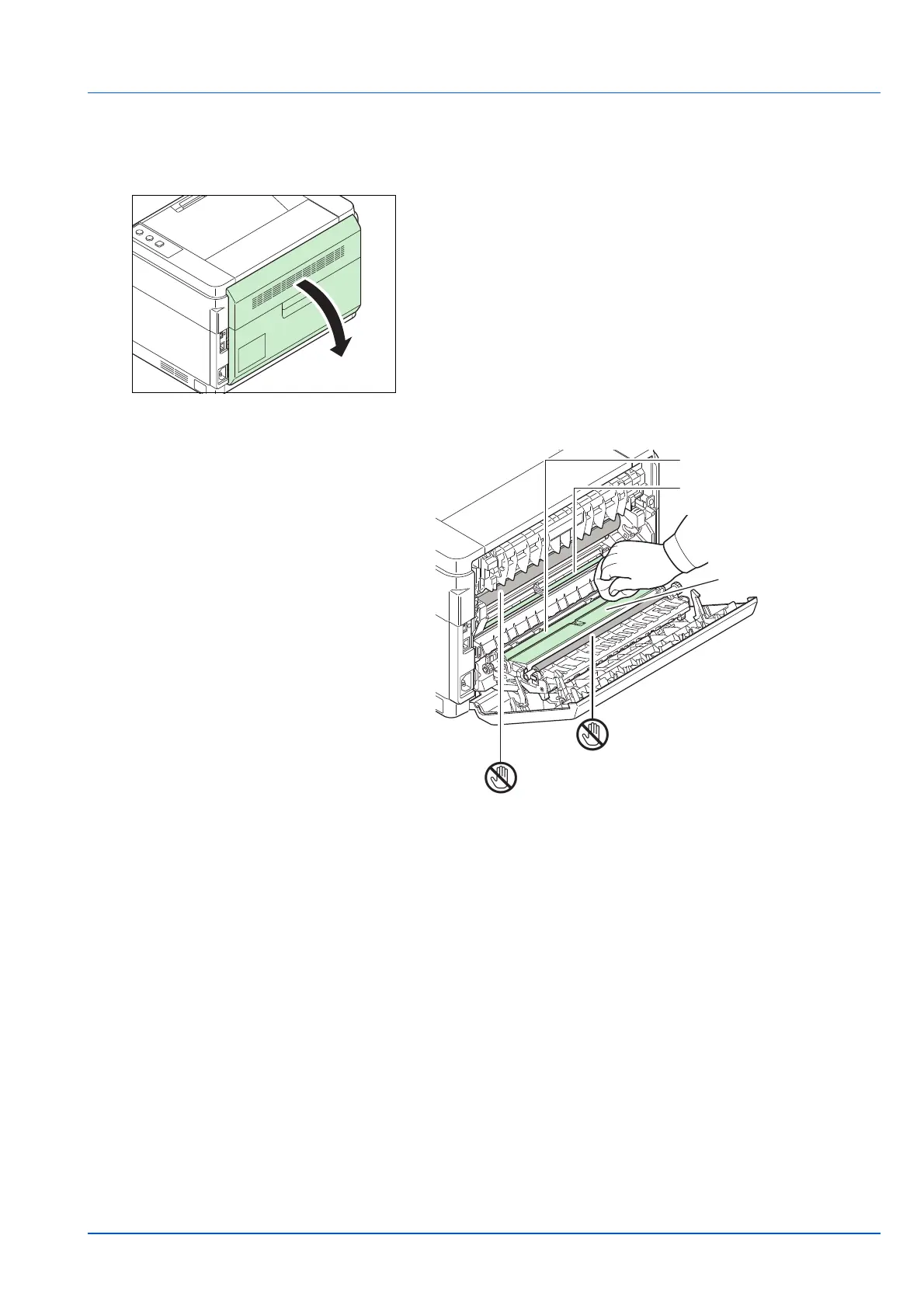

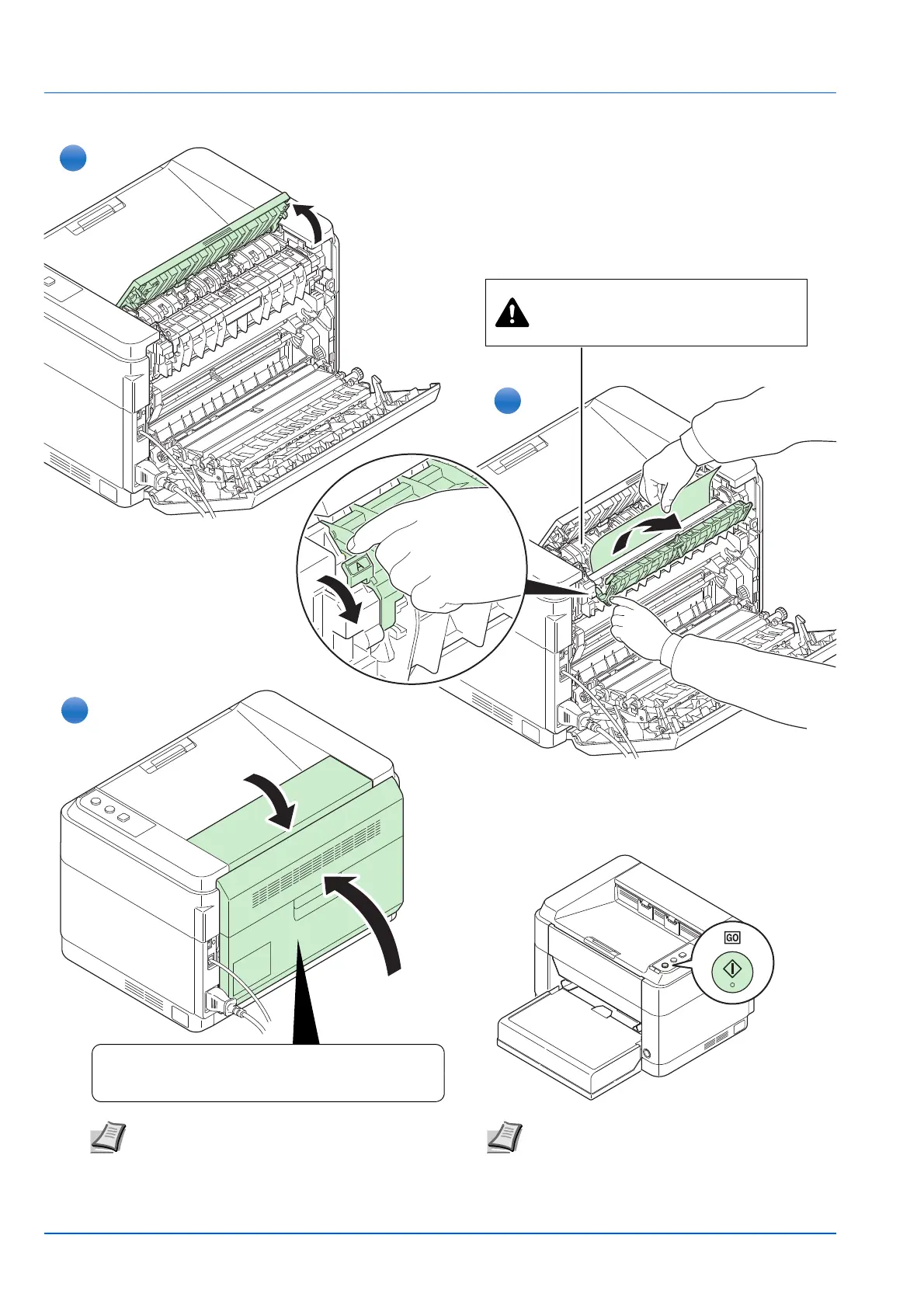

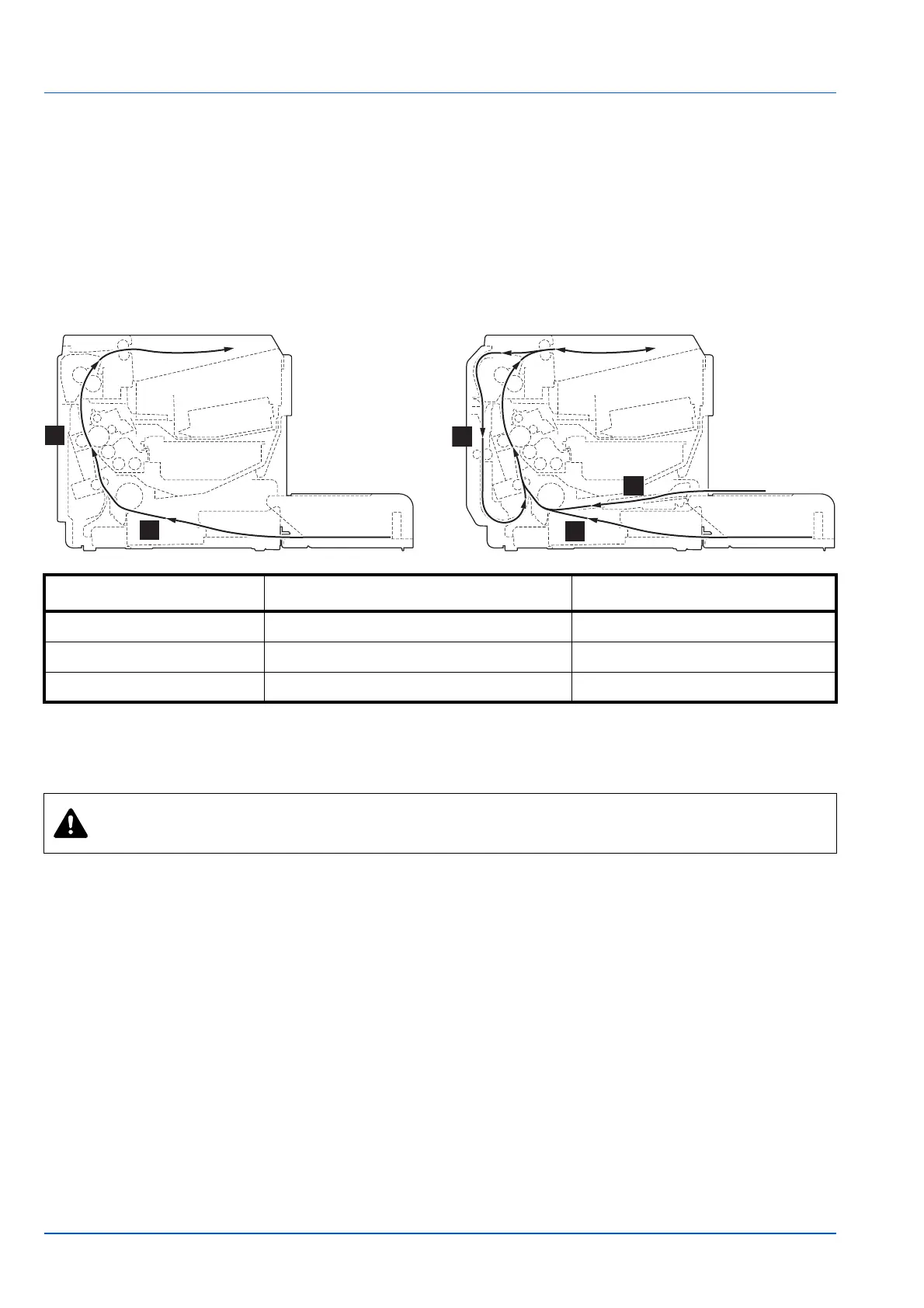

Clearing Paper Jams .................................................................................................................................... 5-8
6 Appendix ........................................................................................................................................................ 6-1
Specifications ................................................................................................................................................ 6-2
ii
iii
Legal and Safety Information
Notice
The information in this guide is subject to change without notification. Additional pages may be inserted in future editions.
The user is asked to excuse any technical inaccuracies or typographical errors in the present edition.
No responsibility is assumed if accidents occur while the user is following the instructions in this guide. No responsibility is
assumed for defects in the printer's firmware (contents of its read-only memory).
This guide, and any copyrightable subject matter sold or provided with or in connection with the sale of the page printer,
are protected by copyright. All rights are reserved. Copying or other reproduction of all or part of this guide, or any
copyrightable subject matter without the prior written consent of KYOCERA Document Solutions Inc. is prohibited. Any
copies made of all or part of this guide, or any copyrightable subject must contain the same copyright notice as the material
from which the copying is done.
Regarding Tradenames
Adobe Acrobat, and Flash are registered trademarks of Adobe Systems Incorporated.
Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation in the U.S.A. and/or other countries.
ENERGY STAR is a U.S. registered mark.
All other brand and product names are registered trademarks or trademarks of their respective companies.
CAUTION NO LIABILITY IS ASSUMED FOR ANY DAMAGE CAUSED BY IMPROPER INSTALLATION.
iv
License Agreements
Compliance and Conformity
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The use of a non-shielded interface cable with the referenced device is prohibited.
CAUTION
— The changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired operation of the device.
* The above warning is valid only in the United States of America.
Interface connectors
IMPORTANT Be sure to power off the printer before connecting or disconnecting an interface cable. For protection
against static electricity discharge to the printer's internal electronics through the interface connector(s), cover any
interface connector that is not in use with the protective cap supplied.
CDRH Regulations
The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented
regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured after August 1,
1976. Compliance is mandatory for products marketed in the United States. A label indicating compliance with the CDRH
regulations must be attached to laser products marketed in the United States.
Canadian Department of Communications Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis de conformité aux normes du ministère des Communications du Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Note Use shielded interface cables.
v
Safety Instructions Regarding the Disconnection of Power
Caution: The power plug is the main isolation device! Other switches on the equipment are only functional switches and
are not suitable for isolating the equipment from the power source.
VORSICHT: Der Netzstecker ist die Hauptisoliervorrichtung! Die anderen Schalter auf dem Gerät sind nur
Funktionsschalter und können nicht verwendet werden, um den Stromfluß im Gerät zu unterbrechen.
Energy Saving Control Function
To reduce energy consumption while in a waiting state, the device comes equipped with an energy saving control function
for switching to Sleep Mode as well as Power Off Mode where power consumption is automatically reduced to a
minimum after a certain amount of time elapses since the device was last used.
Sleep Mode
The device automatically enters Sleep Mode when approximately 1 minute has passed since the device was last used.
The amount of time of no activity that must pass before Sleep Mode is activated may be lengthened by changing the Auto

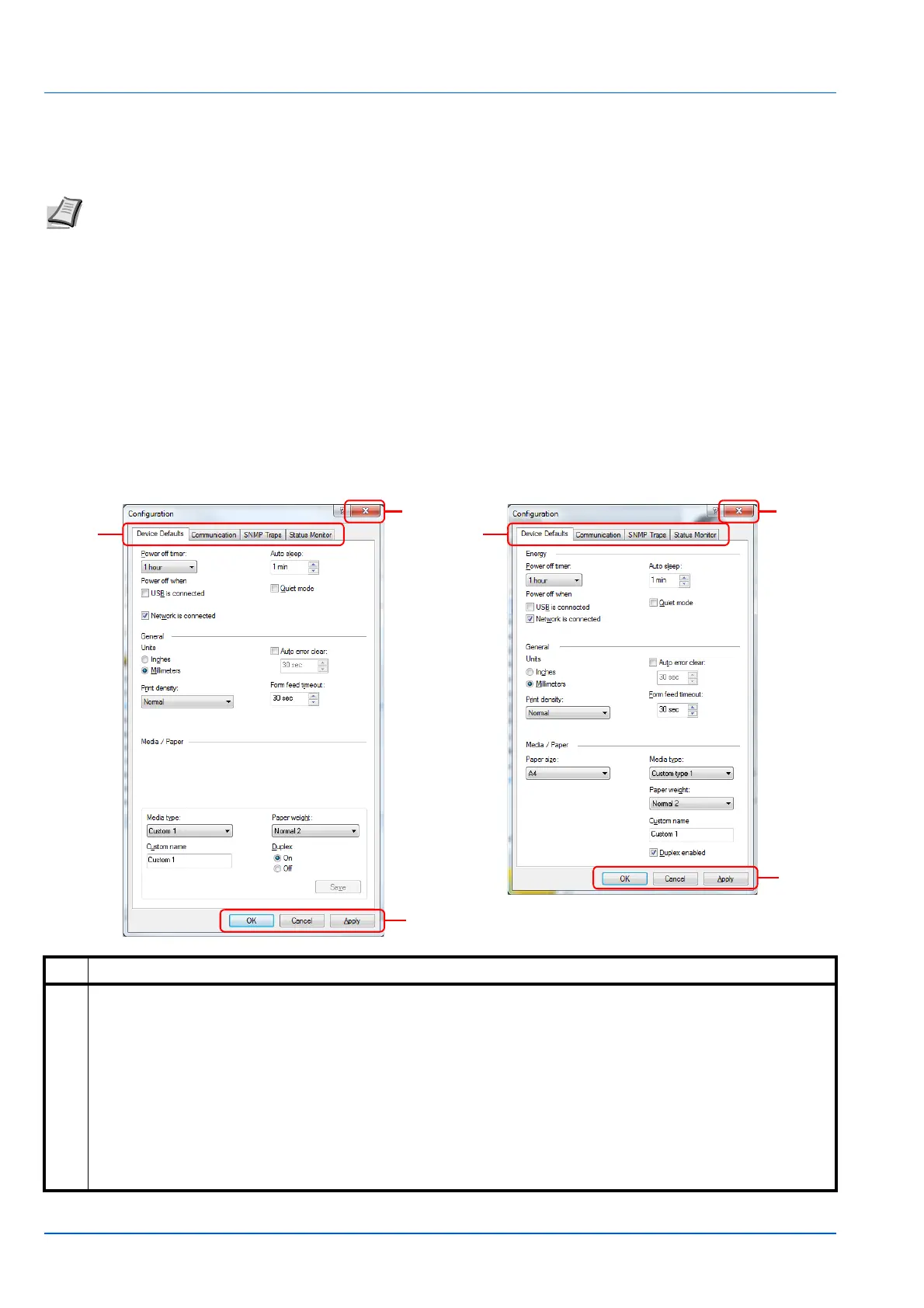

sleep setting. For details, refer to Device Defaults Tab on page 2-12.
Power Off Mode
The device automatically turns its power off when 1 hour has passed since the device was last used. The amount of time
of no activity that must pass before Power Off Mode is activated may be lengthened by changing the Power Off Timer
setting. For details, refer to Device Defaults Tab on page 2-12.
In case of not using the machine for an extended period of time
CAUTION Remove paper from the cassettes and seal it in the paper storage bag to protect it from humidity.
Duplex Printing (FS-1060DN/FS-1061DN only)
This printer includes duplex printing as a standard function. For example, by printing two single-sided originals onto a
single sheet of paper as a duplex printing, it is possible to lower the amount of paper used.
Printing in duplex mode reduces paper consumption and contributes to the conservation of forest resources. Duplex mode
also reduces the amount of paper that must be purchased, and thereby reduces cost. It is recommended that machines
capable of duplex printing be set to use duplex mode by default.
Resource Saving - Paper
For the preservation and sustainable use of forest resources, it is recommended that recycled as well as virgin paper
certified under environmental stewardship initiatives or carrying recognised ecolabels, which meet EN 12281:2002*
1
or an
equivalent quality standard, be used.
This machine also supports printing on 64 g/m² paper. Using such paper containing less raw materials can lead to further
saving of forest resources.
*1: EN12281:2002 "Printing and business paper - Requirements for copy paper for dry toner imaging processes"
Your sales or service technician can provide information about recommended paper types.
CAUTION If this machine will be left unused for an extended period (e.g. overnight), turn it off at the power
switch. If the machine will not be used for an even longer period of time (e.g. vacation), remove the power
plug from the outlet as a safety precaution.
vi
Environmental benefits of "Power Management"
To reduce power consumption when idle, this machine is equipped with a power management function that automatically
activates energy-saving mode when the machine is idle for a certain period of time. Although it takes the machine a slight
amount of time to return to READY mode when in energy-saving mode, a significant reduction in energy consumption is
possible.
It is recommended that the machine be used with the activation time for energy-saving mode set to the default setting.
Energy Star (ENERGY STAR
®
)
We have determined as a company participating in ENERGY STAR
®
that this product has earned the
ENERGY STAR
®
.
ENERGY STAR
®
is a voluntary energy efficiency program with the goal of developing and promoting the
use of products with high energy efficiency in order to help prevent global warming. By purchasing
ENERGY STAR
®
qualified products, customers can help reduce emissions of greenhouse gases during
product use and cut energy-related costs.
vii
Safety Conventions in This Guide
The sections of this guide and parts of the machine marked with symbols are safety warnings meant to protect the user,
other individuals and surrounding objects, and ensure correct and safe usage of the machine. The symbols and their
meanings are indicated below.
The following symbols indicate that the related section includes safety warnings. Specific points of attention are indicated
inside the symbol.
The following symbols indicate that the related section includes information on prohibited actions. Specifics of the
prohibited action are indicated inside the symbol.
The following symbols indicate that the related section includes information on actions which must be performed. Specifics
of the required action are indicated inside the symbol.
Please contact your service technician to order a replacement if the safety warnings in this Operation Guide are illegible or
if the guide itself is missing. (fee required)
WARNING: Indicates that serious injury or even death may result from insufficient attention to or incorrect
compliance with the related points.
CAUTION: Indicates that personal injury or mechanical damage may result from insufficient attention to or
incorrect compliance with the related points.
.... [General warning]
.... [Warning of high temperature]
.... [Warning of prohibited action]
.... [Disassembly prohibited]
.... [Alert of required action]
.... [Remove the power plug from the outlet]
.... [Always connect the machine to an outlet with a ground connection]
Note An original which resembles a bank note closely may not be copied properly in some rare cases because this
machine is equipped with a counterfeiting prevention function.
viii
Environment
The service environmental conditions are as follows:
• Temperature: 50 to 90.5 °F (10 to 32.5 °C)
• Humidity: 15 to 80 %
However, adverse environmental conditions may affect the image quality. Avoid the following locations when selecting a
site for the machine.
• Avoid locations near a window or with exposure to direct sunlight.
• Avoid locations with vibrations.
• Avoid locations with drastic temperature fluctuations.
• Avoid locations with direct exposure to hot or cold air.
• Avoid poorly ventilated locations.
If the floor is delicate against casters, when this machine is moved after installation, the floor material may be damaged.
During printing, some ozone is released, but the amount does not cause any ill effect to one’s health. If, however, the
machine is used over a long period of time in a poorly ventilated room or when printing an extremely large number of
copies, the smell may become unpleasant. To maintain the appropriate environment for print work, it is suggested that the
room be properly ventilated.
Cautions when Handling Consumables
Do not attempt to incinerate parts which contain toner. Dangerous sparks may cause burns.
Keep parts which contain toner out of the reach of children.
If toner happens to spill from parts which contain toner, avoid inhalation and ingestion, as well as contact with your
eyes and skin.
• If you do happen to inhale toner, move to a place with fresh air and gargle thoroughly with a large amount of
water. If coughing develops, contact a physician.
• If you do happen to ingest toner, rinse your mouth out with water and drink 1 or 2 cups of water to dilute the contents of
your stomach. If necessary, contact a physician.
• If you do happen to get toner in your eyes, flush them thoroughly with water. If there is any remaining tenderness,
contact a physician.
• If toner does happen to get on your skin, wash with soap and water.
Do not attempt to force open or destroy parts which contain toner.
Other precautions
After use, always dispose of the Toner Container in accordance with Federal, State and Local rules and regulations.
Store all consumables in a cool, dark location.
If the machine will not be used for an extended period of time, remove the paper from the cassette, return it to its original
package and reseal it.
ix
About the Operation Guide
This Operation Guide contains the following chapters:
1 Machine Parts
This chapter lists the names of different machine parts.
2 Connecting and Printing
This chapter explains how to start up the printer, print from your PC, and use the application software included in the
Product Library disc.
3 Loading Paper
This chapter explains paper specifications for this printer and how to load paper into the cassette or Manual Feed tray.
4 Maintenance
This chapter explains how to replace the toner container and how to care for your printer.
5 Troubleshooting
This chapter explains how to handle printer problems that may occur, such as paper jams.
6 Specifications
This chapter lists the specifications of this printer.
Conventions in This Guide
This manual uses the following conventions.
Convention
Description Example
Italic Typeface Used to emphasize a key word, phrase
or reference to additional information.
Refer to Connections on page 2-2.
Bold Used to denote buttons on the
software.
To start printing, click OK.
Bracket Bold Used to denote operation panel keys. Printing resumes when [GO] is pressed.
Note Used to provide additional or useful
information about a function or feature.
Note Do not remove the toner container from the
carton until you are ready to install it in the printer.
Important Used to provide important information.
IMPORTANT Take care not to touch the drum and
transfer roller (black) during cleaning.
Caution Used to suggest mechanical damage
as a result of an action.
CAUTION When removing a paper jam, pull the paper
gently so as not to tear it. Torn pieces of paper are difficult
to remove and may be easily overlooked, deterring the
paper jam recovery.
Warning Used to alert users to the possibility of
personal injury.
WARNING If you are shipping the printer, remove and
pack the developer unit and drum unit in a plastic bag and
ship them separately from the printer.
x
1-1
1 Machine Parts
This chapter identifies machine parts, indicators, and operation panel keys.
Front Printer Components .................................................................................................................................... 1-2
Rear Printer Components...................................................................................................................................... 1-2
Operation Panel...................................................................................................................................................... 1-3
1-2
Machine Parts
Front Printer Components
1 Top Tray
2 Paper Stopper
3 Front Cover
4 Manual Feed Tray (FS-1060DN/FS-1061DN)
5 Cassette Cover
6 Cassette
7 Operation Panel
8 Main Power Switch (For Korean models)
9 Power Switch
Rear Printer Components
10 Top Cover
11 Rear Cover
12 Power Cord Connector
13 Network Interface Connector (FS-1060DN/FS-1061DN)
14 USB Interface Connector
1
3
5
7
9
2
4
6
8
12
10
13
11
14
* The illustration shows the FS-1060DN/FS-1061DN.
1-3
Machine Parts
Operation Panel
Keys
Refer to the following table for the name and description of the basic functions of each key.
Key Status Operation Function
[Quiet Mode]
Key
— Press once (lights up). Turns on Quiet Mode.
Quiet Mode
If you prefer quiet operation, press
[Quiet Mode] to turn on Quiet
Mode. When Quiet Mode is on, the
print speed is slower.
— Press once (turns off). Turns off Quiet Mode.
[Cancel] Key — Press and hold for 1
second or longer.
Cancels the job being sent from the
PC.
[GO] Key At Ready Press once. Switches online/offline.
Press and hold for 5
seconds.
Prints the status page.
Press and hold for 10
seconds.
Prints the network status page. (FS-
1060DN/FS-1061DN only)
At Error Press once. Clears the error.
Indicators
There are two indicators located on the top right of the printer. The indicators are used to identify the status of the printer at
any time. To identify the printer status, check the indicators on the printer and then refer to the table below.
Indicator Status Meaning
Processing Indicator
(Green)
Lit Indicates online status (printing is possible).
Fast Flashing Offline status.
Slow Flashing The printer is processing data.
Very slow (5-second
interval) flashing
The printer is in sleep mode.
Off The power is off.

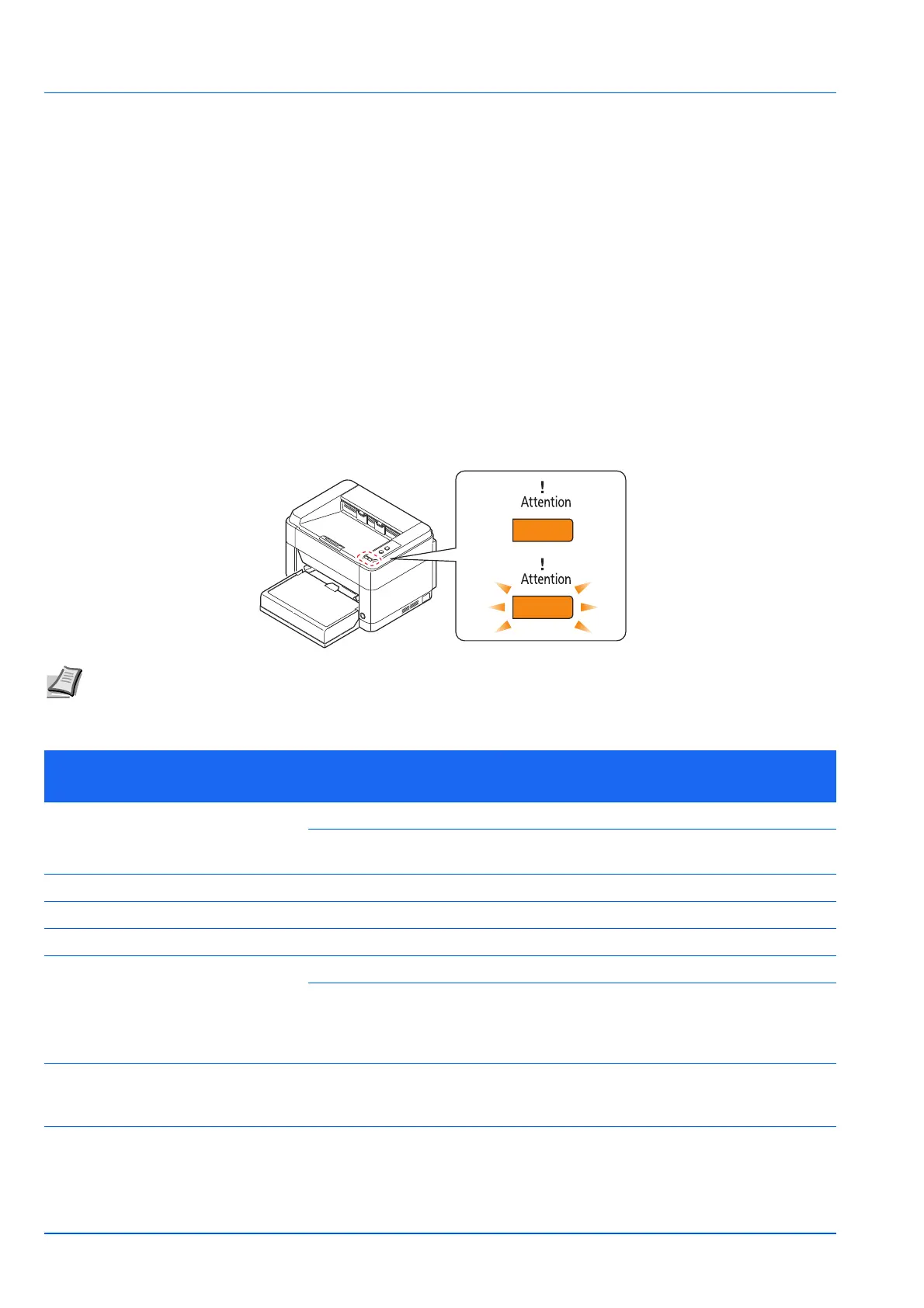

Attention Indicator
(Amber)
Lit One of the following problems has occurred on the printer. Check the
error message in KYOCERA Client Tool.
• The rear cover or front cover is open.
• Toner is empty.
• The drum unit is not installed.
Fast Flashing One of the following problems has occurred on the printer. Check the
error message in KYOCERA Client Tool.
• A paper jam has occurred.
• The top tray is full of paper. (The printer pauses after about 150
sheets are printed.)
• Memory is full.
• Non-genuine toner is installed.
Slow Flashing One of the following problems has occurred on the printer. Check the
error message in KYOCERA Client Tool.
• The paper has run out while printing.
• The toner is running low.
Off The printer status is normal. Or, the power is off.
Note For other combinations of the two indicators, call for service. KYOCERA Client Tool (software bundled with
the GX Driver) will provide more detailed information about the printer status. (Refer to KYOCERA Client Tool on
page 2-10.)
1-4
Machine Parts
2-1
2 Connecting and Printing
This chapter explains how to start up the printer, print from your PC, and use the application software included in the
Product Library disc.
Connections ........................................................................................................................................................... 2-2
Altitude Setting....................................................................................................................................................... 2-3
Installing the Printer Driver ................................................................................................................................... 2-4
Printing.................................................................................................................................................................... 2-7
KYOCERA Client Tool.......................................................................................................................................... 2-10
Configuration........................................................................................................................................................ 2-12
Uninstalling Software (Windows PC) ................................................................................................................. 2-14
2-2
Connecting and Printing
Connections
This section explains how to start up the printer.
Connecting the USB Cable
Follow the steps as below for connecting the USB cable.
1 Connect the USB cable to the printer's USB interface connector.
2 Connect the other end of the USB cable to the computer's USB
interface connector.
Connecting the Network Cable (FS-1060DN/FS-1061DN only)
Follow the steps as below for connecting the network cable.
1 Connect the network cable (not included) to the printer's network
interface connector.
2 Connect the other end of the cable to the PC or your network device.
Note Use a USB cable with a rectangular Type A plug and a
square Type B plug. The USB cable should be shielded and
no longer than 5 meters (16 feet) long.
Note Use shielded interface cables.
2-3
Connecting and Printing
Connecting the Power Cord
Install the printer close to an AC wall outlet. If an extension cord is used, the total length of the power cord plus extension
should be 5 meters (16 feet) or less.
1 Connect the power cord to the power cord connector at the rear of
the printer.
2 Connect the other end of the power cord to a power outlet.
3 (For Korean models) Turn the main power switch On.
4 Press the power switch to On. The printer begins to warm up.
Starter Toner Container
The toner container packed with the new printer is a starter toner container. The starter toner container lasts an average of
700 pages (FS-1040/FS-1041) or 1,000 pages (FS-1060DN/FS-1061DN).
Altitude Setting
If you are using the machine at an altitude of 1500 meters (480 feet) or higher and print quality has deteriorated, the
Altitude setting can be used to restore print quality. For more information, refer to KYOCERA Client Tool User Guide.
Note Only use the power cord supplied with the printer.
IMPORTANT If you install the toner container and switch on the
power, the Processing indicator and Attention indicator will blink
once simultaneously, and then blink alternately. When the printer
is first switched on after toner installation, there will be a delay of
approximately 7 minutes before the printer gets ready to print.
Once the Processing indicator lights, printer installation is
complete.
2-4
Connecting and Printing
Installing the Printer Driver
Ensure the printer is plugged in and connected to the PC before installing the printer driver from the Product Library disc.
Installing the Software in Windows
If you are connecting this printer to a Windows PC, follow the next steps to install the printer driver. The example shows
you how to connect your printer to a Windows 7.
You can use either Express Mode or Custom Mode to install the software. Express Mode automatically detects connected
printers and installs the required software. Use Custom Mode if you want to specify the printer port and select the software
to be installed.
1 Turn on the computer and start up Windows.
If the Welcome to the Found New Hardware Wizard dialog box
displays, select Cancel.
2 Insert the included Product Library disc into the disc drive. In
Windows 7, Windows Server 2008 and Windows Vista the user
account control window may appear. Click Yes.
The installation program launches.
3 Click View License Agreement and read the License Agreement.
Click Accept.
The software install wizard starts up.
From this point, the procedure differs depending on your version of
Windows and your connection method. Proceed to the correct
procedure for your connection type.
• Express Mode
• Custom Mode

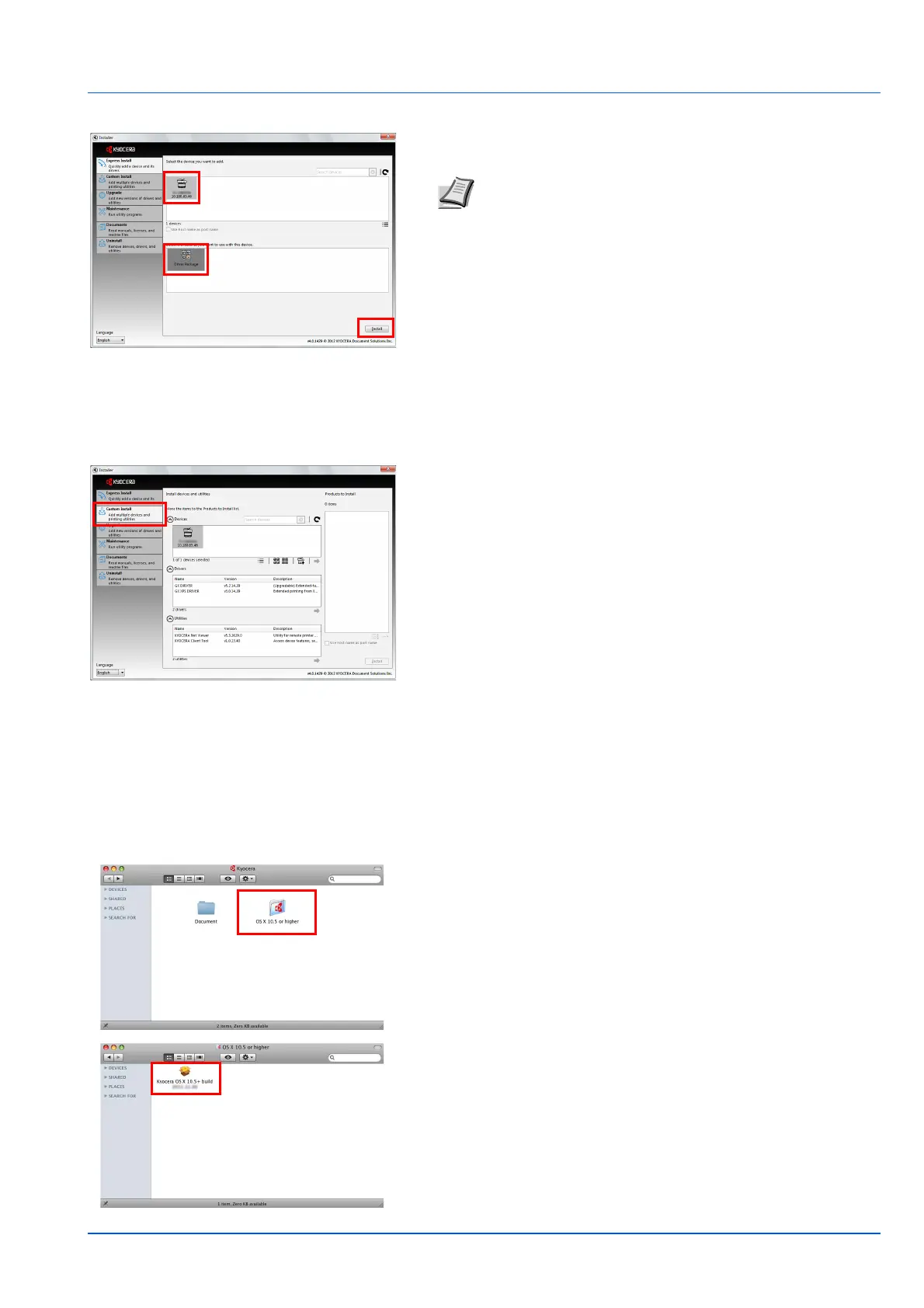

Express Mode
In Express Mode, the installer automatically detects the printer when it is turned on. Use Express Mode for standard
connection methods.
1 Select the Express Install tab. The installer detects the printer.
If the installer does not detect a print system, check that the print
system is connected via USB or a network and that it is turned on.
Then click (Refresh) to search print system again.
Note Install the printer driver when the printer status is online (the Processing indicator is lit).
Note In Windows operating systems, you must be logged in with administrator rights to install the printer driver.
Note If the software install wizard does not launch
automatically, open the Product Library disc window in
Windows Explorer and double-click Setup.exe.
Note While the information shown in Windows 7 and
Windows Vista/Windows XP installation dialog boxes differs
slightly, the installation procedure is the same.
Network connection is only possible with the FS-1060DN/FS-
1061DN.
2-5
Connecting and Printing

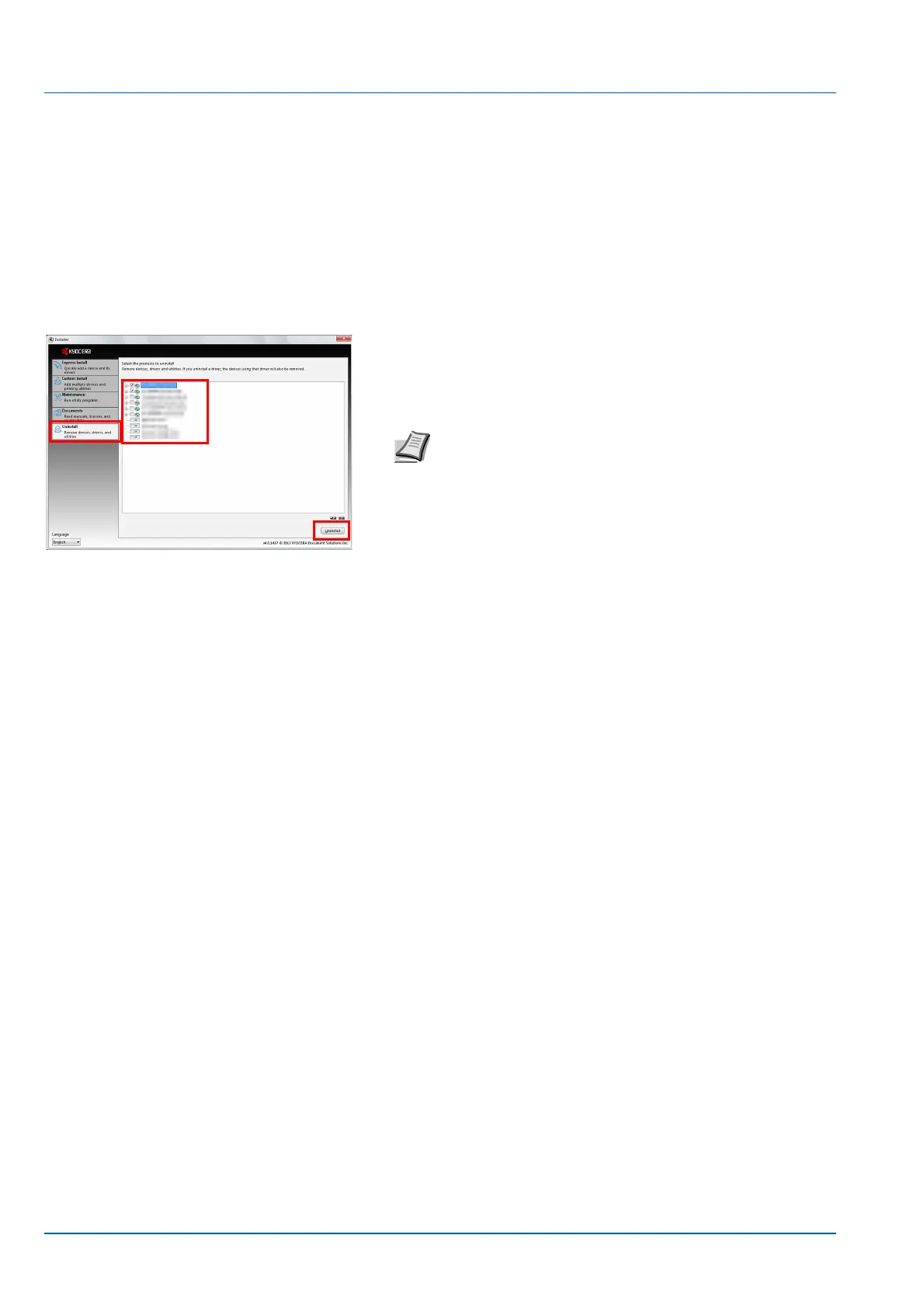

2 Select the printer you want to install, select the Driver Package, and
click Install.
3 A message appears saying that your software is ready to use. To
print a test page, select the Print a test page checkbox and select
the printer.
Click Finish to exit the printer installation wizard.
This completes the printer driver installation procedure.
Custom Mode
Use Custom Mode if you want to specify the printer port and select the software to be installed.
1 Select Custom Install tab.
2 Select the device to be installed, and click the arrow button to move
it to the Products to Install list.
3 Select the software to be installed, and click the arrow button to
move it to the Products to Install list.
4 Click Install.
5 A message appears saying that your software is ready to use. To
print a test page, select the Print a test page checkbox and select
the printer.
Click Finish to exit the printer installation wizard.
This completes the printer driver installation procedure.
Installation on a Macintosh
This section explains how to install the printer driver in Mac OS.
1 Turn on the printer and the Macintosh.
2 Insert the included Product Library disc into the disc drive.
3 Double-click the Product Library disc icon.
4 Double-click OS X 10.5 or higher.
5 Double-click Kyocera OS X 10.5+ xxxxx.
Note If the Found New Hardware Wizard appears, click
Cancel. If a hardware installation warning message appears,
click Continue.
If the Windows security window appears, click Install this
driver software anyway.
2-6
Connecting and Printing
6 The printer driver installation program starts up.
7 Install the printer driver as directed by the instructions in the
installation software.
This completes the printer driver installation. If a USB connection is
used, the printer is automatically recognized and connected.
(FS-1060DN/FS-1061DN only)
If an IP connection is used, the settings below are required.
8 Open System Preferences and click Print & Fax.
9 Click the plus symbol (+) to add the installed printer driver.
10Click the IP icon for an IP connection and then enter the IP address
and printer name.
11Select the installed printer driver and click Add.
12The selected printer is added. This completes the printer setup
procedure.
IMPORTANT In the Authentication screen, enter the name and
password used to log in to the operating system.
2-7
Connecting and Printing
Printing
This section explains the printing procedure from an application software. You can specify the printing settings from each
tab on GX Driver. GX Driver is stored in the Product Library disc. For more information, refer to the Printer Driver User
Guide in the Product Library disc.

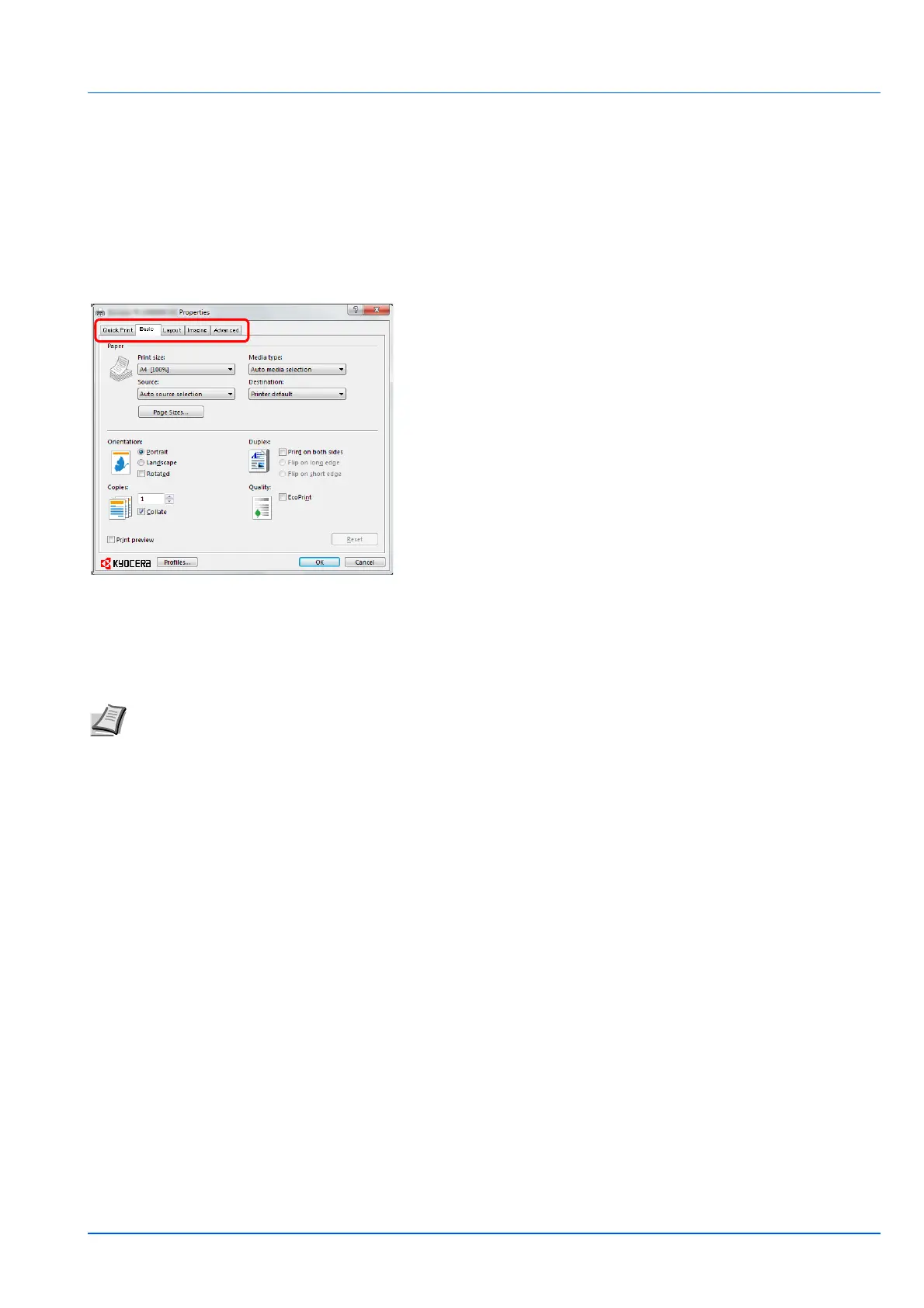

About GX Driver
GX Driver consists of the following tabs.
Quick Print
Use this tab to define basic print options into group profiles that can be
accessed quickly and easily.
Basic
Use this tab to select the page size and orientation. The paper source is
also selected.
Layout
Use to create multiple pages on a single sheet of paper. Also contains
the scaling option.
Imaging
Select this tab to change the print quality, and graphic settings.
Advanced
Use to set up and add watermarks to your output.
Printing from Application Software
The steps required to print a document created with an application are explained below. You can select the printing paper
size.
1 Load the paper required into the cassette.
2 From the application File menu, select Print. The Print dialog box
appears.
3 Click the drop-down list of printer names. All the installed printers are
listed. Click the name of the printer.
4 Use Number of copies to enter the number of copies required. Up to
999 copies can be printed. For Microsoft Word, we recommend that
you click Options and specify Use printer settings for the Default
tray.
5 To start printing, click OK.
Note You can also select the various settings by clicking Properties to open the Properties dialog box.
2-8
Connecting and Printing

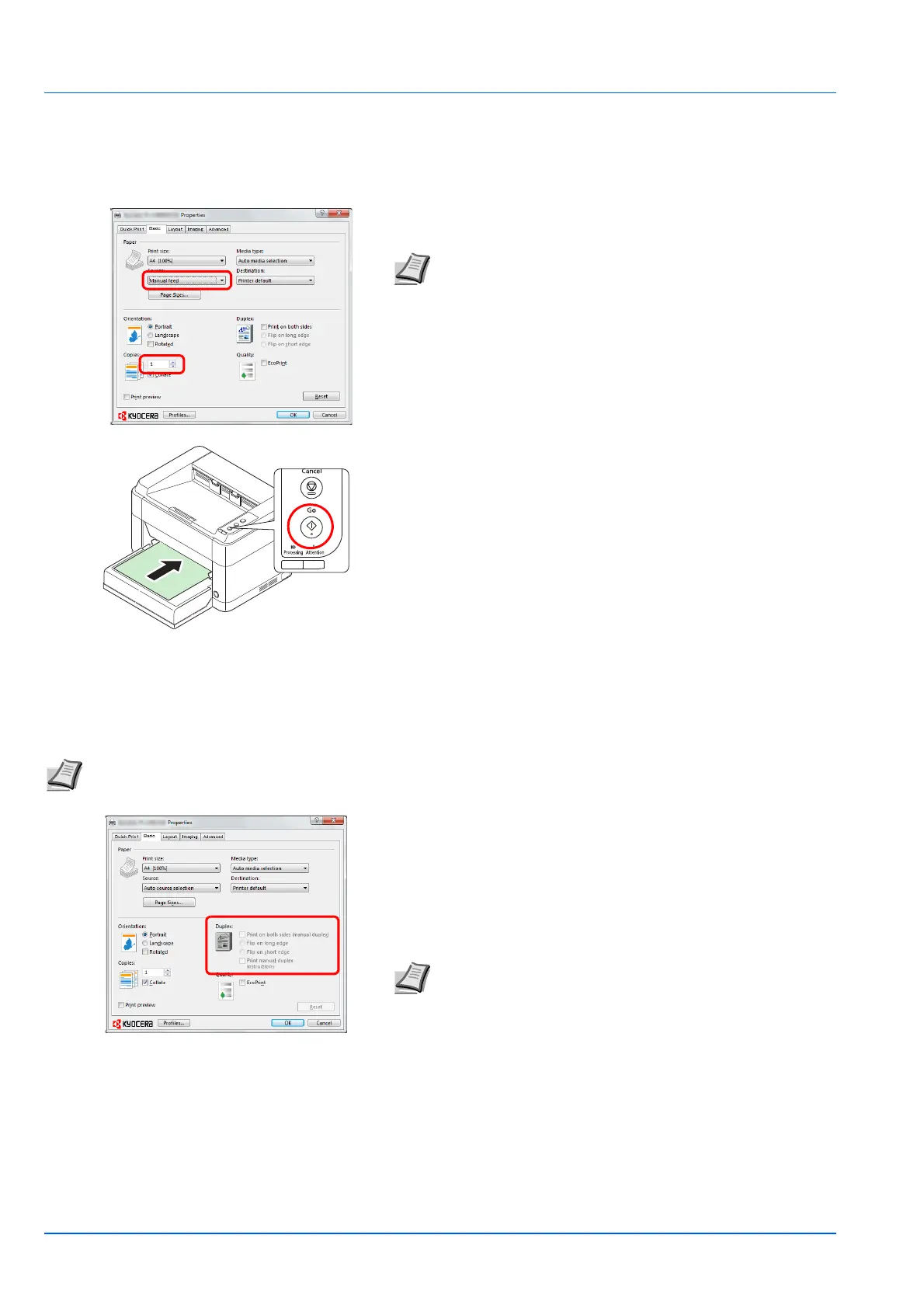

Manual Feed (FS-1060DN/FS-1061DN only)
[GO] can be pressed on the printer operation panel to feed and print on one sheet of paper. This is convenient when
loading one envelope at a time in the Manual Feed tray.
1 Ensure Manual feed is selected as the Source in the Print
Properties dialog box.
2 Use Number of copies to enter the number of copies required.
3 Select OK to return to the Print dialog box and select OK.
4 Load the paper in the Manual Feed tray for the printer and press
[GO]. One sheet is printed.
5 Repeat step 4 until all pages are printed.
Manual Duplex (FS-1040/FS-1041 only)
To print on both sides of the paper using a FS-1040/FS-1041, use Manual Duplex. The even pages are printed first and
then reloaded to print the odd pages. An instruction sheet is available to assist with loading the sheets in the correct
orientation and order.
1 Select Print on both sides (manual duplex).
Select Flip on long edge if the binding will be on the long edge, or
Flip on short edge if the binding will be on the short edge. Select
Print manual duplex instructions to receive the instruction sheet.
2 Select OK to return to the Print dialog box and select OK to start
printing. A Manual Duplex Instruction message box displays. The
even pages are printed including the instruction sheet.
Note If Auto source selection has been selected, paper is
automatically fed from the Manual Feed tray. If there is no
paper in the Manual Feed tray, paper is automatically fed from
the cassette.
Note Ensure Print manual duplex instructions is selected to receive the instruction sheet. Continue to use the
sheet until you are familiar with this feature.
Note Instructions for manual duplex will be printed on the
instruction sheet.
2-9
Connecting and Printing

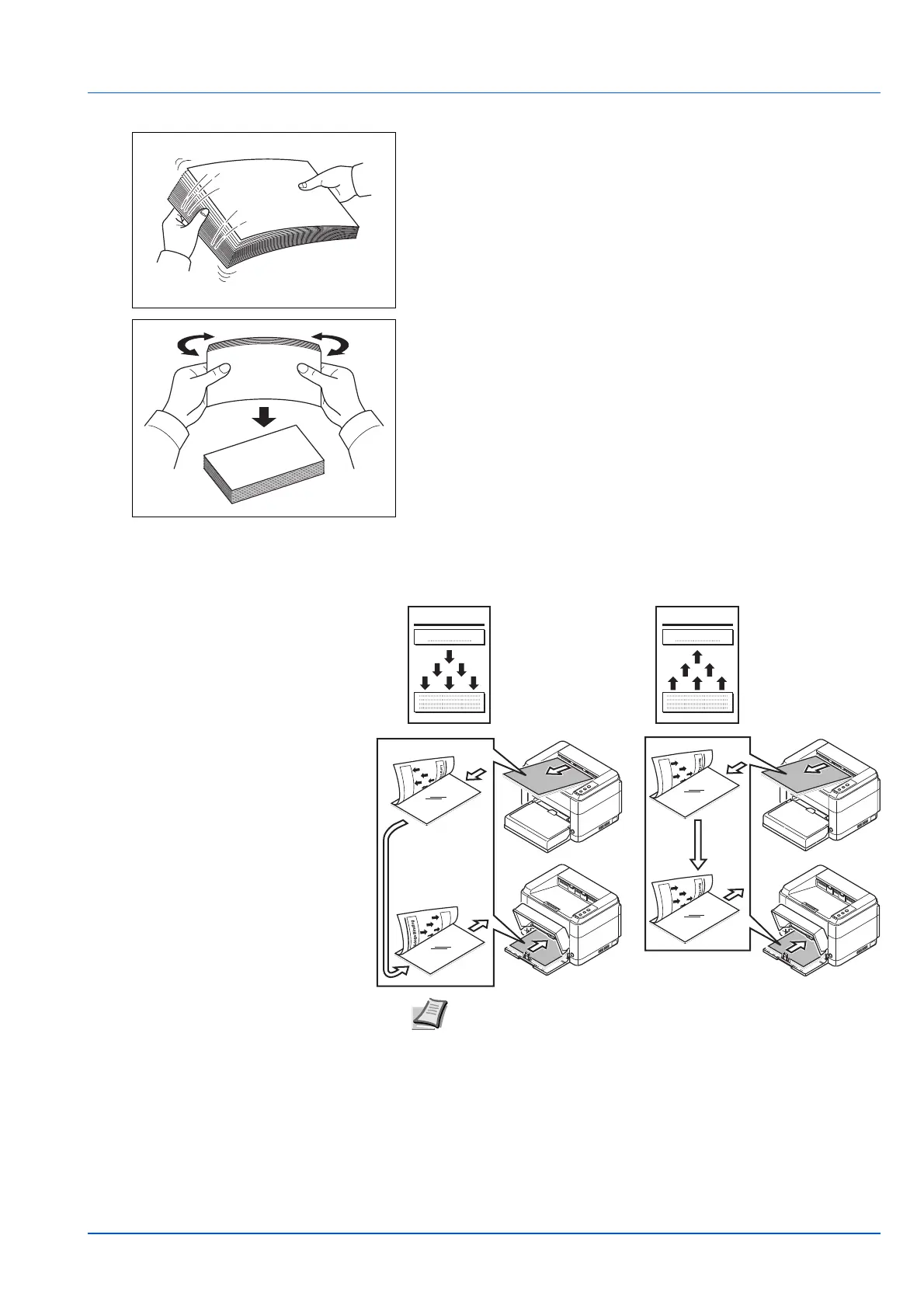

3 Remove all the even pages (including the instruction sheet) from the
output tray, fan through the sheets to separate them prior to loading.
If the paper is curled at an edge, straighten it prior to reloading.
4 Load the even pages printed into the cassette with the instruction
sheet facing down and the arrows pointing toward the printer.
5 Select OK in the Manual Duplex Instruction message box of the
printer driver screen. All the odd pages will be printed.
Manual Duplex Instructions
Long Edge Binding
Manual Duplex Instructions
Short Edge Binding
Long Edge Binding Short Edge Binding
Note If the paper is considerably curled in one direction, roll the
paper in the opposite direction to counteract the curl. If this will not
cancel the curl satisfactorily, try to reduce the number of sheets
loaded in the cassette to the maximum of 100.
2-10
Connecting and Printing
KYOCERA Client Tool
KYOCERA Client Tool gives you quick access to frequently-used features and settings, plus the current status of all
supported devices. You can also order toner, download printer drivers, access KYOCERA Net Viewer, open the company
website, and view printer documentation.
Install KYOCERA Client Tool from the provided Product Library disc.
Accessing the KYOCERA Client Tool
To open the KYOCERA Client Tool, click Start > All Programs > Kyocera > Client Tool > KYOCERA Client Tool.
KYOCERA Client Tool Settings
Note For the detailed functions of the KYOCERA Client Tool, refer to the KYOCERA Client Tool User Guide.
1
2
5
6
3
4
7
No. Description
1 The drop-down list at the top of the KYOCERA Client Tool dialog
box includes all supported devices. You can select a model from
this list to view its properties and select available options, such
as configuration, maintenance, and driver download.
2 The Print tab gives you access to printer driver preferences and
properties. You can select printer driver settings by clicking the
Preferences and Properties buttons.
3 The Device tab lets you configure a device, view
documentation, restart a device, and restore factory default
settings.
Click Configuration to display the Configuration screen. This
lets you configure various printer settings. Refer to Configuration
on page 2-12.
2-11
Connecting and Printing

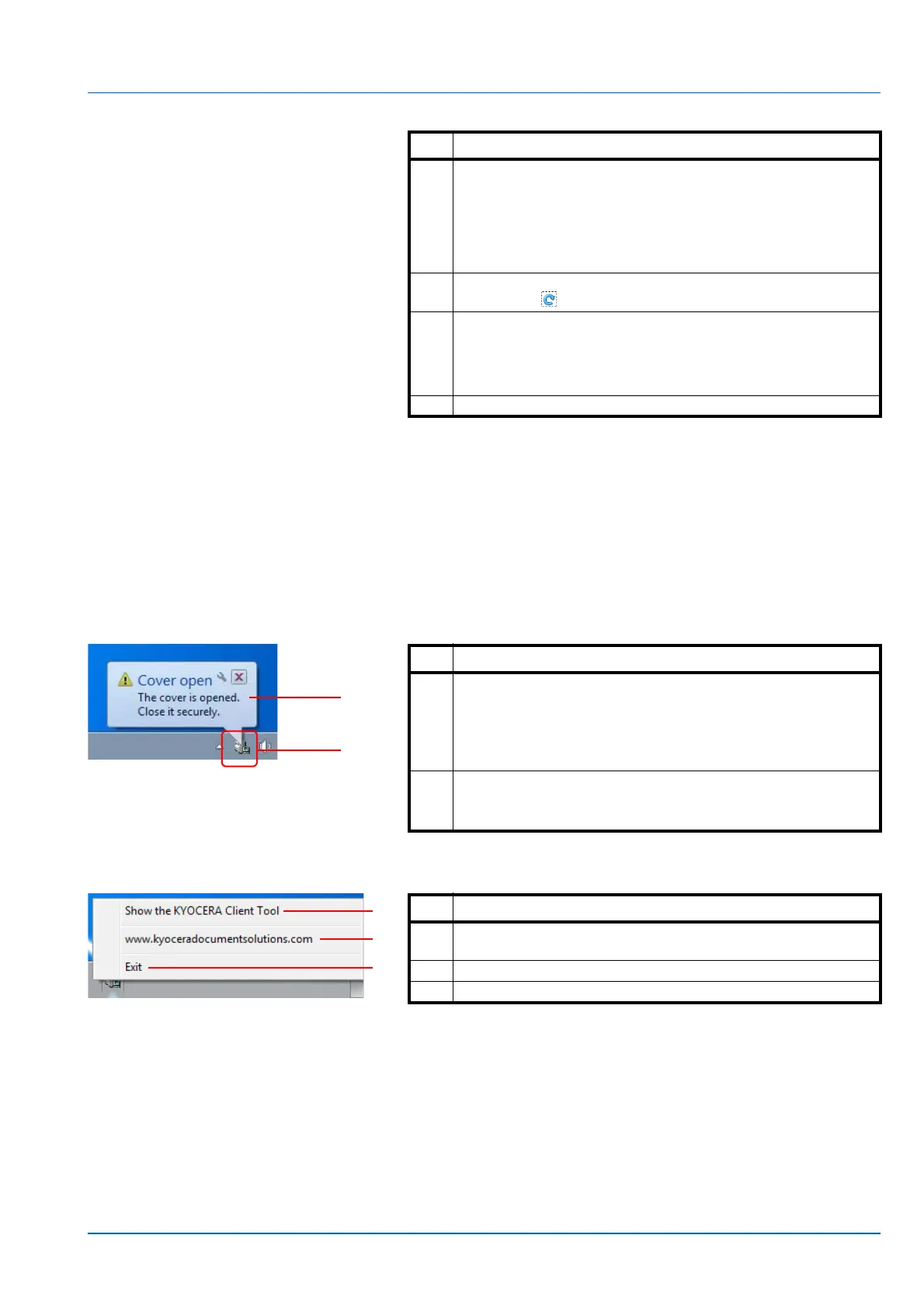

Status Monitor Icon
When the KYOCERA Client Tool is installed, you can check the printer status in the Status Monitor icon.
The Status Monitor icon displays printer status messages in the lower right corner of the screen.
Screen Overview
The screen overview of the Status Monitor icon is as follows.
When the Status Monitor icon is active, you can select KYOCERA Client
Tool options by right-clicking the icon in the system tray.
4 The Maintenance tab lets you open KYOCERA Net Viewer*,
order replacement toner, view the KYOCERA Document
Solutions web site, and download printer drivers.
Click Maintenance Menu to display the Maintenance Menu
screen. This lets you perform printer maintenance. Refer to
Maintenance Menu on page 4-6.
5 This shows a 3D image of the selected printer and its current
status. Click (Refresh) to refresh the printer status.
6•Supplies Tab
The Supplies tab shows the toner status.
• Device Overview Tab
The Device Overview tab shows the printer settings.
7 Clicking Close hides the KYOCERA Client Tool.
* To display KYOCERA Net Viewer, KYOCERA Net Viewer
must be installed.
No. Description
No. Description
1 Pop-up window
If an information notification event occurs, a pop-up window
appears.
Information notification events can be set in the Configuration.
Refer to Configuration on page 2-12.
2 Status Monitor icon
The Status Monitor icon is displayed in the taskbar notification
area when the KYOCERA Client Tool is running.
No. Description
1 Switches between hiding and showing the KYOCERA Client
Tool dialog box.
2 Opens the KYOCERA Document Solutions website.
3 Closes the KYOCERA Client Tool.
1
2
1
2
3
2-12
Connecting and Printing
Configuration
The Configuration is a function of the KYOCERA Client Tool, and let you check and change printer settings.
Accessing the Configuration
Follow these steps to display the Configuration on the desktop.
1 Start the KYOCERA Client Tool as explained in Accessing the
KYOCERA Client Tool on page 2-10.
2 Click Configuration on the Device tab. The Configuration window
appears.
Configuration Screen
Note For the detailed functions of the Configuration, refer to the KYOCERA Client Tool User Guide.
1
2
3
FS-1041/FS-1061DN and some models
of FS-1040/FS-1060DN
Others
1
2
3
No. Description
1 • Device Defaults Tab*
The Device Defaults tab is used to select energy, units, error, timeout, and paper options.
Note Power off when does not appear on the FS-1040 for Europe, Russia, Africa and Middle East, and FS-
1041 for Europe.
• Communication Tab**
The Communication tab is used to set a host name, select TCP/IP settings, and select SNMP settings.
•SNMP Traps Tab**
The SNMP Traps tab is used to select SNMP trap settings for 1 or 2 IP addresses.
• Status Monitor Tab
The Status Monitor tab is used to select toner lever alert and event notification settings.
2-13
Connecting and Printing
2 Closes the Configuration.
3 Clicking OK exits the Configuration after applying the modified printer settings.
Clicking Cancel exits the Configuration without applying the modified printer settings.
Clicking Apply applies the modified printer settings without exiting the Configuration.
* The items that can be configured will be different depending on the model.
** The Communication tab and SNMP Traps tab only appear for FS-1060DN/FS-1061DN connected by network
connection.
No. Description
2-14
Connecting and Printing
Uninstalling Software (Windows PC)
The software can be uninstalled (removed) using the Product Library disc supplied with the printer.
1 Exit all active software applications.
2 Insert the included Product Library disc into the disc drive. In
Windows 7, Windows Server 2008 and Windows Vista, the user
account control window may appear. Click Yes.
3 Following the procedure used to install the printer driver, click
Uninstall tab.
4 Select the software package to remove.
5 Click Uninstall.
The uninstaller starts.
6 When Uninstall complete screen appears, click Finish.
7 If Restart Your System screen appears, select whether you restart
your computer or not, and click Finish.
IMPORTANT On Macintosh computers, because the printer settings are specified using a PPD (PostScript Printer
Description) file, the software cannot be uninstalled using the Product Library disc.
Note When KYOCERA Net Viewer is installed, separate
uninstallers are launched for this application. Proceed with the
uninstallation steps for this application as directed by the on-
screen instructions.
3-1
3 Loading Paper
This chapter explains paper specifications for this printer and how to load paper into the cassette or Manual Feed
tray.
General Guidelines ................................................................................................................................................ 3-2
Selecting the Right Paper...................................................................................................................................... 3-4
Paper Type .............................................................................................................................................................. 3-9
Preparing the Paper ............................................................................................................................................. 3-10
Loading Paper into Cassette............................................................................................................................... 3-10
Loading Paper into Manual Feed Tray (FS-1060DN/FS-1061DN only)............................................................. 3-13
IMPORTANT You should not use inkjet printer paper or any paper with a special surface coating. (Such papers may
cause paper jams or other faults.)
3-2
Loading Paper
General Guidelines
The machine is designed to print on standard copier paper, but it can also accept a variety of other types of paper within
the limits specified below.
Selection of the right paper is important. Using the wrong paper can result in paper jams, curling, poor print quality, and
paper waste, and in extreme cases can damage the machine. The guidelines given below will increase the productivity of
your office by ensuring efficient, trouble-free printing and reducing wear and tear on the machine.
Paper Availability
Most types of paper are compatible with a variety of machines. Paper intended for xerographic copiers can also be used
with the machine.
There are three general grades of paper: economy, standard, and premium. The most significant difference between
grades is the ease with which they pass through the machine. This is affected by the smoothness, size, and moisture
content of the paper, and the way in which the paper is cut. The higher the grade of paper you use, the less risk there will
be of paper jams and other problems, and the higher the level of quality your printed output will reflect.
Differences between paper from different suppliers can also affect the machine's performance. A high-quality printer
cannot produce high-quality results when the wrong paper is used. Low-priced paper is not economical in the long run if it
causes printing problems.
Paper in each grade is available in a range of basis weights (defined later). The traditional standard weights are 60 to
120 g/m² (16 to 31.9b).
Paper Specifications
The following table summarizes the basic paper specifications. Details are given on the following pages:
Note The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements
is used.
Item Specifications
Weight Cassette: 60 to 220 g/m² (16 to 58.5 lb/ream)
Manual Feed tray: 60 to 220 g/m² (16 to 58.5 lb/ream)
Thickness 0.086 to 0.110 mm (3.4 to 4.3 mils)
Dimensional Accuracy ±0.7 mm (±0.0276 inches)
Squareness of Corners 90 ±0.2°
Moisture Content 4 to 6%
Pulp Content 80% or more
3-3
Loading Paper

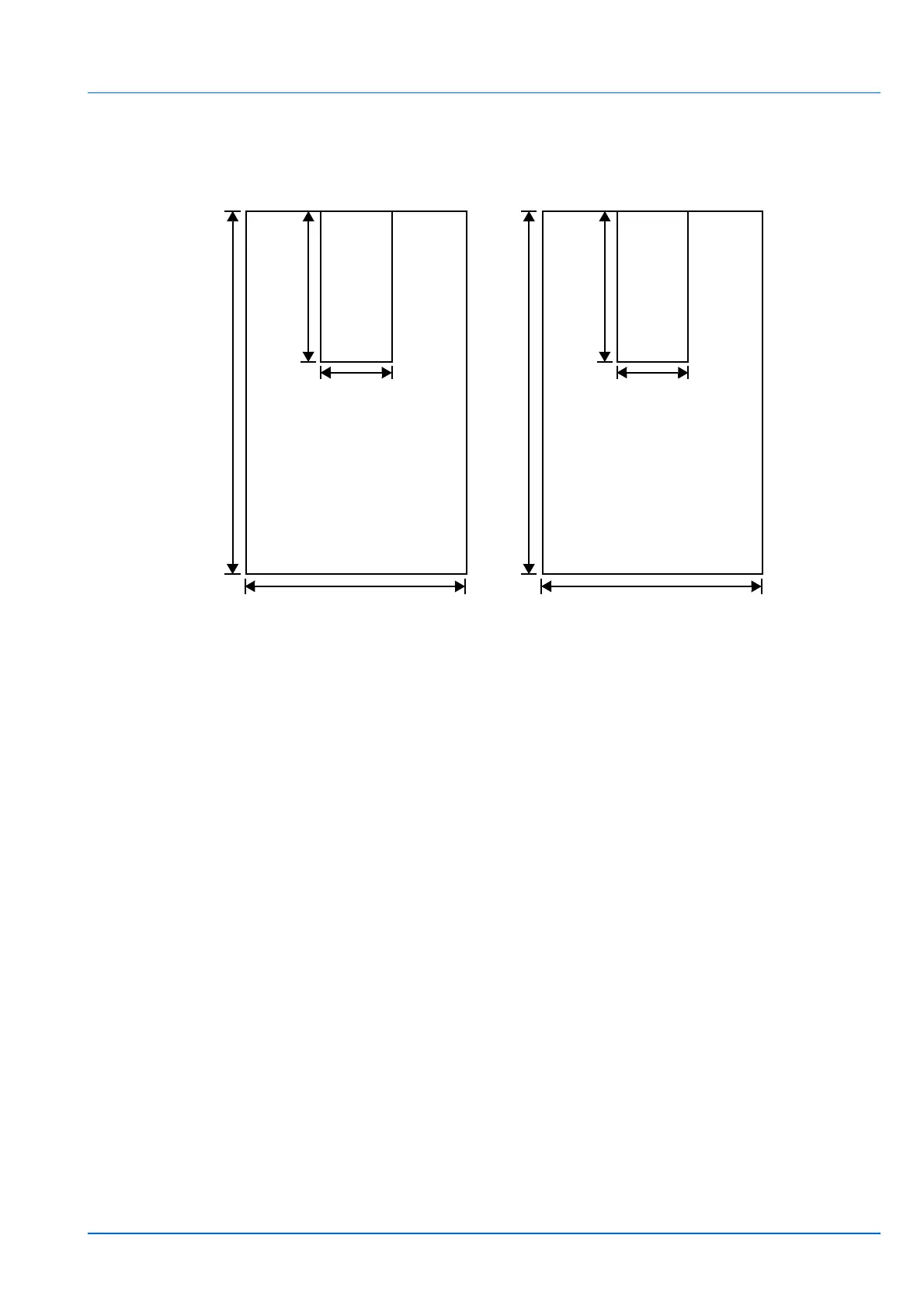

Minimum and Maximum Paper Sizes
The minimum and maximum paper sizes are as follows.
Cassette
70 mm
(2-3/4 inches)
148 mm (5-13/16 inches)
Minimum
Paper Size
Maximum
Paper Size
Manual Feed tray
216 mm (8-1/2 inches)
356 mm (14 inches)
70 mm
(2-3/4 inches)
148 mm (5-13/16 inches)
Minimum
Paper Size
Maximum
Paper Size
216 mm (8-1/2 inches)
356 mm (14 inches)
3-4
Loading Paper
Selecting the Right Paper
This section describes the guidelines for selecting paper.
Condition
Avoid using paper that is bent at the edges, curled, dirty, torn, embossed, or contaminated with lint, clay, or paper shreds.
Use of paper in these conditions can lead to illegible printing and paper jams, and can shorten the life of the machine. In
particular, avoid using paper with a surface coating or other surface treatment. Paper should have as smooth and even a
surface as possible.
Composition
Do not use paper that has been coated or surface-treated and contains plastic or carbon. The heat of fusing can cause
such paper to give off harmful fumes.
Bond paper should contain at least 80% pulp. Not more than 20% of the total paper content should consist of cotton or
other fibers.
Paper Sizes
Cassette and the Manual Feed tray are available for the paper sizes shown below. The dimensional tolerances are
±0.7mm for the length and width. The angle at the corners must be 90° ±0.2°.
• A4 (210 × 297 mm)
• A5 (148 × 210 mm)
• A6 (105 × 148 mm)
• Folio (210 × 330 mm)
• JIS B5 (182 × 257 mm)
• ISO B5 (176 × 250 mm)
• Letter (8-1/2 × 11 inches)
• Legal (8-1/2 × 14 inches)
• Statement (5-1/2 × 8-1/2 inches)
• Executive (7-1/4 × 10-1/2 inches)
• Envelope Monarch (3-7/8 × 7-1/2 inches)
• Envelope #10 (4-1/8 × 9-1/2 inches)
• Envelope #9 (3-7/8 × 8-7/8 inches)
• Envelope #6-3/4 (3-5/8 × 6-1/2 inches)
• Envelope C5 (162 × 229 mm)
• Envelope DL (110 × 220 mm)
• Oficio II (216 × 340 mm, 8-1/2 × 13 inches)
• Mexican Oficio (216 × 340 mm)
• 16 K (197 × 273 mm)
• Custom*
70 × 148 to 216 × 356 mm, 2-3/4 × 5-13/16 to 8-1/2 × 14 inches
* If the length of custom paper is larger than 297 mm (11-11/16 inches), the printer can be substituted A4, Folio,
Legal, and Oficio II as the standard paper size.
Smoothness
The paper should have a smooth, uncoated surface. Paper with a rough or sandy surface can cause blank spaces in the
printed output. Paper that is too smooth can cause multiple feeding and fogging problems. (Fogging is a gray background
effect.)
3-5
Loading Paper
Basis weight
Basis weight is the weight of paper expressed in grams per square meter (g/m²). Paper that is too heavy or too light may
cause feed errors or paper jams as well as premature wear of the product. Uneven weight of paper, namely uneven paper
thickness may cause multiple-sheet feeding or print quality problems such as blurring because of poor toner fusing.
The recommended basis weight is between 60 and 220 g/m² (16 to 58.5 lib/ream).
Paper Weight Equivalence Table
The paper weight is listed in pounds (lb) and metric grams per square meter (g/m²). The shaded part indicates the
standard weight.
Thickness
The paper used with the machine should be neither extremely thick nor extremely thin. If you are having problems with
paper jams, multiple feeds, and faint printing, the paper you are using may be too thin. If you are having problems with
paper jams and blurred printing the paper may be too thick. The correct thickness is 0.086 to 0.110 mm (3.4 to 4.3 mils).
Moisture Content
Moisture content is defined as the percent ratio of moisture to the dry mass of the paper. Moisture can affect the paper’s
appearance, feed ability, curl, electrostatic properties, and toner fusing characteristics.
The moisture content of the paper varies with the relative humidity in the room. When the relative humidity is high and the
paper absorbs moisture, the paper edges expand, becoming wavy in appearance. When the relative humidity is low and
the paper loses moisture, the edges shrink and tighten, and print contrast may suffer.
Wavy or tight edges can cause jams and alignment anomalies. The moisture content of the paper should be 4 to 6%.
To ensure correct moisture content, it is important to store the paper in a controlled environment. Some tips on moisture
control are:
• Store paper in a cool, dry location.
• Keep the paper in its wrapping as long as possible. Re-wrap paper that is not in use.
• Store paper in its original carton. Place a pallet etc. under the carton to separate it from the floor.
• After removing paper from storage, let it stand in the same room as the machine for 48 hours before use.
• Avoid leaving paper where it is exposed to heat, sunlight, or damp.
Other Paper Properties
Porosity: Indicates the density of paper fiber.
Stiffness: Limp paper may buckle in the machine, resulting in paper jams.
Europe Metric Weight
(g/m²)
U. S. Bond Weight (lb)
Europe Metric Weight
(g/m²)
U. S. Bond Weight (lb)
60 16 128 34
64 17 135
36
75
20 148 39
80 21 157 42
81 22 163 43
90
24 176 47
100 27 199 53
105
28 220 58.5
120
32
3-6
Loading Paper
Curl: Most paper naturally tends to curl one way if left unpacked. When paper passes through the fixing unit, it curls
upward a little. To produce flat printouts, load the paper so that the upward pressure from the machine can correct their
curling.
Electrostatic discharge: During the printing process the paper is electrostatically charged to attract the toner. The paper
must be able to release this charge so that printed sheets do not cling together in the Output Tray.
Whiteness: The contrast of the printed page depends on the whiteness of the paper. Whiter paper provides a sharper,
brighter appearance.
Quality control: Uneven sheet size, corners that are not square, ragged edges, welded (uncut) sheets, and crushed
edges and corners can cause the machine to malfunction in various ways. A quality paper supplier should take
considerable care to ensure that these problems do not occur.
Packaging: Paper should be packed in a sturdy carton to protect it from damage during transport. Quality paper obtained
from a reputable supplier is usually correctly packaged.
Specially treated paper: We do not recommend printing onto the following types of paper, even if it conforms to the basic
specifications. When you use these kinds of paper, purchase a small amount first as a sample to test.
• Glossy paper
• Watermarked paper
• Paper with an uneven surface
• Perforated paper
Special Paper
The following types of special paper can be used:
• Preprinted paper
• Labels*
• Bond paper
• Recycled paper
• Thin paper* (60 to 64 g/m²)
• Rough paper
• Letterhead
• Colored paper
• Prepunched paper
• Envelopes*
• Cardstocks (Postcards)*
• Thick paper (90 to 220 g/m²)
• High-quality paper
* Only one sheet can be loaded at a time in the cassette or in the Manual Feed tray.
Use paper that is sold specifically for use with copiers or printers (heat-fusing type).
Since the composition and quality of special paper vary considerably, special paper is more likely than white bond paper to
give trouble during printing. No liability will be assumed if moisture and so forth given off during printing on special paper
causes harm to the machine or operator.
Labels
One label sheet can be loaded at a time.
The basic rule for printing on adhesive labels is that the adhesive must never come into contact with any part of the
machine. Adhesive paper sticking to the drum or rollers will damage the machine.
Note Before purchasing any type of special paper, test a sample on the machine and check that printing quality is
satisfactory.
3-7
Loading Paper

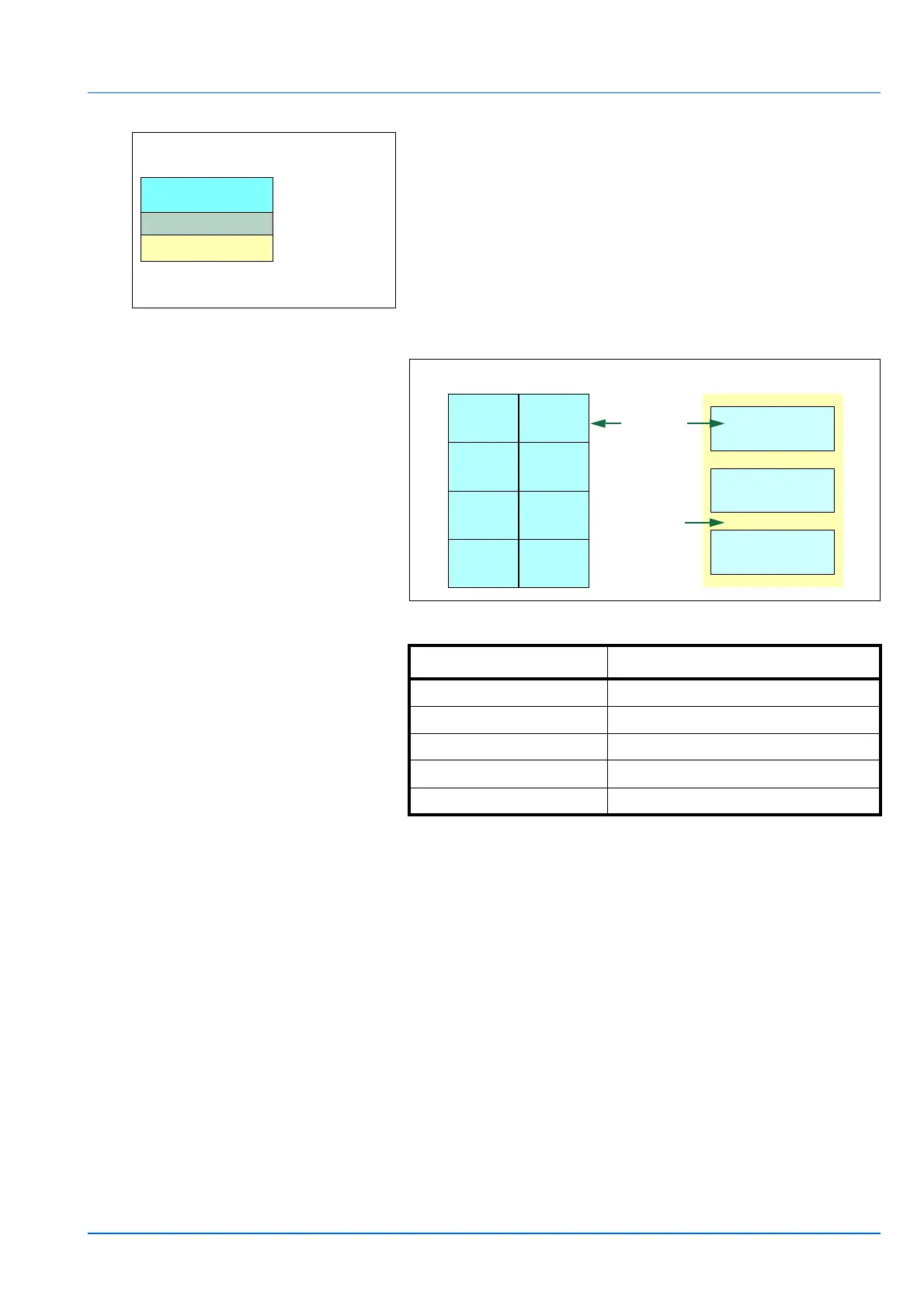

Label paper has a structure comprising of three layers, as shown in the
diagram. The top sheet is printed on. The adhesive layer consists of
pressure-sensitive adhesives. The carrier sheet (also called the linear or
backing sheet) holds the labels until used. Due to the complexity of its
composition, adhesive-backed label paper is particularly likely to give
printing problems.
Adhesive label paper must be entirely covered by its top sheet, with no
spaces between the individual labels. Labels with spaces in between are
liable to peel off, causing serious paper jam problems.
Some label paper is manufactured with an extra margin of top sheet
around the edge. Do not remove the extra top sheet from the carrier
sheet until after printing is finished.
The table below lists the specifications for adhesive label paper.
Postcards
One postcard can be loaded at a time. Make sure the postcards you are going to set are not curled. Feeding curled
postcards may cause paper jams.
Some postcards have rough edges on the back (those are created when the paper is cut). In this case, put the postcard on
a flat place and rub the edges with, for example, a ruler to smooth them.
Envelopes
One envelope can be loaded at a time. Envelopes should be fed in the face-up position, right edge first.
Since the composition of an envelope is more complex than that of ordinary paper, it is not always possible to ensure
consistent printing quality over the entire envelope surface.
Normally, envelopes have a diagonal grain direction. This direction can easily cause wrinkles and creases when envelopes
pass through the printer. Before purchasing envelopes, make a test print to check whether the printer accepts the
envelope.
• Do not use envelopes that have an encapsulated liquid adhesive.
• Avoid a long printing session for envelopes only. Extended envelope printing can cause premature printer wear.
Top sheet (white
bond paper)
Adhesive
Carrier sheet
Item Specification
Weight of top sheet 44 to 74 g/m² (12 to 20 lb/ream)
Composite weight 104 to 151 g/m² (28 to 40 lb/ream)
Thickness of top sheet 0.086 to 0.107 mm (3.9 to 4.2 mils)
Composite thickness 0.115 to 0.145 mm (4.5 to 5.7 mils)
Moisture content 4 to 6% (composite)
Top sheet
UnacceptableAcceptable
Carrier sheet
3-8
Loading Paper

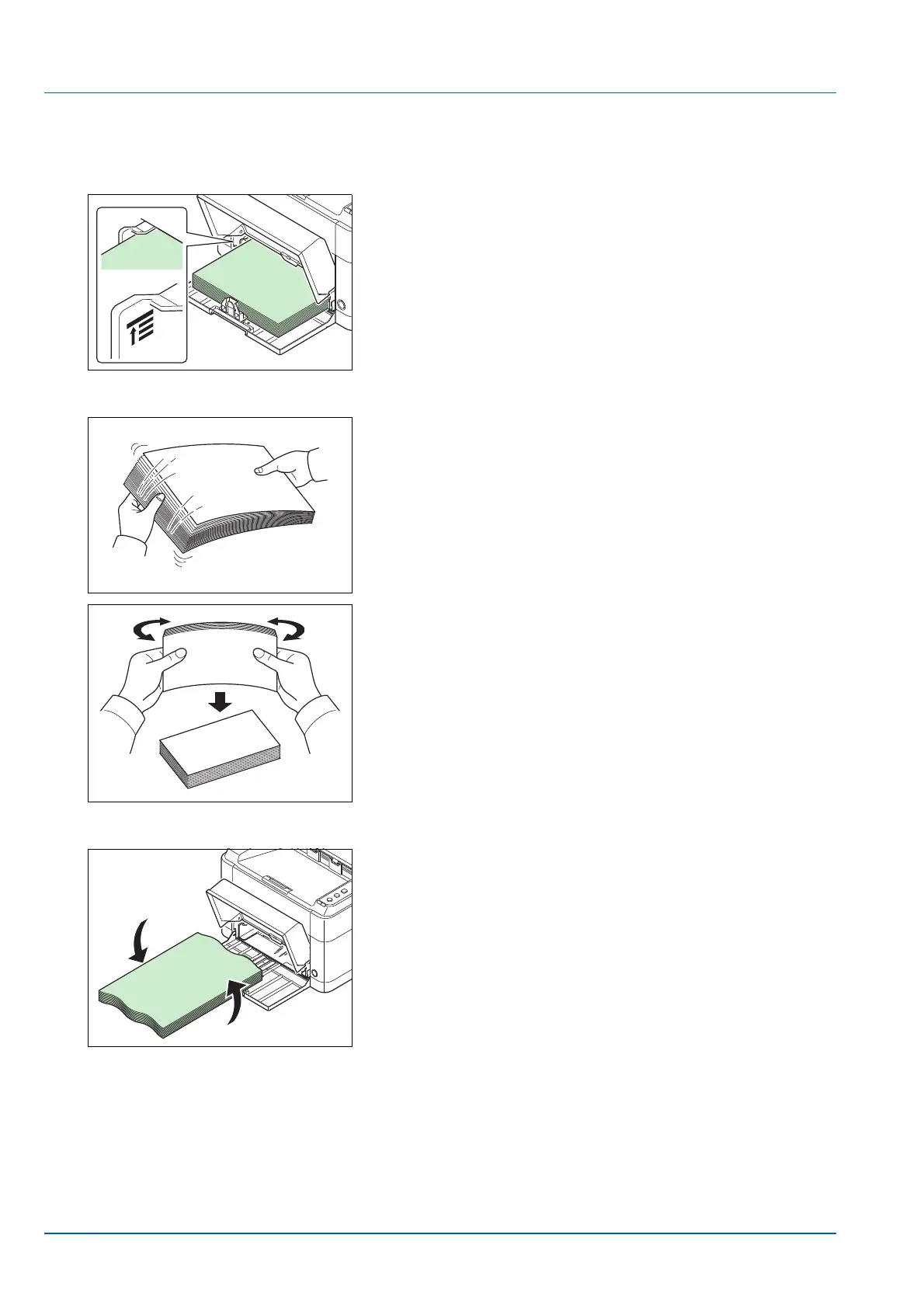

Thick Paper
If an excessive amount of thick paper is loaded in the cassette, it may not be fed. In that case, reduce the number of
sheets to be loaded.

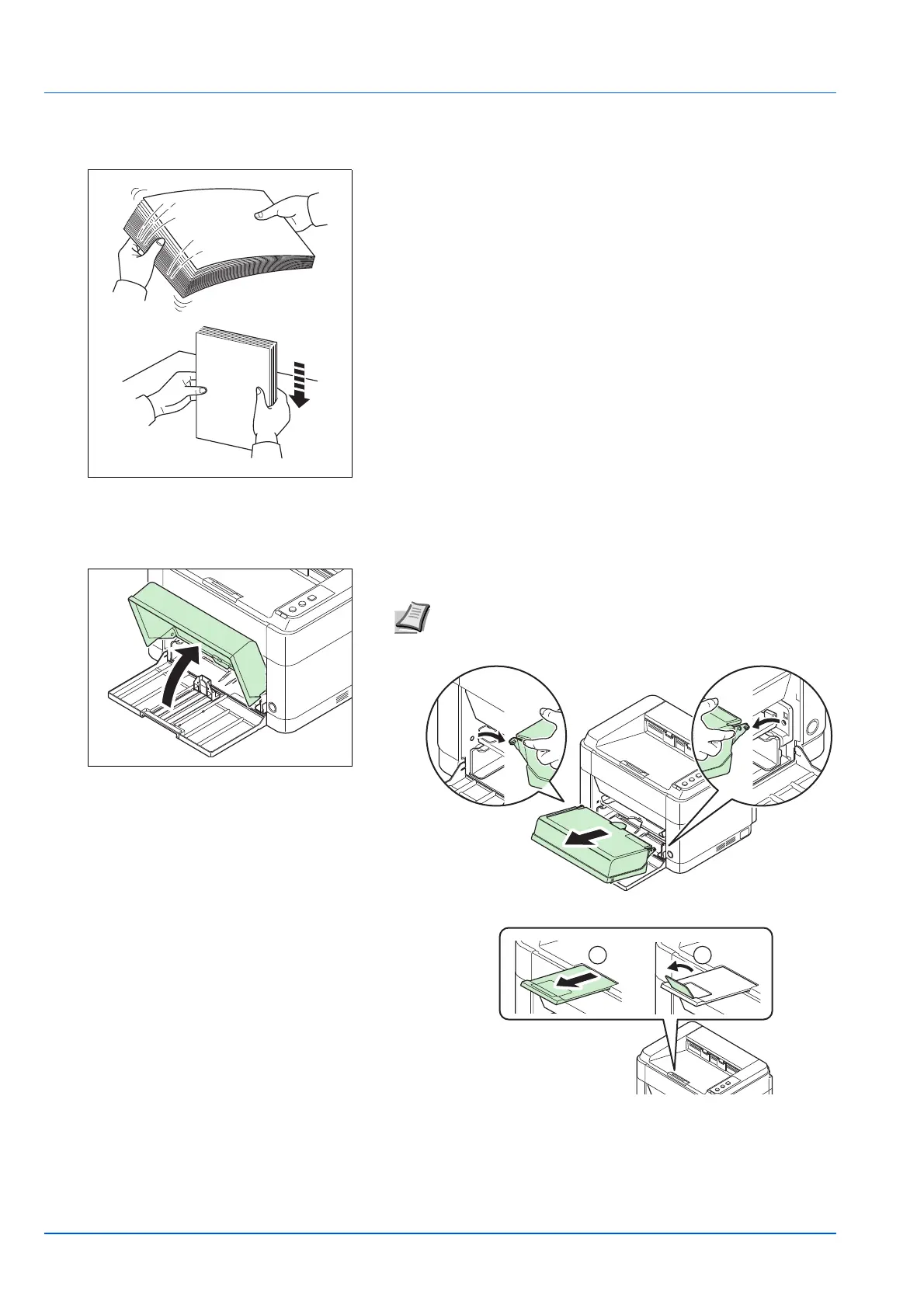

Fan the stack of paper and align the edges before loading them in the
paper source. Some types of paper have rough edges on the back
(those are created when the paper is cut). In this case, put the paper on
a flat place and rub the edges once or twice with, for example, a ruler to
smooth them. Feeding rough edged paper may cause paper jams.
Colored Paper
Colored paper should satisfy the same conditions as white bond paper. Refer to Paper Specifications on page 3-2. In
addition, the pigments used in the paper must be able to withstand the heat of fusing during the printing process (up to
200°C or 392°F).
Preprinted Paper
Preprinted paper should satisfy the same conditions as white bond paper. Refer to Paper Specifications on page 3-2. The
preprinted ink must be able to withstand the heat of fusing during the printing process, and must not be affected by silicone
oil.
Do not use paper with any kind of surface treatment, such as the type of paper commonly used for calendars.
Recycled paper
Select recycled paper that meets the same specifications as the white bond paper except for whiteness. Refer to Paper
Specifications on page 3-2.
Burrs
Burrs
Note If paper is not fed even after its rough edges have been
removed, warp the paper at the leading edge upward for a few
millimeters as shown in the figure, and then load the paper.
Note Before purchasing recycled paper, test a sample on the machine and check that the printing quality is
satisfactory.
3-9
Loading Paper
Paper Type
The printer is capable of printing under the optimum setting for the type of paper being used.
Not only can preset paper types be selected, but it is also possible for you to define and select customized paper types.
Paper type can be changed using the printer driver and KYOCERA Client Tool. The following types of paper can be used.
Yes: Can be stored No: Cannot be stored
Paper Type
Paper Weight Displayed in
KYOCERA Client Tool
Duplex Path*
Plain Normal 2 Yes
Preprinted Normal 2 Yes
Labels** Heavy 1 No
Bond Heavy 1 Yes
Recycled Normal 2 Yes
Vellum** Light No
Rough Heavy 1 Yes
Letterhead Normal 2 Yes
Color Normal 2 Yes
Prepunched Normal 2 Yes
Envelope** Heavy 2 No
Cardstock** Heavy 2 No
Thick Heavy 2 Yes
High quality Normal 2 Yes
Custom 1 (to 8)*** Normal 2 Yes****
* Automatic duplex printing is only possible on the FS-1060DN/FS-1061DN.
** One sheet must be loaded at a time.
*** This is a paper type defined and registered by the user. Up to eight types of user settings may be defined. For
more information, refer to KYOCERA Client Tool User Guide.
**** When Custom is specified, duplex printing can be set in the KYOCERA Client Tool.
3-10
Loading Paper
Preparing the Paper
After removing paper from the packaging, fan through the sheets to
separate them prior to loading.
If using paper that has been folded or is curled, straighten it prior to
loading. Failure to do so may result in a paper jam.
IMPORTANT Ensure paper is not stapled and clips are removed.
Loading Paper into Cassette
250 sheets of Letter or A4 paper (80 g/m²) may be loaded into the cassette.
1 Open the cassette cover.
Note When using paper that is larger than A4/Letter, remove
the cassette cover. Gently press on both the left and right
sides of the cassette cover and pull.
If necessary, open the paper stopper shown in the figure.
1 2
3-11
Loading Paper
2 Adjust the position of the width guides located on the left and right
sides of the cassette.
3 Adjust the paper length guide to the paper size required.
Note Paper sizes are marked on the cassette.
Note When using paper larger than A4/Letter, pull out the
paper length guide.
When using A6 paper, attach the stopper.
Move the stopper to the A6
position.
3-12
Loading Paper
4 Load the paper all the way in the cassette until the paper touches the
far inner side. Ensure the side to be printed is facing up and the
paper is not folded, curled, or damaged.
5 Close the cassette cover.
6 Specify the paper size and type for the cassette using KYOCERA
Client Tool. For more information, refer to Configuration on page 2-
12.
IMPORTANT Adjust so that there is no gap between the paper
length guide and the paper.
Note Load an amount of paper that fits under (does not
contact) the tabs on the width guides.
When using A6 paper, load the paper as shown in the
illustration.
Note When storing the cassette, or when using paper larger
than A4/Letter, remove the cassette cover.
Note Set the same paper size to the paper size that is set on
the printing system.
3-13
Loading Paper

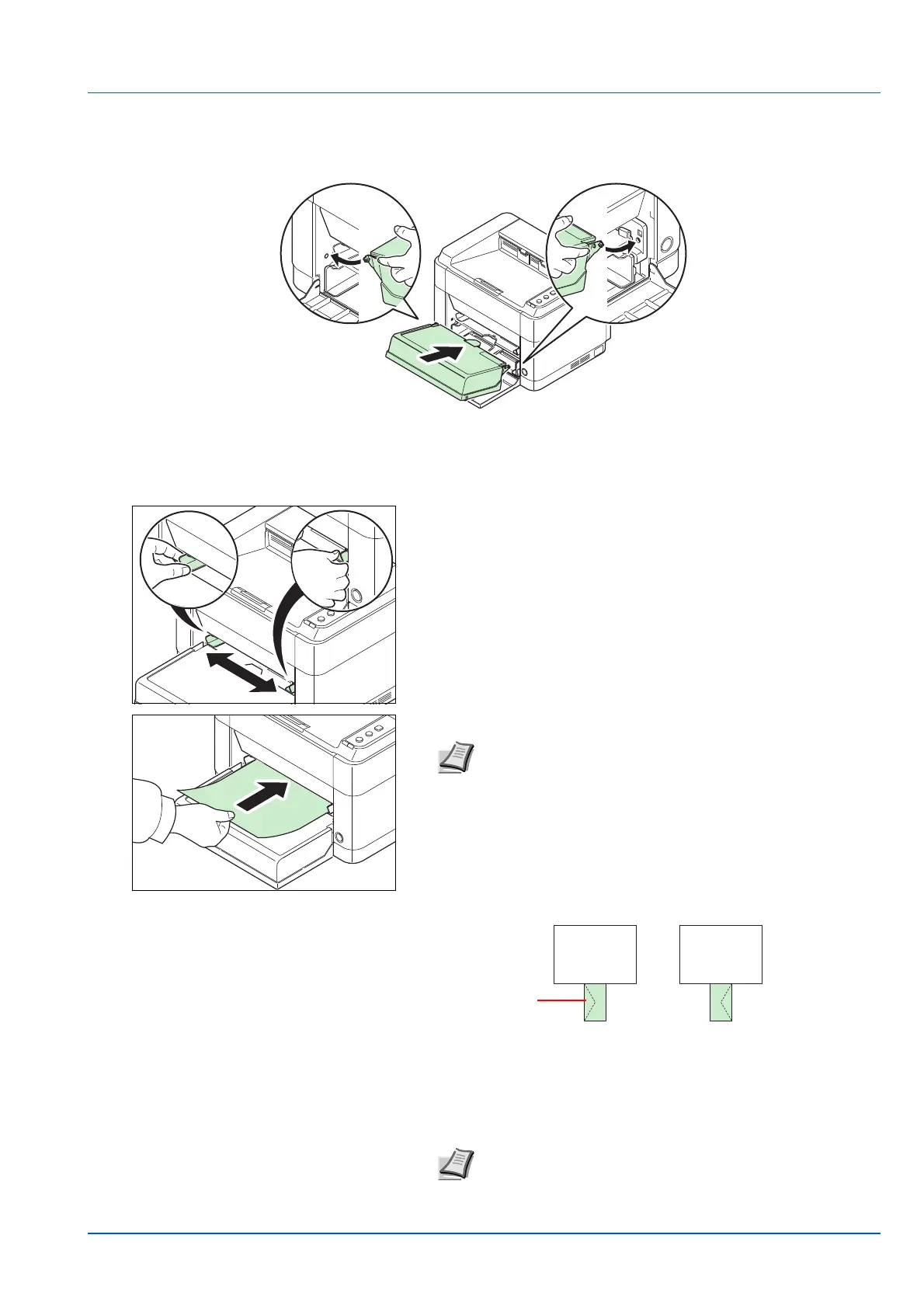

When you attach the cassette cover
Attach the cassette cover as shown in the illustration.
Loading Paper into Manual Feed Tray (FS-1060DN/FS-1061DN only)
The FS-1060DN/FS-1061DN can load one sheet into the Manual Feed tray.
1 Adjust the position of the paper guides on the Manual Feed tray.
Standard paper sizes are marked on the Manual Feed tray. For
standard paper sizes, slide the paper guides to the corresponding
mark.
2 Align the paper with the paper guides and insert as far as it will go.
When loading an envelope, load as shown in the illustration.
Load envelope with the print side facing up.
3 Specify the paper size and type for Manual Feed tray using
KYOCERA Client Tool. For more information, refer to Configuration
on page 2-12.
Note If the paper is considerably curled in one direction, for
example, if the paper is already printed on one side, try to roll
the paper in the opposite direction to counteract the curl.
Note Set the same paper size to the paper size that is set on
the printing system.
Correct Incorrect
Close the flap.
3-14
Loading Paper
4-1
4 Maintenance
This chapter explains how to replace the toner container and clean the printer.
General Information............................................................................................................................................... 4-2
Toner Container Replacement .............................................................................................................................. 4-2
Maintenance Kit Replacement .............................................................................................................................. 4-4
Cleaning the Printer............................................................................................................................................... 4-5
Maintenance Menu................................................................................................................................................. 4-6
Prolonged Non-Use and Moving of the Printer ................................................................................................... 4-7
4-4
Maintenance

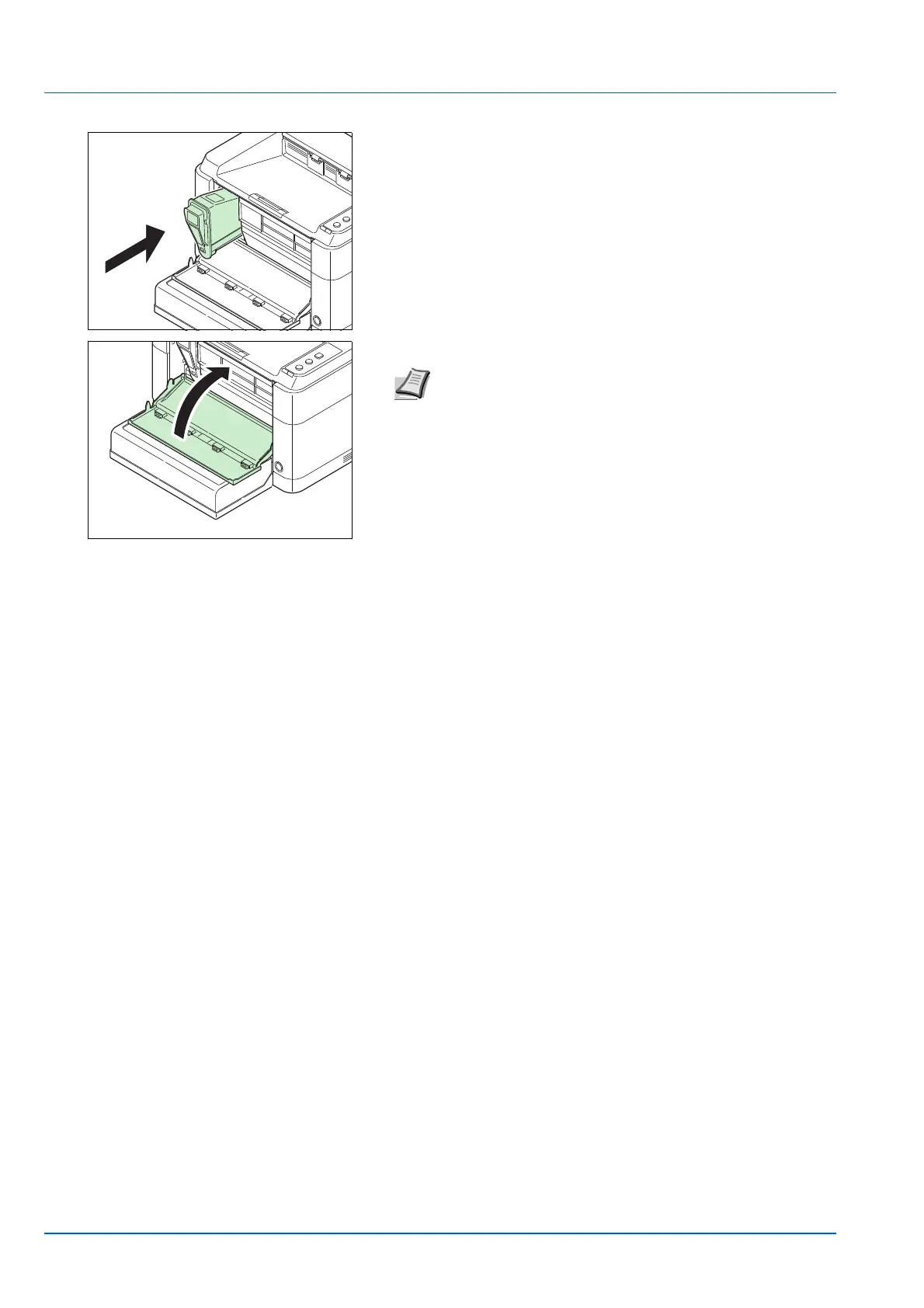

4 Install the new toner container in the printer. Push in firmly until you
hear a "click" sound.
5 Close the front cover. Toner is replenished for about 4 seconds.
Maintenance Kit Replacement
When the machine prints 100,000 pages, a message is printed indicating that the maintenance kit should be replaced. The
maintenance kit must then be replaced immediately.
To replace the maintenance kit, contact your service technician.
Contents:
• Drum unit
• Developer unit
• Waste toner box
• Feed roller
• Lower paper feed guide
• Transfer roller
Note If the front cover does not close, check that the new
toner container is installed correctly (in step 4).
After use, always dispose of the toner container in
accordance with Federal, State and Local rules and
regulations.
4-5
Maintenance
Cleaning the Printer
To avoid print quality problems, the interior of the printer must be cleaned with every toner container replacement.
1 Open the rear cover.
2 Use a clean, lint-free cloth to wipe dust and dirt off the metal and
rubber rollers, conveying unit, and paper feed unit.
IMPORTANT Take care not to touch the drum and transfer roller
(black) during cleaning.
Transfer Roller
Rubber Roller
Conveying Unit
Paper Feed Unit
Drum
Metal Roller
4-6
Maintenance
Maintenance Menu
The Maintenance Menu that the user can adjust from the KYOCERA Client Tool is described below. In addition, also refer
to KYOCERA Client Tool User Guide.
Maintenance Menu Description
Adjust print
quality
Drum charge
setting
When print quality has deteriorated, the output of the main charger can be
changed to restore print quality.
Altitude setting If you are using the machine at an altitude of 1500 m or higher and print
quality has deteriorated, the Altitude setting can be used to restore print
quality.
Drum refresh Perform Drum Refresh when images show streaking with white lines.
Adjust print
position
Printing start
position
Single-sided printing
Adjusts the position of the printed
image.
Duplex printing
Adjusts the position of the image
printed on the back side of the paper
when duplex printing is used.
Restore factory default Restore factory default settings.
A
B
A: Top edge
B: Left edge
Top edge: 10
4-7
Maintenance
Prolonged Non-Use and Moving of the Printer
Prolonged Non-use
If you ever leave the printer unused for a long period of time, remove the power cord from the wall outlet.
We recommend you consult with your dealer about the additional actions you should take to avoid possible damage that
may occur when the printer is used next time.
Moving the Printer
When you move the printer:
• Move it gently.
• Keep it as level as possible to avoid spilling toner inside the printer.
• Be sure to consult a service technician before attempting longdistance transportation of the printer.
• Keep the printer horizontal.
WARNING If you are shipping the printer, remove and pack the developer unit and drum unit in a plastic
bag and ship them separately from the printer.
5-1
5 Troubleshooting
This chapter explains how to handle printer problems, understand indicator combinations, and clear paper jams.
Solving Malfunctions ............................................................................................................................................. 5-2
Error Messages ...................................................................................................................................................... 5-6
Clearing Paper Jams.............................................................................................................................................. 5-8
5-2
Troubleshooting
Solving Malfunctions
The table below provides general guidelines for problem solving.
If a problem occurs with your printer, look into the checkpoints and perform procedures indicated on the following pages. If
the problem persists, contact your service technician.
Symptom Checkpoints Corrective Actions
Reference
Page
The printer will not print
from the computer.
Check the power cord. Connect both ends of the power cord
securely.
2-3
Is the printer powered on? Turn on the power switch. —
Are the interface cable connected? Connect the correct interface cable
securely.
2-2
Was the printer powered on before the
interface cable was connected?
Power on the printer after connecting
the interface cable.
2-2
Is the print job paused? Resume printing. —
Check that the indicators display in a
recognized combination.
Using the information on page 1-3,
check if an error has occurred and
clear the error.
If the indicators show a pattern not
described in the table on page 1-3,
turn the power switch off and then on
again. Print the job again.
1-3
Check if a status page can be printed. If the status page was printed
successfully, there may be a problem
with the connection to the computer.
Refer to Connections on page 2-2 and
check the connection. To print the
status page, refer to Keys on page 1-
3.
1-3
2-2
The indicators are off
and the motor is not
working.
Check the power cord. Connect both ends of the power cord
securely.
2-3
— Press the power switch. —
The printer prints a
status page but data
from the computer is not
being printed.
Check the interface cable. Connect both ends of the interface
cable securely. Try replacing the
printer cable.
2-2
Check program files and application
software.
Try printing another file or using
another print command. If the problem
occurs with a specific file or
application, check the printer settings
for that application.
—
5-3
Troubleshooting
Vapor is emitted near the
top tray.
Check if the temperature is low near
the location of the printer, or if the
paper that is being used has been
exposed to humidity.
Depending on the operating
environment of the printer and the
condition of the paper, heat generated
during printing can evaporate water
moisture in the printed paper, emitting
vapor from the printer. In this case,
printing can be continued without any
problem.
To correct this, increase the
temperature in the room, and use
paper that has been stored in a dry
place.
—
Full black printout or faint
printing.
— Open the rear cover and press the
points shown in the figure. If the
problem is not solved even after
printing several pages, call for service.
—
Paper often jams. Is the paper loaded correctly? Load the paper correctly. 3-10, 3-13
Is the paper of the supported type? Is
it in good condition?
Remove the paper, turn it over, and
reload it.
3-1
Is the paper curled, folded or wrinkled? Replace the paper with new paper. 3-1
Are there any loose scraps or jammed
paper in the printer?
Remove any jammed paper. 5-8
2 or more sheets are
overlaps when ejected.
(multi feed)
— Load the paper correctly. 3-10

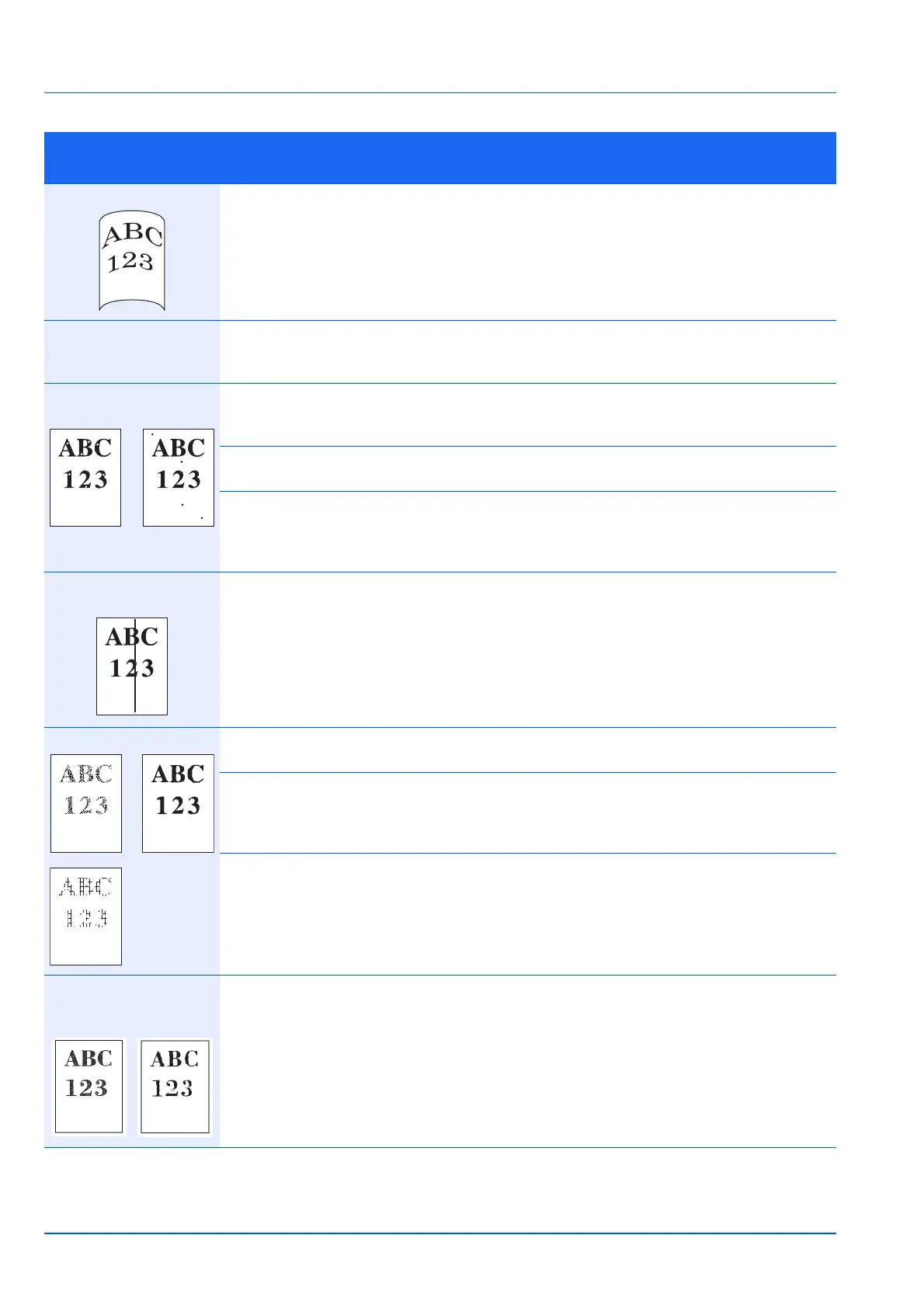

Printouts are wrinkled. Is the paper damp? Replace the paper with new paper. 3-1
Symptom Checkpoints Corrective Actions
Reference
Page
5-4
Troubleshooting
Printouts are curled. Is the paper damp? Replace the paper with new paper. 3-1
Text is missing on the
Windows test page.
— This is a problem specific to the
Windows OS. It is not a printer
problem. It does not affect print quality.
—
Printouts have dropouts
or stray dots.
Check the Drum charge setting in the
Maintenance Menu.
Increase the adjustment value for the
Drum charge setting in the
Maintenance Menu.
4-6
— Run Drum refresh in the Maintenance
Menu.
4-6
— Drum or developer unit may be
damaged. If the problem is not solved
even after printing several pages, call
for service.
—
Printouts have vertical
streaks.
— The drum unit may be damaged. If the
problem is not solved even after
printing several pages, call for service.
—
Faint or blurred printing. Check the toner container. If necessary, replace the toner
container.
4-2
Check the Print density setting in
KYOCERA Client Tool.
Increase the adjustment value for the
Print density in the KYOCERA Client
Tool. For more information, refer to
KYOCERA Client Tool User Guide.
—
Check the Drum charge setting in the
Maintenance Menu.
Decrease the adjustment value for the
Drum charge setting in the
Maintenance Menu.
4-6
The altitude is 1500 m or
higher and printouts are
too light.
Check the Altitude Setting in the
Maintenance Menu.
Set the Altitude setting in the
Maintenance Menu to 1. If there is still
no improvement, change the value to
2.
4-6
Symptom Checkpoints Corrective Actions
Reference
Page
5-5
Troubleshooting
Gray background. Check the toner container. If necessary, replace the toner
container.
4-2
Check the Drum charge setting in the
Maintenance Menu.
Increase the adjustment value for the
Drum charge setting in the
Maintenance Menu.
4-6
— Run Drum refresh in the Maintenance
Menu.
4-6
Check the Print density setting in
KYOCERA Client Tool.
Decrease the adjustment value for the
Print density in the KYOCERA Client
Tool. For more information, refer to
KYOCERA Client Tool User Guide.
—
Dirt on the top edge or
back of the paper.
Check the Drum charge setting in the
Maintenance Menu.
Increase the adjustment value for the
Drum charge setting in the
Maintenance Menu.
4-6
Is the interior of the printer dirty? If the problem is not solved even after
printing several pages, clean the
registration roller, conveying unit and
paper feed unit.
If the problem is not solved after
cleaning, call for service.
4-5
The previous image
remains and lightly
printed on the
prepunched paper.
Check the Drum charge setting in the
Maintenance Menu.
Increase the adjustment value for the
Drum charge setting in the
Maintenance Menu.
Increase the adjustment value 1 level
at a time from the current value.
If there is no improvement after the
value is increased by 1 level, increase
by 1 level again.
If there is still no improvement, return
the setting to the original value.
4-6
Gray background with
horizontal streaks near
the top edge.
Check the Drum charge setting in the
Maintenance Menu.
Increase the adjustment value for the
Drum charge setting in the
Maintenance Menu.
4-6
Printing incomplete or
out of position.
Is the paper loaded correctly? Check the position of the paper width
guides.
3-10
Are the application software settings at
the PC set properly?
Check that the printing settings are
correct in the application software and
the printer driver.
—
Symptom Checkpoints Corrective Actions
Reference
Page
5-6
Troubleshooting
Tips
Printer problems may be solved easily by following the tips below. When you have encountered a problem that cannot be
solved following the guidelines above, try the following:
• Restart the computer you are using to send print jobs to the printer.
• Obtain and use the latest version of the printer driver. The latest versions of printer drivers and utilities are available at:
http://www.kyoceradocumentsolutions.com.
• Make sure that the procedures for printing are correctly followed in the application software. Consult the
documentation supplied with the application software.
Error Messages
If a problem has occurred in the printer, the indicators on the operation panel, the KYOCERA Client Tool, and the Status
Monitor will show the status of the printer. Problems that can be resolved by the user are described below.
Indicators
If the Attention indicator is lit or flashing, check the KYOCERA Client Tool.
Note If the indicators light or flash repeatedly in manners not described above, a service error has probably
occurred. Switch off the printer power switch, unplug the power cord, and then plug the power cord back in and switch
on the power switch. This may clear the error. If the error is not cleared, contact your service technician.
Message Displayed in KYOCERA
Client Tool and Status Monitor*
Meaning Remedy
Add paper There is no paper in the paper source. Load paper into the paper source.
The paper size in the paper source is
different from the printer driver setting.
Load the proper size of paper in the
paper source.
Add toner The toner has run out. Replace with a new toner container.
Adding toner The printer is installing toner. Please wait.
Cover open The rear cover or front cover is open. Close the rear cover or front cover.
Error has occurred An error has occurred in the printer. Check the printer.
This message is displayed if the
installed toner container's regional
specification does not match the
machine’s.
Install the specified toner container.
Memory overflow Unable to continue the job as the
memory is used up.
Change the print resolution from Fast
1200 to 600 dpi. Refer to Printer Driver
User Guide.
5-7
Troubleshooting
Non-genuine Toner is installed This message is displayed if the
installed toner container is non-
genuine.
The manufacturer assumes no
responsibility for damage caused by a
non-genuine toner.
We recommend that you only use
genuine toner containers.
When you want to use the toner
container currently installed, press
[GO] and [Cancel] simultaneously for
3 seconds or more.
Paper jam A paper jam has occurred. Refer to Clearing Paper Jams on
page 5-8 and remove the jammed
paper.
Replacing the Maintenance Kit Replacement of the maintenance kit is
necessary at every 100,000 images of
printing.
Replace Maintenance Kit.
Toner is running out. The toner is running out. Have a new toner container ready.
Top tray full The top tray is full of paper. The printer pauses after 150 sheets
are printed. Remove paper from the
top tray and press [GO] to begin
printing.
* Events for which the Status Monitor provides notification can be set in the Configuration. Refer to Configuration
on page 2-12.
Message Displayed in KYOCERA
Client Tool and Status Monitor*
Meaning Remedy
5-8
Troubleshooting
Clearing Paper Jams
If paper jams in the paper transport system, or no paper sheets are fed at all, the printer automatically goes offline, and the
Attention indicator will flash. KYOCERA Client Tool can indicate the location of the paper jam (the component where the
paper jam has occurred). Remove the paper jam. After removing the paper jam, the printer will resume printing.
Possible Paper Jam Locations
Detailed paper jam positions are as follows. Refer to the indicated page number to remove the paper jam.
General Considerations for Clearing Jams
Bear in mind the following considerations when attempting paper jam removal:
• If paper jams occur frequently, try using a different type of paper, replace the paper with paper from another ream, or
flip the paper stack over. The printer may have problems if paper jams recur after the paper is replaced.
• Whether or not the jammed pages are reproduced normally after printing is resumed, depends on the location of the
paper jam.
Paper jam location Description Reference page
A Rear cover Page 5-9, 5-10
B Cassette Page 5-11, 5-12
C Manual Feed tray Page 5-13
CAUTION When removing a paper jam, pull the paper gently so as not to tear it. Torn pieces of paper are
difficult to remove and may be easily overlooked, deterring the paper jam recovery.
A
B
A
B
C
FS-1040/FS-1041 FS-1060DN/FS-1061DN
5-9
Troubleshooting
Rear Cover
Follow the steps below to clear paper jams inside the rear cover.
Note When the front cover is opened or closed, the paper inside
the machine may be discharged.
1
2
1
2
4
1
2
3
(FS-1060DN/FS-1061DN
only)
IMPORTANT Take care not to
touch the drum and transfer
roller (black).
Drum
Transfer Roller
5-10
Troubleshooting
1
2
2
1
6
5
7
CAUTION The fuser unit inside the
printer is hot. Do not touch it, as it
may result in burn injury.
Note Close the top cover first and then close
the rear cover.
Note When printing by manual feeding, press
[GO].
Close the rear cover to clear the error. The
printer warms up and resumes printing.
5-10
5-11
Troubleshooting

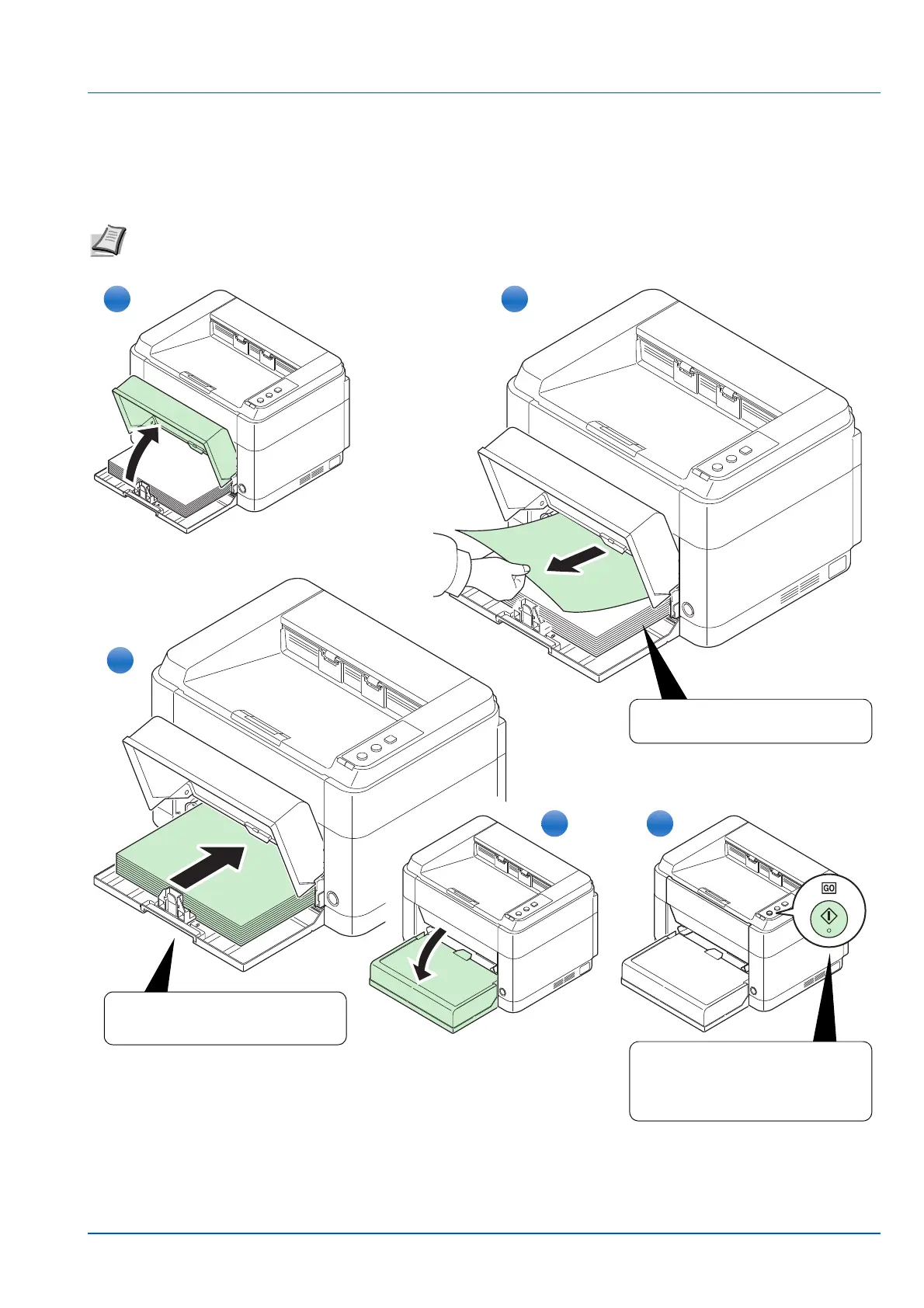

Cassette
Follow the steps below to clear paper jams in the cassette.
IMPORTANT Do not try to remove paper that has already been partially fed. Refer to Rear Cover on page 5-9.
Note Do not open or close the front cover or rear cover before removing the jammed paper.
1 2
3
54
Remove any partially fed paper.
Check to see if paper is loaded
correctly. If not, reload the paper.
Press [GO] to clear the error and
the printer warms up and
resumes printing.
5-12
Troubleshooting
If paper feed failure occurs
Check on and reduction of number of paper sheets loaded
If an excessive amount of thick paper is loaded in the cassette, it may
not be fed. In that case, reduce the number of sheets to be loaded.
Edge fanning and curl straightening
Remove all the even pages (including the instruction sheet) from the
output tray, fan through the sheets to separate them prior to loading.
If the paper is curled at an edge, straighten it prior to reloading.
No paper feed due to wavy paper edge
When the paper feed fails because the edge of the paper is wavy, turn it
upside down and load it again.
5-14
Troubleshooting
6-2
Appendix
Specifications
Note These specifications are subject to change without notice.
Item
Description
FS-1040/FS-1041 FS-1060DN/FS-1061DN
Type Desktop
Printing Method Electrophotography by semiconductor laser
Paper Weight Cassette 60 to 220 g/m²
Manual Feed Tray* – 60 to 220 g/m²
Paper Type
Plain, Preprinted, Labels, Bond, Recycled, Vellum, Rough, Letterhead, Color,
Prepunched, Envelope, Cardstock, Thick paper, High Quality, Custom 1 to 8
Paper Size Cassette A4, A5, A6, Folio, JIS B5, ISO B5, Letter, Legal, Statement, Executive,
Envelope Monarch, Envelope #10, Envelope #9, Envelope #6-3/4, Envelope
C5, Envelope DL, Oficio II (216 × 340 mm, 8-1/2 × 13 inches), Mexican
Oficio (216 × 340 mm), 16 K, Custom (70 × 148 to 216 × 356 mm, 2-3/4 × 5-
13/16 to 8-1/2 × 14 inches)
Manual Feed Tray* – A4, A5, A6, Folio, JIS B5, ISO B5,
Letter, Legal, Statement, Executive,
Envelope Monarch, Envelope #10,
Envelope #9, Envelope #6-3/4,
Envelope C5, Envelope DL, Oficio II
(216 × 340 mm, 8-1/2 × 13 inches),
Mexican Oficio (216 × 340 mm), 16 K,
Custom (70 × 148 to 216 × 356 mm, 2-
3/4 × 5-13/16 to 8-1/2 × 14 inches)
Magnification ratio 25 to 400%, 1% increments
Printing Speed
(images/min)
A4 Light (63 g/m² or less): 20
Normal 1 (64 to 69 g/m²): 20
Normal 2 (3) (70 to 105 g/m²): 20
Light (63 g/m² or less): 25
Normal 1 (64 to 69 g/m²): 25
Normal 2 (3) (70 to 105 g/m²): 25
A4 (Quiet Mode) Light (63 g/m² or less): 15
Normal 1 (64 to 69 g/m²): 15
Normal 2 (3) (70 to 105 g/m²): 15
Heavy 1 (106 to 135 g/m²): 14
Heavy 2 (3) (136 to 220 g/m²): 13
Light (63 g/m² or less): 18
Normal 1 (64 to 69 g/m²): 18
Normal 2 (3) (70 to 105 g/m²): 18
Heavy 1 (106 to 135 g/m²): 17
Heavy 2 (3) (136 to 220 g/m²): 16
Letter Light (63 g/m² or less): 21
Normal 1 (64 to 69 g/m²): 21
Normal 2 (3) (70 to 105 g/m²): 21
Light (63 g/m² or less): 26
Normal 1 (64 to 69 g/m²): 26
Normal 2 (3) (70 to 105 g/m²): 26
Letter (Quiet Mode) Light (63 g/m² or less): 16
Normal 1 (64 to 69 g/m²): 16
Normal 2 (3) (70 to 105 g/m²): 16
Heavy 1 (106 to 135 g/m²): 14
Heavy 2 (3) (136 to 220 g/m²):13
Light (63 g/m² or less): 19
Normal 1 (64 to 69 g/m²): 19
Normal 2 (3) (70 to 105 g/m²): 19
Heavy 1 (106 to 135 g/m²): 17
Heavy 2 (3) (136 to 220 g/m²):16
6-3
Appendix
Printing Speed
(images/min)
A5/B5/A6
(Quiet Mode)
Light (63 g/m² or less): 12
Normal 1 (64 to 69 g/m²): 12
Normal 2 (3) (70 to 105 g/m²): 12
Heavy 1 (106 to 135 g/m²): 10
Heavy 2 (3) (136 to 220 g/m²): 9
Light (63 g/m² or less): 15
Normal 1 (64 to 69 g/m²): 15
Normal 2 (3) (70 to 105 g/m²): 15
Heavy 1 (106 to 135 g/m²): 13
Heavy 2 (3) (136 to 220 g/m²): 12
A5/B5/A6 (from 11th
image)
(Quiet Mode)
Light (63 g/m² or less): 10
Normal 1 (64 to 69 g/m²): 10
Normal 2 (3) (70 to 105 g/m²): 10
Heavy 1 (106 to 135 g/m²): 8
Heavy 2 (3) (136 to 220 g/m²): 8
Light (63 g/m² or less): 12
Normal 1 (64 to 69 g/m²): 12
Normal 2 (3) (70 to 105 g/m²): 12
Heavy 1 (106 to 135 g/m²): 11
Heavy 2 (3) (136 to 220 g/m²): 10
Legal Light (63 g/m² or less): 13
Normal 1 (64 to 69 g/m²): 13
Normal 2 (3) (70 to 105 g/m²): 13
Light (63 g/m² or less): 20
Normal 1 (64 to 69 g/m²): 20
Normal 2 (3) (70 to 105 g/m²): 20
Legal (Quiet Mode) Light (63 g/m² or less): 12
Normal 1 (64 to 69 g/m²): 12
Normal 2 (3) (70 to 105 g/m²): 12
Heavy 1 (106 to 135 g/m²): 11
Heavy 2 (3) (136 to 220 g/m²): 10
Light (63 g/m² or less): 15
Normal 1 (64 to 69 g/m²): 15
Normal 2 (3) (70 to 105 g/m²): 15
Heavy 1 (106 to 135 g/m²): 13
Heavy 2 (3) (136 to 220 g/m²): 11
Duplex Printing
Speed
(images/min)
A4 – Light (63 g/m² or less): 15
Normal 1 (64 to 69 g/m²): 15
Normal 2 (3) (70 to 105 g/m²): 15
A4 (Quiet Mode) – Light (63 g/m² or less): 11
Normal 1 (64 to 69 g/m²): 11
Normal 2 (3) (70 to 105 g/m²): 11
Heavy 1 (106 to 135 g/m²): 11
Heavy 2 (3) (136 to 220 g/m²): 11
Letter – Light (63 g/m² or less): 15
Normal 1 (64 to 69 g/m²): 15
Normal 2 (3) (70 to 105 g/m²): 15
Letter (Quiet Mode) – Light (63 g/m² or less): 11
Normal 1 (64 to 69 g/m²): 11
Normal 2 (3) (70 to 105 g/m²): 11
Heavy 1 (106 to 135 g/m²): 11
Heavy 2 (3) (136 to 220 g/m²): 11
Legal – Light (63 g/m² or less): 13
Normal 1 (64 to 69 g/m²): 13
Normal 2 (3) (70 to 105 g/m²): 13
Legal (Quiet Mode) – Light (63 g/m² or less): 10
Normal 1 (64 to 69 g/m²): 10
Normal 2 (3) (70 to 105 g/m²): 10
Heavy 1 (106 to 135 g/m²): 9
Heavy 2 (3) (136 to 220 g/m²): 9
First Print Time (A4, feed from cassette) 8.5 seconds or less 7.5 seconds or less
Item
Description
FS-1040/FS-1041 FS-1060DN/FS-1061DN
6-4
Appendix
Warm-up Time
(22°C/71.6°F,
60%RH)
Power on 14 seconds or less 16 seconds or less
Sleep 12 seconds or less 14 seconds or less
Paper Capacity Cassette 250 sheets (80 g/m²)
Manual Feed Tray* – 1 sheet
Top Tray Capacity Standard paper 150 sheets (80 g/m²) (The printer pauses after 150 sheets are printed.)
Special paper 1 sheet
Continuous printing 1 to 999 sheets
Resolution 600 dpi/Fast 1200 dpi
Operating
Environment
Temperature 10 to 32.5°C/50 to 90.5°F
Humidity 15 to 80%
Altitude 3,500 m/11,482.8 ft maximum
Brightness 1,500 lux maximum
Controller ARM926EJ 390MHz
Supported OS Microsoft Windows XP/Vista/7, Windows Server 2003/2008, Mac OS X 10.x
Interface USB Interface Connector: 1 (USB
Hi-Speed)
USB Interface Connector: 1 (USB Hi-
Speed)
Network Interface: 1 (10 BASE-T/100
BASE-TX [TCP/IP, WSD]) <This unit
does not support the NetBEUI.>
Memory 32 MB
Dimension (W × D × H) 358 × 262 × 241 mm
14-1/8 × 10-5/16 × 9-1/2"
358 × 276 × 241 mm
14-1/8 × 10-7/8 × 9-1/2"
Weight (with toner container) 6.3 kg/13.86 lb 6.7 kg/14.74 lb
Power Requirements 120 V Specification Model:120 V (60 Hz, 5.4 A)
230 V Specification Model: 220 to 240 V (50 Hz/60 Hz, 2.8 A)
* The Manual Feed tray is only provided on the FS-1060DN/FS-1061DN.
Item
Description
FS-1040/FS-1041 FS-1060DN/FS-1061DN
Index-2
minimum and maximum sizes .................................. 3-3
Paper guides ................................................................. 3-13
Paper length guide ........................................................ 3-11
Paper stopper ................................................................ 3-10
components ............................................................. 1-2
Paper weight ................................................................... 3-5
Paper width guide ......................................................... 3-11
Possible paper jam locations .......................................... 5-8
Postcards ........................................................................ 3-7
Power cord
connection ................................................................ 2-3
Power cord connector
components ............................................................. 1-2
Power switch
components ............................................................. 1-2
Preparing paper ............................................................ 3-10
Preprinted Paper ............................................................. 3-8
Processing indicator
operation panel ........................................................ 1-3
Prolonged non-use .......................................................... 4-7
Q
Quiet Mode key
operation panel ........................................................ 1-3
R
Rear cover
components ............................................................. 1-2
Rear cover section
clearing paper jams .................................................. 5-9
Recycled paper ............................................................... 3-8
Replacement
toner container ................................................ 4-2, 4-3
Replacing toner container ............................................... 4-3
S
Solving malfunctions ....................................................... 5-2
Special paper .................................................................. 3-6
Specifications .................................................................. 6-2
T
Thick Paper ..................................................................... 3-8
Tips .................................................................................. 5-6
Toner container
how to replace .......................................................... 4-3
replacement ............................................................. 4-2
Toner kit
toner container, plastic waste bag, installation guide 4-2
Top cover
components ............................................................. 1-2
Top tray
components ............................................................. 1-2
Troubleshooting .............................................................. 5-1
solving malfunctions ................................................. 5-2
Turning on the power ...................................................... 2-3
U
USB cable
connection ............................................................... 2-2
USB interface connector
components ............................................................. 1-2
KYOCERA Document Solutions Austria GmbH
Eduard-Kittenberger-Gasse 95, 1230 Vienna,
Austria
Phone: +43-1-863380
Fax: +43-1-86338-400
KYOCERA Document Solutions Nordic AB
Esbogatan 16B 164 75 Kista,
Sweden
Phone: +46-8-546-550-00
Fax: +46-8-546-550-10
KYOCERA Document Solutions Norge NUF
Postboks 150 Oppsal, 0619 Oslo,
Norway
Phone: +47-22-62-73-00
Fax: +47-22-62-72-00
KYOCERA Document Solutions Danmark A/S
Ejby Industrivej 60, DK-2600 Glostrup,
Denmark
Phone: +45-70223880
Fax: +45-45765850
KYOCERA Document Solutions Portugal Lda.
Rua do Centro Cultural, 41 (Alvalade) 1700-106 Lisboa,
Portugal
Phone: +351-21-843-6780
Fax: +351-21-849-3312
KYOCERA Document Solutions
South Africa (Pty) Ltd.
49 Kyalami Boulevard,
Kyalami Business Park 1685 Midrand, South Africa
Phone: +27-11-540-2600
Fax: +27-11-466-3050
KYOCERA Document Solutions Russia LLC
Botanichesky pereulok 5, Moscow, 129090,
Russia
Phone: +7(495)741-0004
Fax: +7(495)741-0018
KYOCERA Document Solutions Middle East
Dubai Internet City, Bldg. 17,
Office 157 P.O. Box 500817, Dubai,
United Arab Emirates
Phone: +971-04-433-0412
KYOCERA Document Solutions Inc.
2-28, 1-chome, Tamatsukuri, Chuo-ku
Osaka 540-8585, Japan
Phone: +81-6-6764-3555
http://www.kyoceradocumentsolutions.com
KYOCERA Document Solutions Europe B.V.
Bloemlaan 4, 2132 NP Hoofddorp,
The Netherlands
Phone: +31-20-654-0000
Fax: +31-20-653-1256
KYOCERA Document Solutions Nederland B.V.
Beechavenue 25, 1119 RA Schiphol-Rijk,
The Netherlands
Phone: +31-20-5877200
Fax: +31-20-5877260
KYOCERA Document Solutions (U.K.) Limited
8 Beacontree Plaza,
Gillette Way Reading, Berkshire RG2 0BS,
United Kingdom
Phone: +44-118-931-1500
Fax: +44-118-931-1108
KYOCERA Document Solutions Italia S.p.A.
Via Verdi, 89/91 20063 Cernusco s/N.(MI),
Italy
Phone: +39-02-921791
Fax: +39-02-92179-600
KYOCERA Document Solutions Belgium N.V.
Sint-Martinusweg 199-201 1930 Zaventem,
Belgium
Phone: +32-2-7209270
Fax: +32-2-7208748
KYOCERA Document Solutions France S.A.S.
Espace Technologique de St Aubin
Route de I’Orme 91195 Gif-sur-Yvette CEDEX,
France
Phone: +33-1-69852600
Fax: +33-1-69853409
KYOCERA Document Solutions Espana, S.A.
Edificio Kyocera, Avda. de Manacor No.2,
28290 Las Matas (Madrid), Spain
Phone: +34-91-6318392
Fax: +34-91-6318219
KYOCERA Document Solutions Finland Oy
Atomitie 5C, 00370 Helsinki,
Finland
Phone: +358-9-47805200
Fax: +358-9-47805390
KYOCERA Document Solutions
Europe B.V., Amsterdam (NL) Zürich Branch
Hohlstrasse 614, 8048 Zürich,
Switzerland
Phone: +41-44-9084949
Fax: +41-44-9084950
KYOCERA Document Solutions
Deutschland GmbH
Otto-Hahn-Strasse 12, 40670 Meerbusch,
Germany
Phone: +49-2159-9180
Fax: +49-2159-918100
Produktspecifikationer
| Varumärke: | Kyocera |
| Kategori: | Skrivare |
| Modell: | Ecosys FS-1061DN |
| Inbyggd display: | Nej |
| Vikt: | 6700 g |
| Bredd: | 358 mm |
| Djup: | 276 mm |
| Höjd: | 241 mm |
| Färg: | Nej |
| Processorfrekvens: | 390 MHz |
| Wi-Fi: | Nej |
| Maximal upplösning: | 1800 x 600 DPI |
| Certifiering: | TUV-GS, CE |
| Internminne: | 32 MB |
| Processor: | Arm |
| Antal bläckpatroner: | 1 |
| Uppvärmningstid: | 16 s |
| Standardgränssnitt: | Ethernet, USB 2.0 |
| Mobil utskriftsteknik: | Stöds inte |
| Totalt antal inmatningsfack: | 1 |
| Maximalt antal inmatningsfack: | 1 |
| Pappersfackets mediavikt: | 60 - 220 g/m ^ |
| Ljudtrycksnivå (tyst läge): | 49.6 dB |
| Produktens färg: | Black, White |
| Windows-operativsystem som stöds: | Ja |
| Mac-operativsystem som stöds: | Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Dubbelsidig utskrift: | Ja |
| Inbyggd processor: | Ja |
| Hållbarhetscertifiering: | ENERGY STAR |
| AC-inspänning: | 220 - 240 V |
| Kabel inkluderad: | AC |
| Nätverksansluten (Ethernet): | Ja |
| Växelström Frekvens: | 50 - 60 hz |
| USB-port: | Ja |
| Strömförbrukning i vänteläge: | 6 W |
| Positionering på marknaden: | Hem och kontor |
| Strömförbrukning i PowerSave läge: | 3 W |
| Direktutskrift: | Ja |
| Drivrutiner medföljer: | Ja |
| Nätverksförberedd: | Ja |
| Utskriftsteknologi: | laser |
| Utskriftshastighet (Svart, normalkvalitet, A4/US Brev): | 25 ppm |
| Tid för första utskrift (svart): | 7.5 s |
| Dubbelsidigt utskriftsläge: | Automatisk |
| Driftcykel per månad: | 15000 sidor per månad |
| Språk för sidbeskrivning: | GDI |
| Medelströmförbrukning vid utskrift: | 346 W |
| Maximal inmatningskapacitet: | 250 ark |
| Total inmatningskapacitet: | 250 ark |
| Pappersinmatningstyp: | Cassette, Paper tray |
| Total utmatningskapacitet: | 150 ark |
| Maximal utmatningskapacitet: | 150 ark |
| Högsta ISO A-seriestorlek: | A4 |
| Pappersfackets typ av media: | Plain paper |
| ISO A-serie storlek (A0...A9): | A4, A5 |
| Icke-ISO utskriftsmaterial av olika storlek: | Letter |
| ISO B-seriestorlekar (B0 ... B9): | B5 |
| Duplex medievikter: | 50 - 120 g/m ^ |
| Anpassad mediebredd: | 70 - 216 mm |
| Anpassad medielängd: | 148 - 356 mm |
| Maximal utskriftstorlek: | 216 x 356 mm |
| Ljudtrycksnivå (utskrivning): | 51.2 dB |
| Skrivarfäger: | Svart |
| Patron (er) som ingår: | Ja |
| Flerfunktionsfack, kapacitet: | 1 ark |
| Flerfunktionsfack: | Ja |
| Flerfunktionsfack, materialvikt: | 60 - 220 g/m ^ |
| Reservpatroner: | TK-1125 |
