LEICA ELMAR-M 24 mm f/3.8 ASPH.

The LEICA ELMAR-M 24mm f/3.8 ASPH. is an extremely compact lens, especially for such a wide angle, which also offers out-

standing imaging performance. Even with at full stop, it delivers uniformly excellent reproduction quality over the entire image

field, only deteriorating slightly towards the edges in the close-up range. This performance can only be improved slightly by stop-

ping down, which means that you can take photographs with at full stop without concerns, unless your compositional ideas call

for a greater depth of field that can only be achieved with smaller apertures. The vignetting characteristic of every optical system

is naturally more pronounced on a super wide angle lens than on normal and long focal length lenses. With the diaphragm com-

pletely open, it is a maximum - i.e. in the corners of the image - of around 1.9 stops for the 35mm format, or around 1.1 stops on

Leica M8 models with their slightly smaller format. Stopping down to 5.6 visibly reduces this light falloff at the image edges - to

1.4 and 0.8 stops respectively. Stopping down further does not bring about any notable reduction since essentially only the natu-

ral vignetting remains. The lens' maximum distortion is around 1% and therefore hardly perceptible.The retrofocus-like construc-

tion is made up of a total of eight lens elements and the use of an aspherical surface and glass types with anomalous color

dispersion (partial dispersion) make a crucial contribution towards restricting aberrations to an absolute minimum.

Summary: The LEICA ELMAR-M 24mm f/3.8 ASPH. not only offers optimum imaging performance but also - for its focal length -

compact dimensions and also provides all Leica M users with an affordable introduction to the world of super wide angle photo-

graphy.

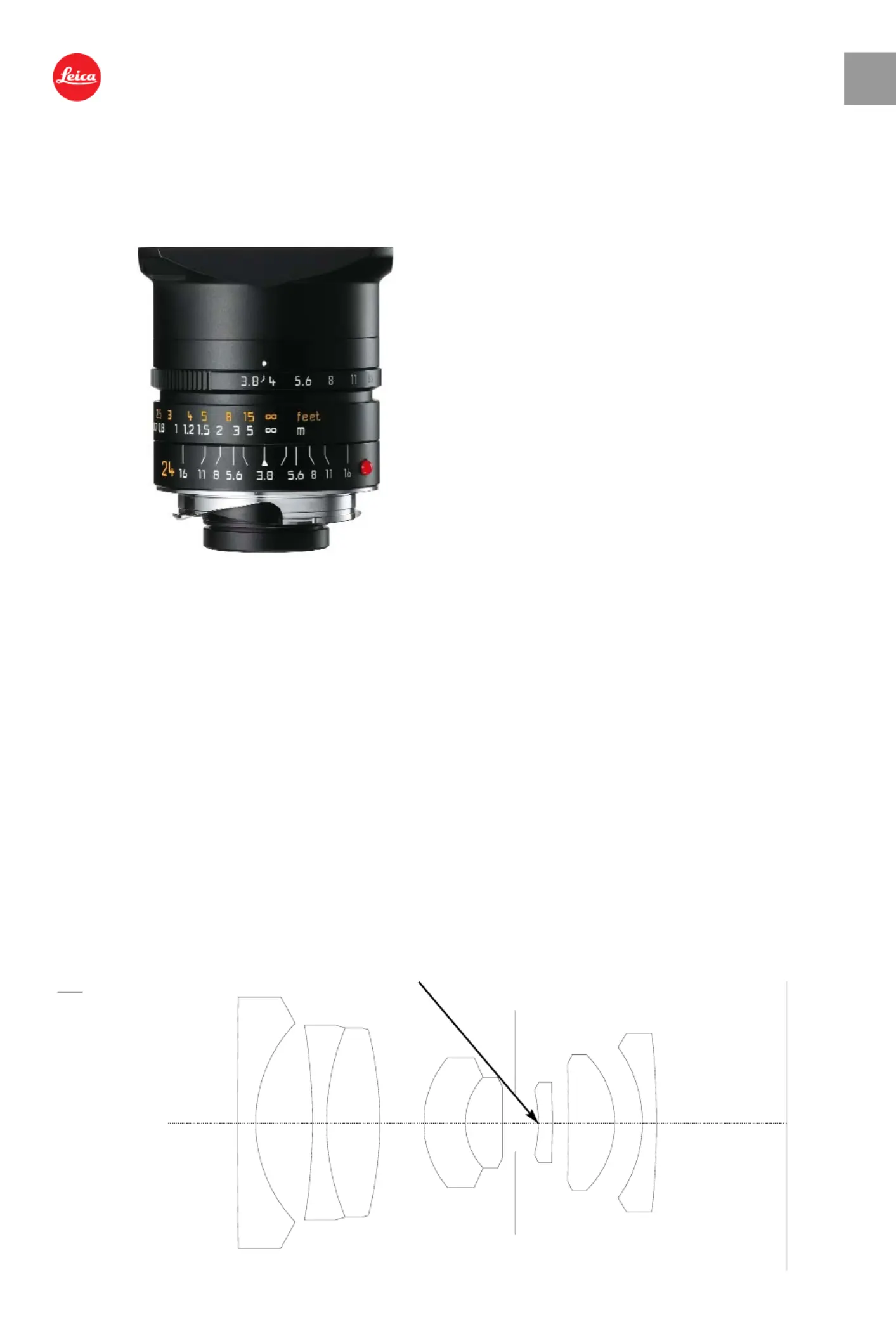

Lens shape

ASPH.

LEICA ELMAR-M 24 mm f/3.8 ASPH.

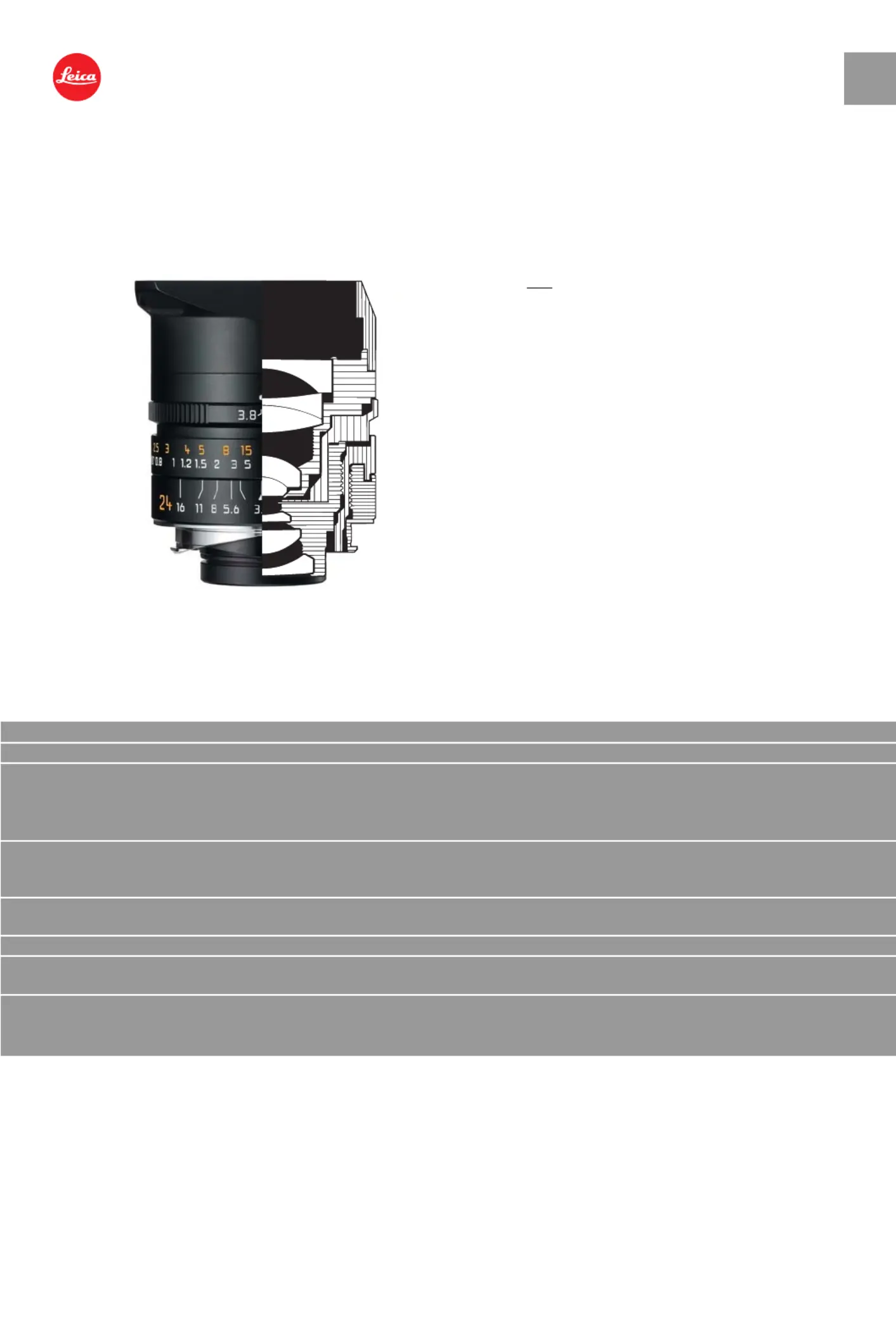

Engineering drawing

Technical Data

Angle of view (diagonal, horizontal, vertical)

Optical design

Distance setting

Aperture

Bayonet

Filter mount/Lens hood

Dimension and weight

84° / 74° / 53°

Number of lenses/groups: 8 / 6

Focal length: 24.5 mm

Position of entrance pupil: 18.7 mm (related to the first lens surface in light direction)

Focusing range: 0.7 m to infinity

Scales: Combined meter/feet graduation

Smallest object field: 615 x 922 mm

Largest reproduction ratio: 1:25.6

Setting/Function: With click-stops, half values available, manual diaphragm

Lowest value: 16

Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models

Non-rotating, female thread for filters E46, male thread for lens hood, screw-on type lens hood (included

in delivery)

Length: 40.6 / 56.6 mm (without / with lens hood)

Largest diamater: approx. 53 mm

Weight: approx. 260 g

LEICA ELMAR-M 24 mm f/3.8 ASPH.

00 5

55 20

2020

1010 15

1515

Y' [mm] = 21.0

2020

4040

6060

8080

10100

[%]

Aperture Stop 3.8

00 5

55 20

2020

1010 15

1515

Y' [mm] = 21.0

2020

4040

6060

8080

10100

Aperture Stop 8.0

[%]

00 5

55 20

2020

1010 15

1515

Y' [mm] = 21.0

2020

4040

6060

8080

10100

[%]

Aperture Stop 5.6

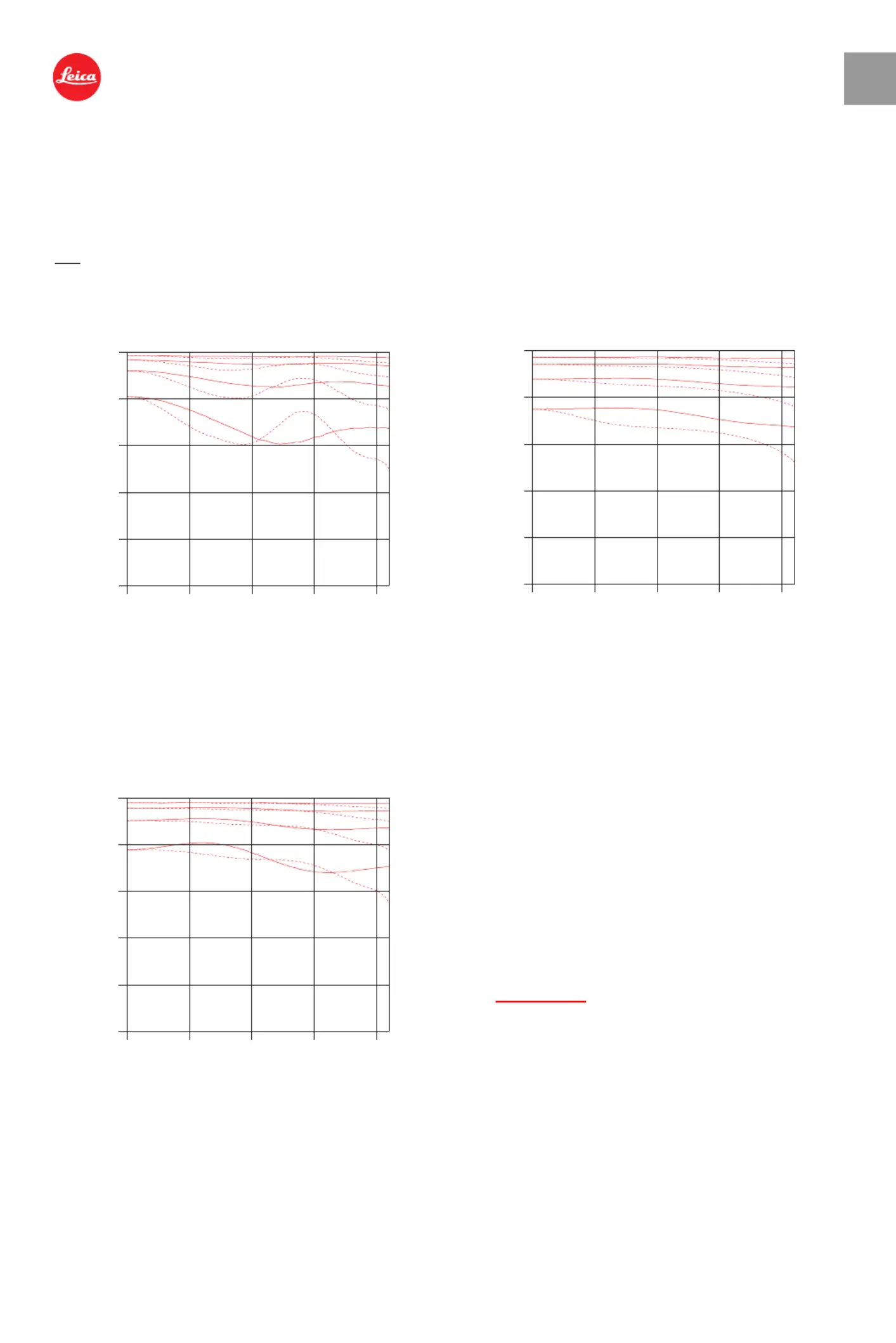

MTF graphs

The MTF is indicated both at full aperture and at

f/5.6 at long taking distances (infinity). Shown

is the contrast in percentage for 5, 10, 20 and

40 lp/mm accross the height of the 35 mm film

format, for tangential (dotted line) and sagittal

(solid line) structures, in white light. The 5 and

10 lp/mm will give an indication regarding the

contrast ratio for large object structures.The

20 and 40 lp/mm records the resolution of finer

and finest object structures.

tangential structures

sagittal structures
