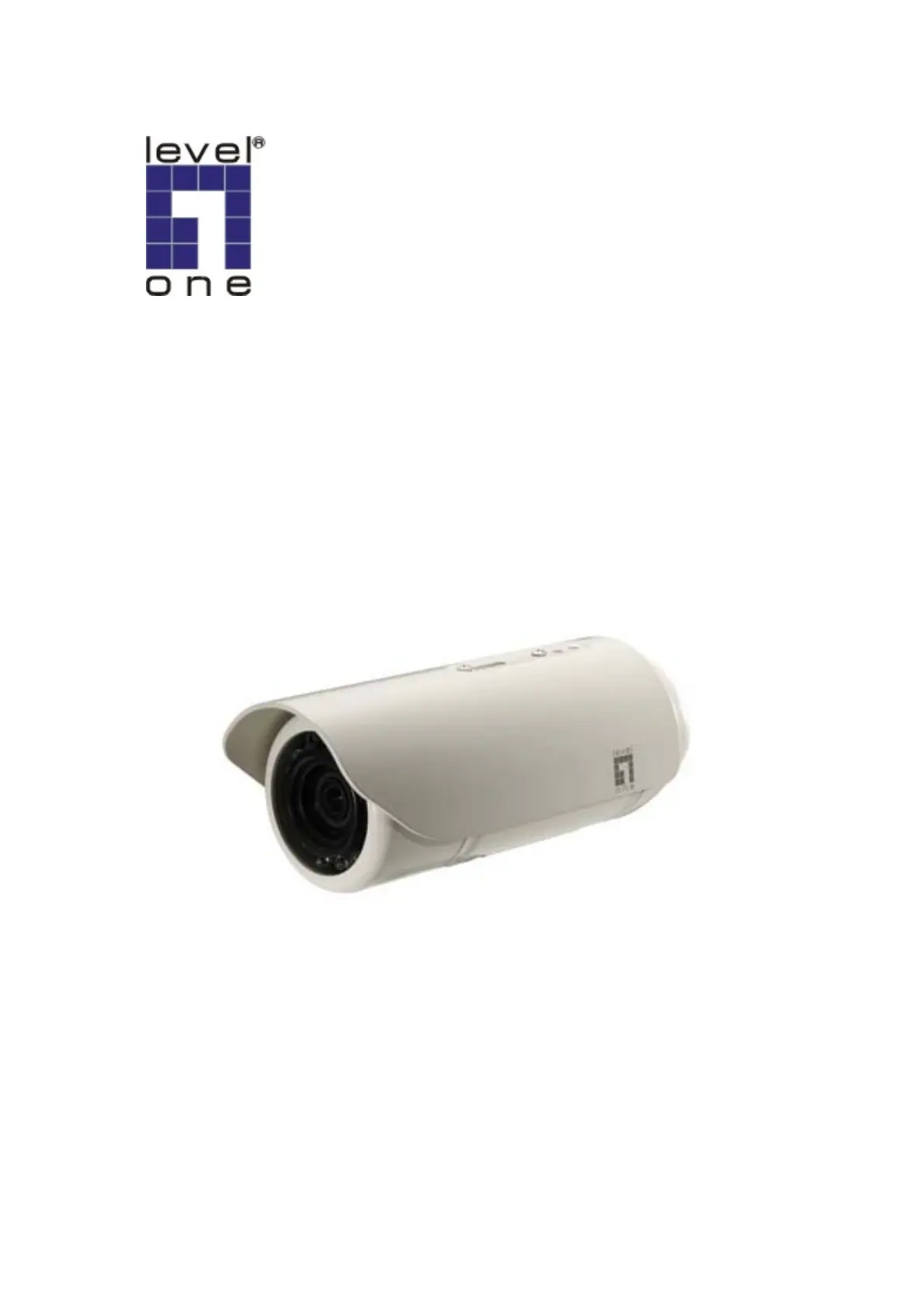

Outdoor WDR PoE Network Camera w/ IR LEDs

User’s Manual

Ver 1.0.0 – 0811

Table of Contents

Overview ....................................................................................... 3

Package contents....................................................................... 4

Physical description.................................................................... 5

Installation..................................................................................... 7

Hardware installation ................................................................. 7

Network deployment .................................................................. 9

Software installation .................................................................15

How to Use Installation Wizard ...................................................15

Accessing the Network Camera ........................................................31

Using RTSP players ...................................................................33

Using 3GPP-compatible mobile devices ........................................34

Using recording software ...........................................................34

Main Page .....................................................................................35

Client Settings ...............................................................................39

Configuration.................................................................................41

System ...................................................................................41

Security ..................................................................................43

HTTPS.....................................................................................44

Network ..................................................................................46

DDNS......................................................................................54

Access list................................................................................55

Audio and video........................................................................56

Motion detection.......................................................................62

Camera control.........................................................................64

Application...............................................................................67

Recording ................................................................................75

System log ..............................................................................76

View parameters.......................................................................77

Maintenance ............................................................................78

Appendix ......................................................................................82

URL Commands of the Network Camera.......................................82

Technical Specifications ...........................................................112

Technology License Notice........................................................114

GNU GENERAL PUBLIC LICENSE................................................116

Overview

LevelOne’s outdoor day/night network camera FCS-5011 is equipped with a

wide dynamic range CMOS sensor to cope with any challenging lighting

conditions.

Designed for outdoor 24-hour surveillance, FCS-5011 features the basics of

day and night and vandal-proof functions that users can easily build up a

cost-effective IP surveillance system without additional accessories. With a

removable IR-cut filter and built-in IR illuminators, up to 15m, it can

automatically remove the filter and turn on the IR illuminators during the night

time to accept IR illumination for low light sensitivity. Meanwhile, the

IP66-rated integrated housing shields this camera from dust and water,

allowing it to be applied in harsh weather conditions of outdoor environments.

FCS-5011 with WDR (Wide dynamic range) feature can be very helpful to

cope with very challenging lighting conditions. It is capable of capturing both

of the dark part and bright part and combining the differences into a scene to

generate a highly realistic image as the original scene. Because it preserves

as much information in the video as possible, FCS-5011 helps provide video

quality closer to the capabilities of the human eye. Consequently, it is largely

applied in highly contrast environments such as lobby entrances, parking lots,

ATM, loading areas and much more.

Incorporating numbers of advanced features including simultaneous dual

streams, 3GPP mobile surveillance, 802.3af compliant PoE, two-way audio by

SIP protocol, RS-485 interface for scanners or pan/tilts driver connection, and

HTTPS encrypted data transmission, LEVELONE FCS-5011 allows users to

boost your robust IP surveillance system by reproducing clear images in

proper color in extreme high-contrast environments for your indoor/outdoor

security and monitoring applications.

Read before use

The use of surveillance devices may be prohibited by law in your country. The

Network Camera is not only a high-performance web-ready camera but also

can be part of a flexible surveillance system. It is the user’s responsibility to

ensure that the operation of such devices is legal before installing this unit for

its intended use.

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	övervakningskamera
Modell:	FCS-5011
Vikt:	969 g
Strömförsörjning:	12V DC, 1.5A
Videoformat som stöds:	M-JPEG
Maximal upplösning:	720 x 480 pixlar
Certifiering:	CE, FCC
Optisk sensorstorlek:	1/3.3 "
Bildsensortyp:	CMOS
Internminne:	64 MB
Kompatibla operativsystem:	Windows 2000/XP/Vista\nLinux 2.4
Flashminne:	8 MB
Slutartid:	1/30 - 1/15000 s
Nätverksegenskaper:	Snabb Ethernet
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	6.5 W
Produktstorlek (BxDxH):	70 x 180 x 70 mm
Temperatur vid drift:	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 80 %
Video rörelsedetektor:	Ja
Minimibelysning:	0 lx
Brännviddsintervall:	3.3 - 12 mm
Mörkerseende:	Ja
Bildfrekvens:	30 fps
Stöd för nätverksprotokoll:	IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE
Likströmsingång:	Ja
Filtrering för IP-adress:	Ja
Strömkälla av typen:	PoE
Efterlever industristandard:	802.3af
Uttag för mikrofon/linje in:	Ja
Justering av fokus:	1.4
Normalt fokusomfång:	0.5 m
Objektivets betraktningsvinkel, horisontell:	23 °
Aktivt manipulering larm:	Ja
Objektivets betraktningsvinkel, vertikal:	14.8 °
