Network Camera User’s Manual

1/56

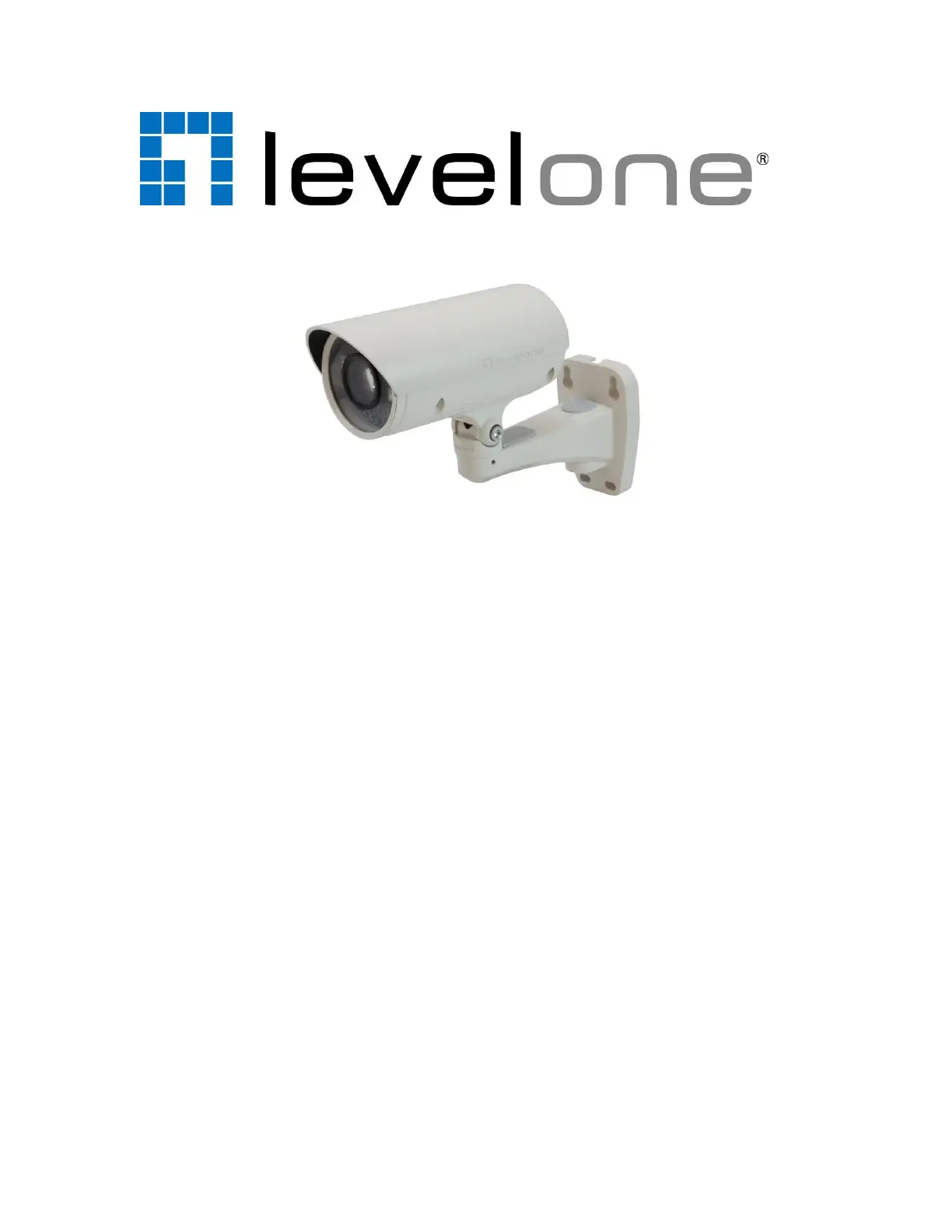

FCS-5042

2-Megapixel Day/Night PoE

Outdoor Network Camera

User Manual

Version 1.0

Network Camera User’s Manual

2/56

Table of Contents

Overview ............................................................................................................... 3

Package Contents ................................................................................................. 4

Connections .......................................................................................................... 5

Hardware description ..................................................................................... 5

Hardware Installation ............................................................................................ 6

Connect to the Network Camera ........................................................................... 8

Install the IP Finder program .......................................................................... 8

Bonjour program .......................................................................................... 15

C2.mylevel1.com (Free DDNS service) ....................................................... 16

Initial Access to the Network Camera ................................................................. 17

Primary user’s capability ..................................................................................... 18

Main Screen with Camera View ................................................................... 18

Client Setting ............................................................................................... 21

Definitions in Configuration ................................................................................. 23

System parameters ............................................................................................. 23

Security ............................................................................................................... 25

Network ............................................................................................................... 26

Access list ........................................................................................................... 29

Audio and Video setting ...................................................................................... 32

Video record ....................................................................................................... 36

Stream ................................................................................................................ 38

Application .......................................................................................................... 40

Storage ............................................................................................................... 43

Syslog ................................................................................................................. 45

Status and Parameters ....................................................................................... 46

Maintenance ....................................................................................................... 47

Appendix ............................................................................................................. 49

A. Troubleshooting & Frequently Asked Questions ...................................... 49

B. Technical specifications ........................................................................... 55

C. Notification of Compliance........................................ 錯誤! 尚未定義書籤。

IP Address

DHCP

Username

root

Password

Network Camera User’s Manual

3/56

Overview

Law in your country may prohibit the use of surveillance devices. The Network Camera

is not only a high-performance web-ready camera but also can be part of a flexible

surveillance system. It is the user’s responsibility to ensure that the operation of such

devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the list in

the "Package Contents" chapter. Take notice of the warnings in “Quick installation guide”

before the Network Camera is installed, then carefully read and follow the instructions in

the “Installation” chapter to avoid damages due to faulty assembly and installation. This

also ensures the product is used properly as intended.

The Network Camera is accessible via the LAN or Internet connection. Connect your

Network Camera directly to a computer network or DSL modem, and with a standard

Web browser you get instant, on demand video streams. Within minutes you can set up

the Network Camera to capture a video sequence to a PC. Live video image can be

uploaded to a website for the world to see or made available only to select users on the

network.

The Network Camera is a network device and its use should be straightforward for those

who have basic network knowledge.

The Network Camera is designed for various applications including video sharing,

general security/surveillance, etc. The “How to Use” chapter suggests ways to best

utilize the Network Camera and ensure proper operations.

Minimum System Requirement

2-Megapixel Day/Night PoE Outdoor Network Camera

Network Environment

LAN

10/100/1000M Ethernet

Monitoring System Recommended for Internet Explorer

System Hardware

Basic requirements

· CPU: Intel® Celeron® Dual-Core @2.70GHz or above

· Memory Size: 2 GB or above Recommended

· VGA card resolution: 1024 x 768 or above

System Requirement for Viewer & Recorder Application

Support OS

XP, Windows 7

System Hardware

1-4 cameras surveillance application

· CPU: Intel® Celeron® Dual-Core @ 2.70GHz or above

· Memory Size: 2 GB or above

· VGA card resolution: 1024 x 768 or above

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	övervakningskamera
Modell:	FCS-5042
Vikt:	800 g
Bredd:	75 mm
Djup:	165 mm
Höjd:	75 mm
Förpackningens bredd:	270 mm
LED-indikatorer:	Activity, Link
Wi-Fi:	Nej
Ljudformat som stöds:	G.711
Videoformat som stöds:	MPEG4
Videolägen som stöds:	1080p
Maximal upplösning:	1920 x 1080 pixlar
Inbyggd hårddisk:	Nej
HTTPS-kryptering:	Ja
Ljudsystem:	2-vägs
Zoomkapacitet:	Ja
Ursprungsland:	Taiwan
Lösenordsskydd:	Användare
Hörlursutgångar:	1
Certifiering:	CE, FCC, Onvif
Full HD:	Ja
Optisk sensorstorlek:	1/2.7 "
Bildsensortyp:	CMOS
Digital zoom:	4 x
Optisk zoom:	10 x
Gränssnitt:	BNC
Inbyggd mikrofon:	Nej
vitbalans:	Automatisk
Modell:	IP-säkerhetskamera
Kabelteknik:	10/100/1000Base-T(X)
Återställningsknapp:	Ja
Progressiv skanning:	Ja
Snabbinstallationsguide:	Ja
BNC utgångsportar:	1
Rörelsesensor:	Ja
röstigenkänning:	AMR, G.711
Väderbeständig:	Ja
Blandare:	Ja
Automatisk förstärkningskontroll:	Ja
Typ av minneskort:	MicroSD (TransFlash), MicroSDHC
Produktens färg:	Vit
bruksanvisning:	Ja
Monteringssats:	Ja
Förpackningstyp:	Låda
Låddjup:	205 mm
Vikt inkl. förpackning:	1300 g
Inbyggd kortläsare:	Ja
Slutartid:	1 - 1/10000 s
LED typ:	IR
Formfaktor:	Stifthylsa
mörkerseende avstånd:	30 m
brett dynamiskt omfång (WDR):	Ja
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	10 W
Temperatur vid drift:	-20 - 50 ° C
Temperaturintervall (förvaring):	10 - 85 ° C
Hållbarhetscertifiering:	RoHS
Internationellt skydd (IP) kod:	IP66
Placeringar som kan användas:	Utomhus
Anslutningsteknologi:	Kabel
Dag / nattläge:	Ja
Monteringssätt:	Innertak/vägg
Minimibelysning:	1 lx
Kameraslutningstyp:	Elektronisk
Brännviddsintervall:	4.9 - 49 mm
Mörkerseende:	Ja
Totalt megapixel:	2 MP
Komprimeringsformat:	H.264, M-JPEG, MPEG4
Bildfrekvens:	25 fps
Ljuddämpning:	Ja
Bildkvalitetsinställningar:	Brightness, Contrast, Saturation, Sharpness
Vänd och spegla:	Ja
Nätverksansluten (Ethernet):	Ja
Stöd för nätverksprotokoll:	TCP/IPv4, HTTP, SMTP, FTP, DDNS, UPnP, NTP, PPPoE, DNS, DHCP, RTSP, Samba
Likströmsingång:	Ja
Filtrering för IP-adress:	Ja
Strömkälla av typen:	PoE
DC-utgång volt:	12
AC-adapter inkluderad:	Ja
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Harmonized System (HS)-kod:	85258900
PTZ-styrning:	Ja
Synfältsvinkel (FOV):	66.6 °
Antal belysning lysdioder:	4
Högsta minneskortskapacitet:	64 GB
Automatisk fokus:	Ja
Uttag för mikrofon/linje in:	Ja
Justering av fokus:	1.8 - 3.0
Skruvar medföljer:	Ja
DC utgående ström:	1.5 A
Infrarött (IR) gränsfilter:	Ja
Plintport:	Ja
Infoga tidsmarkering i bilden:	Ja
CD med drivrutiner:	Ja
