Sida 1/6

User Manual

IGC-0101

RJ45 to SFP Gigabit Industrial Media Converter, 1 PoE Output

FCC MARKING

This Equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to

radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received; including interference that

may cause undesired operation.

CE MARKING

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 class for ITE, the essential protection requirement of A

Council Directive 2004/108/EC on the approximation of the laws of the Member

States relating to electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it may be possible

that information in this document is not up- -date. Please check with your local to

distributors for the latest information. No part of this document can be copied or

reproduced in any form without written consent from the company.

Trademarks:

All trade names and trademarks are the properties of their respective companies.

Key Features

➢ Hardened Industrial graded Marvell IC

➢ Rugged design Aluminum enclosure 103.5x32x81.5mm (LxWxD)

➢ Supports Watts PSE on TX port 30

➢ Supports SFP fiber speed 100M or 1000M dual mode

➢ Surge protection diodes on power input.

➢ ESD protection diodes on RJ-45 port

➢ Provides increased Noise Immunity

➢ Working in extreme environment -40°C to 75°C

Introduction

This IGC-0101 Industrial POE media converter is equipped with Hardened Marvell IC

to provide a reliable power source to power up your remote POE device. It is designed

for Security, Transportation and Telco application to tend your network distances. ex

With its multi-purpose design, it can also be used for Din-Rail or wall-mounted. It is

an ideal unit for IP surveillance, traffic monitoring and Security application in critical

environment. It can tolerate -40°C to 75°C in harsh environment to perform a

reliable network.

Installation package

The following items are shipped with this device:

 Din-Rail Mounted * 1

 Wall-Mounted * 2

 Screws * 4

 4 pin Terminal Block * 1

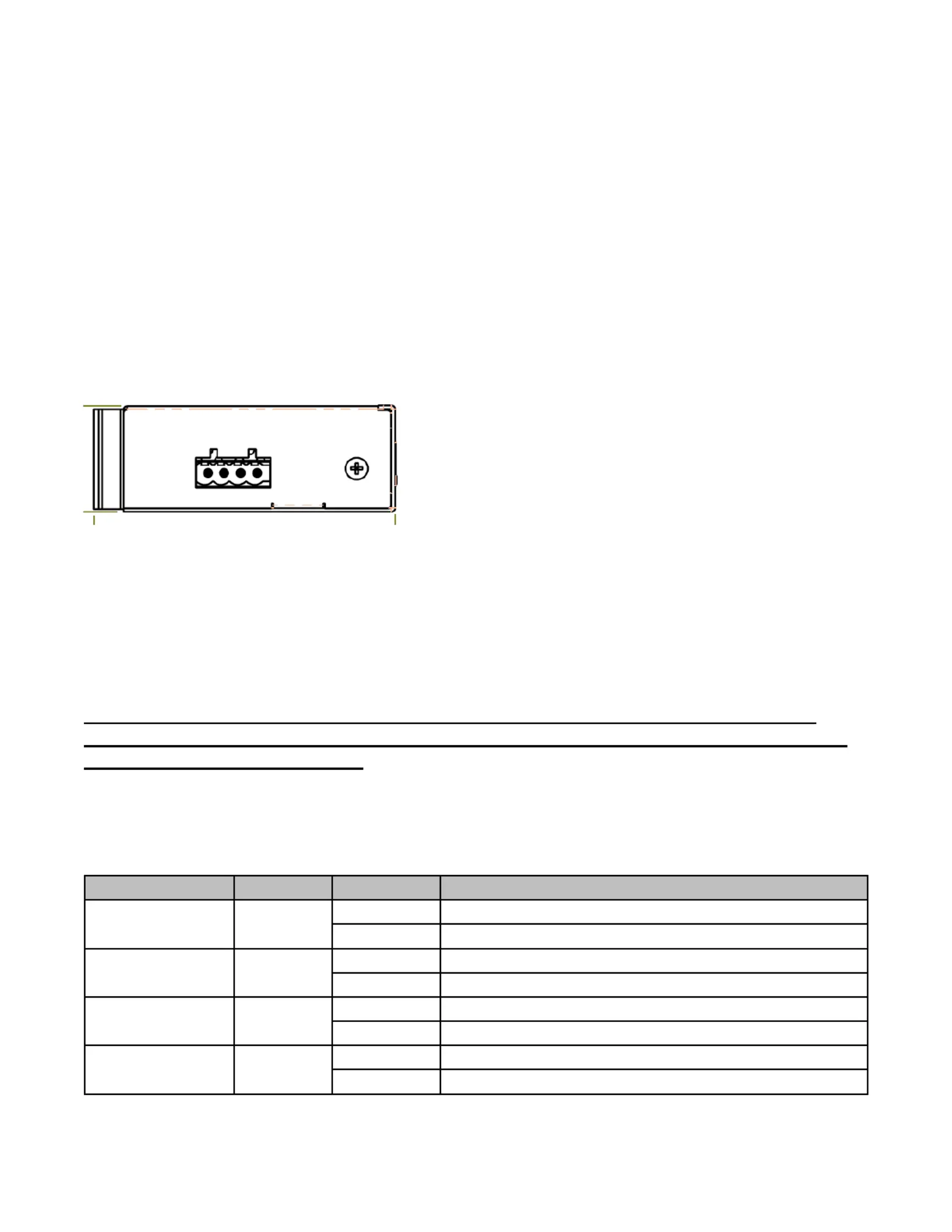

Power connection

This unit provides 4 pin terminal block. It can be operated using 48-56VDC power

source. Always Make sure your input voltage is within this supported voltage

range. You need to use 56VDC input to generate IEEE802.3at 30Watts power.

To make power connection – Follow the printed polarity for V+, V- and RLY.

Connect positive wire to V+, connect negative wire to V- and also connect neutral

wire to ground.

+V- is for power input connection, this unit has only one power input.

RLY is for relay connection.

Connecting procedure:

STEP –1

Take out 4 pin terminal block located in the included mounting kit package.

STEP 2 –

Connect power wire to +V- with correct polarity. Connect RLY for relay.

STEP 3 –

Plug into terminal block socket shown above. Polarity needs to match the V+ and V-

WARNING Always SHUTS OFF power source to connect power wire.--

WARNING Any exceeded input voltage will not make this unit function --

and may damage this unit.

LED indicator

LED

Color

State

Description

PWR

Green

Power is detected

OFF

Power is not detected

SFP Lnk/Act

Green

FX port is detected

Flashing

FX data is transmitting/receiving

TX Lnk/Act

Green

TX link is detected

Flashing

TX data is transmitting/receiving

TX PoE

Amber

PSE is activated and PD is detected

OFF

PSE is detecting PD

+V1- RLY

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	audio/video-omvandlare
Modell:	IGC-0101
Vikt:	135 g
Bredd:	32 mm
Djup:	81.5 mm
Höjd:	103.5 mm
Förpackningens bredd:	165 mm
LED-indikatorer:	Activity, Link, Power
Ursprungsland:	Taiwan
Certifiering:	CE, FCC, VCCI, FCC Part 15 Subpart B Class A, CE EN 55022 Class A
Våglängd:	- nm
Säkerhet:	IEC EN60950-1
Medeltid mellan fel (MTBF):	500000 h
Maximal dataöverföringshastighet:	1000 Mbit/s
Spänning:	48 - 56 V
bruksanvisning:	Ja
Låddjup:	65 mm
Vikt inkl. förpackning:	350 g
Ytterförpackningens bruttovikt:	6600 g
Ytterförpackningens höjd:	560 mm
Produkter per ytterförpackning:	16 styck
Ytterförpackningens längd:	240 mm
Ytterförpackningens bredd:	350 mm
Typ av ethernet-gränssnitt:	Gigabit Ethernet
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	2 W
Total Power over Ethernet (PoE)-budget:	30 W
Temperatur vid drift:	-40 - 75 ° C
Intervall för relativ operativ luftfuktighet:	5 - 95 %
Anslutningsteknologi:	Kabel
Kommunikationsstandarder:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Harmonized System (HS)-kod:	85176990
Intern:	Nej
Jumboramar:	9000
Jumbo Frames stöd:	Ja
Flödeskontroll:	Ja
Maximal överföringshastighet avstånd:	- m
Power over Ethernet (PoE)-portar kvantitet:	1
Fiberoptiska kontakten:	SFP
Fiberportar kvantitet:	1
Koppar Ethernet-kablar teknik:	10BASE-T, 100BASE-TX, 1000BASE-T
DIN-skena:	Ja
