WAP-8121 / WAP-8122

AC Dual Band Managed PoE Wireless Access

Point

User’s Manual

V1. 0_20161110

Contents

Chapter 1 Introduction .................................................................................................................................... 3

1.1 LED Indicator: .................................................................... 3

1.2 AP Interface: ...................................................................... 3

1.3 Power Supply: .................................................................... 3

1.4 AP Installation: .................................................................... 4

1.5 Connecting AP with PC ............................................................. 4

Chapter 2 Log in the WEB ................................................................................................................................. 5

Chapter 3 Quickly Configure Wireless AP ........................................................................................................ 8

3.1 Gateway Mode: ................................................................... 8

3.2 WiFi Repeater and Station Operation Configuration ....................................... 8

3.3 AP Operation Mode: ............................................................... 10

3.4 WISP Operation Mode: ............................................................ 10

Chapter4 Advanced Setting: ............................................................................................................................. 12

4.1 Device Status: .................................................................... 12

4.2 2.4Ghz/5.8Ghz Wireless Basic Setting: ................................................ 12

4.3 Virtual AP: ...................................................................... 13

4.4 Access Control ................................................................. 13

4.4 Network Setting: ................................................................. 14

4.5 Management: .................................................................... 14

4.5.1 System Time ............................................................................................................................. 14

4.5.2 Log: .......................................................................................................................................... 15

4.5.3 Upgrade Firmware ................................................................................................................... 15

4.5.4 Settings Management ............................................................................................................... 15

4.5.5 Password .................................................................................................................................. 16

4.5.6 Management under Gateway Mode ......................................................................................... 16

4.5.7 Firewall under Gateway Mode ................................................................................................. 16

4.6 Share Internet and Obtain IP Address Automatically ...................................... 17

Chapter 5 Trouble Shooting: ......................................................................................................................... 18

Appendix A LICENSE STATEMENT / GPL CODE STATEMENT .......................................................... 19

Chapter 1 Introduction

This is the user manual of 1200Mbps Ceiling AP, which will guide you to set and apply the Ceiling AP. It provides a

convenient and easy graphical interface for network construction and maintenance person, as well as for a user with

no experience.

1.1 LED Indicator:

Green: Power Indicator

Blue: WiFi Indicator

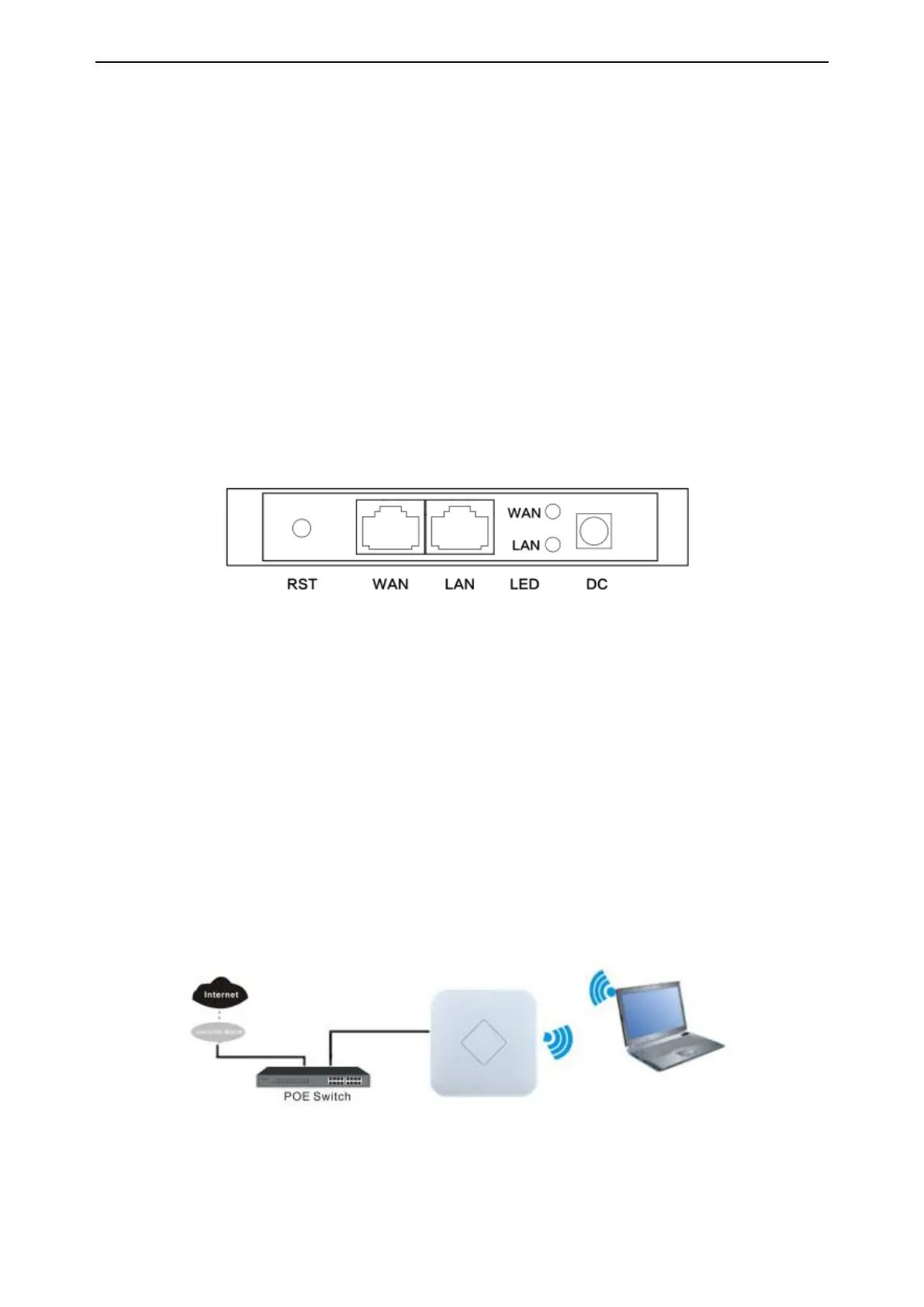

1.2 AP Interface:

RST: Reset Button, it make AP revert to default data after press it 15 seconds.

WAN: WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under Wireless AP and WiFi

Repeater operation mode

LAN: LAN Port to end users

LED: LED Indicator of WAN port and LAN port

DC: DC power connector

1.3 Power Supply:

The connection diagram shows as P2, Internet cable from PoE Switch to Ceiling AP’s WAN Port, then PC access

into ceiling AP wired/wireless.

Pls note, the PD wireless AP support 48V IEEE 802.3at standard PoE, m the PoE switch should comply with 802.3at

48V PoE standard.

Produktspecifikationer

Varumärke:	LevelOne
Kategori:	Åtkomstpunkt
Modell:	WAP-8122
Vikt:	520 g
Bredd:	198 mm
Djup:	28 mm
Höjd:	198 mm
Förpackningens bredd:	235 mm
LED-indikatorer:	Power, Status
Frekvensband:	2.4 - 2.4835, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.825 GHz
Snabbstartsguide:	Ja
Certifiering:	CE, FCC
Antal användare:	100 användare (er)
Återställningsknapp:	Ja
Maximal dataöverföringshastighet:	1000 Mbit/s
2,4 GHz:	Ja
5 GHz:	Ja
Antennfunktioner:	Integrerad antenn
Maximal dataöverföringshastighet (5 GHz):	867 Mbit/s
Antal kanaler:	165 kanaler
WAN-port:	Ethernet (RJ-45)
Produktens färg:	Vit
Låddjup:	81 mm
Vikt inkl. förpackning:	650 g
Datahastighet för Ethernet-LAN:	10,100,1000 Mbit/s
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	2
Strömförbrukning (vanlig):	17 W
Temperatur vid drift:	-20 - 50 ° C
Temperaturintervall (förvaring):	-40 - 70 ° C
Intervall för relativ operativ luftfuktighet:	5 - 90 %
Fuktighet (förvaring):	10 - 90 %
AC-inspänning:	48 V
Kryptering/säkerhet:	64-bit WEP, 128-bit WEP, 152-bit WEP, AES, TKIP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP
Kabel inkluderad:	LAN (RJ-45)
Likströmsingång:	Ja
Firmware kan uppgraderas:	Ja
Modulator:	16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Webbaserad adminstraion:	Ja
Antenner mängd:	4
Antenn ökningsnivå (max):	5 dBi
Kommunikationsstandarder:	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Stöd för garanterad tjänstekvalitet (QoS):	Ja
Automatisk kanalväljare:	Ja
Funktioner för Service Set Identifier (SSID):	SSID-sändning på/av
Intern:	Nej
Wi-Fi Multimedia (WMM)/(WME):	Ja
Antal SSID som stöds:	8
Flödeskontroll:	Ja
Driftsätt:	Access Point (AP), Gateway, Repeater, WISP
Bredspektrumsmetod:	DSSS, OFDM
