Sida 1/1
3
14
18
12
11
L
G
N
10
17
9
16
8
7
15
6
5
13
2
1
L
L
L
L
L
N
N
N
N
G
G
G
G
G

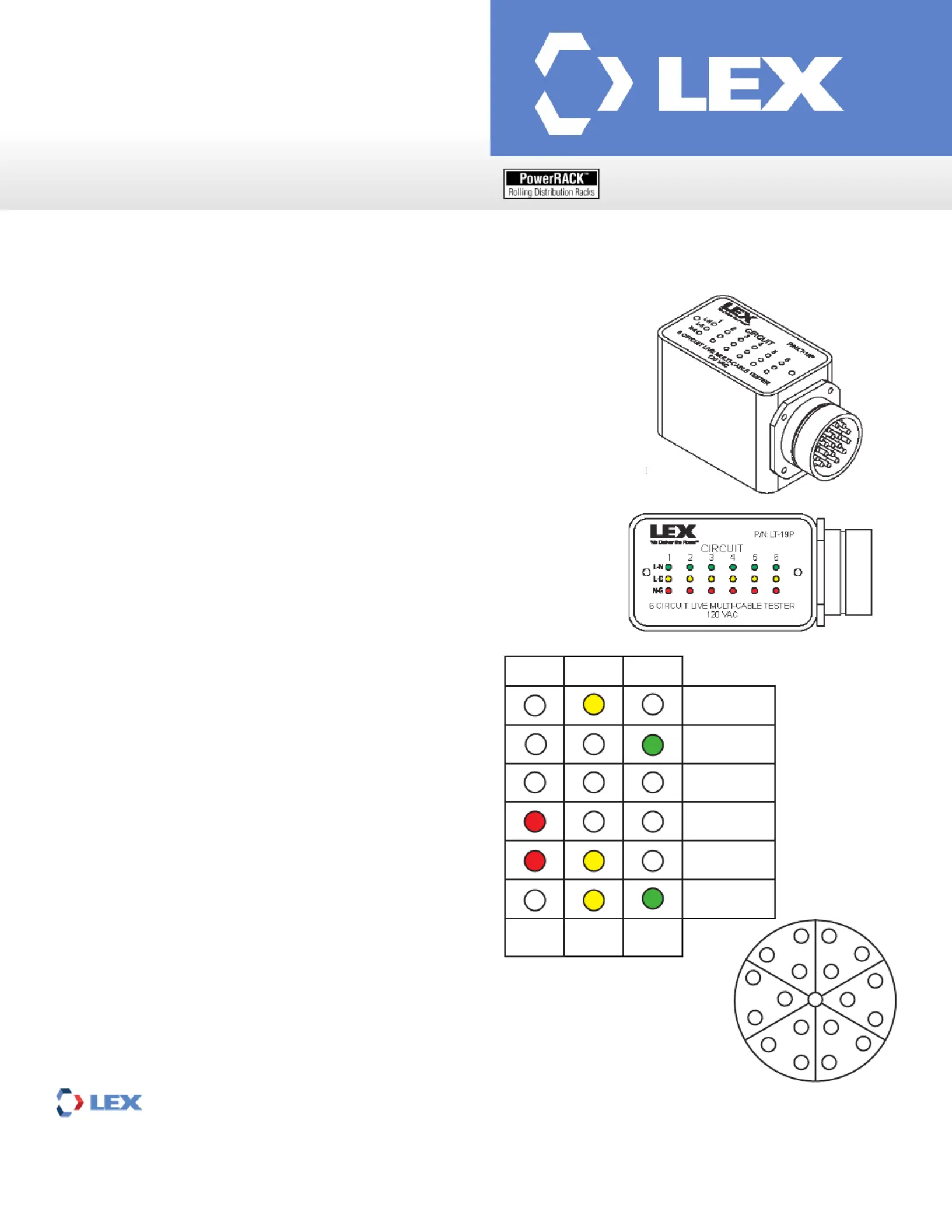

LT-19P
Six-Circuit Multi-Cable Tester
User Manual
Quick Safety Test:
Step 1: Plug the Tester in the multi-cable or break-in (fan-in) being diagnosed
Step 2: Apply power to all six circuits. If dimmed, bring the circuits to full intensity
Step 3: LEDs should illuminate, indicating the presence of power
• Green ‘L-N’ LEDs illuminated - voltage between line and neutral
• This indicates a correct state
• Yellow ‘L-G’ LEDs illuminated - voltage between line and ground
• This indicates a correct state
• Red ‘N-G’ LEDs illuminated - voltage between neutral and ground
• This indicates a fault state, where there is voltage between the neutral
and ground pins
Step 4: If the LEDs do not illuminate as indicated or faults are detected, the
Individual Circuit Test can be useful in determining the nature of the fault
Lex Products Corporation
11 Forest Parkway
Shelton CT 06484
203.363.3738
203.363.3742 Fax
Lex West
12701 Van Nuys Bld.
Suite Q
Pacoima, CA 91331
818.768.4474
818.768.4040 Fax
www.lexproducts.com
info@lexproducts.com
800.643.4460
© Copyright Lex Products 2021
Produced in the United States of America
All Rights Reserved.
Lex Products logo and lexproducts.com are trademarks or
registered trademarks of Lex Products in the United
States, other countries, or both.
Lex South
15751 SW 41
st
Street
Davie, FL 33331
954.888.1024
954.888.1026 Fax
CAUTION: The Lex Products LT-19P 6-Circuit Multi-Cable Tester is a diagnostic tool designed for the Entertainment market. It is
intended for troubleshooting purposes and must be used by qualied personnel. The use of a multi-meter is recommended for voltage
sensitive testing. The Tester will not verify mechanical wire bonding methods.
Individual Circuit Test:
Step 1: Plug the tester into the cable being diagnosed
Step 2: Power up circuit 1. If dimmed, bring it to full
Step 3: Compare the illuminated LEDs in column #1 against the
chart at right
Step 4: Deactivate circuit #1 and power up circuit #2
Step 5: Repeat Step 3 as above, viewing column #2 indicators
Step 6: Repeat Step 4 for each of the remaining circuits
PLEASE NOTE:
• If the red ‘N-G’ LED is illuminated, this may cause a neutral error
on the equipment being energized. Possible causes for faults may
be mis-wired connector(s) or shorted cable conductors
• It is possible for the ‘N-G’ and another LED indicator to be
illuminated, which would help to determine the fault location
4
N-G L-G L-N
OPEN
GROUND
OPEN
NEUTRAL
OPEN HOT
HOT/GROUND
REVERSE
HOT/NEUTRAL
REVERSE
CORRECT
RED YELLOW GREEN
LM-LT-19P - Rev. 001
