Operating and installation instructions

Combined fridge-freezer with BioFresh compartment

060815

7086140 - 00

CBNP(es/bs) ... P

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Range of appliance use............................................ 3

1.3 Conformity................................................................ 3

1.4 External dimensions of the appliance....................... 3

1.5 Saving energy.......................................................... 3

1.6 Example of contents arrangement............................ 4

2 General safety information................................... 4

3 Controls and displays........................................... 5

3.1 Status screen........................................................... 5

3.2 Home screen............................................................ 5

3.3 Navigation................................................................ 6

3.4 Display symbols....................................................... 6

3.5 Appliance options..................................................... 7

4 Putting into operation............................................ 7

4.1 Transporting the appliance....................................... 7

4.2 Installing the appliance............................................. 7

4.3 Changing over the door hinges................................ 8

4.4 Insertion into a row of kitchen units........................... 16

4.5 Disposing of packaging............................................ 17

4.6 Connecting the appliance......................................... 17

4.7 Switching on the appliance....................................... 17

4.8 Inserting the FreshAir filter. ...................................... 18

4.9 Activating the clean ventilation grill reminder func-

tion........................................................................... 18

5 Control.................................................................... 18

5.1 System settings........................................................ 18

5.2 Timer........................................................................ 19

5.3 Programme.............................................................. 19

5.4 Options..................................................................... 20

5.5 Refrigerator compartment........................................ 23

5.6 BioFresh compartment............................................. 24

5.7 Freezer compartment............................................... 25

6 Maintenance........................................................... 26

6.1 Change the FreshAir filter......................................... 26

6.2 Defrosting with NoFrost............................................ 27

6.3 Cleaning the ventilation grid..................................... 27

6.4 Cleaning the appliance............................................. 27

6.5 Customer service..................................................... 28

7 Malfunctions........................................................... 28

8 Messages................................................................ 29

9 Decommissioning.................................................. 30

9.1 Switching the appliance off....................................... 30

9.2 Taking the appliance out of service.......................... 30

10 Disposing of the appliance................................... 30

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that

we have to reserve the right to make design, equipment and

technical modifications.

To get to know all the benefits of your new appliance, please

read the information contained in these instructions carefully.

The instructions apply to several models. Differences may

occur. Text relating only to specific appliances is marked with

an asterisk (*).

Instructions for action are marked with a , the results of

action are marked with a

1 Appliance at a glance

1.1 Description of appliance and equip-

ment

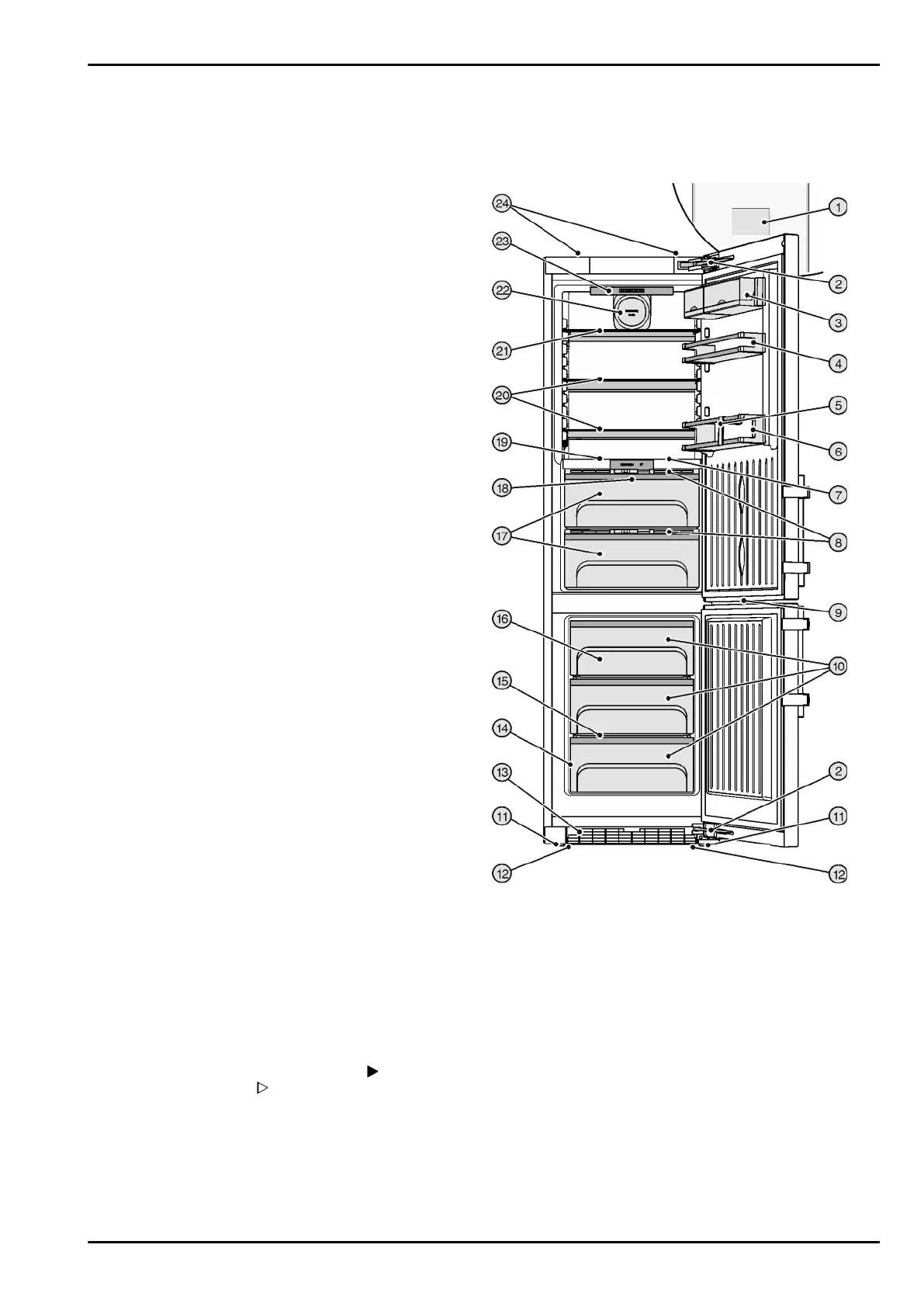

Fig. 1

(1) Operating and control

elements

(13) Ventilation grid

(2) Soft stop mechanism (14) Type plate

(3) Package rack (15) VarioSpace

(4) Can rack (16) Cold storage accumula-

tors

(5) Bottle holder (17) BioFresh compartment,

adjustable

(6) Bottle rack (18) LED lighting, BioFresh

compartment

(7) LED interior light (19) Adjustable bottle shelf

(8) Humidity control plate (20) Shelf

(9) LED lighting, freezer

compartment

(21) Shelf, sectioned

(10) Freezer drawer (22) Fan, with holder for fresh

air filter

(11) Adjusting feet (23) LED interior light, swivel-

ling

(12) Front transport handles,

rear transport castors

(24) Rear transport handles

Appliance at a glance

2 * Depending on model and options

Note

Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

1.2 Range of appliance use

Intended use

The appliance is only suitable for refrigerating

food in a domestic or domestic-like environ-

ment. This includes, for example, using

in staff kitchenettes, bed and breakfast estab-

lishments,

by guests in country cottages, hotels, motels

and other accommodation,

for catering and similar services in the whole-

sale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly

prohibited:

Storage and cooling of medicines, blood

plasma, laboratory compounds or similar

materials and products subject to the Medical

Devices Directive 2007/47/EC

Use in potentially explosive areas

Use on movable bases such as ships, rail

transport or planes

Storage of live animals

Improper use of the appliance can lead to

damage to or spoilage of the stored goods.

Climate rating definitions

The appliance is set to operate within specific

ambient temperature limits according to its

climate rating. The correct climate rating for

your appliance is indicated on the type plate.

Note

Keep to the specified ambient temperatures

in order to guarantee that the appliance works

properly.

Climate

rating

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit is tested for leakage. The appliance

complies with the relevant safety regulations and EC Directives

2006/95/EC, 2004/108/EC, 2009/125/EC and 2010/30/EU.

The BioFresh compartment satisfies the requirements of a chill

compartment to EN ISO 15502.

Note for test institutions:

Tests are to be carried out according to the applicable

standards and guidelines.

Preparation and testing of the appliances must be carried

out taking the manufacturer's loading plans and the

notes in the operating manual into account.

The declared energy consumption is given if the display

switch-off was active.

1.4 External dimensions of the appli-

ance

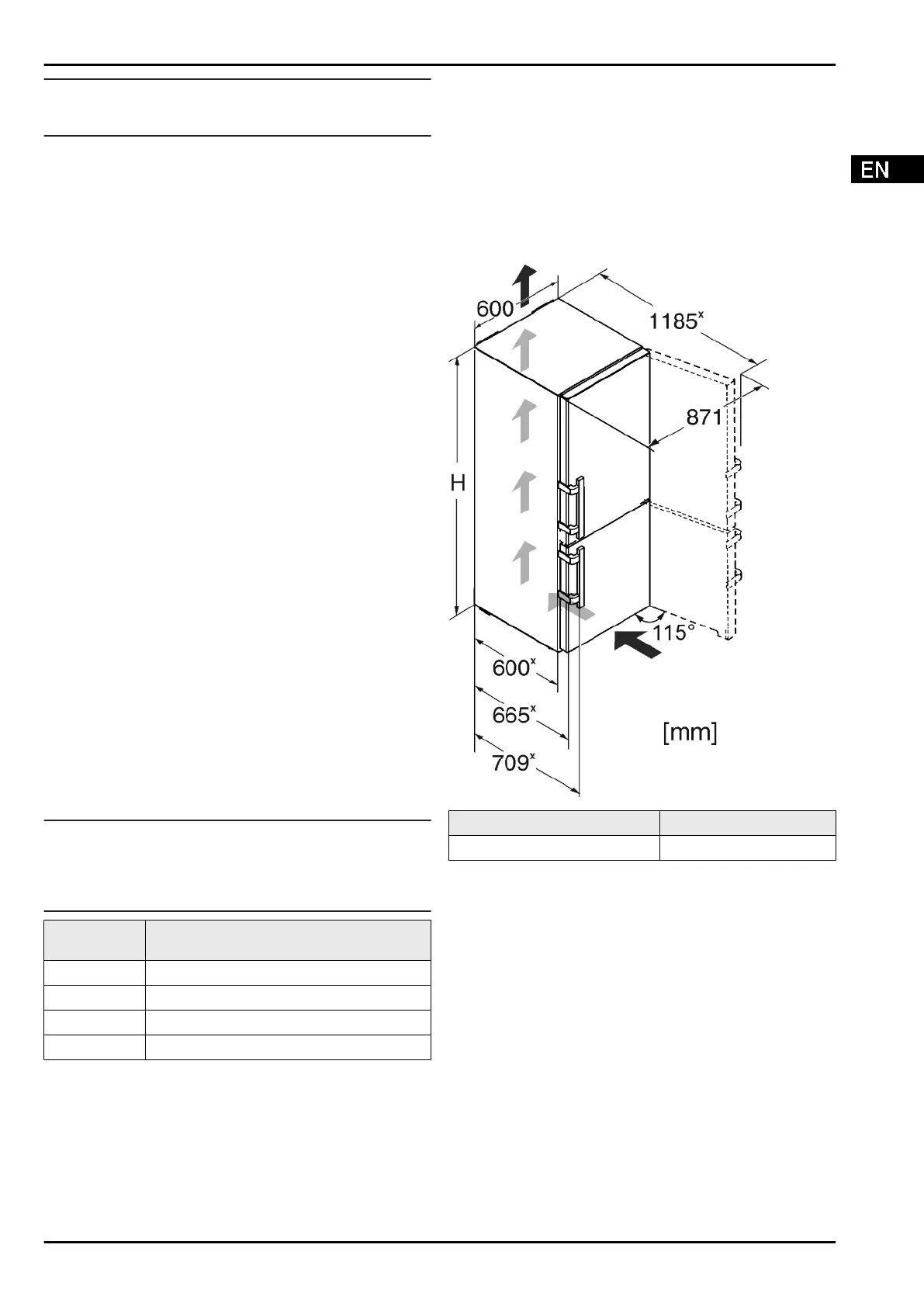

Fig. 2

Model Appliance height H (mm)

CBNP(es/bs) 48.. 2010

If wall spacers are used, the dimensions increase by 15 mm

(see 4.2) .

1.5 Saving energy

Always ensure good ventilation. Do not cover ventilation

openings or grille.

Always keep fan louvres clear.

Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object.

The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) .

Keep the time the appliance is open to a minimum.

The lower the temperature setting, the higher the power

consumption.

Store food logically. (see Appliance at a glance).

Ensure that all food is well packed and covered for storage.

This will prevent frost from forming.

Remove food as needed in order that it does not warm too

much.

First cool warm food to room temperature before storing it .

Appliance at a glance

* Depending on model and options 3
