Sida 1/12

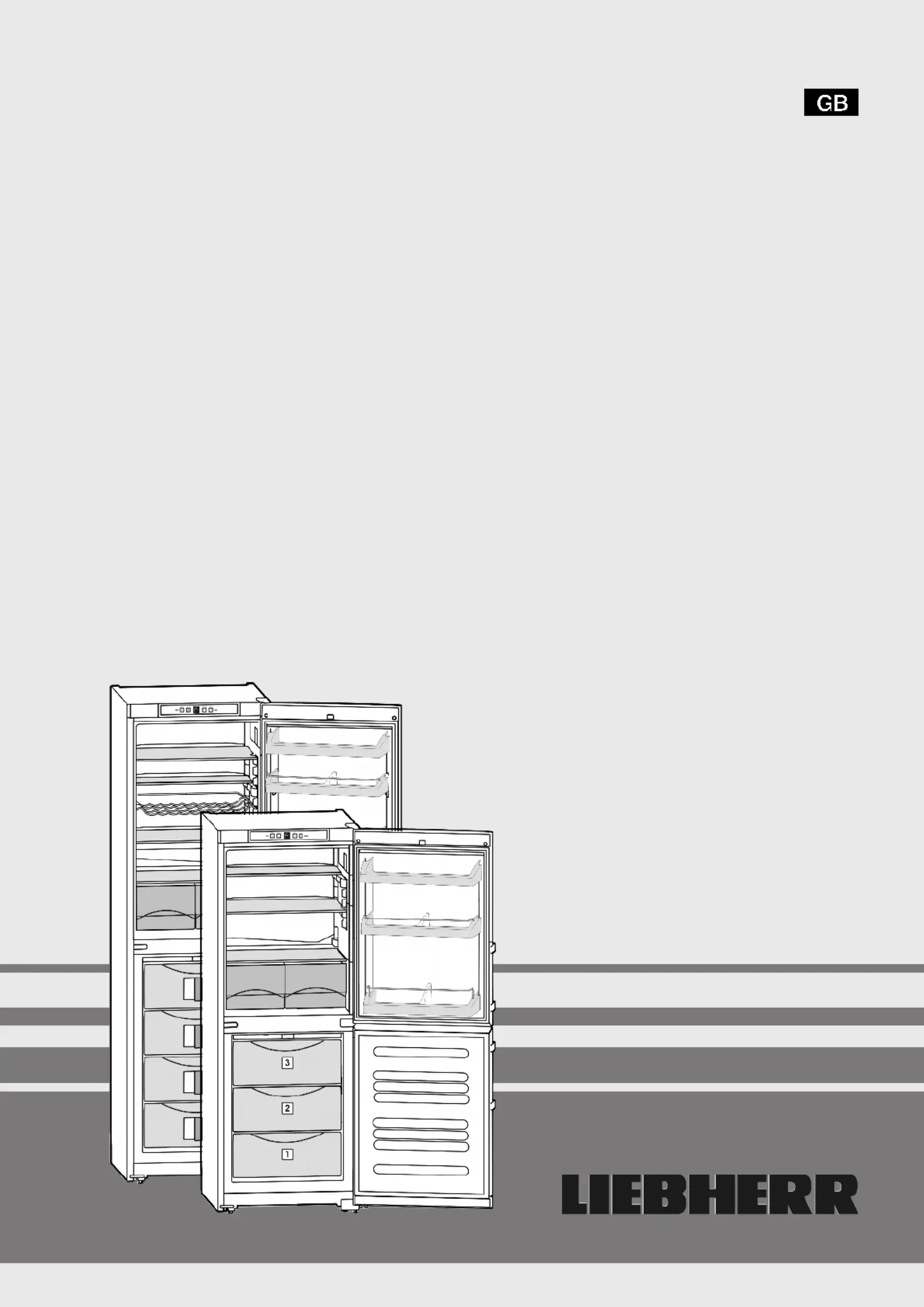

Operating instructions

Combined fridge-freezer

290910

7084364 - 03

CUN(esf) ... 3

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Range of appliance use............................................ 2

1.3 Conformity................................................................ 3

1.4 External dimensions of the appliance....................... 3

1.5 Saving energy.......................................................... 3

2 General safety information................................... 3

3 Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

3.2 Temperature display................................................. 4

4 Putting into operation............................................ 4

4.1 Changing over the door hinges................................ 4

4.2 Insertion into a row of kitchen units........................... 6

4.3 Transporting the appliance....................................... 6

4.4 Installing the appliance............................................. 6

4.5 Disposing of packaging............................................ 7

4.6 Connecting the appliance......................................... 7

4.7 Switching on the appliance....................................... 7

5 Control.................................................................... 7

5.1 Door alarm................................................................ 7

5.2 Temperature alarm................................................... 7

5.3 Refrigerator compartment........................................ 7

5.4 Freezer compartment............................................... 8

6 Maintenance........................................................... 9

6.1 Defrosting with NoFrost............................................ 9

6.2 Cleaning the appliance............................................. 9

6.3 Changing the interior light with bulb 10..........................

6.4 Customer service 10.....................................................

7 Malfunction 10.............................................................

8 Decommissioning 11..................................................

8.1 Switching off the appliance 11.......................................

8.2 Taking the appliance out of service 11..........................

9 Disposing of the appliance 11...................................

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that

we have to reserve the right to make design, equipment and

technical modifications.

To get to know all the benefits of your new appliance, please

read the information contained in these instructions carefully.

The instructions apply to several models. Differences may

occur. Text relating only to specific appliances is marked with

an asterisk (*).

Instructions for action are marked with a , the results of

action are marked with a

1 Appliance at a glance

1.1 Description of appliance and equip-

ment

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation.

Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

Fig. 1

(1) (11)Transport grips at back Vegetable bin

(2) Operating and control

elements

(12) Type plate

(3) Butter and cheese

compartment

(13) Door rack for tall bottles

(4) (14)Interior light Cold storage accumu-

lator*

(5) (15)Shelf, sectioned* VarioSpace

(6) (16)Shelf, relocatable Freezer drawer

(7) (17)Bottle shelf* Information system*

(8) (18)Door rack, relocatable Ice-cube tray*

(9) (19)Drain hole djustable feet, transport

grips at front, transport

castors at back

(10) Coldest zone

1.2 Range of appliance use

The appliance is suited only for cooling food.

In the case of commercial food cooling, the pertinent statutory

regulations have to be observed. The appliance is not suited

for storing and cooling pharmaceuticals, blood plasma, labora-

tory preparations or similar substances and products subject to

the Medical Devices Directive 2007/47/EC. Any misuse of the

appliance may result in damage to or spoilage of the stored

goods. Furthermore, the appliance is unsuited for use in areas

exposed to an explosion hazard.

The appliance is set to operate within specific ambient temper-

ature limits according to its climate rating. The correct climate

rating for your appliance is indicated on the type plate.

Note

Compliance with the ambient temperatures indicated is

required, otherwise the cooling performance is reduced.

Climate

rating

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

Appliance at a glance

Climate

rating

for ambient temperatures of

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. The appliance

complies with current safety regulations and EC directives

2006/95/EC and 2004/108/EC.

1.4 External dimensions of the appli-

ance

Fig. 2

Model Height of appliance H (mm)

CUN 31.. 1623

CUN(esf) 35.. 1817

CUN(esf) 39.. 2011

CUN 40.. 2011

1.5 Saving energy

Always ensure good ventilation. Do not cover ventilation

openings or grille.

Always keep fan louvres clear.

Do not place appliance in areas of direct sunlight or next to a

stove, heater or similar object.

The energy consumption depends on the installation condi-

tions, e.g. the ambient temperature (see 1.2) .

Keep the time the appliance is open to a minimum.

Store food logically.

Ensure that all food is well packed and covered for storage.

This will prevent frost from forming.

First cool warm food to room temperature before storing it .

Defrost frozen food in the refrigerator.

Accumulated dust increases the energy

consumption:

Once a year, dust the refrigerating unit

together with the metal grille of the heat

exchanger at the back of the appliance.

2 General safety information

Danger for the user:

This appliance is not designed for persons (including chil-

dren) with physical, sensory or mental impairment or

persons not having sufficient experience and knowledge,

unless they are instructed in the use of the appliance and

are initially supervised by a person responsible for their

safety. Keep children under supervision to ensure they do

not play with the appliance.

In case of a fault, pull out the mains plug (not by pulling the

connecting cable) or switch off the fuse.

Have any repairs to or intervention in the appliance, and any

change of the mains power cable, carried out by the

customer service only or by other specialised personnel

trained for the purpose.

When disconnecting the appliance from the supply, always

take hold of the plug. Do not pull the cable.

Install and connect the appliance only as instructed.

Please keep these instructions in a safe place and pass

them on to any subsequent owners.

Special-purpose lamps (incandescent lamps, LEDs, fluores-

cent tubes) in the appliance serve to illuminate the appliance

interior and are not suited for room illumination.

Fire hazard:

The refrigerant R 600a is environmentally friendly but flam-

mable. Escaping refrigerant may ignite.

•

Do not damage the refrigerant circuit pipes.

•

Do not allow naked flames or ignition sources to enter the

appliance.

•

Do not use any electrical appliances in the interior (e.g.

steam cleaners, heaters, ice cream maker etc.).

•

If refrigerant escapes: eliminate naked flames or sources

of ignition from the vicinity. Pull out the power plug. Venti-

late the area well. Notify customer service.

Do not store explosives or sprays using combustible propel-

lants such as butane, propane, pentane, etc. in the appli-

ance. Respective spray cans can be identified by reference

to the contents printed on the can or by a flame symbol.

Gases possibly escaping may ignite due to electrical

components.

Do not place any burning candles, lamps or other items with

naked flames on or in the appliance.

Only store high-percentage alcohol in tightly sealed, upright

containers. Alcohol possibly escaping may ignite due to

electrical components.

Danger of tipping and falling:

Do not misuse the plinth, drawers, doors etc. as a step or for

support. This applies particularly to children.

Danger of food poisoning:

Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

Avoid lasting skin contact with cold surfaces or refrigerated/

frozen food or take protective steps, e.g. wear gloves. Do

not consume ice cream, water ice or ice cubes immediately

and do not consume them too cold.

Please observe the specific information in the other

sections:

DANGER identifies a situation involving direct

danger which, if not obviated, may

result in death or severe bodily

injury.

WARNING identifies a dangerous situation

which, if not obviated, may result in

death or severe bodily injury.

General safety information
