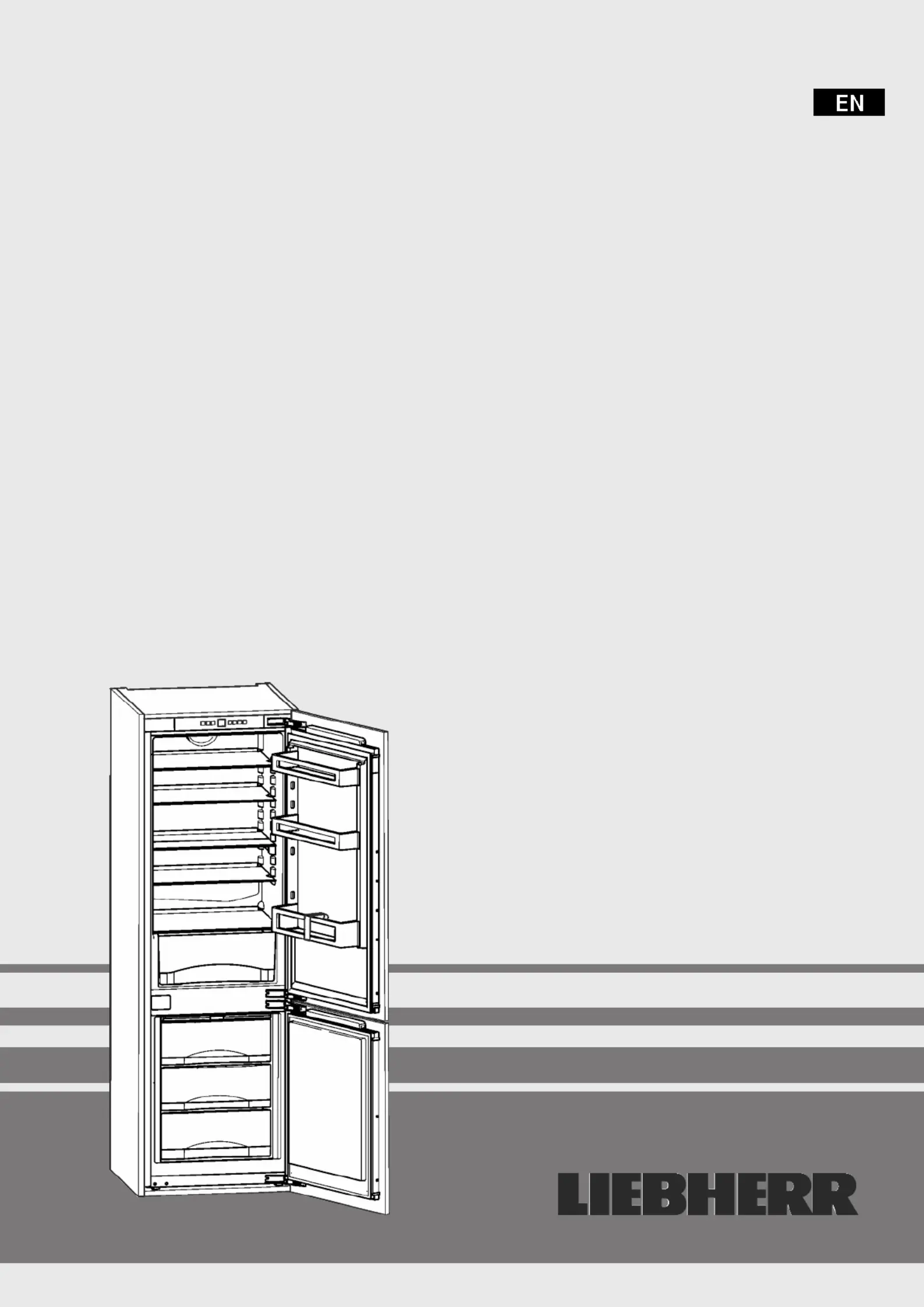

Operating instructions

Combined fridge-freezer for integrated use

151217

7088053 - 00

ICN/S ... LC

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Appliance range of use............................................. 2

1.3 Conformity................................................................ 3

1.4 Product data............................................................. 3

1.5 Saving energy.......................................................... 3

2 General safety information................................... 3

3 Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

3.2 Temperature display................................................. 4

4 Putting into operation............................................ 4

4.1 Switching on the appliance....................................... 4

5 Control.................................................................... 5

5.1 Child proofing........................................................... 5

5.2 Door alarm................................................................ 5

5.3 Temperature alarm................................................... 5

5.4 Refrigerator compartment........................................ 5

5.5 Freezer compartment............................................... 7

6 Maintenance........................................................... 8

6.1 Defrosting with NoFrost............................................ 8

6.2 Cleaning the appliance............................................. 8

6.3 Customer service..................................................... 8

7 Malfunctions........................................................... 9

8 Decommissioning.................................................. 9

8.1 Switching off the appliance....................................... 9

8.2 Taking the appliance out of service........................... 9

9 Disposing of the appliance................................... 10

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that

we have to reserve the right to make design, equipment and

technical modifications.

To get to know all the benefits of your new appliance, please

read the information contained in these instructions carefully.

The instructions apply to several models. Differences may

occur. Text relating only to specific appliances is marked with

an asterisk (*).

Instructions for action are marked with a , the results of

action are marked with a .

1 Appliance at a glance

1.1 Description of appliance and equip-

ment

Fig. 1

(1) Operating and control

elements

(7) Vegetable bin

(2) Shelf, sectioned Can rack(8)

(3) (9)Shelf Bottle rack

(4) (10)LED interior light Bottle holder

(5) (11)Drain hole Freezer compartment

drawer

(6) (12)Coldest zone Type plate

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation.

Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

1.2 Appliance range of use

Intended use

The appliance is only suitable for cooling food

products in a domestic or household-like envi-

ronment. This includes, for example, use:

in staff kitchens, bed and breakfast establish-

ments,

by guests in country houses, hotels, motels

and other accommodation,

for catering and similar services in the whole-

sale trade.

All other types of use are not permitted.

Foreseeable misuse

Appliance at a glance

2 * Depending on model and options

The following applications are expressly

forbidden:

Storing and refrigerating medicines, blood

plasma, laboratory preparations or similar

substances and products based on the

Medical Device Directive 2007/47/EC

Use in areas at risk of explosions

Misusing the appliance may lead to damage to

the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the

appliance is designed to operate in restricted

ambient temperatures. The climate classifica-

tion applying to your appliance is printed on the

rating plate.

Note

Keep to the specified ambient temperatures

in order to guarantee that the appliance works

properly.

Climate clas-

sification

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. In installed

condition, this appliance complies with the applicable safety

stipulations and with directives 2014/35/EU, 2014/30/EU,

2009/125/EG, 2011/65/EU and 2010/30/EU.

1.4 Product data

Product data is included with the appliance, as per Directive

(EU) 2017/1369. The complete product data sheet is available

on the Liebherr website under Downloads.

1.5 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Always keep the fan air slits clear.

Do not install the appliance in direct sunlight, next to an

oven, radiator or similar.

Energy consumption is dependent on the installation condi-

tions, e.g. ambient temperature (see 1.2) . If the ambient

temperature deviates from the standard temperature of

25°C, the energy consumption may differ.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Arrange the food in an organised way (see Appliance at a

glance).

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it doesn’t

warm up too much.

Inserting warm food: allow to cool down to room temperature

first.

Thaw frozen food in the refrigerator.

2 General safety information

Danger for the user:

This device can be used by children and

people with impaired physical, sensory or

mental abilities or with a lack of experience

and knowledge provided that they are super-

vised or have received instruction in the safe

use of this device, and about the resulting

hazards. Children must not play with this

appliance. Cleaning and user maintenance

work must not be carried out by children

without adult supervision. Children aged

between 3 and 8 are allowed to load and

unload the appliance. Children below the age

of 3 must be kept away from the appliance

unless they are under continuous adult super-

vision.

When disconnecting the appliance from the

supply, always take hold of the plug. Do not

pull the cable.

In the event of a fault pull out the mains plug

or deactivate the fuse.

Do not damage the mains power cable. Do

not operate the appliance with a defective

mains power cable.

Repairs, interventions on the appliance and

the replacement of mains connection line may

only be carried out by After-Sales Service or

other suitably trained specialist personnel.

Only install, connect and dispose of the appli-

ance according to the instructions.

Only use the appliance when it is installed.

Please keep these instructions in a safe place

and pass them on to any subsequent owners.

Special-purpose lamps (incandescent lamps,

LEDs, fluorescent tubes) in the appliance

serve to illuminate the appliance interior and

are not suited for room illumination.

Fire hazard:

Refrigerant R 600a is environmentally friendly,

but flammable. Leaking refrigerant may ignite.

•

Do not damage the refrigerant circuit pipes.

•

Do not use an open flame or other source

of ignition inside the appliance.

•

Do not use electrical appliances inside the

appliance (e.g. steam cleaners, heaters, ice

cream makers, etc.).

•

If the refrigerant leaks: remove any naked

flames or ignition sources from the vicinity

of the leakage point. Properly air the room.

Inform customer services.

Do not store explosives or sprays using

combustible propellants such as butane,

General safety information

* Depending on model and options 3

Produktspecifikationer

Varumärke:	Liebherr
Kategori:	Kylning frysning
Modell:	ICNS 3324
Inbyggd display:	Ja
Vikt:	64200 g
Bredd:	570 mm
Djup:	550 mm
Höjd:	1780 mm
Årlig energiförbrukning:	280 kWh
Energiförbrukning:	0.63 kWh/24h
Förpackningens bredd:	555 mm
Fryskapacitet:	10 kg/24h
Frysläge:	Bottom-placerade
antal stjärnor:	4*
Temperaturlarm:	Ja
Flaskställ:	Ja
Antal kompressorer:	1
Automatisk avfrostning (frys):	Ja
Justerbara fötter:	Ja
Kylsystem:	Ventilerad
Produktens färg:	Vit
Skärmtyp:	LCD
Kontrolltyp:	Knappar
Låddjup:	622 mm
Vikt inkl. förpackning:	68000 g
Lagringstid vid strömavbrott:	15 h
AC-inspänning:	220 - 240 V
Lamptyp:	LED
Energiklass:	F
Antal hyllor i frysen:	5
Apparatens placering:	Inbyggd
Växelström Frekvens:	50 - 60 hz
Redo för anpassad panel:	Nej
Gångjärnssida:	Höger
Hängbar dörr:	Ja
Hyllor material:	Härdat glas
Energieffektivitetsskalning:	A till G
Strömkälla:	Elektrisk
Ström:	1.4 A
Total kapacitet netto:	262 l
Bulleremission, klass:	C
Ljudnivå Lc IEC:	38 dB
Klimatkategori:	SN-T
Innerbelysning, kyl:	Ja
Frostfri (kyl):	Ja
Automatisk avfrostning (kyl):	Ja
Antal vegetabiliska lådor:	1
Äggfack:	Ja
Superkylningsfunktion:	Ja
Dörröppningslarm:	Ja
Installationsfack, bredd:	570 mm
Installationsfack, djup:	550 mm
Installationsfack, höjd:	1788 mm
Barnsäkert:	Ja
Ansluten effekt:	136 W
Frys - Antal hyllor:	3
Fryskapacitet netto.:	68 l
Funktion för snabbinfrysning:	Ja
Kylkapacitet netto:	194 l
Färska zon fack:	Nej
Inbyggd förmåga:	Ja
Frostfri (frys):	Ja
