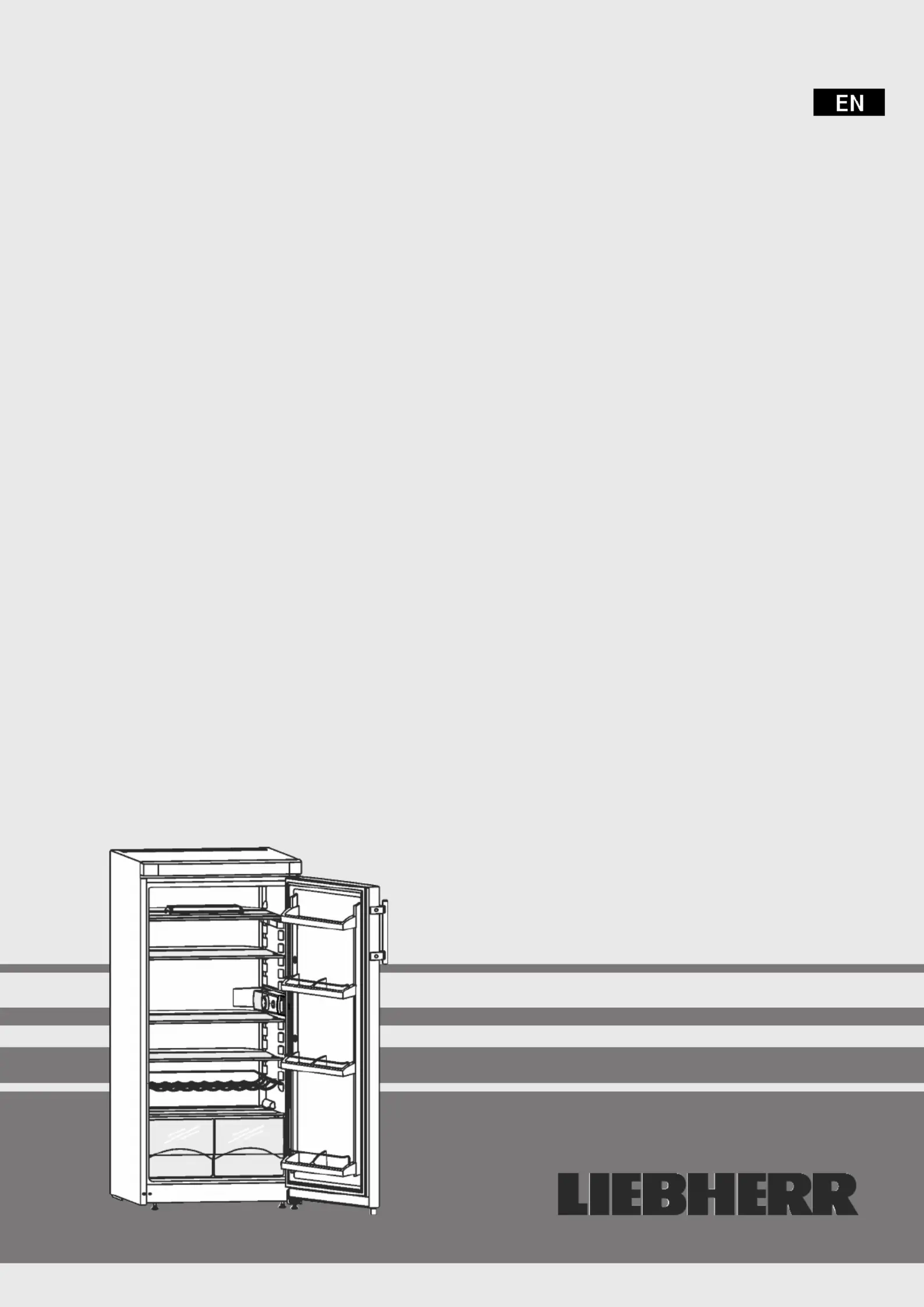

Sida 1/12

User Guide

fridge

20200924

7082820 - 02

K 2330

Contents

1 Appliance at a glance............................................ 2

1.1 Description of appliance and equipment.................. 2

1.2 Appliance range of use............................................. 2

1.3 Conformity................................................................ 3

1.4 Product data............................................................. 3

1.5 EPREL database...................................................... 3

1.6 Installation dimensions............................................. 3

1.7 Saving energy.......................................................... 3

2 General safety information................................... 3

3 Controls and displays........................................... 4

3.1 Operating and control elements............................... 4

4 Putting into operation............................................ 4

4.1 Transporting the appliance....................................... 4

4.2 Installing the appliance............................................. 5

4.3 Changing over the door hinge.................................. 5

4.4 Insertion into a row of kitchen units........................... 6

4.5 Disposing of packaging............................................ 7

4.6 Connecting the appliance......................................... 7

4.7 Switching on the appliance....................................... 7

5 Control.................................................................... 7

5.1 Refrigerating food..................................................... 7

5.2 Setting the temperature............................................ 7

5.3 Shelves.................................................................... 7

5.4 Using the sectioned shelf......................................... 8

5.5 Door racks................................................................ 8

5.6 Removing the bottle holder....................................... 8

6 Maintenance........................................................... 8

6.1 Defrosting................................................................. 8

6.2 Cleaning the appliance............................................. 8

6.3 Changing the interior light......................................... 8

6.4 Customer service..................................................... 9

7 Malfunctions........................................................... 9

8 Decommissioning.................................................. 10

8.1 Switching off the appliance....................................... 10

8.2 Taking the appliance out of service........................... 10

9 Disposing of the appliance................................... 10

The manufacturer works constantly on the further development

of all the types and models. Therefore please understand that

we have to reserve the right to make design, equipment and

technical modifications.

To get to know all the benefits of your new appliance, please

read the information contained in these instructions carefully.

The instructions apply to several models. Differences may

occur. Text relating only to specific appliances is marked with

an asterisk (*).

Instructions for action are marked with a , the results of

action are marked with a

1 Appliance at a glance

1.1 Description of appliance and equip-

ment

Note

Place food inside the appliance as shown in the diagram.

This allows the appliance to save energy during operation.

Shelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

Fig. 1

(1) Thermostat housing,

interior lighting

(8) Bottle holder

(2) Shelf, separable Door rack for large bottles(9)

(3) Shelf, adjustable Vegetable bins(10)

(4) Egg tray Coldest area(11)

(5) (12)Bottle rack* Drain opening

(6) (13)Butter shelf Type plate

(7) (14)Door rack, adjustable Adjustable feet, rear

rollers for transport

1.2 Appliance range of use

Intended use

The appliance is only suitable for cooling food

products in a domestic or household-like envi-

ronment. This includes, for example, use:

The appliance is not suitable for freezing food;

in staff kitchens, bed and breakfast establish-

ments,

by guests in country houses, hotels, motels

and other accommodation,

for catering and similar services in the whole-

sale trade.

The appliance is not suitable as a built-in unit.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly

forbidden:

Storing and refrigerating medicines, blood

plasma, laboratory preparations or similar

substances and products based on the

Medical Device Directive 2007/47/EC

Use in areas at risk of explosions

Misusing the appliance may lead to damage to

the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the

appliance is designed to operate in restricted

ambient temperatures. The climate classifica-

Appliance at a glance

2 * Depending on model and options

tion applying to your appliance is printed on the

rating plate.

Note

Keep to the specified ambient temperatures

in order to guarantee that the appliance works

properly.

Climate classi-

fication

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. This appliance

complies with the applicable safety stipulations and with direc-

tives 2014/35/EU, 2014/30/EU, 2009/125/EG, 2011/65/EU and

2010/30/EU.

1.4 Product data

Product data is included with the appliance, as per Directive

(EU) 2017/1369. The complete product data sheet is available

on the Liebherr website under Downloads.

1.5 EPREL database

Details about energy labelling and ecodesign requirements will

be available on the European product database (EPREL) from

1st March 2021. You can access the product database at the

following link: https://eprel.ec.europa. eu/ You will be asked to

enter the model ID. You can find the model ID on the name-

plate.

1.6 Installation dimensions

Fig. 2

Model a c c' d e e' g h

K 2330 550 559 591 1129 628 660 614 1175

1.7 Saving energy

Pay attention to good ventilation. Do not cover ventilation

holes or grids.

Do not install the appliance in direct sunlight, next to an

oven, radiator or similar.

Energy consumption depends on the installation conditions,

e.g. the ambient temperature (see 1.2 Appliance range of

use) . A warmer ambient temperature can increase the

energy consumption.

Open the appliance for as short a time as possible.

The lower the temperature is set the higher the energy

consumption.

Arrange the food in an organised way (see 1 Appliance at a

glance) .

Keep all food properly packed and covered. This prevents

frost from forming.

Only take food out for as long as necessary so that it doesn’t

warm up too much.

Inserting warm food: allow to cool down to room temperature

first.

Dust deposits increase energy consump-

tion:

For refrigerators with heat exchangers

dust the metal grid on the back of the

appliance once a year.

2 General safety information

Danger for the user:

This device can be used by children and

people with impaired physical, sensory or

mental abilities or with a lack of experi-

ence and knowledge provided that they are

supervised or have received instruction in

the safe use of this device, and about the

resulting hazards. Children must not play

with this appliance. Cleaning and user main-

tenance work must not be carried out by chil-

dren without adult supervision. Children aged

between 3 and 8 are allowed to load and

unload the appliance. Children below the age

of 3 must be kept away from the appliance

unless they are under continuous adult super-

vision.

When disconnecting the appliance from the

supply, always take hold of the plug. Do not

pull the cable.

In the event of a fault pull out the mains plug

or deactivate the fuse.

Do not damage the mains power cable. Do

not operate the appliance with a defective

mains power cable.

Repairs, interventions on the appliance and

the replacement of mains connection line may

only be carried out by After-Sales Service or

other suitably trained specialist personnel.

General safety information

* Depending on model and options 3

Produktspecifikationer

Varumärke:	Liebherr
Kategori:	kylskåp
Modell:	K 2330
Bredd:	550 mm
Djup:	628 mm
Höjd:	1176 mm
Årlig energiförbrukning:	126 kWh
Inbyggd frys:	Nej
Strömförsörjning:	220-240 V, 50 Hz
Produktens färg:	Vit
Energiklass:	F
Apparatens placering:	Fristående
Gångjärnssida:	Höger
Energieffektivitetsskalning:	A till G
Bulleremission, klass:	C
Ljudnivå Lc IEC:	38 dB
Kylkapacitet netto:	214 l
