Operating Instructions

■ Xelos A 42

■ Xelos A 37

■ Xelos A 32

■ Xelos A 26

■ Modus L 42

■ Modus L 37

■ Modus L 32

Neu für 5. Auflage:

Seite 3: Abbildung geändert

Seite 39: Abbildungen geändert

Seite 42: Kontrastverhältnis 1200:1 bei 37“

BA32789_021XelosModusRel_5_GB.in1 1BA32789_021XelosModusRel_5_GB.in1 1 15.01.2007 16:53:5215.01.2007 16:53:52

- 2

Contents

Remote control - TV functions 3

Control unit 4

Connections to rear panel 5 – 7

Welcome 8 – 9

Integrated features 8

Scope of delivery 8

Transporting 8

Installation options 8

Notes on the screen 8 – 9

Cleaning 9

Disposal 9

For your safety 10

First installation 11 – 14

Remote control 11

Connection 11 – 12

Use of the binders for Xelos A 42 and Modus L 42 12

Using the conditional access module 12

Switching on 12

Automatic programming 13

Directing DVB-T antenna 14

Daily operation 14 – 19

Switching on/off 14

Changing stations 15

Basics about the menu operation 16

For the info system... 17

For the index... 18

Setting the sound 19

Picture settings 19

Direct control on TV set 19

Operating modes 20 – 31

TV 20 – 24

How the coloured keys work for the TV mode 20

Show status display 20

Calling the index 20

Calling additional functions 21

Calling timer overview 21

Selecting picture format 21

Moving picture up/down 21

TV menu 21 – 22

DVB subtitles 22

CA module 23

Installing new DVB software 23

Image+ 24

Picture in picture (PIP) 25 – 26

PIP picture as freeze picture 25

Selecting the station of the PIP picture 25

Selecting the station of the TV picture 25

PIP scan in the PIP picture 25

Interchanging PIP picture/TV picture 25

Functions in the PIP menu 26

Switch to small PIP 26

EPG – Programme guide 27 – 28

Using the EPG 27

EPG menu 28

Provider/programme selection 28

Data capture 28

Teletext 29 – 30

Page selection 29

Displaying teletext pages 29

Programme timer recordings 30

Teletext menu 30

Digital teletext (only UK) 30

Radio 31

Operating additional equipment 32 – 39

Video playback 33

Timer recording with video or DVD recorder 33

Assignment of digital audio inputs and outputs 34

Connecting Loewe DVD Preceiver Auro 2216 PS

and Individual Sound loudspeaker system 35

Connecting other audio amplifiers or active speakers 36

HDMI (DVI) connection 37

VGA/XGA connection 37

Component video connection 38

Operate Loewe DVD player and recorder with the remote control 39

What to do, if ... 40 – 41

Technical data 42 – 43

Accessories 44 – 45

Service addresses 46

Dolby and the double ´D´ symbol are

trademarks of Dolby Laboratories

BA32789_021XelosModusRel_5_GB.in2 2BA32789_021XelosModusRel_5_GB.in2 2 15.01.2007 16:53:5515.01.2007 16:53:55

3 -- 3

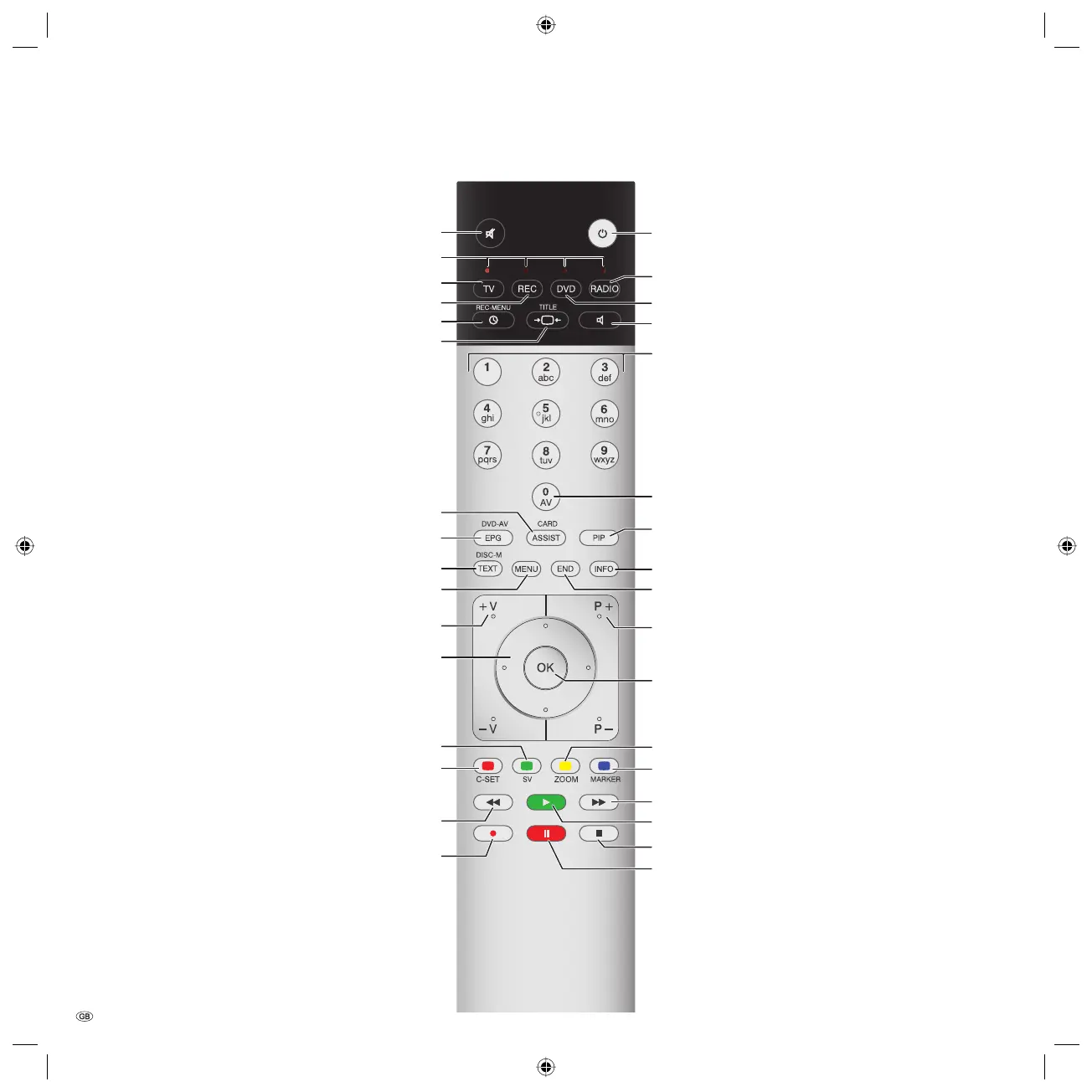

Remote control – TV functions

Switch on/off - on stand by

Select station up

Blue button:

programme info on/off

Yellow button:

previous station

Freeze picture on

Status display on/off

;

MENU: hide menu

Open index;

MENU: info texts on/off

PIP on/off (picture in picture)

P+/P–

Select station up/down

Switch over to operate DVD-Player

Sound menu on/off

Switch over to the RADIO mode

Select station directly;

MENU: enter numbers or letters

Station list on;

MENU: confirm/call

Sound off/on

Call timer list

Freeze picture off

V–/V+

Volume down/up

Freeze picture on/off

Select station down

/in the Wizard: back

PIP: Position of the PIP picture;

MENU: select/set

Red button:

Freeze picture on/off

Green button:

Standard settings for picture/sound

Teletext on/off

Show/hide menu

Electronic Programme Guide (EPG) on/off

Set picture format

LED indicator for current operating mode

Direct recording

when equipped with

Digital Recorder +, these

buttons have different functions,

see operating instructions

of the Digital Recorder

Radio only for DVB reception

if broadcast by the station

Call AV selection

Menu “Other functions“ on/off

Switch over to the TV mode

Switch over to operate Recorder

with DVB-T stations in GB

different function. The coloured

keys do not work as described

with DVB-T stations in GB,

but they operate as described

on page 30 (Digital Teletext).

BA32789_021XelosModusRel_5_GB.in3 3BA32789_021XelosModusRel_5_GB.in3 3 15.01.2007 16:53:5515.01.2007 16:53:55

Produktspecifikationer

Varumärke:	Loewe
Kategori:	LCD TV
Modell:	Modus L 42
Årlig energiförbrukning:	200 kWh
Strömförsörjning:	220 - 240V, 50/60Hz
Skärm diagonal:	42 "
Upplösning:	1366 x 768 pixlar
Ljudsystem:	Sound+, Virtual Dolby Surround
Ljusstyrka:	500 cd/m²
Zoomkapacitet:	Ja
Antal HDMI-portar:	1
Inbyggda högtalare:	Ja
Hörlursutgångar:	1
FM-radio:	Ja
HDCP:	Ja
Bild-i-bild:	Ja
Typ av tuner:	Analog och digital
Automatisk kanalsökning:	Ja
Antal kanaler:	1.850 kanaler
Text-TV nivå:	2.5
DVB:	DVB-T, DVB-C, DVB-S
Fjärrkontroll ingår:	Ja
Produktens färg:	Silver
HD-typ:	HD
Betraktningsvinkel (horisontell):	178 °
Bredd (utan stativ):	1070 mm
Höjd (utan stativ):	726, 763 mm
Vikt (utan stativ):	43000 g
Bredd (med stativ):	1070 mm
Djup (med stativ):	- mm
Höjd (med stativ):	1173 mm
Skärmtyp:	LCD
Hörlursanslutning:	3,5 mm
Analogt signalformatsystem:	NTSC
VESA-fäste:	Ja
Uteffekt (RMS):	15 W
Djup (utan stativ):	109 mm
Elektronisk programguide (EPG):	Ja
Strömförbrukning (vanlig):	120 W
PC-ljud in:	Nej
OSD-språk:	CHI (SIMPL), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, POL, POR, RUS, SCR, SLV, TUR
Antal ljudutgångar vänster/höger:	1
Antal SCART-kontakter:	6
Displaytyp:	LCD
Text-TV funktioner:	Ja
Strömförbrukning i vänteläge:	3 W
Kontrastförhållande (medel):	1000:1
Native bildförhållande:	16:9
Plug & Play-kompatibel:	Ja
Svarstid (medel):	5 ms
Synfältsvinkel (vertikal):	178 °
Komponentvideo in (YPbPr / YCbCr):	1
Antal RGB-anslutningar:	1
PC-In (D-Sub):	Nej
Antal talare:	2
Bildstorlek diagonalt:	106 mm
Skärmgränssnitt (OSD):	Ja
Vilolägestimer:	Ja
Vanligt gränssnitt (CI):	Ja
Teletext:	2000 sidor
Bildformatsjustering:	4:3, 16:9
Ljudingång (vänster och höger):	1
Digital koaxialingång för ljud:	1
Digital koaxialutgång för ljud:	1
Antal AV-kontakter:	7
