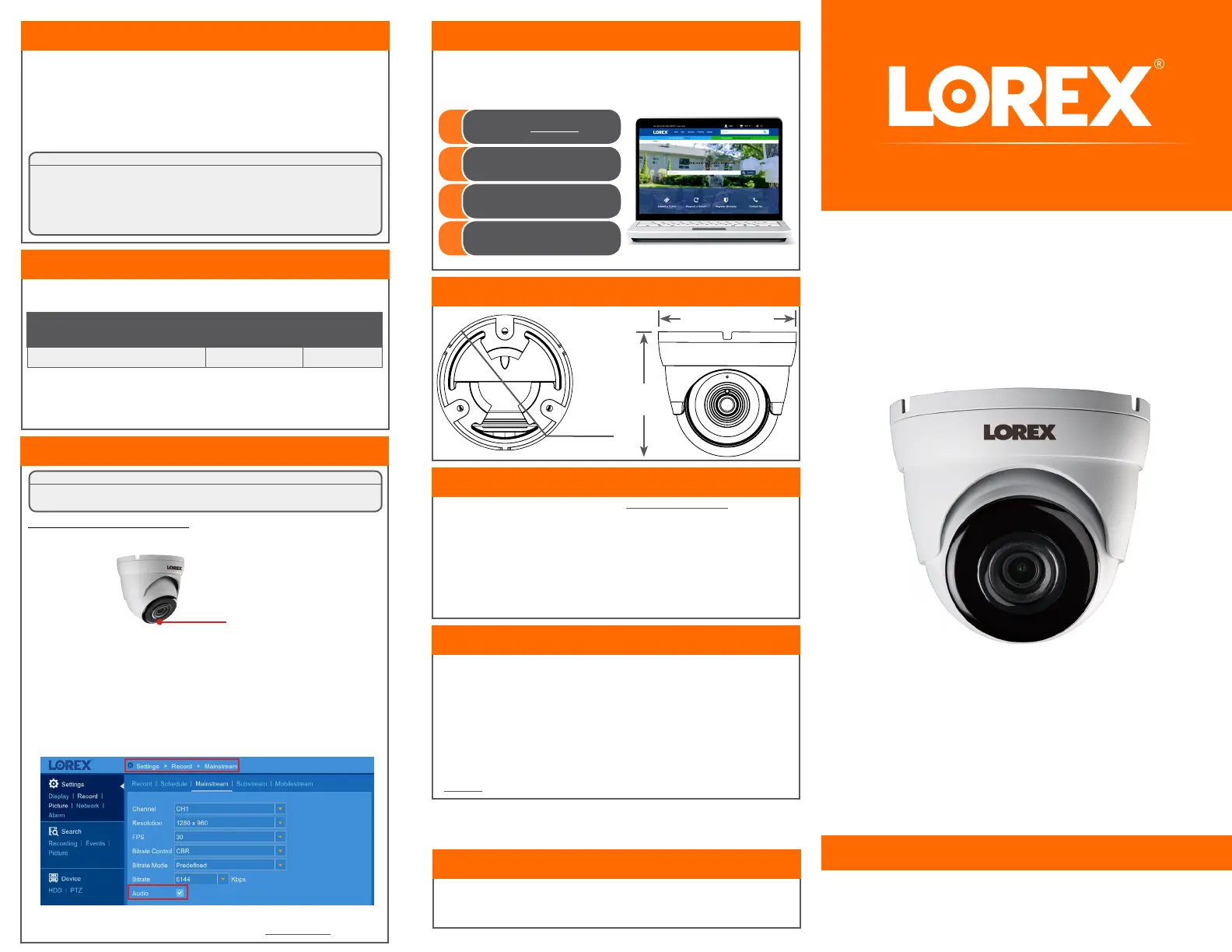

Sida 1/2

• You can use a RJ45 coupler or switch (not included) to connect male

ends of Ethernet cable together.

• To extend the cable run beyond 300ft (92m), a switch will be required

(sold separately).

ATTENTION:

Audio recording without consent is illegal in certain jurisdictions. Lorex Corporation

assumes no liability for use of its products that does not conform with local laws.

Audio is disabled by default. If needed, you can enable audio

through a Lorex NVR.

NOTE: These instructions are based on current NVR interface. For the most up-to-

date instructions, see your NVR’s instruction manual on www.lorex.com.

To enable camera audio:

1. In Live View, right-click anywhere on the screen to open the Quick Menu.

2. Click Main Menu. If prompted, enter the system user name and password.

3. Under Settings on the left-side panel, click Record, then click the Mainstream

tab.

4. Select a channel where an audio camera is connected next to Channel.

5. Check the Audio checkbox to enable audio. Click Save to apply changes.

6. Repeat steps 4 and 5 for any other audio cameras you want to enable audio for.

7. (Optional) Click the Substream tab and perform the same steps to enable audio

when viewing cameras through the computer or mobile applications.

Microphone

Audio Settings

LKE383A_QSG_EN_R2

4K HD IP Dome Security Camera with Audio

• 4K HD IP Dome Security Camera with Audio

• Mounting Kit*

• Ethernet Extension Cable*

• Weatherprooﬁng Cap*

• Allen Key*

• Read this guide carefully and keep it for future reference.

• Follow all instructions for safe use of the product and handle with care.

• Use the camera within given temperature, humidity and voltage levels noted in the

camera’s speciﬁcations.

• Do not disassemble the camera.

• Do not point the camera directly towards the sun or a source of intense light.

• Use only the supplied regulated power supply provided with the product. Use of a non-

regulated, non-conforming power supply can damage the product and void the warranty.

• Periodic cleaning may be required. Use a damp cloth only. Do not use any harsh, chemical-

based cleaners.

• The supplied cable is rated for surface mounting only. Cables for in-wall and ﬂoor-to-ﬂoor

installations are sold separately (CMR type). These and other cables are available at

lorex.com

* Per camera in multi-camera packs.

As our products are subject to continuous improvement, Lorex reserves the right

to modify product design, speciﬁcations and prices, without notice and without

Quick Start Guide

English Version 2.0

LKE383A SERIES

Package Contents

ATTENTION:

It is recommended to connect the camera to the NVR or an external PoE

switch. If using a DC power adapter (not included) with the camera, a

REGULATED power supply is REQUIRED for use with this camera. Use of

a non-regulated, non-conforming power supply can damage this product

and voids the warranty.

Safety Precautions

Dimensions

www.lorex.com

Extend the cable run for your camera. Additional extension cables sold

separately. See table below:

Cable Extension Options

Cable Type

Max Cable Run

Distance

Max # of

Extensions

CAT5e (or higher) Ethernet cable 300ft (92m) 3

• For a full list of compatible recorders, visit lorex.com/compatibility

• Not intended for submersion in water. Installation in a sheltered location

recommended.

• This camera includes an Auto Mechanical IR Cut Filter. When the camera changes

between Day/Night viewing modes, an audible clicking noise may be heard from

the camera. This clicking is normal, and indicates that the camera ﬁlter is working.

• For the smoothest possible 4K video streaming experience, connect your NVR

to a Gigabit router (use available 1000Mbps / 1Gbps ethernet port). If you are

connecting cameras to an external network switch, it is recommended to use a

10/100/1000Mbps port on a Gigabit network switch.

3.9” /

100mm

3.9” / 100mm

3.5” /

90mm

Need Help?

Visit us online for up-to-date software

and complete instruction manuals

Click on the Downloads tab

Visit lorex.com

Search for the model

number of your product

Click on your product

in the search results

Resources

Disclaimers

Produktspecifikationer

Varumärke:	Lorex
Kategori:	övervakningskamera
Modell:	LKE383A
Vikt:	400 g
Bredd:	100 mm
Djup:	100 mm
Höjd:	90 mm
Förpackningens bredd:	249 mm
Wi-Fi:	Nej
Videoformat som stöds:	HEVC/H.265
Videolägen som stöds:	1080p
Maximal upplösning:	3840 x 2160 pixlar
Antal kameror:	1
Inbyggd hårddisk:	Nej
Infraröd våglängd:	850 nm
Fast brännvidd:	2 mm
Optisk sensorstorlek:	1/2.3 "
Inbyggd mikrofon:	Ja
Grafikupplösningar som stöds:	3840 x 2160
Modell:	IP-säkerhetskamera
Maximal räckvidd:	40 m
Progressiv skanning:	Ja
Antal linser:	1
Antal sensorer:	1
Väderbeständig:	Ja
Antal effektiva pixlar (H x V):	3840 x 2160 pixlar
Linsdiameter:	4 mm
Kabellängd:	0.3 m
Produktens färg:	Vit
Monteringssats:	Ja
Analogt signalformatsystem:	NTSC, PAL
Förpackningstyp:	Låda
Låddjup:	166 mm
Vikt inkl. förpackning:	1920 g
Slutartid:	1/5 - 1/20000 s
LED typ:	IR
Formfaktor:	Kupol-formad
mörkerseende avstånd:	27 m
Strömförbrukning (Power over Ethernet (PoE)):	5.5 W
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	-30 - 60 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
Internationellt skydd (IP) kod:	IP66
Kabel inkluderad:	LAN (RJ-45)
Kamerapanoreringskontroll:	Nej
Placeringar som kan användas:	Inomhus & utomhus
Anslutningsteknologi:	Kabel
Dag / nattläge:	Ja
Monteringssätt:	Innertak/vägg
Minimibelysning:	0.7 lx
Mörkerseende:	Ja
Totalt megapixel:	8 MP
Bildfrekvens:	15 fps
Nätverksansluten (Ethernet):	Ja
Strömkälla av typen:	DC, PoE
DC-utgång volt:	12
Bluetooth:	Nej
Synfältsvinkel (FOV):	93 °
Lutningskontroll för kamera:	Nej
Strömförbrukning:	460 mA
Signal/brusförhållande (SNR):	39 dB
