Lotus Professional
Electronic
Handtowel Dispenser
Instructions Manual
ENGLISH ....................................................................5
ALbANIAN SHQIP ........................................................6
boSNIAN BOSANSKI ................................................7
buLGArIAN БЪЛГАРСКИ ............................................8
CroAtIAN HR VATSKI .................................................9
CZECH CZECH ....................................................10
DANISH DANSK ....................................................11
DutCH NEDERLANDS ......................................12
EStoNIAN EESTI ........................................................13
FINNISH SUOMI ....................................................14
FrENCH FRANçAIS ..............................................15
GErmAN DEUTSCH...............................................16
GrEEk Ελληνικά .............................................17
HuNGArIAN MAGYAR.................................................18
ItALIAN ITALIANO ...............................................19
LAtvIAN LATVIEšU ...............................................20
LItHuANIAN LIE TUVIšKAI ..........................................21
mACEDoNIAN МАКедонСКИ ....................................22
NorwEGIAN NORSK ....................................................23
PoLISH POLSKI ....................................................24
PortuGuESE PORTUGUÊS .........................................25
romANIAN ROMÂNĂ ...............................................26
ruSSIAN РУССКИЙ...............................................27
SErbIAN SRPSKI .....................................................28
SLovAkIAN SLO VENčINA ........................................29
SLovENIAN SLO VENščINA .....................................30
SPANISH ESPAÑOL ...............................................31
SwEDISH SVENSK A ................................................32
turkISH TÜRKçE ..................................................33
ukrAINIAN УКРАїнСьКА .........................................34
CoNtENtS
1,20 m - 1,40 m
Congratulations on choosing to improve the hygiene and cleanliness of your
washroom. Lotus Professional touchless enMotion® handtowel dispensing system
uses tomorrow’s innovation and increased hand drying capacity to answer today’s
need for more ecient hygienic solutions. Your choice has conveyed a commitment
to providing a hygienic washroom environment and a quality image, and to
improving the service in your washroom.
Tools and supplies
• Screwdriver
• Power Drill
• Pencil or Pen
• Spirit level (recommended)
• 4 ea. #8 Screws included
n
STEP ONE
Unpacking the Dispenser
Open case and locate listed components:
• enMotion® handtowel dispenser
• Dispenser Key
• 4 LR20 D-Cell Alkaline Batteries
• Instruction Guide
n
STEP TWO
Assembling the Dispenser
1. Locate key on bottom of dispenser and open dispenser.
2. Unwrap cellophane from batteries.
3. Load 4 LR20 D-Cell Alkaline Batteries in battery compartment located in the rear of
the dispenser. A red light appears when batteries are properly installed.
4. Close dispenser. The red light will turn o.
n
STEP THREE
Determining installation location
1. When placing dispenser, allow at least
10 cm clearance on all sides.
2. Use template printed on the case to locate screw holes.
Note: Using existing screw holes where possible may
simplify mounting process.
n
STEP FOUR

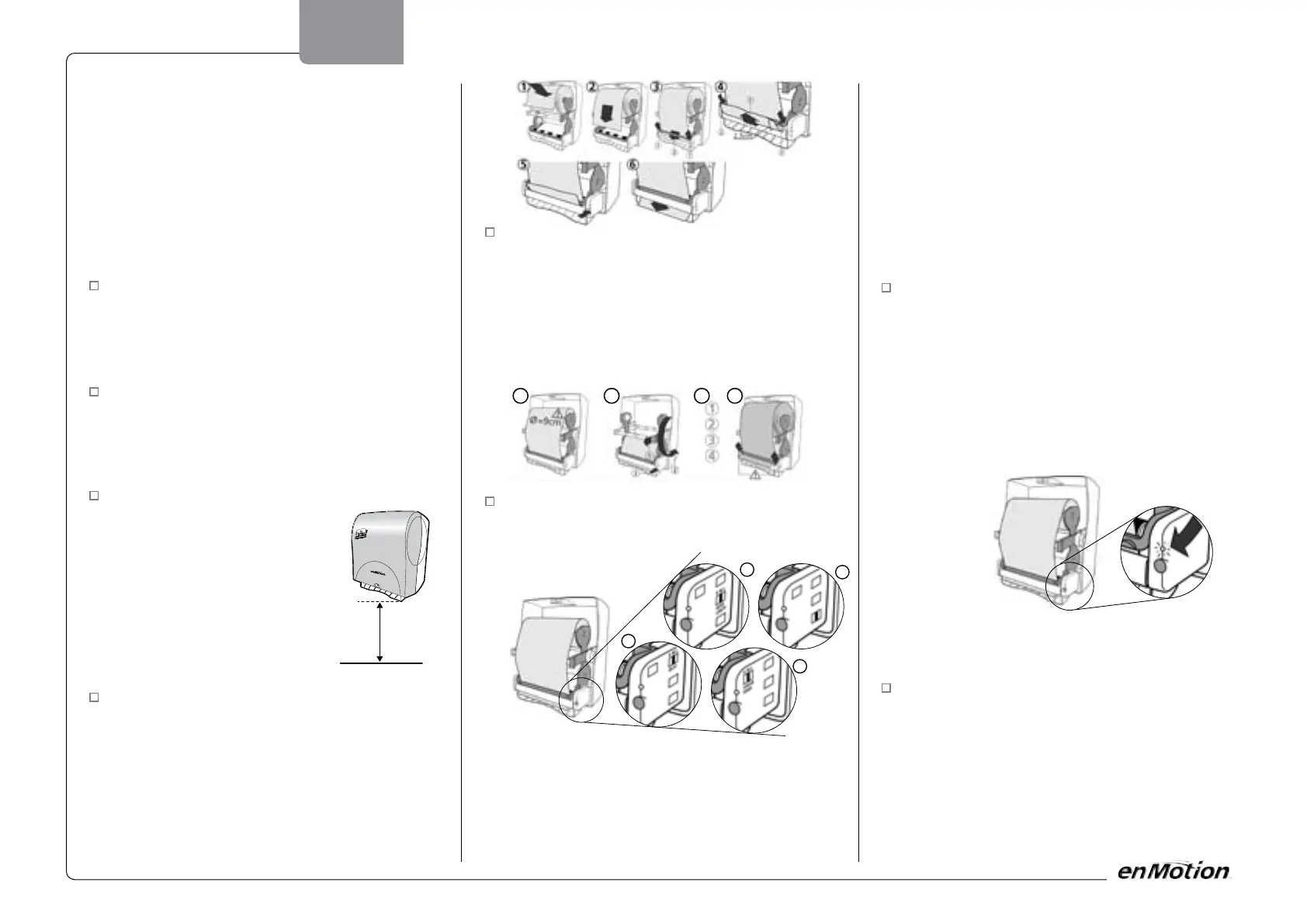

Loading rst roll
(See pictures 1-6)
1. Place the roll as indicated in the picture 1.
2. Pull paper towards you and place over the bar.
3. Lift the blue lower bar and tuck the paper underneath it.
4. Fold and crease a 2 cm ap at the end of the paper by folding it up (blue lower bar
teeth should rest in crease).
5. With the blue lower bar in place, press the blue autofeed button on the lower right
of the machine.
6. Once the paper feeds through the bottom, tear o the sheet and discard.
n
STEP FIVE
(See pictures 1-4)
Loading replacement/stub rolls
1. When the roll diameter is around 9 cm, you are ready to add a new roll.
2. Pull the carousel lock bar towards you and rotate the carousel down 180° until it
locks. The stub roll should now be on the bottom (rewind any excess back onto the
roll).
3. Follow “loading rst roll” picture 1 through 4 to load a new roll in the top bracket
(the transfer bar will be in a raised position and will activate/feed the new roll).
Note: The dispenser will double feed paper towards the end of the stub roll.
4. Close the cover.
n
STEP SIX
Adjusting the Settings
The enMotion® dispenser’s adjustable settings are located inside the dispenser on the lower
right side.
1. The “Adjustable Sheet Length” (ASL) system allows for adjustments in towel sheet
length. The sheet lengths are:
• “S” Short towel (maximum number of hand dries)
• “M” Medium towel (optimal hand dry capacity)
• “L” Long towel (largest available towel)
Note: The ASL system is pre-set at the “M” option. Set ASL to meet your needs.
2. The “Adjustable Time Delay” (ATD) system allows towels to dispense at dierent time
delay intervals after a towel is removed from the dispenser.
Settings are: “S” Short Delay - “M” Medium Delay - “L” Long Delay.
Note: The ATD system is pre-set at the “M” option. Set ATD to meet your needs.
3. The “Dispense Mode” (DM) system allows for adjustment in how the towel is
presented to the end user. Settings are:
• “On Demand” (The towel will feed from the dispenser after the end user has
activated the sensor.)
• “Hanging Towel” (The towel will always be showing. After tearing o a towel,
another towel will present itself.)
Note: The DM system is pre-set at the “On Demand” option. Set DM to meet your
needs.
4. The enMotion Dispenser’s “Adjustable Sensor Range” (ASR) system allows for adjust-
ment in sensor range to provide dependable dispensing of your towel.
Settings are : “S” (Small range) - “M” (Medium range) - “L” (Long range)
Note: The ASR system is pre-set at the “M” option. Set ASR to meet your needs.
n
STEP SEVEN
Operating the Dispenser
1. Dispensing enMotion Towels.
A. Pass hand approximately 5 cm across front of dispenser. An enMotion Towel is
automatically dispensed.
B. Once towel is dispensed, tear towel to dry hands. A second towel cannot be
dispensed until the rst towel is removed. After the towel is removed, a short
delay will occur to avoid paper waste.
Note: To adjust the delay, see Step 6, “Adjusting Settings”.
2. Replacing Batteries.
A. The “low battery” light is located on the motion sensor and indicates that the
battery power is low.
Note: When indicator light appears, dispenser will continue to operate for a
limited period of time.
B. Replace batteries with 4 LR20 D-Cell alkaline batteries. Non-alkaline batteries
will have reduced life.
C. Load batteries as indicated on the diagram located on the inside lid of the battery
compartment.
n
STEP EIGHT
Troubleshooting the Dispenser
Dispense towels by moving hand in front of dispenser within sensor range and immediately
tear o towel. Repeat this procedure 1-2 times to conrm proper operation. If towel does
not dispense when moving hand in front of dispenser, open the dispenser and check the
following:
1. Check inside the paper chute for a paper jam. If necessary, clear.
2. Check that towel is properly loaded.
3. Advance towel using paper feed button to conrm power.
4. If no power, check batteries to conrm alignment.
5. Close dispenser cover. Red light will turn o. The dispenser is ready.
ENGLISH
1
2
4
3
1 2 3 4
