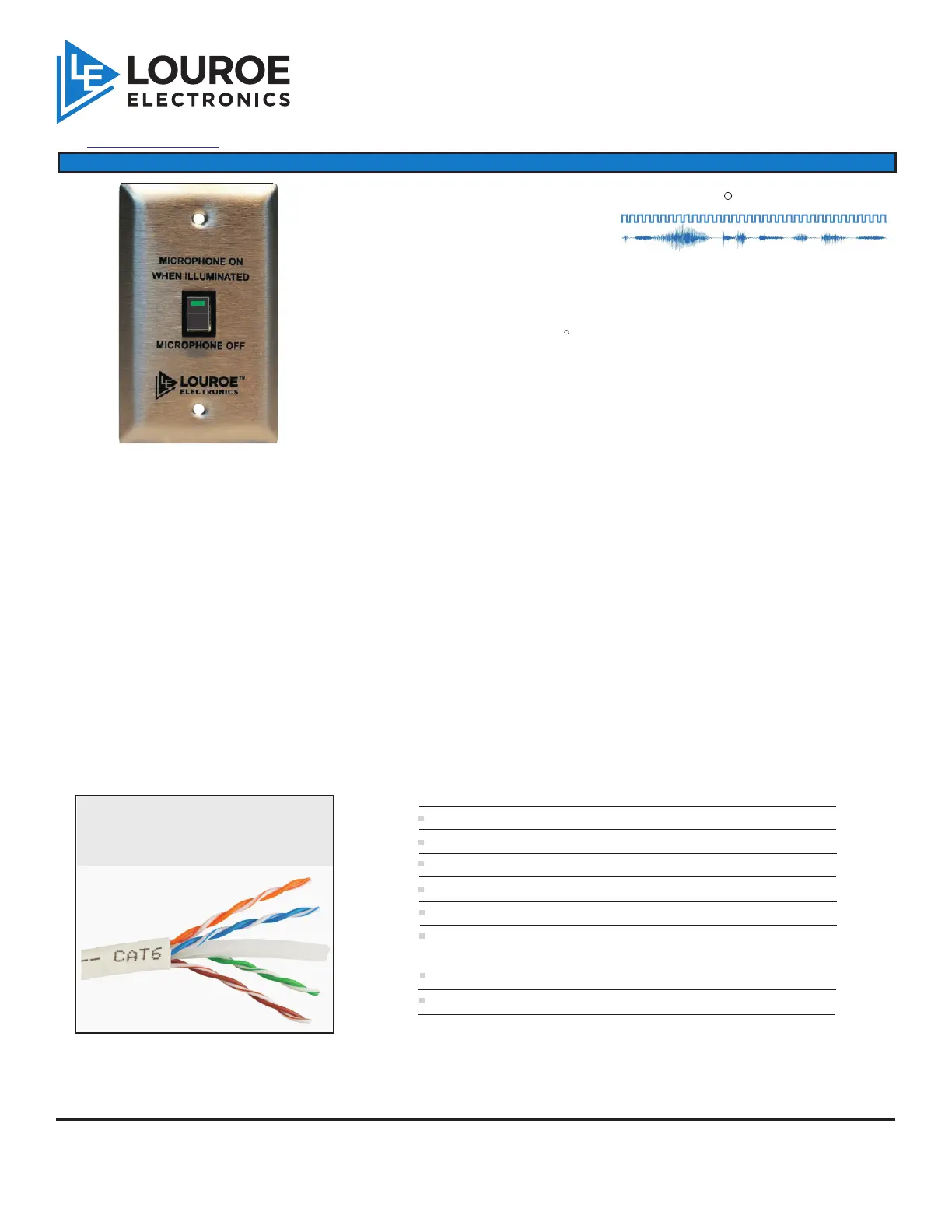

Sida 1/2
Requires Cat5e or Cat6 Cabling,
(Not Included). See wiring
CONNECTIVITY on Page 2.
WIRING REQUIREMENTS
DESCRIPTION
The MS-D1 Mute Switch is an accessory for all Louroe Digifact Audio Monitoring/Audio Surveillance Systems when
microphone muting is required remotely from any Digifact hardware with a microphone. The MS-D1 contains a built-in
rocker switch with a Green L.E.D. mounted to a single gang stainless steel face plate. It is easy to setup in any
environment using 2 pairs of Cat5e or Cat6 cabling. The MS-D1 is used to mute or disable the audio feed to any
Digifact E hardware. It disables the audio stream from processing audio in the Digifact hardware, which prevents the
operator from listening in to the microphone. The MS-D1 fits into a single gang back box (not included) for mounting, on
a flat surface or in a wall.
Login to the Louroe’s Digifact Software Portal interface for the Digifact hardware you want to add Audio Muting too.
Select the following settings from the (Output Settings Tab), 1.) Select Trigger Source and set it to (Input 1), 2.)
Select Output Port, set it to (Digital Mute). When finished, disconnect the RJ45 cable to your Digifact Hardware, set
the MS-D1 switch to the OFF position. Follow the wiring Diagram 1A. on page 2 for all wiring connectivity between the
MS-D1 digital controlled mute switch and your Digifact hardware. Testing: 1.) Reconnect the RJ45 cable and wait for
the Digifact hardware to power-up, now set the MS-D1 to the on position, the Green L.E.D. should turn on indicating
the Digifact hardware audio stream is muted.
OPERATION
MODEL MS-D1
MS-D1, Part No. LE-831
Digital Controlled (Analog Audio) MUTE SWITCH
INSTALLATION AND OPERATING INSTRUCTIONS
6955 VALJEAN AVE, VAN NUYS, CA 91406
PH: (818)994-6498 / FAX: (818)994-6458
/ www.louroe.comtechsupport@louroe.com
®
Page 1 of 2
LOUROE ELECTRONICS 6 9 5 5 VA L J E A N AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX 994-6458
website: www.louroe.com e-mail: sales@louroe.com
(818)
®
LE-831-01272023-WB
The MS-D1 works with all DIGIFACT Hardware
R
SPECIFICATIONS OF MS-D1 MUTE SWITCH
Digital Output Voltage
UTP, Cat5e, Cat6 Distance
Switch Contact
Dimensions
Faceplate Material
5Vdc
Up to100 ft.
5A @125Vac
Weight
Shipping Weight
2.5 oz
1 lb
2 ¾ W x " 4 ½" H
303 Stainless Steel
Backbox Single gang electrical
box (not included)
Package Includes:
1 x Single Gang Stainless Steel Wall Plate with a On/Off
Rocker Switch and Green L.E.D..
2 X Stainless Steel Screws
2 X Audio Monitoring On These Premises Stickers
DIGIFACT TECHNOLOGY
R
Please Note!
All specifications are subject to change without notice.
