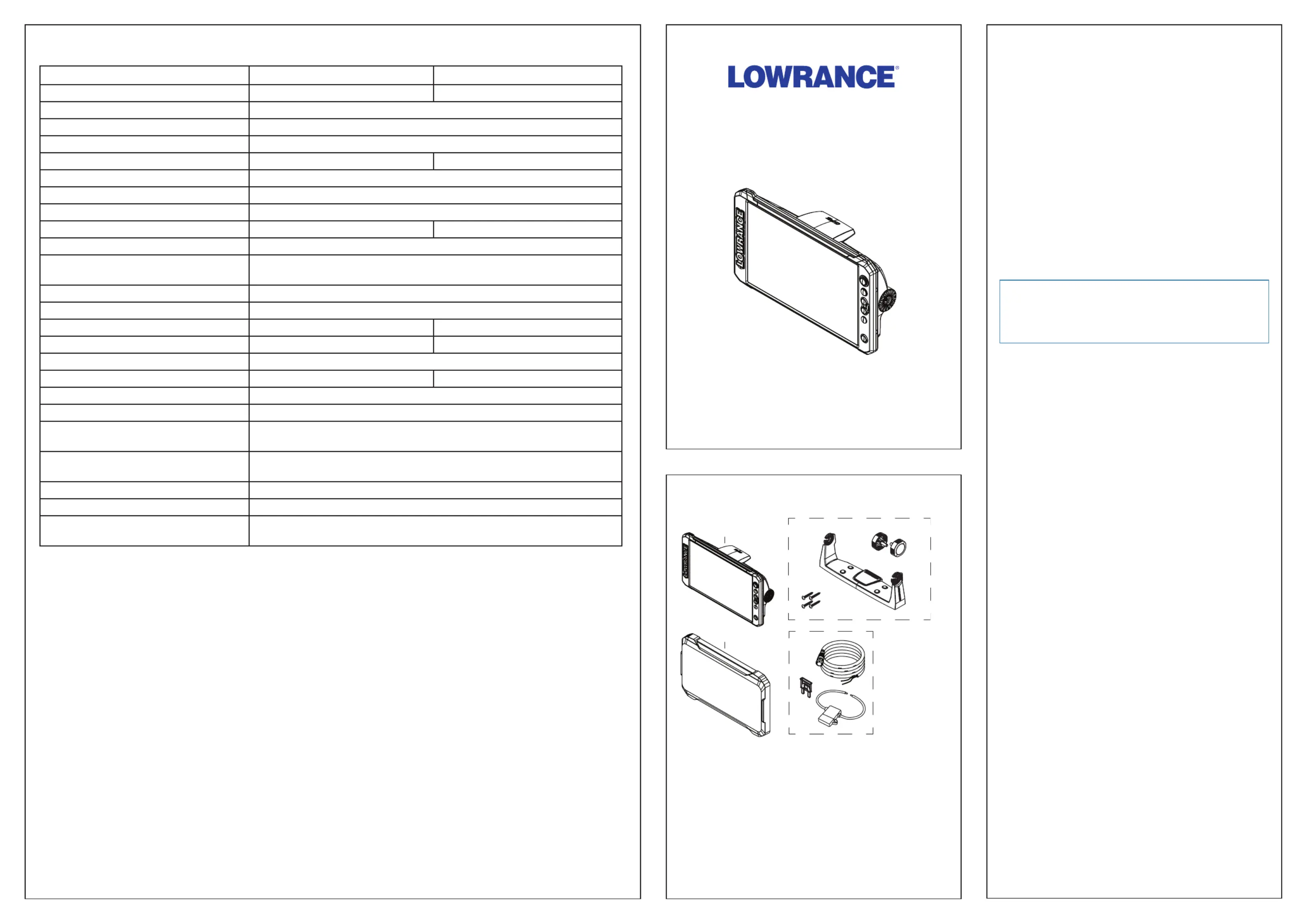

ELITE FS

™

INSTALLATION GUIDE

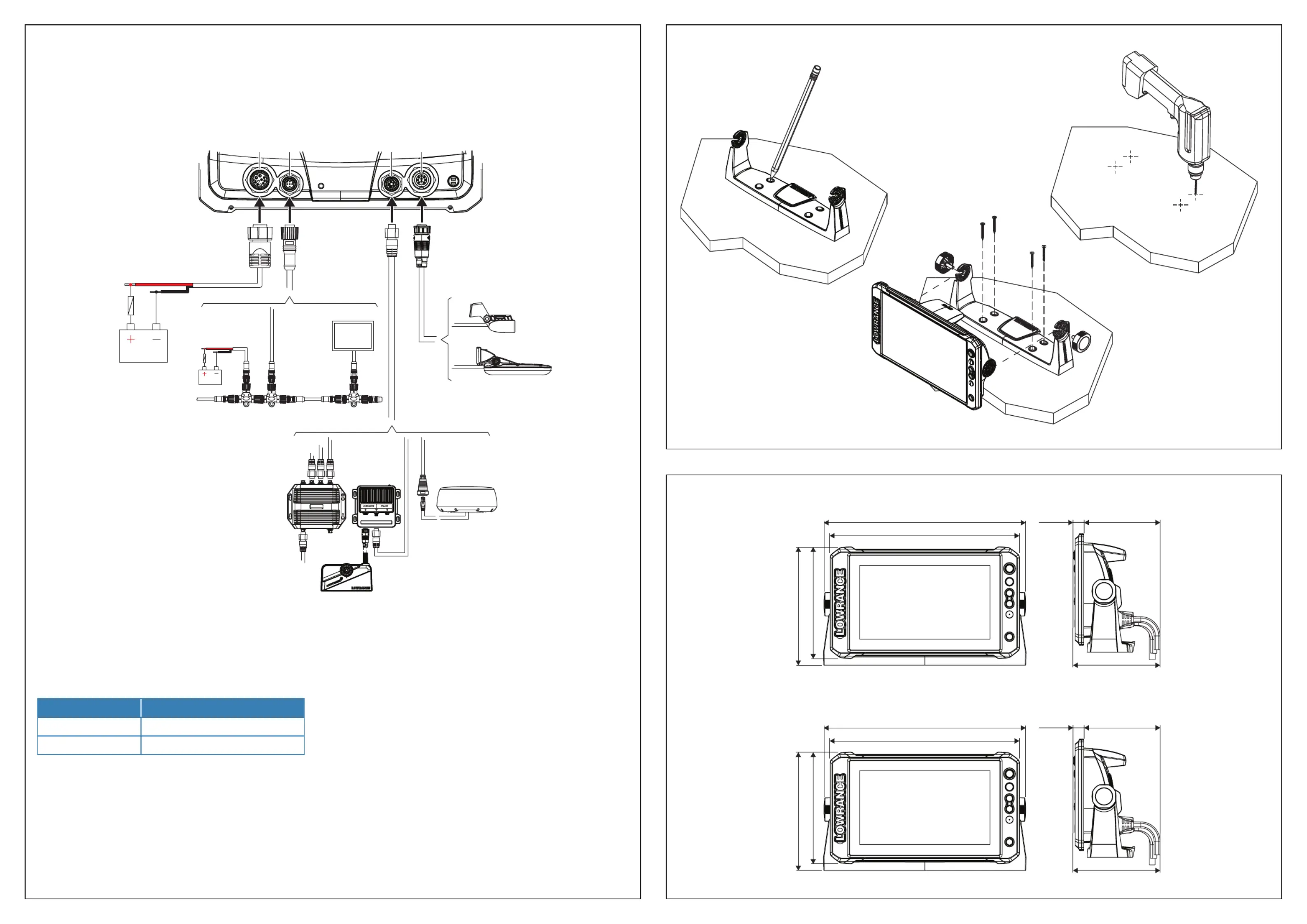

Technical specication

Parts included

C

A

D

B

A Elite FS

™

unit

B Gimbal bracket kit

C Sun cover

D Power cable kit

7”9”

Environmental

Operating temperature range-15°C to +55°C (5°F to 131°F)

Storage temperature -20°C to +60°C (4°F to 140°F)

Waterproof ratingIPX6 and IPX7

Electrical

Supply voltage12 V DC (10 - 17 V DC min - max)

Fuse rating3 A

Power consumption (maximum)28 W (2 A at 13.8 V DC)

Display

Resolution800 x 480 pixels

Viewing angles in degrees50° top, 60° bottom

70° left and right

Brightness> 1200 nits

Touch screenMultitouch

Physical

Weight (display only)0.9 kg (1.9 lbs.)1.2 kg (2.7 lbs.)

Compass Safe Distance0.5 m (1.6 ft.)

Interface/Connectivity

NMEA 2000®1 port (Micro-C connector)

Data card reader1x slot (microSD, SDXC)

Ethernet1 port

(5-pin Ethernet connector, 100Base-T)

Sonar1 port

(9-pin connector)

WiFI Internal802.11b/g/n

Bluetooth® 4.0 with support for Bluetooth® Classic

GPS10Hz high speed update

WAAS, MSAS, EGNOS, GLONASS

Compliance statements

Declarations

The relevant declarations of conformity are available at:

www.lowrance.com

Europe

Navico declare under our sole responsibility that the product

conforms with the requirements of:

• CE under RED 2014/53/EU

United States of America

Navico declare under our sole responsibility that the product

conforms with the requirements of:

• Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference

received, including interference that may cause undesired

operation

!Warning: The user is cautioned that any changes

or modications not expressly approved by the party

responsible for compliance could void the user’s

authority to operate the equipment.

¼

Note: This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that the interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment o and on, the user

is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit dierent

from that of the receiver is connected

• Consult the dealer or an experienced technician for help

ISED Canada

This device complies with ISED (Innovation, Science and

Economic Development) Canada’s license-exempt RSSs.

Operation is subject to the following two conditions: (1) This

device may not cause interference; and (2) This device must

accept any interference, including interference that may cause

undesired operation of the device.

La traduction française de ce document est disponible sur le site

Web du produit.

Australia and New Zealand

Navico declare under our sole responsibility that the product

conforms with the requirements of:

• level 2 devices of the Radiocommunications (Electromagnetic

Compatibility) standard 2017

• radiocommunications (Short Range Devices) Standards

Trademarks

®Reg. U.S. Pat. & Tm. O, and ™ common law marks. Visit

www.navico.com/intellectual-property to review the global

trademark rights and accreditations for Navico Holding AS and

other entities.
