EP-15 Fluid Level

Electronic Sensor

Installation Instructions

This instruction sheet tells how to install your EP-15 Fluid Level

sensor and connect it to a NMEA 2000



network using LowranceNET

network components. You must refer to your digital gauge, sonar or

GPS unit's manual for sensor operation instructions.

Caution:

Installing LowranceNET NMEA 2000 devices is significantly

different from installing earlier Lowrance components without

NMEA 2000 features. You should read all of the installation

instructions before proceeding. You should decide where to

install all components before drilling any holes in your vessel.

Some sonar or GPS units may require a software upgrade to display

NMEA 2000 data correctly and a manual addendum describing how to

operate the sensor. You can download these free and get additional

information on the NMEA 2000



compatible LowranceNET system at

our web site, .www.lowrance.com

All Lowrance NMEA 2000 capable devices are either NMEA 2000

certified or certification is pending. See our web site for the latest

product status information.

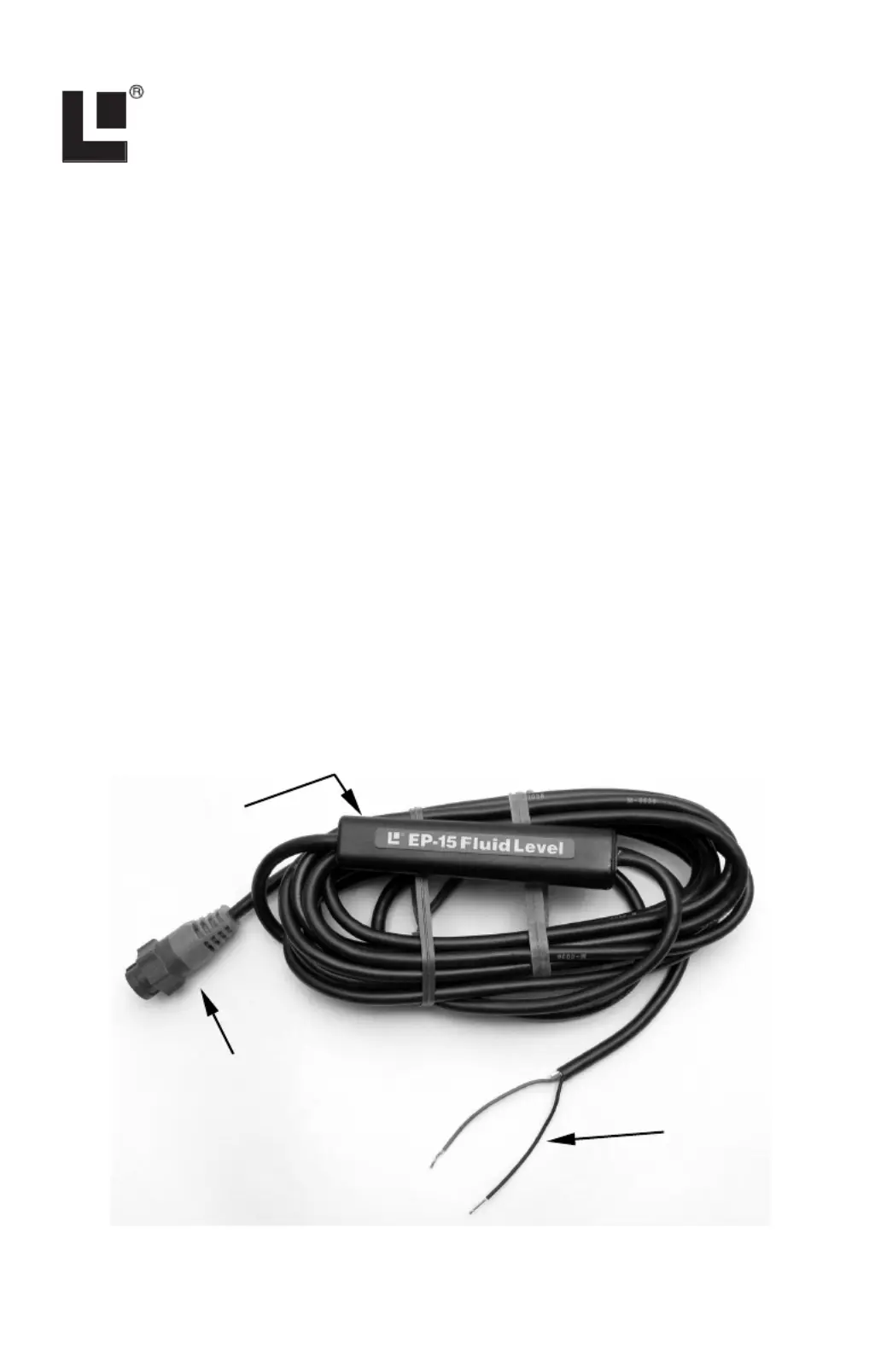

The EP-15 Fluid Level sensor.

Blue female NMEA

2000 connector

Smart

module

Sending unit

connections:

red lead and

black lead.

The EP-15 consists of a smart module with a blue female locking cable

connector on one end and two bare wires on the other. The cable length

from the connector to the smart module is 18 inches (46 cm) and from

the smart module to the bare wires is 10 feet (3 meters).

The smart module converts fluid level information received from the

sending unit (fluid level arm or potentiometer) to the NMEA 2000 data

format. This allows any digital gauge, sonar or GPS unit connected to

the NMEA 2000 network to display the fluid level.

The EP-15 sensor is most commonly used in fuel tanks, but it is

designed to monitor fluid levels in almost any situation, including live

wells, oil reservoirs, fresh water, gray water or black water tanks.

The EP-15 Fluid Level sensor, like the other Lowrance Electronic Probe

(EP) sensors, is designed only for use with a NMEA 2000 Network. It

must be connected to a NMEA 2000 network or it function.will not

Tools and Supplies

Your EP sensor packs with a T connector needed to attach it to a

LowranceNET NMEA 2000 network. If you are connecting to an

existing LowranceNET network, those are all the electronic

components you need. If this is the first sensor you are connecting, you

will also need a one-time purchase of a LowranceNET Node Kit.

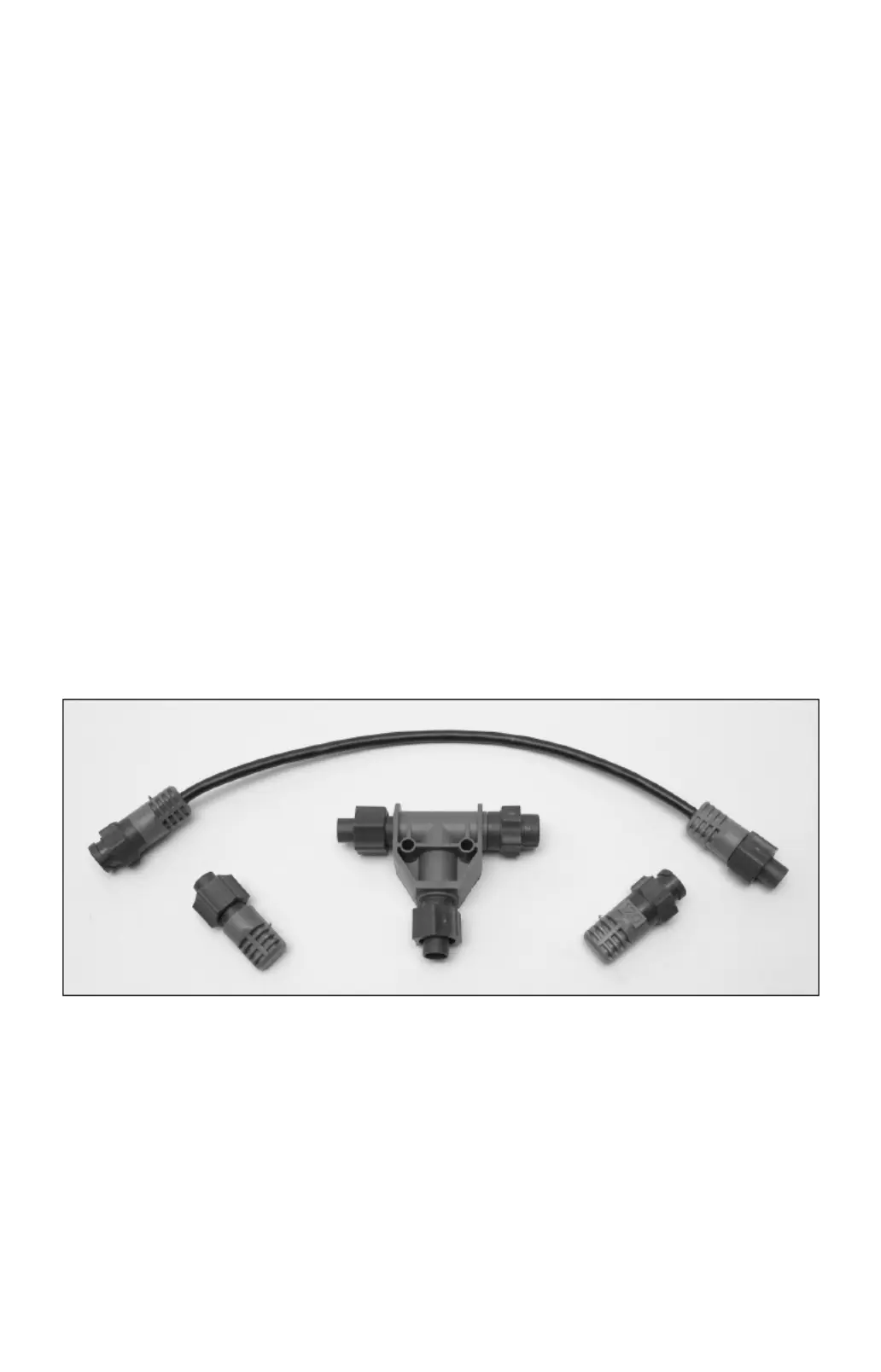

LowranceNET Node Kit for a NMEA 2000 network. Includes a 2 foot (61

cm) extension cable, T connector, 120-ohm male terminator and 120-

ohm female terminator.

For complete instructions on setting up a new NMEA 2000 network or

expanding an existing one refer to the "Setup and Installation of NEMA

2000 Networks, General Information" document (part number 988-

0154-172) included with your EP-15 sensor. If that document is missing

it can be downloaded free from the Lowrance web site.

Sending unit mounting plate configurations vary. When connecting the

EP-15, you will need whatever tools and supplies that will work with your

sending unit's specific design. Recommended tools include: pliers. If you

need to route the smart module or cable connector through a bulkhead,

you will need a drill and a 7/8" (22 mm) drill bit.

Supplies are not included, unless otherwise indicated. The EP-15's two

lead wires are pre-stripped. We recommend using marine-grade crimp-on

connectors that will fit your sending unit's electrical connections.

Installation

This instruction sheet assumes the mounting bracket is connected to

the fluid level arm (or potentiometer) and is already installed in the

tank. The EP-15 wires — red (positive) and black (negative) — will

connect to the sending unit's mounting bracket, on top of the tank.

Tip:

The EP-15 is designed to be the only device receiving signals from

the sending unit. If the EP-15 is replacing a previous gauge, make

sure you remove all the old gauge wires before you begin. If this is a

replacement, note which connection is positive before disconnecting

the old wires.

Caution:

Do NOT connect the sensor's blue locking collar connector to the

network until you have finished connecting the red and black

leads to the sending unit. This reduces the risk of a stray spark

when working around fuel tanks.

Your first step is to attach marine-grade crimp-on connectors to both

the red lead (+) and the black (–) lead.

Attach appropriate connectors to wire leads.
