Sida 1/44
Traditional Sonar and DSI Sonar Installation
This document covers the installation of the transducer and display unit installation, which includes con-
necting the unit to power and installing the unit on the bracket mount.
The rst section of the document covers the installation of a traditional sonar skimmer transducer. DSI
sonar installation is covered in the last section of the manual.
Make sure you read all the installation instructions before drilling holes in your vessel!
Traditional Sonar Transducer Installation
One piece bracket (Recommended Tools and Supplies — not included)
Drill Marine grade above-or-below waterline sealant
1” (25mm) or 5/8” (15mm) drill bit Marine grade epoxy (Shoot-thru-hull install only)
#29 (0.136”) (3mm) drill bit Zip ties (trolling motor mount)
Phillips (Slotted-head) screwdriver TMB-S bracket kit (Skimmer trolling motor mount)
NOTE: This majority of this installation does not apply to the GPS only units since they do
not have a transducer. Turn to pages 8-11 for information on mounting the display unit and
connecting the unit to power.
0.TWEETY INSTALL_SONAR_DSI.indd 1 9/14/2011 11:55:30 PM
2
Traditional Sonar

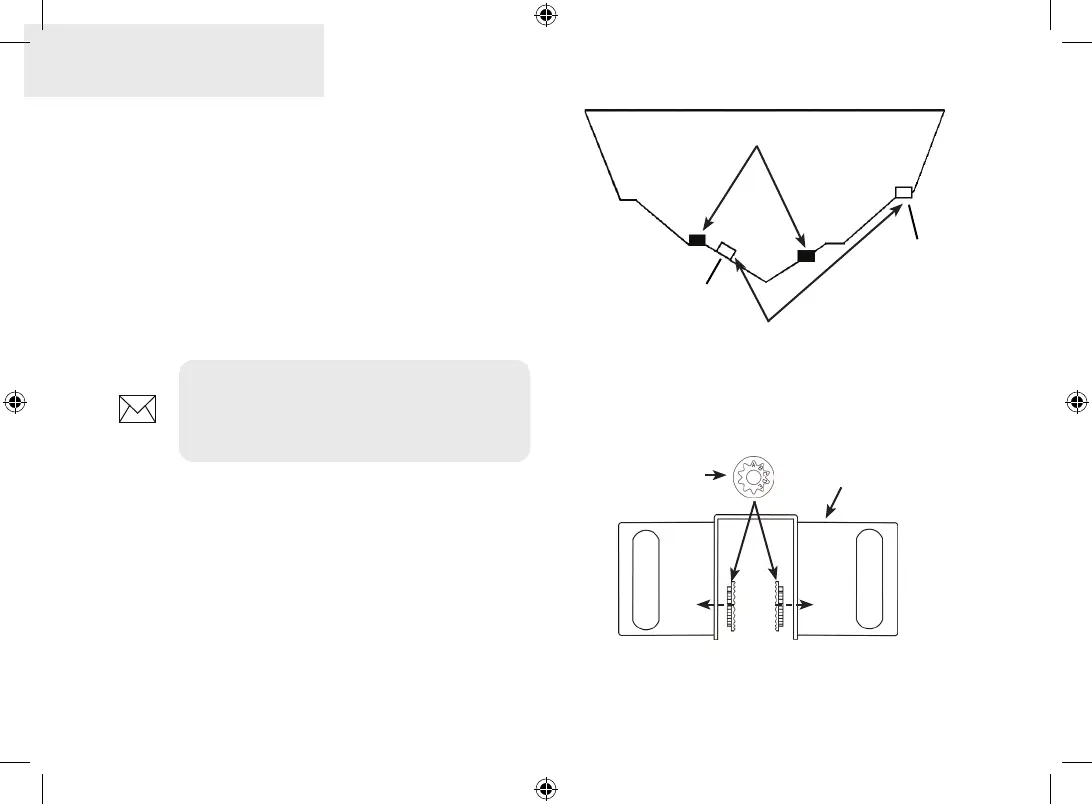

A. Select a transducer location
To function properly the Skimmer transducer must
be in the water at all times and in a location that has
a smooth ow of water when the boat is moving.
If the transducer is not placed in a smooth ow
of water, interference caused by bubbles and
turbulence may show on-screen as random lines or
dots. The unit also could lose bottom signal when
the boat is on plane.
B. Aligning Ratchets on bracket
You will use the ratchets to ensure the trans-
ducer is installed parallel to the ground.
1. Insert the ratchets in the bracket with the
letter “A” aligned with the dot stamped
on the outside of the transducer bracket.
2. Slide the transducer into the bracket
and temporarily slide the bolt through
the transducer bracket.
Good locations
Poor locations
Ratchet
Bracket
NOTE: Mount the transducer at least
one foot away from the engine lower
unit.
Too high
Poor angle
0.TWEETY INSTALL_SONAR_DSI.indd 2 9/14/2011 11:55:30 PM
3
Traditional Sonar

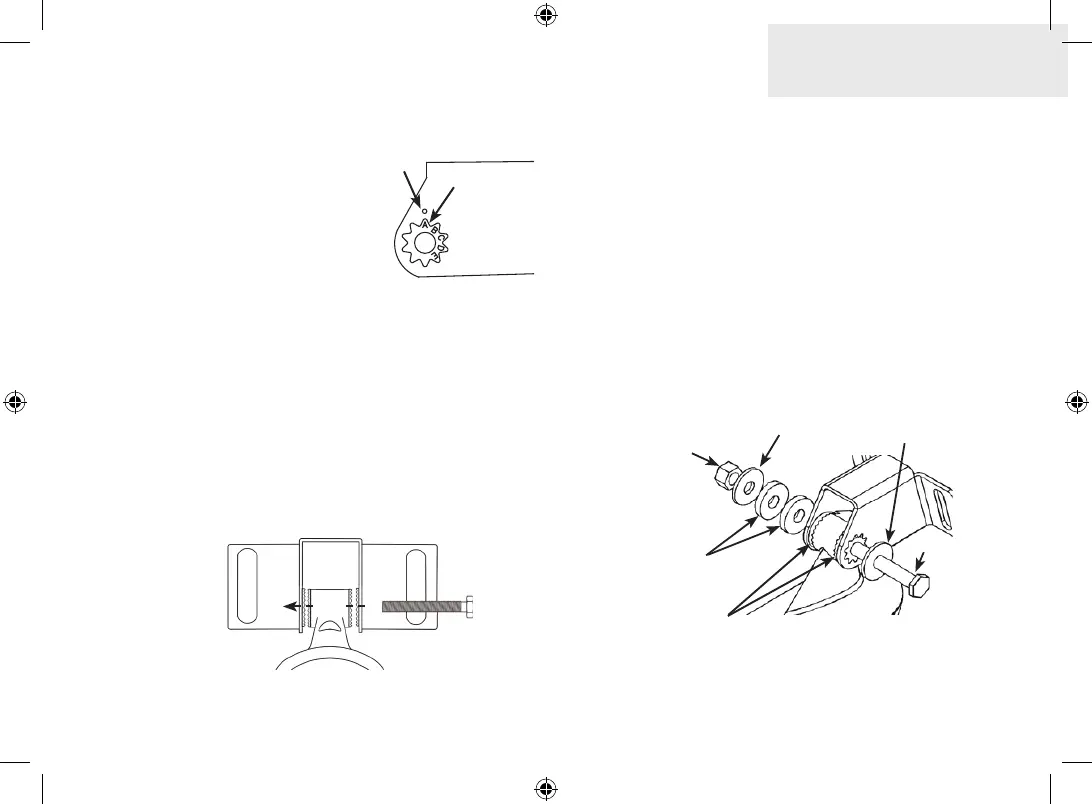

3. Hold the transducer
assembly against
the transom. Look at
the transducer from
the side. If it is par-
allel to the ground,
then the “A” position
is correct.
4. If the transducer can not be adjusted
so its face is parallel to the ground, re-
move the transducer and ratchets from
the bracket. Reinsert the ratchets into
the bracket, this time with the letter “B”
aligned with the dot stamped in the
bracket. Reassemble the transducer
and bracket and place it against the
transom.
5. Check to see if the transducer will ad-
just so its face is parallel with the ground.
Repeat this process until the transducer can
be adjusted so its face is parallel with the
ground.
C. Assembling the bracket
After determining the correct position for the
ratchets, loosely assemble the transducer and
bracket assembly.
Lock nut
Metal washer
Rubber washers
Ratchets
Metal washer
Bolt
Align dot and
letter "A".
dot
A
0.TWEETY INSTALL_SONAR_DSI.indd 3 9/14/2011 11:55:31 PM
