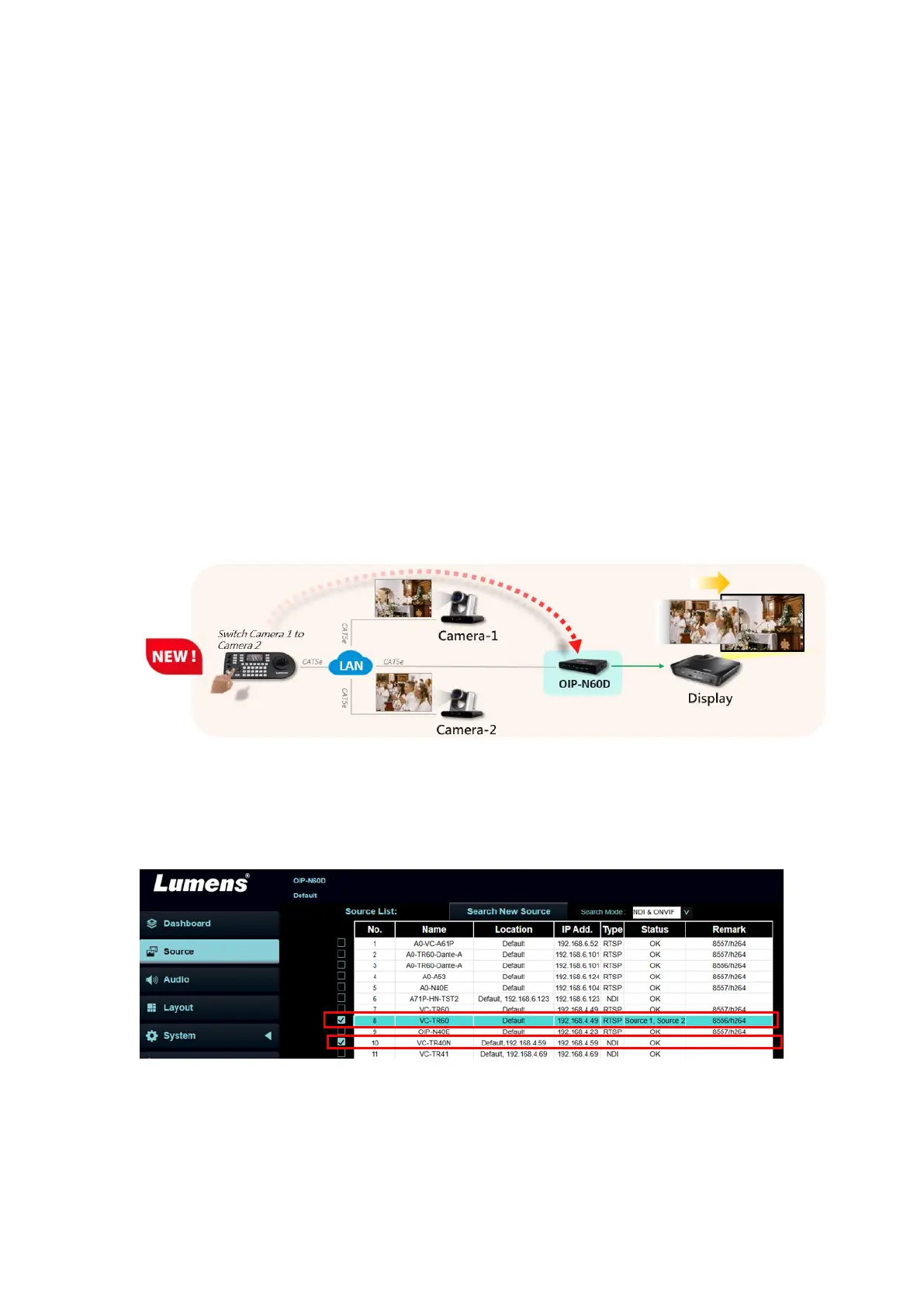

Stream Select – Integration of OIP-N60D and VS-KB21
Introduction
The VS-KB21 is a network camera controller, and the OIP-N60D is a streaming device that
connects network cameras and outputs video via HDMI to a monitor. The integration
feature allows the selected camera image to be automatically displayed on the monitor
when switching sources with the controller.
This guide explains how to switch between different camera sources on the OIP-N60D
using the VS-KB21 camera controller.
※Note：
The VS-KB21 does not support control or preview functions for NDI cameras. To control
or preview NDI cameras, please use the VS-KB21N.
Steps:
1. Connect camera sources to the OIP-N60D.
We will use the 2 cameras (VC-TR40N and VC-TR60) below as an example.
2. Connect Cameras to VS-KB21
Add the same cameras (VC-TR60 and VC-TR40N) to the VS-KB21 camera controller.
Assign any desired camera numbers to the VC-TR60 and VC-TR40N, respectively.
In the example below, the TR40N has been assigned to camera 14, and the TR60 has
been assigned to camera 15.
