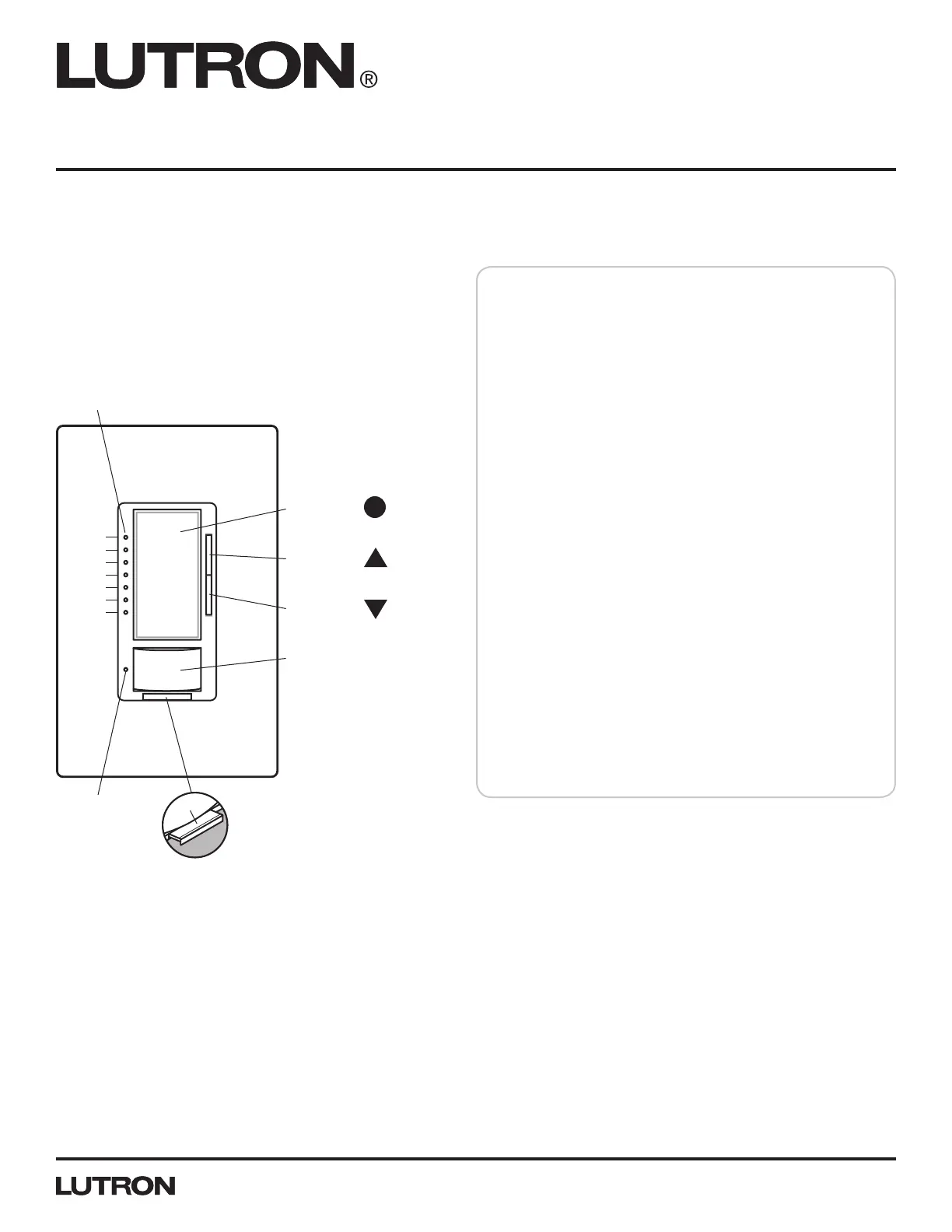

Maestro® Occupancy/ Vacancy Sensor C•L® Dimmer

Additional Programming, Installation, and Troubleshooting Help

Application Note #480

Revision B

February 2015

1Technical Support — 800.523.9466

®

Maestro® Occupancy/ Vacancy Sensor C•L® Dimmer Models

MSCL-OP153M; MSCL-OP153MH; MSCL-VP153M; MSCL-VP153MH

Overview

This document serves as a supplement to the

Maestro® Occupancy/ Vacancy Sensor C•L® Dimmer

instruction sheet.

Maestro® Sensor Dimmer

Notes:

• To replace fixture bulb(s), power may be temporarily

disconnected at the light fixture by pulling the FASSTM OUT

on the dimmer.

• For any procedure other than routine bulb replacement,

power MUST be disconnected at the main electrical panel.

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Sensor Coverage . . . . . . . . . . . . . . . . . . . . . . . 3

Sensor Features in Programming Mode. . . . . . . . . . . . 4

Dimming Features in Advanced Programming Mode . . . . . 6

Programming Mode . . . . . . . . . . . . . . . . . . . . . .7

Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . 8

Auto-ON . . . . . . . . . . . . . . . . . . . . . . . . . .8

Occupied Level. . . . . . . . . . . . . . . . . . . . . . . 8

Advanced Programming Mode . . . . . . . . . . . . . . . . 9

Preset Light Level . . . . . . . . . . . . . . . . . . . . 10

Manual Fade ON Time . . . . . . . . . . . . . . . . . . 12

Manual Fade OFF Time . . . . . . . . . . . . . . . . . 13

Delayed Fade to OFF. . . . . . . . . . . . . . . . . . . 14

Nightlight Mode . . . . . . . . . . . . . . . . . . . . . 15

Low-End Trim . . . . . . . . . . . . . . . . . . . . . . 16

Low-End Trim Shortcut . . . . . . . . . . . . . . . . 16

High-End Trim . . . . . . . . . . . . . . . . . . . . . . 17

Restoring Default Settings. . . . . . . . . . . . . . . . . . 18

Two-Location Applications Using an Existing Switch . . . . 19

Ambient Light Detection (ALD). . . . . . . . . . . . . . . . 21

How it Works. . . . . . . . . . . . . . . . . . . . . . . 21

FAQs. . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 22

Bulb Compatibility. . . . . . . . . . . . . . . . . . . . . . 24

7

6

5

4

3

2

1

Indicator Lights (IL) 1–7

FASSTM

Front Accessible Service Switch

FASSSensor LED

T

Tap Button

Raise Button

Lower Button

Lens
