Coaxial-to-Optical

and

Optical-to-Coaxial

Converter

Ver: CO2 073102

CO2

Introduction

Thank you for your purchase of the M-Audio CO2 Coaxial/

Optical Converter. CO2 is a compact but rugged S/PDIF tool

that simultaneously converts S/PDIF signals from optical-to-

coax, and coax-to-optical. CO2's innovative 2-in 2-out design

allows it to operate as a full-duplex bidirectional converter,

or as a half-duplex converter with "thru" port. This enables

the CO2 to be used as a converter and a repeater.

Operation

Plug one end of the included power adapter into the CO2's

power jack and the other end into a live wall socket or

power strip. The power indicator LED on the side of the CO2

will light. Next, choose the CO2's mode of operation by

setting the slide switch in the side of the CO2.

NOTE: The CO2's mode switch has been intentionally recessed

in order to prevent accidental mode switching. Use a pen or

similar object to set the switch position.

The CO2 has three different modes of operation:

● OPTICAL --> COAX. Data at the optical input is converted

to coaxial output, and also copied "thru" to the optical

output. See Figure 1 for an example. In this example, the

CO2 is a converter and a repeater.

● BI-DIRECTIONAL. Data at the optical input is converted

to coaxial output, and data at the coaxial input is

converted to optical output. Both conversions occur

simultaneously (also known as "full-duplex" operation).

This is the most popular mode. See Figure 2 for an

example. In this example, the CO2 is a bi-directional

converter.

● COAX --> OPTICAL. Data at the coaxial input is

converted to optical output, and also copied "thru" to the

coaxial output. See Figure 3 for an example. In this

example, the CO2 is a converter and a repeater.

After the switch has been set to the desired mode, connect

the external S/PDIF devices.

NOTE: While it is usually desirable to set the CO2's mode switch

before connecting external equipment, the switch setting may

also be changed while external equipment is connected to the

CO2. You might, however, hear small bursts of noise while

switching - this is normal as it takes a small amount of time for

external devices to "lock on" to the S/PDIF data stream after the

switching takes place.

POWER

▲

OPTICAL

▲

COAXIAL

9VDC

COAX➔ OPTICAL

OPTICAL➔ COAX

COAXIAL /OPTICAL CONVERTER

BI-DIRECTIONAL

Device #1

Optical Out

Device #3

(optional)

Optical In

Device #2

Coax In

CO2

AUDIO

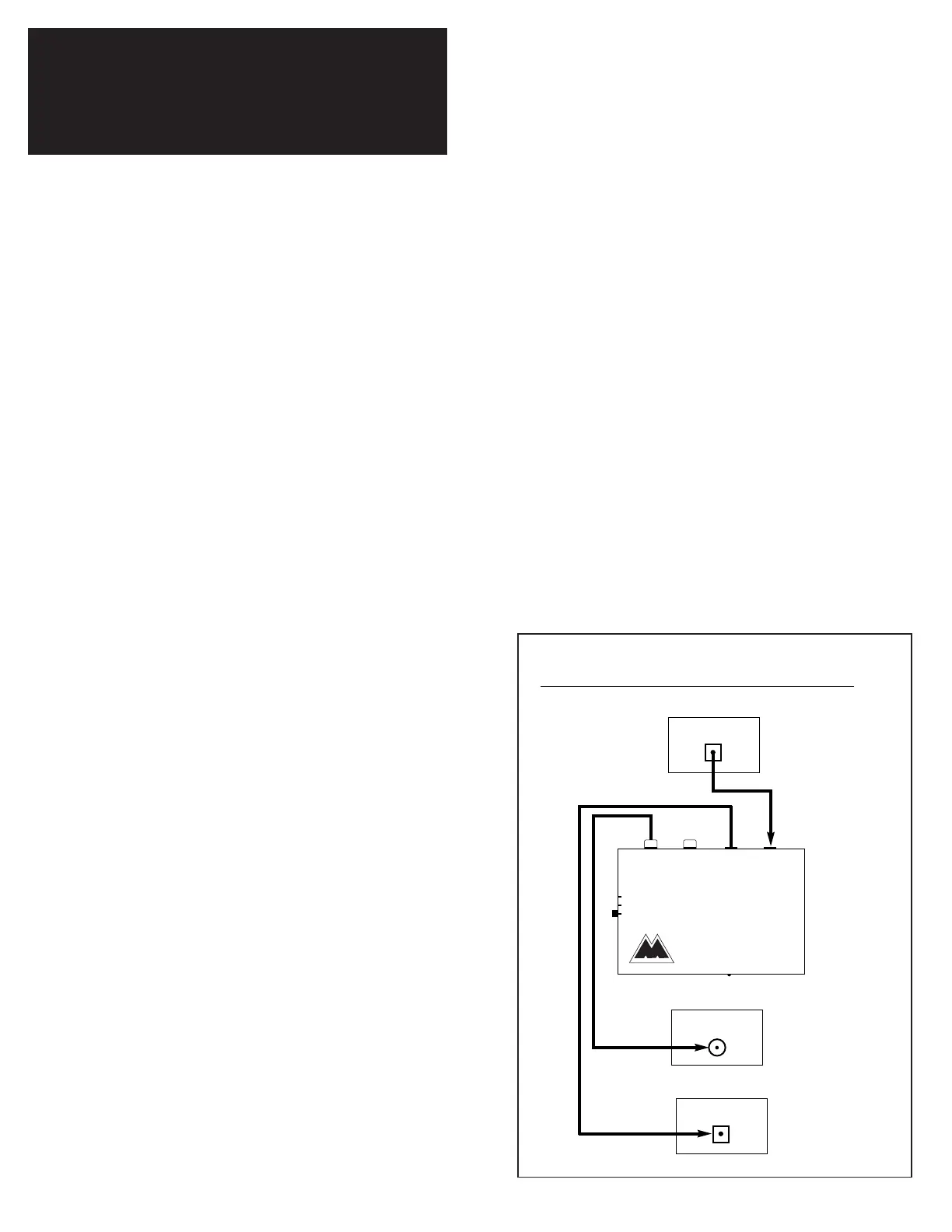

Figure 1 - Optical to Coaxial with Thru

Features

● Converts S/PDIF optical-to-coaxial and

coaxial-to-optical, simultaneously.

● "Thru" ports may be used to extend the length

of coaxial or optical runs.

● Three selectable modes of operation.

● Optical (Toslink) and RCA (coaxial) inputs

and outputs.

● Power indicator LED.

Specifications

● Inputs: 1 Toslink optical and 1 RCA coaxial jack.

● Outputs: 1 Toslink optical and 1 RCA coaxial

jack (transformer-isolated).

● Power supply: 9 Volts DC, center pin positive,

300 milliamps.

● Dimensions: 3.5" x 2.3" x 1.2".

● Approximate weight: 7 ounces.

For best results, when using the CO2 RCA jacks, use a

good-quality S/PDIF cable. The cable should be coaxial

with 75-ohm impedance. Vendors sell cables specifically

for this use, but a good-quality video dubbing cable also

has the proper characteristics.
