Angle Cutter INSTRUCTION MANUAL

Vinkelkapmaskin BRUKSANVISNING

Vinkelkutter BRUKSANVISNING

FIN

Kulmaleikkuri KÄYTTÖOHJE

Leņķa frēze LIETOŠANAS INSTRUKCIJA

Kampinis pjaustytuvas NAUDOJIMO INSTRUKCIJA

Nurgalõikur KASUTUSJUHEND

RUS

Угловая отрезная машина

РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

4112HS

4112S

4114S

1 004013

2 004014

3 004015

4 004016

5 004017

6 004019

7 001146

8 004020

9 004018

ENGLISH (Original instructions)

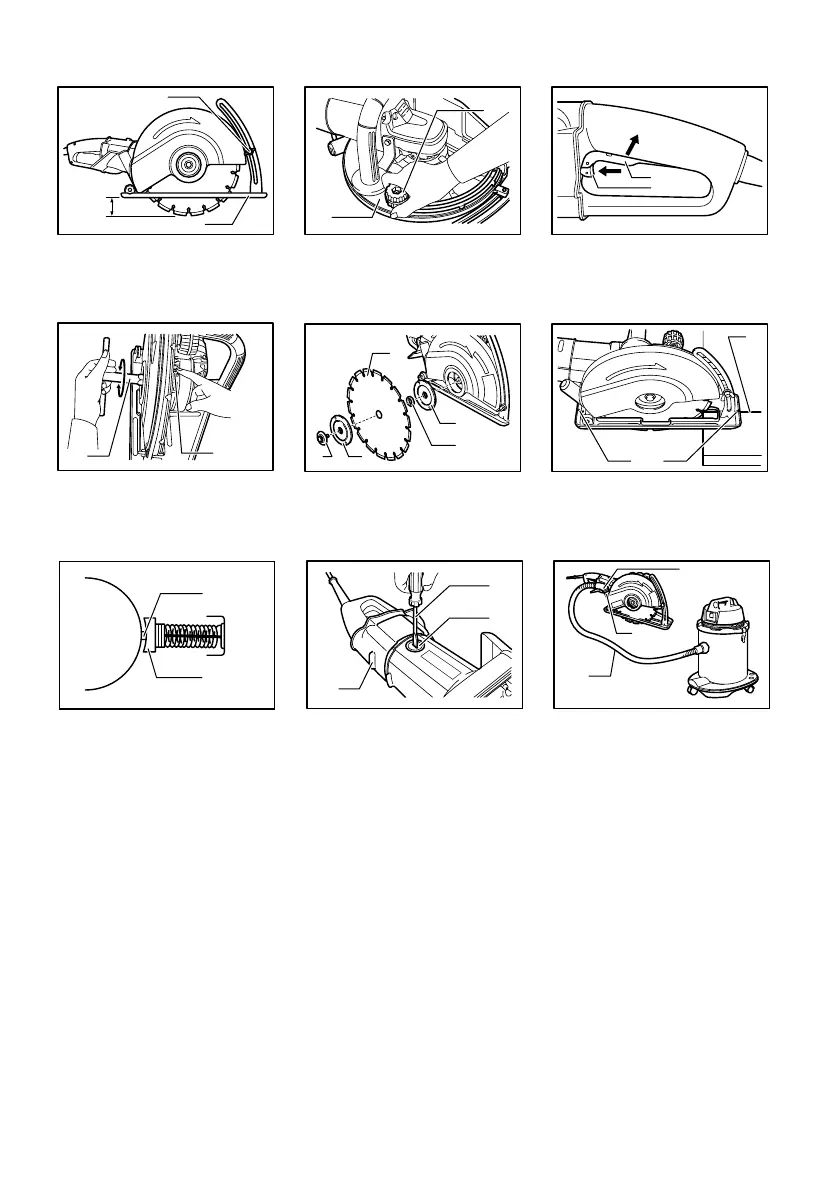

Explanation of general view

1-1. Wing bolt

1-2. Base

1-3. Cutting depth

2-1. Clamping nut

2-2. Wheel guard

3-1. Switch trigger

3-2. Lock lever

4-1. Shaft lock

4-2. Socket wrench

5-1. Flange

5-2. Ring

5-3. Wheel

5-4. Flange

5-5. Hex bolt

6-1. Notch

6-2. Cutting line

7-1. Commutator

7-2. Insulating tip

7-3. Carbon brush

8-1. Dust cover

8-2. Screwdriver

8-3. Brush holder cap

9-1. Dust nozzle

9-2. Elbow joint

9-3. Hose

SPECIFICATIONS

Model 4112S 4112HS 4114S

Wheel diameter 305 mm 355 mm

Max. wheel thickness 3.5 mm 3.5 mm 3.5 mm

Max cutting capacity 100 mm 125 mm

Rated speed (n) / No load speed (n

) 3,800 (min

-1

) 5,000 (min

-1

) 3,800 (min

-1

)

Overall length 648 mm 675 mm

Net weight 11.4 kg 12.8 kg

Safety class /II

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.

• Specifications may differ from country to country.

• Weight according to EPTA-Procedure 01/2003

ENE026-1

Intended use

The tool is intended for cutting tracks in concrete walls

or cutting in ferrous materials or concrete drainage

channels with a diamond wheel but without using water.

ENF002-2

Power supply

The tool should be connected only to a power supply of

the same voltage as indicated on the nameplate, and

can only be operated on single-phase AC supply. They

are double-insulated and can, therefore, also be used

from sockets without earth wire.

ENG905-1

Noise

The typical A-weighted noise level determined

according to EN60745:

Model 4112S, 4112HS

Sound pressure level (L

) : 102 dB (A)

Sound power level (L

) : 113 dB (A)

Uncertainty (K) : 3 dB (A)

Model 4114S

Sound pressure level (L

) : 103 dB (A)

Sound power level (L

) : 114 dB (A)

Uncertainty (K) : 3 dB (A)

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum)

determined according to EN60745:

Model 4112HS

Work mode : concrete cutting

Vibration emission (a

) : 3.5 m/s

Uncertainty (K) : 1.5 m/s

Model 4112S, 4114S

Work mode : concrete cutting

Vibration emission (a

) : 4.0 m/s

Uncertainty (K) : 1.5 m/s

ENG901-1

•

The declared vibration emission value has been

measured in accordance with the standard test

method and may be used for comparing one tool

with another.

• The declared vibration emission value may also be

used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the

power tool can differ from the declared emission

value depending on the ways in which the tool is

used.

• Be sure to identify safety measures to protect the

operator that are based on an estimation of

exposure in the actual conditions of use (taking
