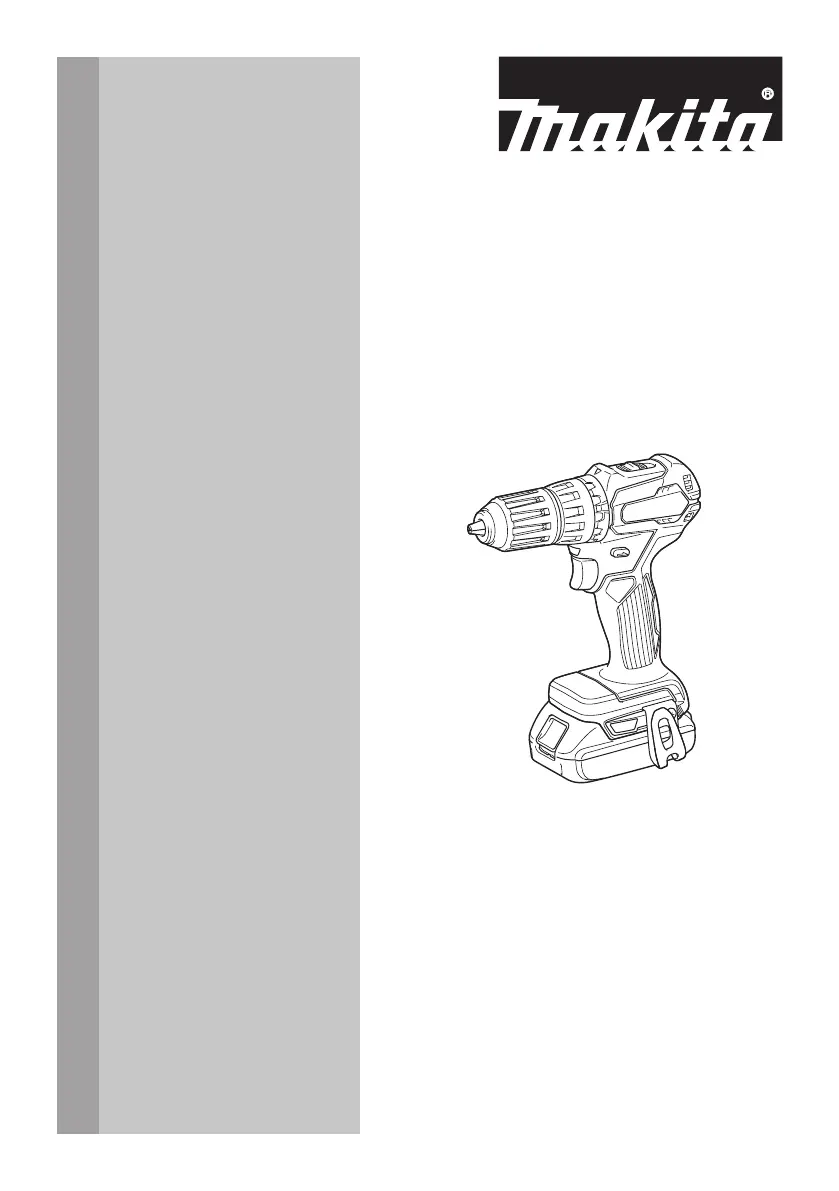

INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
Cordless Hammer Driver Drill
Rotomartillo Atornillador
Inalámbrico
XPH11
IMPORTANT: Read Before Using.
IMPORTANTE: Lea antes de usar.
2 ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: XPH11
Drilling capacities 13 mm (1/2")Masonry
Steel 13 mm (1/2")
Wood 36 mm (1/7/16")
Fastening capacities Wood screw 6 mm x 75 mm (1/4" x 2-15/16")
Machine screw M6 (1/4")
No load speed (RPM) High (2) 0 - 1,700 /min
Low (1) 0 - 500 /min
Blows per minute High (2) 0 - 25,500 /min
Low (1) 0 - 7,500 /min
Overall length 176 mm (6-15/16")
Rated voltage D.C. 18 V
Standard battery cartridge BL1815N, BL1820B BL1830, BL1830B, BL1840B,
BL1850B, BL1860B
Net weight 1.3 kg (2.9 lbs) 1.6 kg (3.5 lbs)
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Weight,withbatterycartridge,accordingtoEPTA-Procedure01/2003
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm"powertool"inthewarningsreferstoyour
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators.Thereisanincreasedriskofelec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit inter-
rupter (GFCI) protected supply. Use of a GFCI
reduces the risk of electric shock.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication.Amomentofinattentionwhileoperating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3 ENGLISH
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.Awrenchorakeyleft
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times.Thisenablesbettercontrol
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.Looseclothes,jewel-
lery or long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application.Thecorrect
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off.Anypowertoolthatcannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer.Achargerthatissuitablefor
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts.Thiswillensurethatthesafetyofthepower
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Cordless hammer driver drill safety
warnings
1. Wear ear protectors when impact drilling.
Exposuretonoisecancausehearingloss.
2. Use auxiliary handle(s), if supplied with the
tool.Lossofcontrolcancausepersonalinjury.
3. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the cutting accessory may contact hidden
wiring. Cutting accessory contacting a "live"
wire may make exposed metal parts of the power
tool "live" and could give the operator an electric
shock.
4. Hold power tool by insulated gripping sur-
faces, when performing an operation where
the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
5. Always be sure you have a rm footing. Be
sure no one is below when using the tool in
high locations.
6. Hold the tool rmly.
7. Keep hands away from rotating parts.
8. Do not leave the tool running. Operate the tool
only when hand-held.
9. Do not touch the bit or the workpiece immedi-
ately after operation; they may be extremely
hot and could burn your skin.
10. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
4 ENGLISH
Symbols
Thefollowingsshowthesymbolsusedfortool.
volts
direct current
no load speed
revolutions or reciprocation per minute
number of blow
Important safety instructions for
battery cartridge
1.
Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current ow, over-
heating, possible burns and even a breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consulting an
expert for hazardous material is required. Please also
observe possibly more detailed national regulations.
Tapeormaskoffopencontactsandpackupthebatteryin
such a manner that it cannot move around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipoffyourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
1
2
3
►1. 2. 3. Red indicator Button Battery cartridge
5 ENGLISH
Toremovethebatterycartridge,slideitfromthetool
while sliding the button on the front of the cartridge.
Toinstallthebatterycartridge,alignthetongueonthe
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery
capacity
Only for battery cartridges with "B" at the end of the
model number
1
2
►1. 2. Indicator lamps Check button
Press the check button on the battery cartridge to indi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for few seconds.
Indicator lamps Remaining
capacity
Lighted Off
75% to 100%
50% to 75%
25% to 50%
0% to 25%
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsystem.This
system automatically cuts off power to the motor to extend tool
andbatterylife.Thetoolwillautomaticallystopduringoperationif
the tool or battery is placed under one of the following conditions:
Overload protection
When the tool/battery is operated in a manner that
causes it to draw an abnormally high current, the tool
automatically stops without any indication. In this sit-
uation, turn the tool off and stop the application that
causedthetooltobecomeoverloaded.Thenturnthe
tool on to restart.
Overheat protection
When the tool/battery is overheated, the tool stops
automatically. In this situation, let the tool/battery cool
before turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the
tool and charge the battery.
NOTE: Overheat protection (for battery) will work only
with batteries with star marking.
1
►1. Star marking
Switch action
1
►1. Switch trigger
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
Tostartthetool,simplypulltheswitchtrigger.Tool
speed is increased by increasing pressure on the switch
trigger. Release the switch trigger to stop.
6 ENGLISH
NOTE:Thetoolautomaticallystopsifyoukeeppull-
ing the switch trigger for about 6 minutes.
Electric brake
Thistoolisequippedwithanelectricbrake.Ifthetool
consistently fails to quickly stop after the switch trigger
is released, have the tool serviced at a Makita service
center.
Lighting up the front lamp
1
►1. Lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pulltheswitchtriggertolightupthelamp.Thelamp
keeps on lighting while the switch trigger is being pulled.
Thelampgoesoutapproximately10secondsafter
releasing the switch trigger.
NOTE: When the tool is overheated, the tool stops
automaticallyandthelampstartsashing.Inthis
case,releasetheswitchtrigger.Thelampturnsoffin
one minute.
NOTE: Use a dry cloth to wipe the dirt off the lens of
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
Reversing switch action
1
AB
►1. Reversing switch lever
CAUTION: Always check the direction of
rotation before operation.
CAUTION: Use the reversing switch only after
the tool comes to a complete stop. Changing the
direction of rotation before the tool stops may dam-
age the tool.
CAUTION: When not operating the tool,
always set the reversing switch lever to the neu-
tral position.
Thistoolhasareversingswitchtochangethedirection
of rotation. Depress the reversing switch lever from the
AsideforclockwiserotationorfromtheBsideforcoun-
terclockwise rotation.
When the reversing switch lever is in the neutral posi-
tion, the switch trigger cannot be pulled.
Speed change
1
►1. Speed change lever
CAUTION: Always set the speed change lever
fully to the correct position. If you operate the
tool with the speed change lever positioned halfway
between the "1" side and "2" side, the tool may be
damaged.
CAUTION: Do not use the speed change lever
while the tool is running.Thetoolmaybedamaged.
Displayed
Number
Speed Torque Applicable
operation
1 -Low High Heavy load
ing operation
2 High Low Light loading
operation
Tochangethespeed,switchoffthetoolrst.Push
the speed change lever to display "2" for high speed
or "1" for low speed but high torque. Be sure that the
speed change lever is set to the correct position before
operation.
If the tool speed is coming down extremely during the
operation with display "2", push the lever to display "1"
and restart the operation.
7 ENGLISH
Selecting the action mode
CAUTION: Always set the ring correctly to
your desired mode mark. If you operate the tool
with the ring positioned halfway between the
mode marks, the tool may be damaged.
CAUTION: When you change the position
from " " to other modes, it may be a little dif-
culty to slide the action mode changing ring. In
this case, switch on and run the tool for a second
at the " " position, then stop the tool and slide
the ring to your desired position.
1
2
4
3
►1.Actionmodechangingring2.Adjustingring
3. 4. Graduation Arrow
Thistoolhasthreeactionmodes.
• Drilling mode (rotation only)
• Hammer drilling mode (rotation with
hammering)
• Screwdriving mode (rotation with clutch)
Selectonemodesuitableforyourwork.Turnthe
action mode changing ring and align the mark that you
selected with the arrow on the tool body.
Adjusting the fastening torque
1
2
4
3
►1.Actionmodechangingring2.Adjustingring
3. 4. Graduation Arrow
Thefasteningtorquecanbeadjustedin20levelsbyturningtheadjustingring.Alignthegraduationswiththearrow
on the tool body. You can get the minimum fastening torque at 1 and maximum torque at 20.
Before actual operation, drive a trial screw into your material or a piece of duplicate material to determine which
torquelevelisrequiredforaparticularapplication.Thefollowingshowstheroughguideoftherelationshipbetween
the screw size and graduation.
Graduation 10 12 13 14 15 16 17 18 19 201 2 3 4 5 6 7 8 9 11
Machine screw M4 M5 M6
Wood
screw
Soft wood
(e.g. pine)
– –ɸ3.5 x 22 ɸ4.1x 38
Hard wood
(e.g. lauan)
– –ɸ3.5 x 22 ɸ4.1x 38
8 ENGLISH
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Installing or removing driver bit/
drill bit
Optional accessory
13
2
►1. 2. 3. Sleeve Close Open
Turnthesleevecounterclockwisetoopenthechuck
jaws.Placethedriverbit/drillbitinthechuckasfar
asitwillgo.Turnthesleeveclockwisetotightenthe
chuck.Toremovethedriverbit/drillbit,turnthesleeve
counterclockwise.
Installing hook
1
3
2
►1. 2. 3. Groove Hook Screw
Thehookisconvenientfortemporarilyhangingthetool.
Thiscanbeinstalledoneithersideofthetool.Toinstall
the hook, insert it into a groove in the tool housing on
eithersideandthensecureitwithascrew.Toremove,
loosen the screw and then take it out.
Installing driver bit holder
Optional accessory
1
2
►1. 2. Driver bit holder Driver bit
Fit the driver bit holder into the protrusion at the tool foot
on either right or left side and secure it with a screw.
When not using the driver bit, keep it in the driver bit
holders. Driver bits 45 mm-long (1-3/4") can be kept
there.
OPERATION
CAUTION: Always insert the battery cartridge
all the way until it locks in place. If you can see the
red indicator on the upper side of the button, it is not
locked completely. Insert it fully until the red indicator
cannot be seen. If not, it may accidentally fall out of
thetool,causinginjurytoyouorsomeonearound
you.
CAUTION: When the speed comes down
extremely, reduce the load or stop the tool to
avoid the tool damage.
Holdthetoolrmlywithonehandonthegripandthe
other hand on the bottom of the battery cartridge to
control the twisting action.
Produktspecifikationer
| Varumärke: | Makita |
| Kategori: | Borrmaskin |
| Modell: | CX205RB |
Behöver du hjälp?
Om du behöver hjälp med Makita CX205RB ställ en fråga nedan och andra användare kommer att svara dig
Borrmaskin Makita Manualer
1 April 2025
28 Mars 2025
28 Mars 2025
28 Mars 2025
28 Mars 2025
28 Mars 2025
27 Mars 2025
27 Mars 2025
8 Januari 2025
23 December 2024
Borrmaskin Manualer
- Borrmaskin Bosch
- Borrmaskin AEG
- Borrmaskin IKEA
- Borrmaskin DeWalt
- Borrmaskin Silverline
- Borrmaskin Ferm
- Borrmaskin Workzone
- Borrmaskin Ozito
- Borrmaskin Gude
- Borrmaskin Tryton
- Borrmaskin Hitachi
- Borrmaskin Black And Decker
- Borrmaskin Vonroc
- Borrmaskin Maestro
- Borrmaskin Stanley
- Borrmaskin Skil
- Borrmaskin Hyundai
- Borrmaskin Yato
- Borrmaskin Hilti
- Borrmaskin Ryobi
- Borrmaskin Festool
- Borrmaskin Metabo
- Borrmaskin Parkside
- Borrmaskin Worx
- Borrmaskin Meec Tools
- Borrmaskin Milwaukee
- Borrmaskin Hikoki
- Borrmaskin Sun Joe
- Borrmaskin Dremel
- Borrmaskin Tacklife
- Borrmaskin Hazet
- Borrmaskin Einhell
- Borrmaskin Baumr-AG
- Borrmaskin Velleman
- Borrmaskin Ferrex
- Borrmaskin Luxor
- Borrmaskin Maktec
- Borrmaskin Steren
- Borrmaskin Bort
- Borrmaskin Tanaka
- Borrmaskin Craftsman
- Borrmaskin Malmbergs
- Borrmaskin Power Craft
- Borrmaskin Powerplus
- Borrmaskin Porter-Cable
- Borrmaskin Cotech
- Borrmaskin Genesis
- Borrmaskin Trotec
- Borrmaskin Eibenstock
- Borrmaskin Topcraft
- Borrmaskin Festo
- Borrmaskin Scheppach
- Borrmaskin Sparky
- Borrmaskin Gamma
- Borrmaskin Clas Ohlson
- Borrmaskin Powerfix
- Borrmaskin Carat
- Borrmaskin Delta
- Borrmaskin Kress
- Borrmaskin Stihl
- Borrmaskin Bavaria
- Borrmaskin Flex
- Borrmaskin Duro
- Borrmaskin Kawasaki
- Borrmaskin Berner
- Borrmaskin Zipper
- Borrmaskin Mafell
- Borrmaskin Fieldmann
- Borrmaskin Basetech
- Borrmaskin Varo
- Borrmaskin Defort
- Borrmaskin Laserliner
- Borrmaskin Truper
- Borrmaskin Kinzo
- Borrmaskin Bruder Mannesmann
- Borrmaskin Cocraft
- Borrmaskin Powerblade
- Borrmaskin Cecotec
- Borrmaskin Herkules
- Borrmaskin Meister Craft
- Borrmaskin Toolcraft
- Borrmaskin RIDGID
- Borrmaskin Rupes
- Borrmaskin Batavia
- Borrmaskin Proxxon
- Borrmaskin Protool
- Borrmaskin Westfalia
- Borrmaskin Economy
- Borrmaskin Holzmann
- Borrmaskin Fein
- Borrmaskin Huvema
- Borrmaskin Black Decker
- Borrmaskin Stomer
- Borrmaskin Fe Powertools
- Borrmaskin Elu
- Borrmaskin Blucave
- Borrmaskin Max Bahr
- Borrmaskin Ecomac
- Borrmaskin Lux Tools
- Borrmaskin Goon
- Borrmaskin Wolfcraft
- Borrmaskin Dedra
- Borrmaskin Kreg
- Borrmaskin Sthor
- Borrmaskin Verto
- Borrmaskin Wurth
- Borrmaskin Spit
- Borrmaskin Global
- Borrmaskin King Craft
- Borrmaskin Rok
- Borrmaskin Profitech
- Borrmaskin Graphite
- Borrmaskin Narex
- Borrmaskin Rikon
- Borrmaskin Duro Pro
- Borrmaskin Baier
- Borrmaskin Alpha Tools
- Borrmaskin RUKO
- Borrmaskin Toolson
- Borrmaskin Felisatti
- Borrmaskin MSW
- Borrmaskin Ribimex
- Borrmaskin Robust
- Borrmaskin Einhell Bavaria
- Borrmaskin Ergotools Pattfield
- Borrmaskin MyTool
- Borrmaskin McKenzie
- Borrmaskin Proviel
- Borrmaskin G-Technology
- Borrmaskin Rodcraft
- Borrmaskin Bavaria By Einhell
- Borrmaskin Handwerk
- Borrmaskin Stalco
- Borrmaskin Total
- Borrmaskin Netter Vibration
- Borrmaskin Kraftronic
Nyaste Borrmaskin Manualer
2 April 2025
2 April 2025
2 April 2025
2 April 2025
1 April 2025
30 Mars 2025
29 Mars 2025
29 Mars 2025
29 Mars 2025
28 Mars 2025
