Sida 1/60

MH_178617_UM_0418_REV_5.01

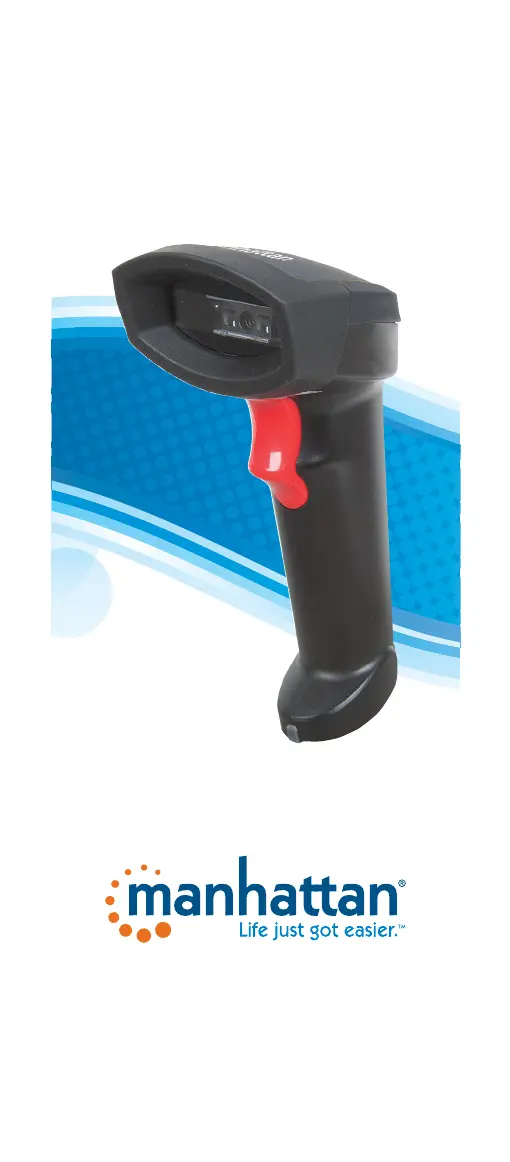

Wireless Linear CCD

Barcode Scanner

Programming Guide

Model 178617

manhattanproducts.com

Wireless Linear CCD Barcode Scanner

Before You Begin

Read through this manual carefully before using the

product and operate it according to the manual. Keep

it in an easily accessible location for future reference.

Do not disassemble the device or remove the

seal label from the device. Doing so will void the

Manhattan product warranty.

All pictures in this manual are for reference only. The

actual product may dier. Manhattan reserves the

right to make changes to any software or hardware

to improve reliability, function, or design at any time

without notice. The information contained herein is

subject to change without prior notice.

No user, corporation or individual, shall duplicate,

in whole or in part, distribute, modify, decompile,

disassemble, decode, reverse engineer, rent, transfer

or sublicense such software without prior written

consent from the copyright holders.

This manual is copyrighted. No part of this

publication may be reproduced, distributed or

used in any form without written permission from

Manhattan Products.

User Manual

TABLE OF CONTENTS

Chapter 1: Getting Started .................................................... 4

Barcode Overview and Scanning Procedure ........................... 4

Scanner Parameters .................................................................. 4

Chapter 2: Scanner Conﬁguration Overview ........................ 5

Flow Chart and Instructions...................................................... 5

Factory Defaults & Custom Settings ........................................ 5

Chapter 3: Getting Connected .............................................. 6

Set up the Cradle ....................................................................... 6

Pair the Cradle to the Scanner ................................................. 6

Pair the Scanner to Another Device ......................................... 7

Chapter 4: Scanner Conﬁguration......................................... 8

Main Settings ............................................................................. 8

Chapter 5: Interface and Data Retention .............................. 9

Interface Selection .................................................................... 9

Inventory Function .................................................................... 9

Out of Range Function .............................................................. 9

Reading Selection Mode ......................................................... 10

Chapter 6: Communication Parameters .............................. 11

Serial Mode Parameters .......................................................... 11

Keyboard Wedge Mode Parameters .......................................13

Output Characters Parameters ...............................................15

Wand Emulation Mode Parameters ....................................... 16

Chapter 7: Barcode Types .................................................... 17

Symbologies Selection ............................................................ 17

UPC/EAN/Jan Parameters........................................................20

Code 39 Parameters ................................................................23

Code 128 Parameters ..............................................................24

Interleave 25 Parameters ........................................................ 26

Industrial Parameters ..............................................................27

Matrix 25 Parameters .............................................................. 29

Codabar/NW7 Parameters ......................................................30

Code 93 Parameters ................................................................31

Code 11 Parameters ................................................................32

MSI / Plessey Code Parameters ...............................................34

Code 2 of 6 Parameters ...........................................................35

Telepen Parameters .................................................................36

GS1 Data bar ............................................................................37

Chapter 8: Miscellaneous Parameters ................................. 39

Language Selection ................................................................. 39

Barcode ID ................................................................................ 40

Reading Level ...........................................................................43

Accuracy ................................................................................... 43

Buzzer Tone .............................................................................. 43

Indicator LED ON/OFF (SV700 only) .......................................43

Continuous-Reading-Mode Sensitivity .................................44

Notebook Function..................................................................44

Reverse Output Characters .....................................................44

Setup Insertion ........................................................................ 47

Appendix A ......................................................................... 51

Decimal Value Table................................................................. 51

Appendix B.......................................................................... 52

ASCII Table ................................................................................ 52

Appendix C .......................................................................... 56

Function Key Table .................................................................. 56

Main Settings ........................................................................... 57

Produktspecifikationer

Varumärke:	Manhattan
Kategori:	Streckkodsläsare
Modell:	178617
Vikt:	160 g
Bredd:	70 mm
Djup:	180 mm
Höjd:	70 mm
Laddningstid:	5 h
Batterikapacitet:	2600 mAh
Bluetooth-version:	2.1+EDR
Certifiering:	FCC\nCE
Bildsensortyp:	CCD
Modell:	Handhållen steckkodsläsare
Våglängd:	632 nm
Standardgränssnitt:	Bluetooth, Keyboard wedge, RS-232, USB
Batteriteknik:	Litium-Ion (Li-Ion)
Ljusnivåer (direkt solljus):	0 - 100000 lx
Arbetsavstånd:	500 mm
Laddningsenhet:	Ja
Produktens färg:	Svart
Basvikt:	150 g
Temperatur vid drift:	0 - 50 ° C
Temperaturintervall (förvaring):	-20 - 60 ° C
Intervall för relativ operativ luftfuktighet:	20 - 95 %
Hållbarhetscertifiering:	RoHS
Internationellt skydd (IP) kod:	IP42
Material, hölje:	Acrylonitrile butadiene styrene (ABS), Rubber
Anslutningsteknologi:	Kabel & Trådlös
Strömkälla av typen:	Batteri
Skanningstyp:	1D
Batterispänning:	3.7 V
Harmonized System (HS)-kod:	84716070
Strömförbrukning:	70 mA
Täckning, trådlös router:	80 m
1D -streckkoder (linjära) som stöds:	Codabar, Code 11, Code 32, Code 39, Code 93, GS1-128 (UCC/EAN-128), JAN
2D-streckkoder (matriser och staplade) som stöds:	Stöds inte
Läs hastighet (max):	500 läsningar/s
Basdimensioner:	110 x 80 x 130 mm
Skannerns upplösning:	0.1 mm
Maximal skanningsstorlek bredd:	500 mm
