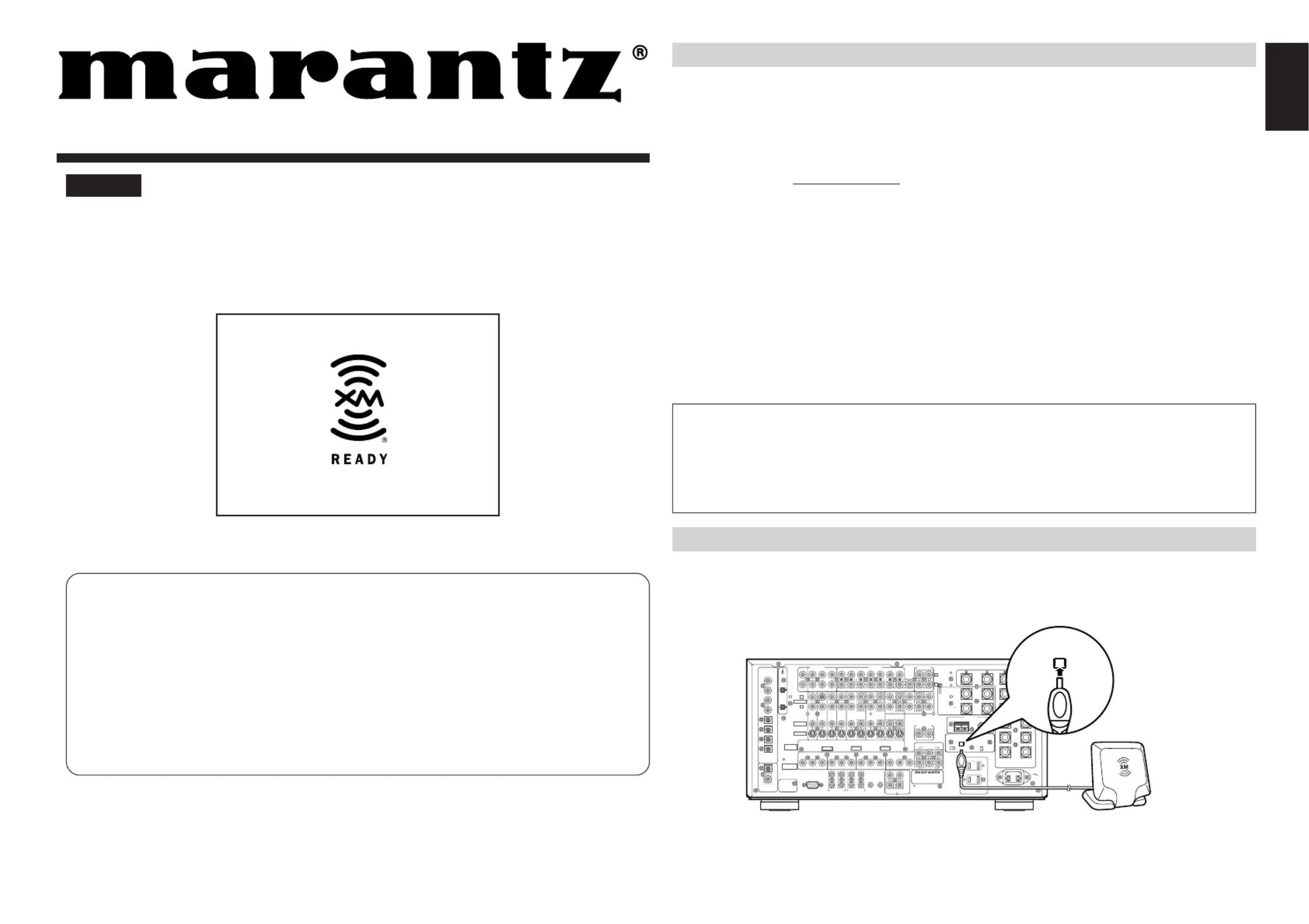

ENGLISH
XM Satellite Radio Ready
The XM name and related logos are registered
trademarks of XM Satellite Radio Inc.
XM RADIO OVERVIEW
SR9600 is the XM Ready® receiver. You can receive XM Satellite Radio® by connecting to the XM
Connect-and-Play
TM
(sold separately) and subscribing the XM service.
Introducing XM Satellite Radio
There’s a world of audio listening pleasure beyond AM and FM. XM Satellite Radio. Select from over 150
channels of music, news, sports, comedy, talk, and entertainment. Coast-to-coast coverage. Digital
quality sound. With all music channels 100% commercial free.
Questions?: Visit
www.xmradio.com.
How to Subscribe
Listeners can subscribe by visiting XM on the Web at www.xmradio.com or by calling XM’s Listener Care
at (800) 967-2346. Customers should have their Radio ID and credit card ready. The Radio ID can be
found by selecting channel 0 on the radio.
(See the “CHECKING THE XM SIGNAL STRENGTH AND RADIO ID”)
A Warning Against Reverse Engineering
It is prohibited to copy, decompile, disassemble, reverse engineer, or manipulate any technology
incorporated in receivers compatible with the XM Satellite Radio system.
Furthermore, the AMBE® voice compression software included in this product is protected by intellectual
property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The
user of this or any other software contained in an XM Radio is explicitly prohibited from attempting to copy,
decompile, reverse engineer, or disassemble the object code, or in any other way convert the object code
into human-readable form. The software is licensed solely for use within this product.
Hardware and required basic monthly subscription sold separately. Premium Channel available at
additional monthly cost. Installation costs and other fees and taxes, including a one-time activation
fee may apply. Subscription fee is consumer only.
All fees and programming subject to change. Subscriptions subject to Customer Agreement available
at xmradio.com.
Only available in the 48 contiguous United States. ©2005 XM Satellite Radio Inc. All rights reserved.
All other trademarks are the property of their respective owners.
CONNECTING THE XM CONNECT-AND-PLAY ANTENNA
• Plug the XM Connect-and-Play antenna into XM terminal on the rear panel.
• Position the XM Connect-and-Play antenna near a south-facing window to receive the best signal.
When making connections, also refer to the operating instructions of the XM Connect-and-Play
antenna.
Note
• Keep the power supply cord unplugged until the XM Connect-and-Play antenna connection have been
completed.
OUTPUT
INPUT
-
1
(DVD)
INPUT
-
2
(
DSS
)
INPUT
-
1
(
DVD
)
INPUT
-
3
(
VCR-1
)
2
CD
INPUT
-
2
(DSS)
2
1 1
2
3
44
3
RS232C DC OUT
EMITTER OUT
MULTI RC
RC
-
5
MONITOR OUT
1OUTINOUTIN
DSSTVDVD LD
TAPE
VCR-1
OUTPUT-2
OUTPUT-1
IN
MAIN IN7.1CH IN
MULTI OUT
SURR.
RIGHT
SURR.
LEFT
CENTER
NT B
RIGHT
SL SBL SL SR SBL SBR
SW
A B
SBRSR
COAX
OPT
8
7
6
2
5
4
3
1
DIGITAL
IN
DIGITAL
OUT
OUT
AC IN
C
B
/
P
B
C
R
/
P
R
Y
C
B
/
P
B
C
R
/
P
R
Y
C
B
/
P
B
C
R
/
P
R
Y
C
B
/
P
B
C
R
/
P
R
Y
C
B
/
P
B
C
R
/
P
R
Y
R
L
MODEL NO. SR9600
TUNER-1
FM(75
Ω
)GNDAM
(
AUDIO
)
S400
S400
INPUT
-
4
(
VCR-2
/
DVD-R
)
VCR-2
/
DVD-R
IN
CD-R
/
MD
OUT
R
L
(
AUX 2
)
C
AUDIO
PRE OUT
L R C
AUDIO
SW
VIDEO
S-VIDEO
R
L
MULTI OUT
VIDEO
A B
COMPONENT
VIDEO
HDMI
Ver 1.1
FLASHER RECEIVER
ININ
IR
OUT
IN
SURR.BACK
/MULTI SPK.
/SPK. C
RIGHT
SURR.BACK
/MULTI SPK.
/SPK. C
LEFT
ON
OFF
SPEAKER C
SWITCHED 1A 120W MAX
TCHED 1A 120W MAX
AC 120V 60H
Z
AC OUTLETS
SPEAKER SYSTEMS
FRONT A OR B, CENTER, SURR,
SURR BACK : MINIMUM 6 OHMS
FRONT A AND B : MINIMUM 8 OHMS
XM
XM
XM
XM
XMXM
XM
XM
XM
XM
XM
XM
XM
XM
XMXM
XM
XM
XM
XM
Model SR9600A (XM Satellite Radio) User Guide
ENGLISH
CONTENTS
XM RADIO OVERVIEW ....................................................................................................................................................... 1
CONNECTING THE XM CONNECT AND PLAY ANTENNA ............................................................................................... 1
LISTENING TO XM SATELLITE RADIO ............................................................................................................................ 3
SEARCH MODE .................................................................................................................................................................. 4
PRESET MEMORY ............................................................................................................................................................. 5
TROUBLESHOOTING ......................................................................................................................................................... 6
Thank you for purchasing a SR9600A XM Satellite Radio.
SR9600A is designed to add XM Satellite Radio functions to SR9600.
This user guide is exclusive for XM Satellite Radio functions.
For instructions other than XM Satellite Radio functions, please refer to the enclosed Model SR9600 User“
Guide”.
2
ENGLISH
SR9600A is designed to add XM Satellite Radio functions to SR9600.
There are different terms from the enclosed Model SR9600 User Guide“ ”.
For Model SR9600 User Guide , Please replace the terms as listed in the table below.“ ”
SR9600 SR9600A
TUNER1 TUNER
TUNER2 XM
RC3200B RC3200C

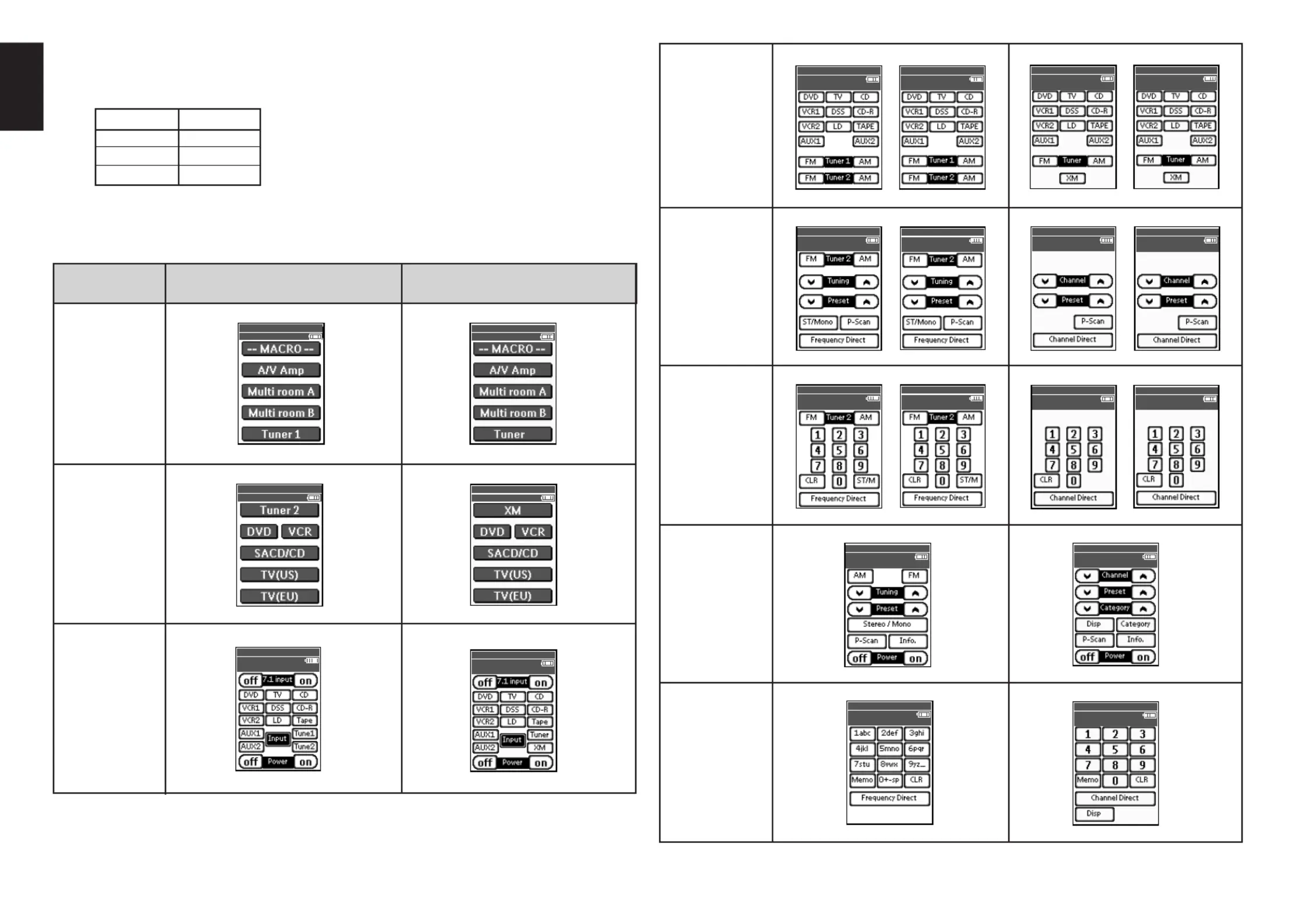

The table below shows the differences of displays on the remote control units between
RC3200B(SR9600) and RC3200C(SR9600A).
SR9600
RC3200B (SR9600) RC3200C (SR9600A)
User Guide Page
11
Home
(PAGE 1/4)
11
Home
(PAGE 2/4)
12
Source Select
(PAGE 1/8)
1/4 Home
wed Jun 01 4:40
pm
13
Multi room A / B :
Source
(PAGE 2/6)
14
Multi room A / B :
Tuner 2
(PAGE 5/6)
14
Multi room A / B :
Tuner 2 Key
(PAGE 6/6)
15
Tuner 2 : Main
(PAGE 1/2)
15
Tuner 2 : Key
(PAGE 2/2)
2/4 Home
wed Jun 01 4:40
pm
2/6 Multi room A
MULTI-A : Source
wed Jun 01 4:40
pm
2/6 Multi room B
MULTI-B : Source
wed Jun 01 4:40
pm
1/8 A/V Amp
Source Select
wed Jun 01 4:40pm
5/6 Multi room A
MULTI-A : Tuner 2
wed Jun 01 4:40pm
5/6 Multi room B
MULTI-B : Tuner 2
wed Jun 01 4:40
pm
6/6 Multi room A
MULTI-A : Tuner 2 key
wed Jun 01 4:40
pm
6/6 Multi room B
Multi-B : Tuner 2 key
wed Jun 01 4:40
pm
1/2 Tuner 2
Tuner 2 : Main
wed Jun 01 4:40
pm
2/2 Tuner 2
Tuner 2 : Key
wed Jun 01 4:40
pm
1/4 Home
wed Jun 01 4:40
pm
2/4 Home
wed Jun 01 4:40
pm
1/8 A/V Amp
Source Select
wed Jun 01 4:40
pm
2/6 Multi room A
MULTI-A : Source
wed Jun 01 4:40
pm
2/6 Multi room B
MULTI-B : Source
wed Jun 01 4:40pm
5/6 Multi room A
MULTI-A : XM
wed Jun 01 4:40pm
5/6 Multi room B
MULTI-B : XM
wed Jun 01 4:40pm
6/6 Multi room A
Multi-A : XM key
wed Jun 01 4:40pm
6/6 Multi room B
Multi-B : XM key
wed Jun 01 4:40
pm
1/2 XM
XM : Main
wed Jun 01 4:40
pm
2/2 XM
XM : Key
wed Jun 01 4:40
pm
3
ENGLISH
SIGNAL : STRONG SIGNAL : MARGINAL
Signal strength is good Signal strength is marginal
SIGNAL : WEAK SIGNAL : NON
Signal strength is poor Loss of the signal
2.
Adjust the antenna location until Signal
strength is good.
3.
Turn the dial or tap the channelGYRO TUNING
or button on the remote control unit to
select channel 0 (XM000).
•The Radio ID is displayed.
Note:
• “ ”If CHECK ANTENNA appears in the front
panel display, the XM Connect-and-Play antenna
may not be connected to the XM terminal on the
rear panel of this unit properly.

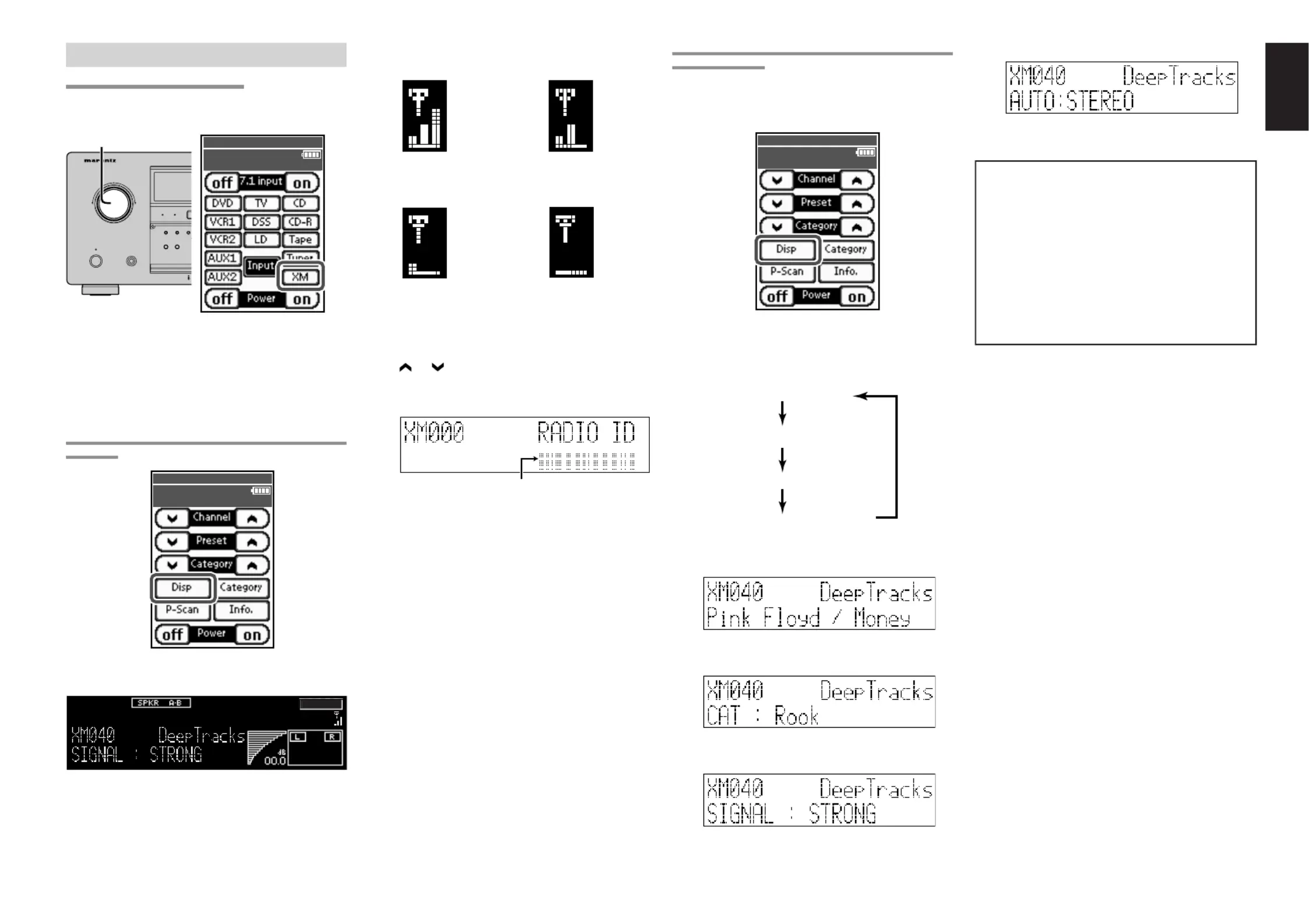

LISTENING TO XM SATELLITE RADIO
SELECTING AN INPUT SOURCE
Before you can listen to XM Satellite Radio, you
must first select the input source on the SR9600.
THX
THX
THX
THX
THXPURE DIRECT
PURE DIRECT
PURE DIRECT
PURE DIRECT
PURE DIRECT
POWER ON/STANDBY
POWER ON/STANDBY
POWER ON/STANDBY
POWER ON/STANDBY
POWER ON/STANDBY
INPUT SELECTOR
INPUT SELECTOR
INPUT SELECTOR
INPUT SELECTOR
INPUT SELECTOR
PHONES
PHONES
PHONES
PHONES
PHONES
STANDBY
STANDBY
STANDBY
STANDBY
STANDBY
AV SURROUND RECEIVER SR9600
AV SURROUND RECEIVER SR9600
AV SURROUND RECEIVER SR9600
AV SURROUND RECEIVER SR9600
AV SURROUND RECEIVER SR9600
SURROUND
SURROUND
SURROUND
SURROUND
SURROUND
PURE DIRECT
PURE DIRECT
PURE DIRECT
PURE DIRECT
PURE DIRECT THX
THX
THX
THX
THX
7.
7.
7.
7.
7.
MODE
MODE
MODE
MODE
MODE AUTO
AUTO
AUTO
AUTO
AUTO
MULTI
MULTI
MULTI
MULTI
MULTI
1.
1.
Select “XM” by turning the INPUT SELECTOR
knob on the front panel.
Or, tap the on the remote control unit.“ ”XM
CHECKING THE XM SIGNAL STRENGTH AND
RADIO ID
1.
Tap the Disp. twice on the remote control
unit. Signal status is displayed.
•The display changes as shown below
according to the receiving condition.
SWITCHING XM INFORMATION IN THE FRONT
PANEL DISPLAY
You can display XM information (such as artist
name, song title, category or signal status) for the
channel currently selected in the front panel
display.
1.
Tap the button on the remote controlDisp.
unit repeatedly to toggle between the
following channel information display modes.
Artist name/Song title
Channel category
Signal Status
Surround mode (OSD ON)
When the channel Artist name/Song title is
displayed:
When the channel category is displayed:
When the signal status is displayed:
Radio ID
DIGITAL
1/8 A/V Amp
Source Select
wed Jun 01 4:40
pm
1.
1/2 XM
XM : Main
wed Jun 01 4:40pm
1.
1/2 XM
XM : Main
wed Jun 01 4:40
pm
1.
When the Surround mode is displayed:
The video monitor output will show OSD information.
Note:
•
The front panel display can indicate up to 20
alphanumeric characters at once. If the information
contains more than 20 characters, the information
scrolls from right to left.
•If the information contains a character that cannot
be recognized by that unit, the character will be
displayed with (space).“ ”
X M I N F O R M A T I O N
X
C
N
T
C
S
M
H
A
I
A
I
A
M
T
T
G
N
E
L
N
E
A L
:
:
:
:
:
:
0
D
P
M
R
S
4
e
i
o
o
T
0
e
n
n
c
R
p
k
e y
k
O
T
N
r
F
G
a
l
c
o
k
i
s
d
