Sida 1/28

INVISIBLE

CONTROL

20446/20181123 • INVISIBLE CONTROL BLACK/WHITE 4

USER MANUAL 3

GEBRAUCHSANLEITUNG 7

GUIDE UTILISATEUR 11

MODO DE EMPLEO 15

MANUALE D’ISTRUZIONI 19

GEBRUIKSAANWIJZING 23

Invisible Control

Black/White 4

1_20446_20181123_UG_124x176mm_80g_Invisible Control 4 (Black - White).pdf 1 23-11-2018 15:30:54

SAFETY WARNINGS

• To prevent short circuits, this product should only be used inside and only in dry

spaces. Do not expose the components to rain or moisture. Do not use the product

close to a bath, swimming pool etc.

• Do not expose the components of your systems to extremely high temperatures or

bright light sources.

• Do not open the product (battery panel excepted): the device may contain live parts.

The product should only be repaired or serviced by a qualied expert.

• Keep batteries out of the reach of children. Dispose of batteries as chemical waste.

Never use old and new batteries or dierent types of batteries together. Remove the

batteries when you are not using the system for a longer period of time. Check the

polarity (+/-) of the batteries when inserting them in the product. Wrong positioning

can cause an explosion.

• In case of improper usage or if you have opened, altered and repaired the product

yourself, all guarantees expire. Marmitek does not accept responsibility in the case

of improper usage

of the product or when the product is used for purposes other

than specied. Marmitek does not accept responsibility for additional damage other

than covered by the legal product responsibility.

• Only connect the adapter to the mains after checking whether the mains voltage is

the same as the values on the identication tags. Never connect an adapter or power

cord when it is damaged. In that case, contact your supplier.

1. INTRODUCTION

Congratulation on buying the Invisible Control Black/White 4! With the Invisible Control

you can extend the IR (infra-red) signals from your own remote control. The Invisible

Control gives you the opportunity to control your A/V equipment when it’s stored away

in a closed cabinet or placed out of sight.

Marmitek products are manufactured with the utmost care and are exceptionally high

quality. Please read this manual carefully and follow the instructions in order to get the

best from this product.

2. SET CONTENTS

1x Invisible Control Black/White 4

2x IR Extender cable with 2 IR LEDs

1x Power Adapters

1x User manual

3INVISIBLE CONTROL BLACK/WHITE 4

ENGLISH

20446_20120110_UG_124x176mm_80g_IC4_Opmaak 1 09-02-12 17:05 Pagina 3

3. HOW DOES IT WORK?

Place the Invisible Control within sight, on or below the cabinet that the A/V equipment

is in. Stick the IR LEDs on the IR eye of your equipment and then wire these to the

Invisible Control. The Invisible Control now receives the signal from your own remote

control and transmits it to the IR LEDs connected to your equipment. You can now use

your own remote control to operate your equipment while it is still placed in a closed

cabinet.

4. INSTALLATION

1. Plug the power adapter into the back side of the Invisible Control or insert 4 pieces

‘AAA’ size ALKALINE battery (not included) into the battery compartment with cor-

rect polarity.

2. Connect the wire with the two IR LEDs (the IR extender) to the back side of the

Invisible Control. It doesn’t matter whether you use the rst or the second connec-

tion.

3. Place the Invisible Control within sight and within reach of your remote control (max.

8 m) on or below the cupboard the equipment is in.

Lead the wire with the IR LEDs (the IR extender) to the A/V equipment in such a way

that the IR LEDs (transmitters) are on the front of your equipment (e.g. via the back

of the cabinet). The IR LEDs have self-adhesive tape on the back. Use this to stick

them onto the IR sensor of your equipment. This should be done very carefully and

precisely. Test the position of the IR LEDs rst, before you stick them onto the sensor.

ATTENTION: If you are only using one appliance, then you do not need to

use the second IR LED. Never remove it from the wire!

5. The Invisible Control receives the signal from your remote control and transfers it to

an electrical signal, which is passed on to the IR LEDs.

6. This means all signals from your remote control are passed on to your equipment.

4 © MARMITEK

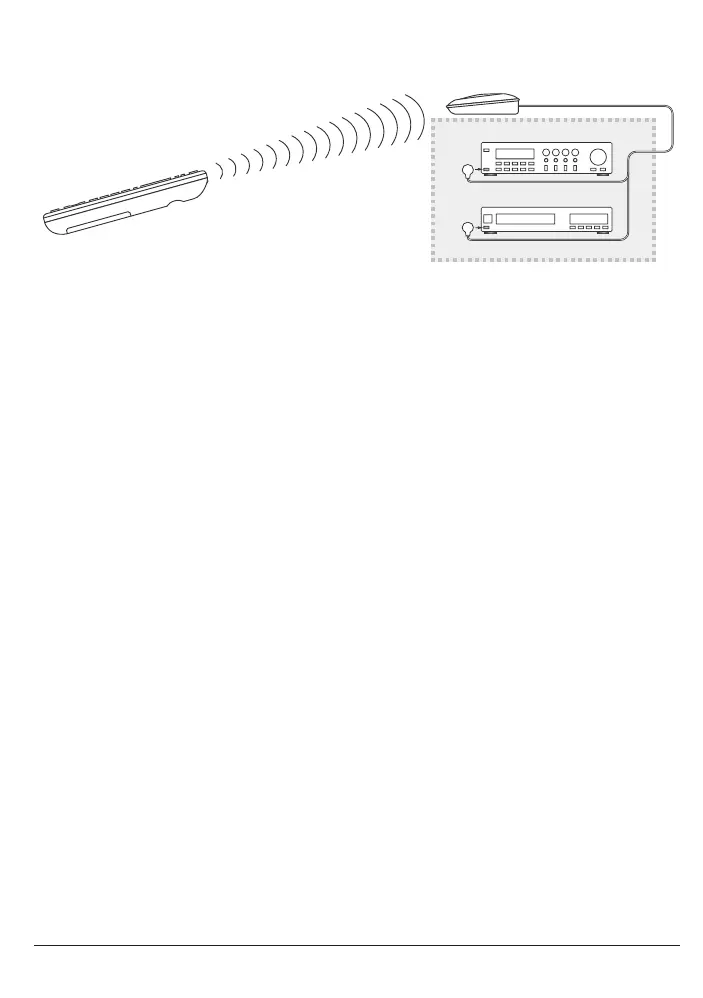

LEDs IR

Invisible Control Black/White 4

Remote control

A/V-devices in

closed cabinet

Place the IR LED’s on the IR displa

panels of the A/V-devices

20446_20120110_UG_124x176mm_80g_IC4_Opmaak 1 09-02-12 17:05 Pagina 4

Produktspecifikationer

Varumärke:	Marmitek
Kategori:	AV extender
Modell:	Invisible Control Black 4
Inbyggd display:	Nej
Vikt:	- g
Bredd:	125 mm
Djup:	89 mm
Höjd:	33 mm
Förpackningens bredd:	130 mm
Korrekt användning:	Universal
Gränssnitt:	IR trådlös
Maximal räckvidd:	8 m
Batterier krävs:	Ja
Batteriteknik:	Alkalisk
Batterityp:	AAA
Antal batterier:	4
Produktens färg:	Svart
Låddjup:	70 mm
Utgångsspänning:	12 V
AC-inspänning:	100 - 240 V
Frekvensområde:	30 - 60 kHz
Strömkälla av typen:	AC, Battery, DC
Växelström Frekvens:	50 - 60 hz
AC-adapter inkluderad:	Ja
Uppladdningsbara:	Nej
Antal stödda enheter:	4
Korrekt användning av fjärrkontroll:	Audio, TV
Mottagningsavstånd:	8 m
Mottagningsvinkel:	60 °
Sändningsvinkel:	60 °
IR-förlängningskabel:	Ja
IR-förlängarens kabellängd:	3
