Br oa d c a s t A / V Di v i s i o n

CV605-U3

CV605-U3W

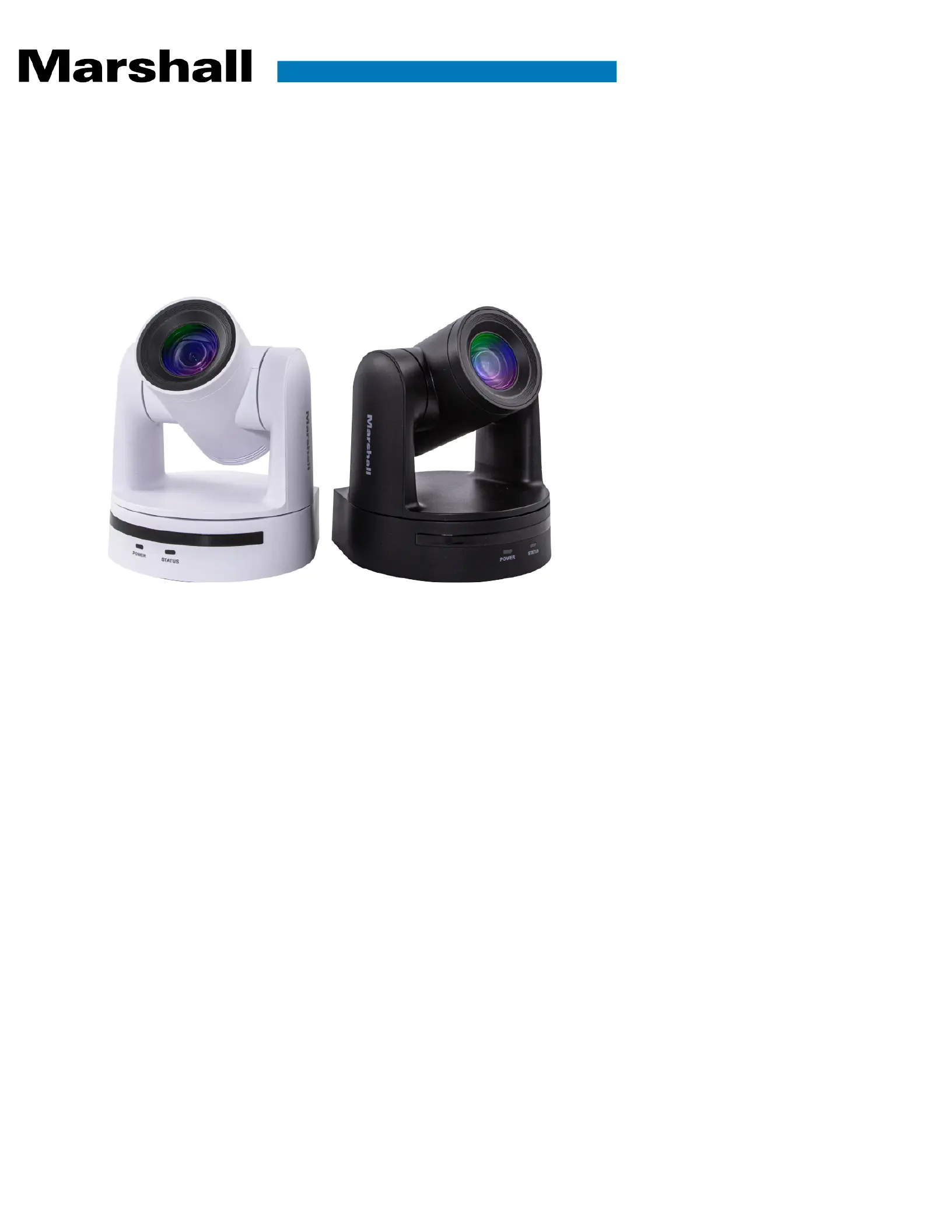

5x HD USB-C PTZ Camera with HDMI & IP

User Manual

[Firmware Version 0.43]

Table of Contents

GENERAL INFORMATION

1. INSTALLATION

1.1 Camera Layout Explanation

1.2 Power On Initial Conﬁguration

1.3 Video Output

2. PRODUCT OVERVIEW

2.1 Product Introduction

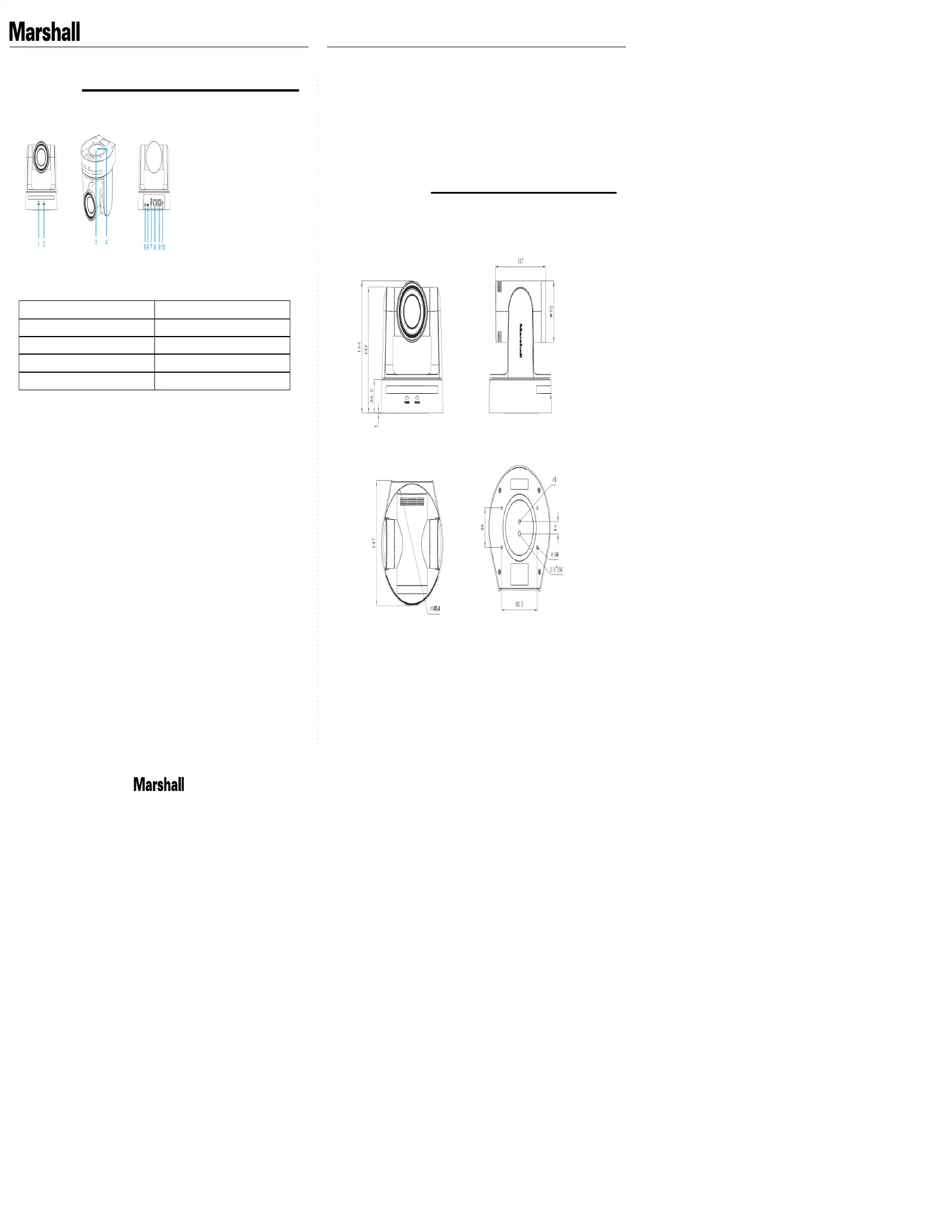

2.1.1 Dimension

2.1.2 Accessory

2.2 Main Features

2.3 Technical Speciﬁcation

2.4 Interface Instruction

2.4.1 External Interface

3. APPLICATION INSTRUCTION

3.1 Remote Controller

3.1.1 Keys Instruction

3.1.2 Applications

3.2 Menu Setting

3.2.1 Main Menu

3.2.2 System Setting

3.2.3 Camera Setting

3.2.4 P/T/Z

3.2.5 Network Settings

3.2.6 Audio Settings

3.2.7 Video Format

3.2.8 Version

3.2.9 Restore Default

4. NETWORK CONNECTION

4.1 Connecting Mode

4.2 IE Log In

4.2.1 Web Client

4.2.2 Preview

4.2.4 Conﬁguration

4.2.6 Network Conﬁgure

4.2.7 System Conﬁgure

4.2.8 Logout

5. SERIAL COMMUNICATION CONTROL

5.1.1 Camera Return Command

5.1.2 Camera Control Command

5.1.3 Inquiry Command

6. CAMERA MAINTENANCE AND TROUBLESHOOTING

6.1 Camera Maintenance

6.2 Troubleshooting

1. Installation

1.1 Camera Layout

Layout Deﬁnitions of USB3.0 Type-C Model:

1. Power Indicator 2. Remote Controller Receiver Light

3. Stability Hole Mount 4. ¼”-20 Mounting Hole

5. Audio Input interface 6. USB3.0 Type-C interface

7. HDMI Port 8. Ethernet Port

9. RS232 Port 10. DC12V Input Power Supply Socket

1.2 Power on initial conﬁguration

1. Power on: Connect DC12V power supply included in box to power outlet and camera power input.

2. Initial conﬁguration: Once powered up the power indicator light will start blinking, camera head will

move from bottom left then moves to the HOME position (horizontal and vertical center), while the

camera module boots up. As soon as remote-control receiver light stops blinking, the self-check

and boot up is complete.

Note:

• The default address of the IR remote is Camera #1 address.

• If you set preset to “0” then after self-check and boot-up, the camera will then automatically move

to the preset “0” position that you’ve chosen as start position.

1.3 Video Output

1. Network output:

A. Network Cable Connection Port: No.8 in Figure 1.1

B. Webpage Login: : Open web browser and enter default IP address 192.168.5.163 in the address

bar (factory default); press Enter and enter the LOGIN prompt. Then click on default user name

admin and password admin (factory default); then press Enter to see preview page. Users

can carry out PTZ control commands, playback, conﬁguration and other operations from this

software GUI.
