Broadcast A/V Division

User Manual

CV605-BK (black)

CV605-WH (white)

5x HD60 IP PTZ Camera with 3GSDI

User Manual

CV605-BK (Black)

CV605-WH (White)

5x HD60 IP PTZ Camera with 3GSDI

CV605-BK/WH Manual

www.marshall-usa.com2 3

Content

PLEASE NOTE ................................................................... ERROR! BOOKMARK NOT DEFINED.

1. FAST INSTALLATION ...................................................................................................................... 5

1.2 POWER ON INITIAL CONFIGURATION ........................................................................................................ 5

1.3 VIDEO OUTPUT ................................................................................................................................... 5

2. PRODUCT OVERVIEW ................................................................................................................... 6

2.1 PRODUCT INTRODUCTION ...................................................................................................................... 6

2.1.1 Dimension ................................................................................................................................ 6

2.1.2 Accessory ................................................................................................................................. 6

2.2 MAIN FEATURES .................................................................................................................................. 7

2.3 TECHNICAL SPECIFICATION ..................................................................................................................... 7

2.4 INTERFACE INSTRUCTION ....................................................................................................................... 8

2.4.1 External Interface .................................................................................................................... 8

3. APPLICATION INSTRUCTION ......................................................................................................... 9

3.1 REMOTE CONTROLLER ........................................................................................................................ 10

3.1.1 SETTING EXPLANATION......................................................................................................... 10

3.1.2 Applications ........................................................................................................................... 10

3.2 MENU SETTING ............................................................................................................................. 12

3.2.1 Main Menu ............................................................................................................................ 12

3.2.2 System Setting ....................................................................................................................... 13

3.2.3 Camera Setting ...................................................................................................................... 13

3.2.4 P/T/Z ...................................................................................................................................... 16

3.2.5 Video Format ......................................................................................................................... 17

3.2.6 Network settings ................................................................................................................... 17

3.2.7 Audio settings ........................................................................................................................ 18

3.2.8 Version ................................................................................................................................... 18

3.2.9 Restore Default ...................................................................................................................... 19

4. NETWORK CONNECTION ............................................................................................................ 19

4.1 CONNECTING MODE .......................................................................................................................... 19

4.2 IE LOG IN ......................................................................................................................................... 21

4.2.1 Web client .............................................................................................................................. 21

2)Download/Install Plug in ............................................................................................................. 21

4.2.2 Preview .................................................................................................................................. 21

4.2.4 Configuration ......................................................................................................................... 21

1) Audio Configuration ................................................................................................................... 22

2) Video configuration .................................................................................................................... 22

4.2.6 Network Configure ................................................................................................................ 24

4.2.7 System Configure ................................................................................................................... 24

4.2.8 Logout.................................................................................................................................... 25

5. SERIAL COMMUNICATION CONTROL ......................................................................................... 25

5.1 VISCA PROTOCOL LIST ........................................................................................................................ 26

5.1.1 Command list ......................................................................................................................... 26

5.1.2 Inquiry command ................................................................................................................... 27

5.2 PELCO-D PROTOCOL COMMAND LIST ..................................................................................................... 28

5.3 PELCO-P PROTOCOL COMMAND LIST ...................................................................................................... 28

6. CAMERA MAINTENANCE AND TROUBLESHOOTING ................................................................. 29

6.1 CAMERA MAINTENANCE ..................................................................................................................... 29

6.2 TROUBLESHOOTING ............................................................................................................................ 29

CV605-BK/WH Manual

www.marshall-usa.com4 5

1. Fast Installation

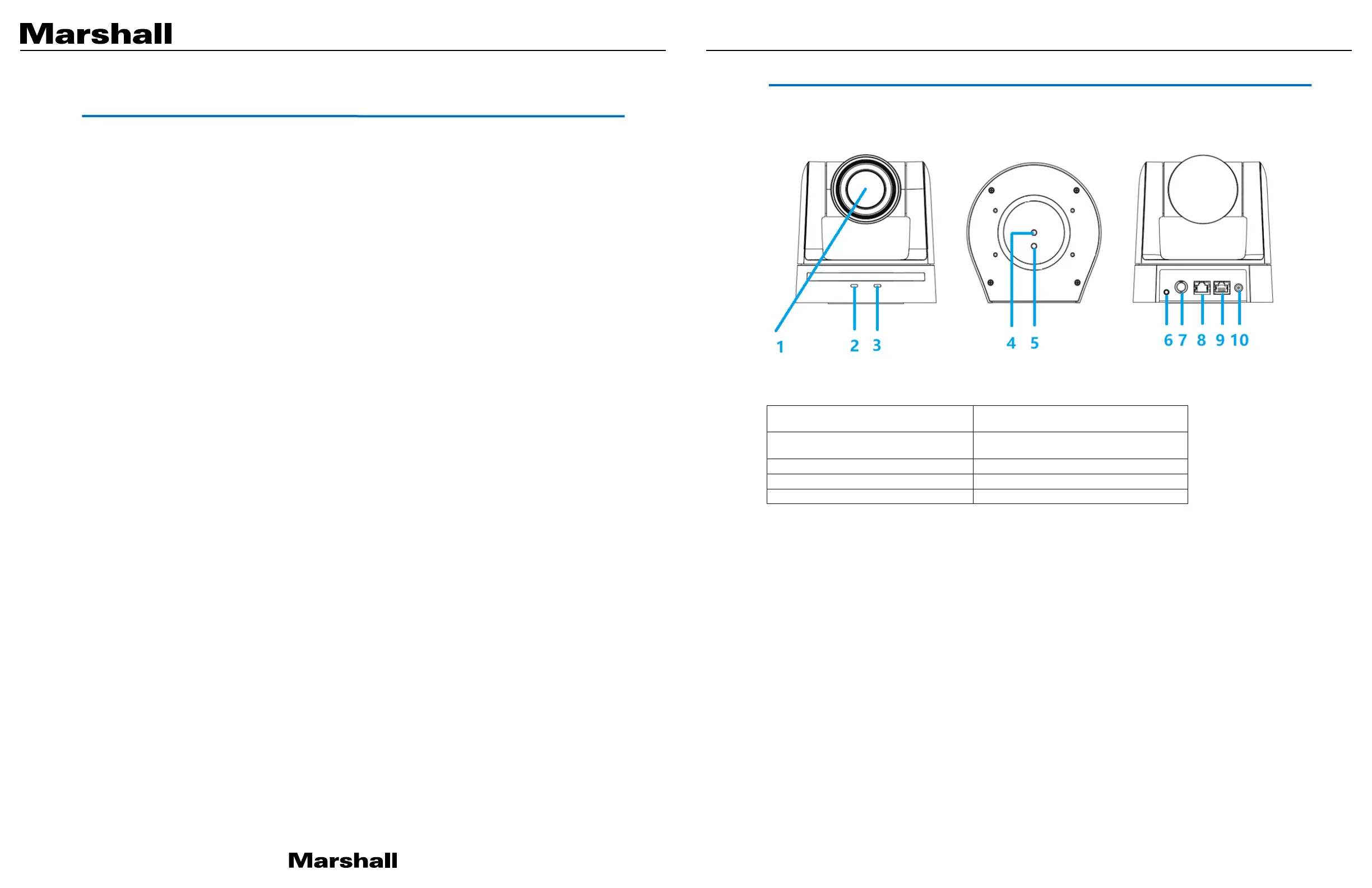

1.1 Camera Layout Explanation

Figure 1.1 Interface of SDI Model

Interface of SDI Model

：

1. Camera Lens 2. Power Indicator

3. Remote Control Receiver Light 4. Position Lock

5. 1/4”-20 Mounting Hole

6. Audio Input (TRS)

7. 3GSDI (BNC)

8. Ethernet (IP) Port

9. RS232 (RJ45) Port

10. DC12V Input Power Supply Socket

1.2 Power-ON initial setup

1) Power ON: Connect the DC12V power supply included in box to power outlet and camera power input.

2) Initial configuration: Once powered up the power indicator light will start blinking, camera head will move from bottom

left to the bottom, and then moves to the HOME position (horizontal and vertical center), while the camera module boots

up. As soon as remote-control receiver light stops blinking, the self-check and boot up is complete.

Note:

1. The default address of the remote controller is the 1# address.

2. If you SET preset to “0” then after self-check and boot up is complete, the camera will then automatically move to the

preset 0 position.

1.3 Video Output

1) Network output:

a. Network Cable Connection Port: No.8 in Figure1.1

Please Note

This manual details features, functions, installation, operation and recommendation. Please

read this manual completely before installation and use.

Description of use

1. In order to prevent damage to this camera or other components within the workflow,

please use it within its prescribed purpose and scope of operation.

2. Keep the device away from rain, moisture, or heavy humidity.

3. To prevent electric shock or damage to internal components, do not open the main case;

only qualified technicians should conduct repairs.

4. Do not use the device beyond scope of its temperature, humidity or power supply

specification.

5. When cleaning the camera lens, use a soft dry cloth. If dirt is harder to remove please

use water or mild soap. Do not use strong or corrosive detergent, it may scratch the

lens and/or cause chemical residue to remain.

Careful handing

6. Avoid damage from heavy pressure, strong vibration or immersion during

transportation, storage and installation.

Power supply polarity

7. This product uses DC 12V power supply (higher or lower voltage may cause damage)

Install with caution

8. Do not carry the camera by the camera head or rotate it with force, otherwise it may

cause mechanical malfunction and damage internal belts and gears.

9. This product should be placed on a stable desktop or other horizontal surfaces. Do not

install the product on anything other than a level position, otherwise it may display

inclined or off axis image.

10. This product shell is made of organic materials. Do not expose it to any liquid, gas or

solids which may corrode the shell.

11. During installation, ensure that there are no obstacles within rotation range of the head

to limit it’s movement (Pan/Tilt).

12. Do not power on before installation is complete, as it may be restricted in movement.

Do not disassemble the product without permission from manufacturer.

13. This product contains no parts which can be repaired in field or at site. Any damage

arising from disassembly voids the product warranty

Magnetic field interference

14. Magnetic fields within a specific frequency may affect camera video images; this is a

Class A product. Some applications within a household environment may cause radio

interference. Make sure there are no other radio interreference present.

Produktspecifikationer

Varumärke:	Marshall Electronics
Kategori:	Videokonferenssystem
Modell:	CV6050-WH
Videoformat som stöds:	H.264, H.265
Videolägen som stöds:	720p, 1080p
Zoomkapacitet:	Ja
Maximal bildfrekvens:	60 fps
Optisk sensorstorlek:	- "
Kameratyp:	Dubbelkamera
Digital zoom:	10 x
Optisk zoom:	5 x
Maximal videoupplösning:	1920 x 1080 pixlar
RS-232 port:	1
Grafikupplösningar som stöds:	1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Produktens färg:	Vit
HD-typ:	Full HD
Hörlursutgång:	Ja
Antal LAN (RJ-45) anslutningar:	1
Strömförbrukning (vanlig):	13 W
Minimibelysning:	0.5 lx
Kommunikationsstandarder:	IEEE 802.3af
Synfältsvinkel (FOV):	85 °
Power over Ethernet (PoE)-portar kvantitet:	1
Uttag för mikrofon/linje in:	Ja
Megapixel:	2 MP
Linje in:	Ja
Likströmsdriftspänning:	48 V
