Sida 1/26

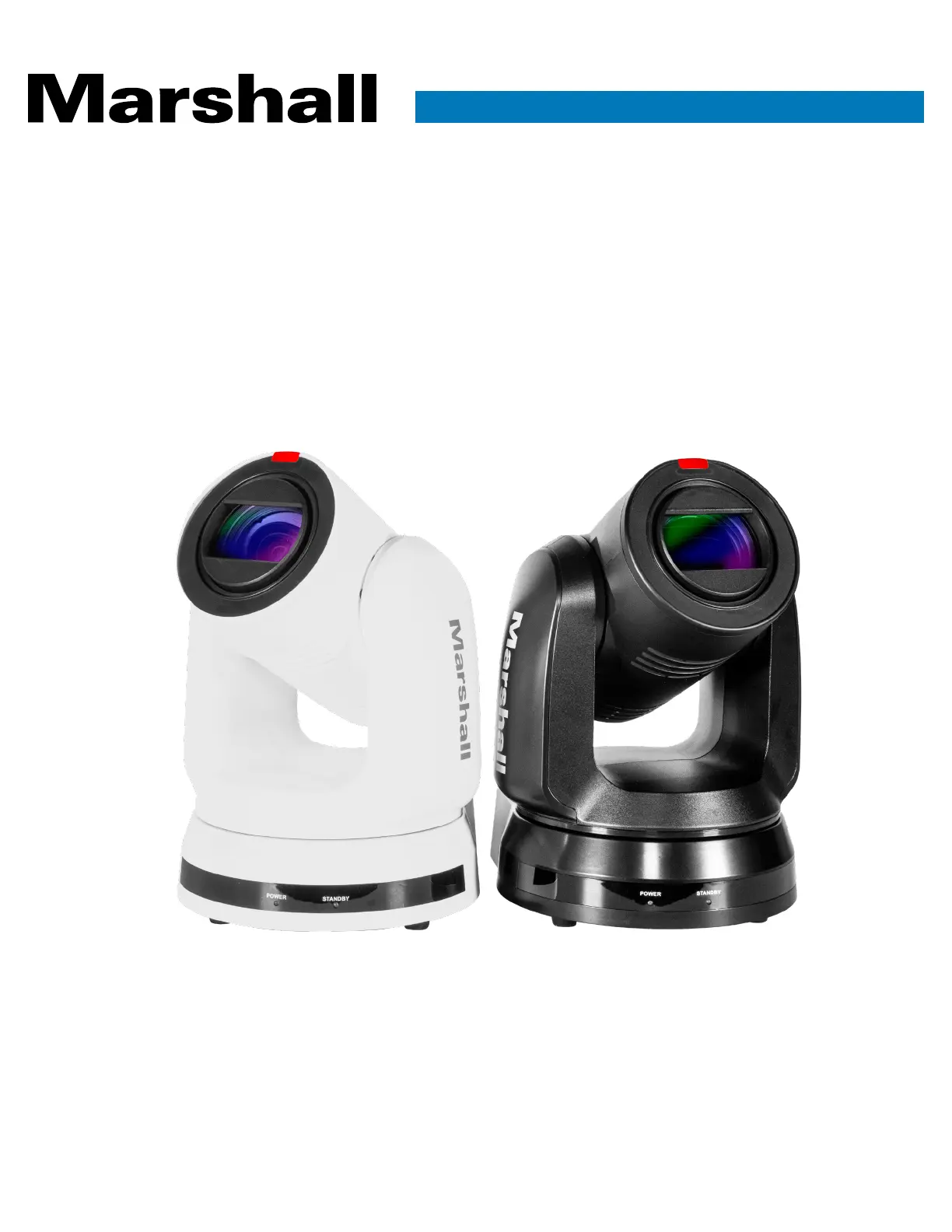

Broadcast A/V Division

CV730

HD/UHD Camera

30X PTZ Video Camera

User Manual

Table of Contents

opyright Information ........................................................................................ 2

Chapter 1 Safety Instructions ..................................................................... 3

Chapter 2 Package Contents ...................................................................... 5

Chapter 3 Function Introduction ................................................................ 6

3.1 I/O functions

Introduction .................................................................................. 6

3.2 Description of LED indicator ................................................................................ 8

3.3 Tally Lamp Function Description......................................................................... 8

Chapter 4 Instruction for installation ....................................................... 10

4.1 Preparation before installation .......................................................................... 10

4.2 Instruction for installation .................................................................................. 10

4.3 Connecting devices ............................................................................................ 18

Chapter 5 Remote Control and Setting Menu ......................................... 21

5.1 Functions of remote control .............................................................................. 21

5.1 Setting Menu ....................................................................................................... 22

Chapter 6 Network Function Settings Description ................................ 31

6.1 Connecting Camera to Network ......................................................................... 31

6.2 Web Page Function Description ........................................................................ 35

Chapter 7 DIP Switch Setting ................................................................... 48

Chapter 8 Troubleshooting ....................................................................... 49

Marshall Electronics is a trademark of Marshall Electronics Incorporated

Copying, reproducing or transmitting this file is not allowed if a license is not provided by

Marshall Electronics Inc. unless copying this file is for the purpose of backup after purchasing

this product.

In order to keep improving the product, Marshall Electronics Inc. hereby reserves the right to

make changes to product specifications without prior notice. The information in this file is

subject to change without prior notice.

To fully explain or describe how this product should be used, this manual may refer to names

of other products or companies without any intention of infringement.

Disclaimer of warranties: Marshall Electronics Inc. is neither responsible for any possible

technological, editorial errors or omissions, nor responsible for any incidental or related

damages arising from providing this file, using, or operating this product.

CV730 Manual

www.marshall-usa.com1 2

Chapter 1 Safety Instructions

Always follow these safety instructions when setting up and using this product:

1 Operation

1.1 Please use the product in the recommended operating environment.

1.2 Do not place this product in tilted position.

1.3 Do not place the product on an unstable trolley, stand or table.

1.4 Do not use this product near water or source of heat.

1.5 Use attachments only as recommended.

1.6 Use the type of power source indicated on this product. If you are not sure of the type

of power available, consult your distributor or local electricity company for advice.

1.7 Always take the following precautions when handling the plug. Failure to do so may

result in sparks or fire:

 Ensure the plug is free of dust before inserting it into a socket.

 Ensure that the plug is inserted into the socket securely.

1.8 Do not overload wall sockets, extension cords or multi-way plug boards as this may

cause fire or electric shock.

1.9 Do not block the slots and openings in the case of this product. They provide

ventilation and prevent this product from overheating.

1.10 Except as specifically instructed in this User Manual, do not open or remove covers,

otherwise it may expose you to dangerous voltages and other hazards. Refer all

servicing to licensed service personnel.

1.11 Unplug this product from the wall outlet and refer servicing to licensed service

personnel when the following situations happen:

 If the power cords are damaged or frayed.

 If liquid is spilled into the product or the product has been exposed to rain or water.

2 Installation

2.1 For security considerations, please make sure the standard hanging rack you bought

is in line with UL or CE safety approbations and installed by technician personnel

approved by agents.

3 Storage

3.1 Do not place the product where the cord can be stepped on as this may result in

fraying or damage to the lead or the plug.

3.2 Never push objects of any kind through cabinet slots. Never allow liquid of any kind to

spill into the product.

3.3 Unplug this product during thunderstorms or if it is not going to be used for an

extended period.

3.4 Do not place this product or accessories on top of vibrating equipment or heated

objects.

4 Cleaning

4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use

liquid or aerosol cleaners.

5 Remote control (if the accessories are equipped with remote control)

5.1 Using an incorrect battery type in the remote control may result in breakdown. Follow

local instructions on how to dispose of used batteries.

 Precautions

Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain

or moisture.

If the HD camera will not be used for an extended time, unplug it from the power socket.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No

user-serviceable parts inside. Refer servicing to licensed service personnel.

This symbol indicates that

this equipment may contain

dangerous voltage which

could cause electric shock.

This symbol indicates that

there are important

operating and maintenance

instructions in this User

Manual with this unit.

 FCC Warning

This HD Camera has been tested and found to comply with the limits for a Class A computer

device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital

apparatus as set out in the interference-causing equipment standard entitled “Digital

Apparatus,” ICES-003 of Industry Canada.

Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils

numeriques de Classe A prescrites dans la norme sur le material brouilleur: “Appareils

Numeriques,” NMB-003 edictee par l’Industrie.

 EN55032 (CE Radiation) Warning

Operation of this equipment in a residential environment could cause radio interference.

Caution

Risk of Electric Shock

Please do not open it by yourself.

CV730 Manual

www.marshall-usa.com3 4

Produktspecifikationer

Varumärke:	Marshall Electronics
Kategori:	Videokonferenssystem
Modell:	CV730-BK
Videoformat som stöds:	HEVC
Videolägen som stöds:	720p, 1080p, 3840p
Zoomkapacitet:	Ja
Maximal bildfrekvens:	60 fps
Antal HDMI-portar:	1
Optisk sensorstorlek:	1/1.8 "
Kameratyp:	Enkel kamera
Optisk zoom:	30 x
Maximal videoupplösning:	3840 x 2160 pixlar
vitbalans:	Automatisk
HDMI-version:	2.0
Grafikupplösningar som stöds:	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3860 x 2160
Driftspänning:	12 V
Lutningsvinkel:	0 - 120 °
HD-SDI-utgång:	Ja
Produktens färg:	Svart
HD-typ:	4K Ultra HD
Typ av fjärrkontroll:	Kabel
Minimibelysning:	0.05 lx
Kommunikationsstandarder:	IEEE 802.1x
Antal Power over Ethernet plus (PoE +)-portar:	1
Uttag för mikrofon/linje in:	Ja
Megapixel:	8.5 MP
Panoreringsvinkel:	0 - 340 °
Linje in:	Ja
Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar:	1
Fjärrkontrollsfunktion:	Ja
Utgående 3G-SDI:	Ja
