Broadcast A/V Division
User Manual

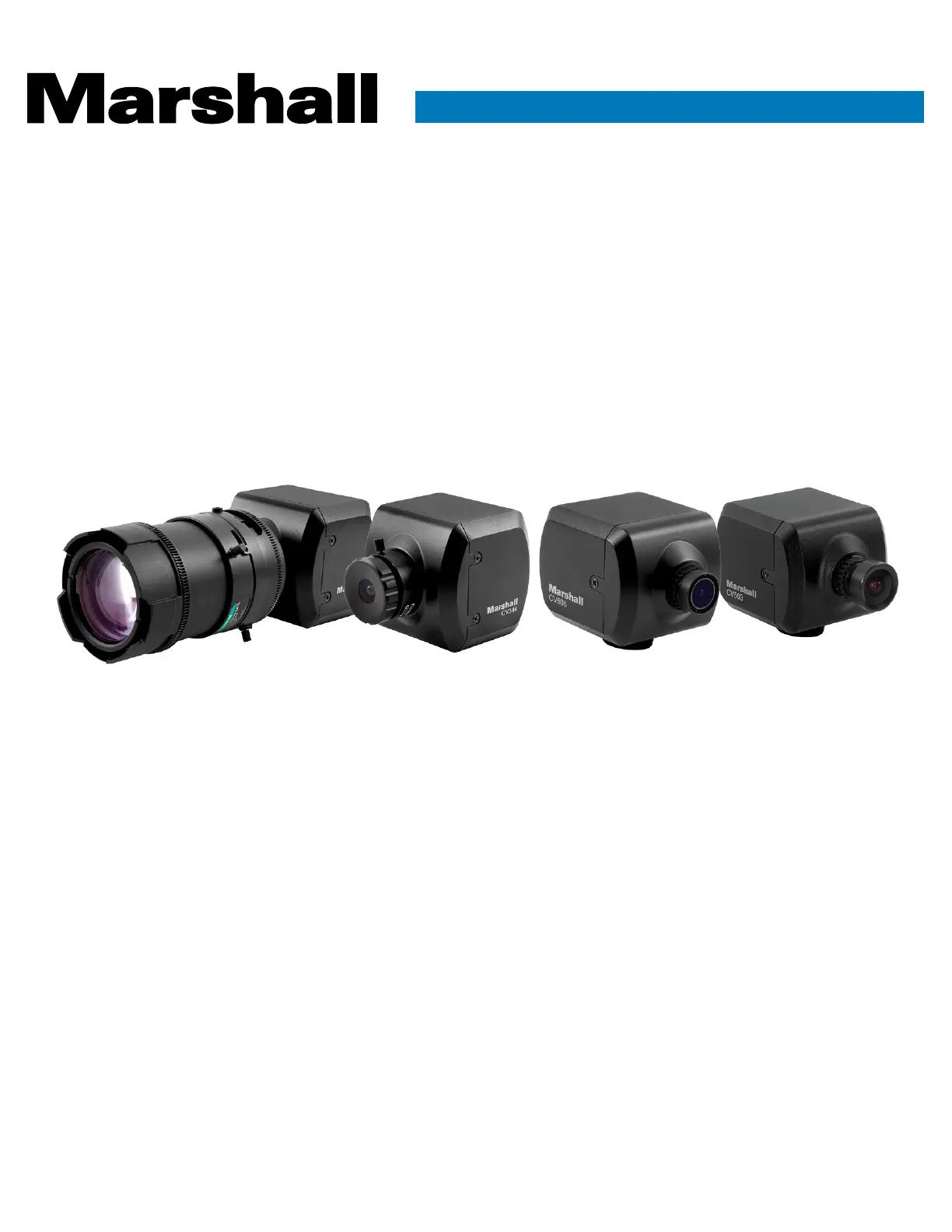

CV503, CV506, CV344, CV346
Compact & Miniature Full-HD Cameras
CV503/CV506/CV344/CV346 Manual
www.marshall-usa.com1 2
Table of Contents
Table of Contents
9. Special
5. AE Control
3. OSD Joystick and Button
7. Audio
2. Menu Structure
1. General Information
10. Setup
11. Reset
12. Exit
13. Troubleshooting
Warranty
6. Day / Night
4. WB Control
8. Image Control
01
11
07
05
09
03
02
12
13
14
15
END
08
06
10
Thank you for your purchase of a Marshall Miniature or Compact Camera.
The Marshall Camera team recommends thoroughly reading this guide for a deep understanding
of on-screen-display (OSD) menus, breakout cable operation, settings adjustment explanation,
troubleshooting, and other critical information.
Please carefully remove all contents of box, which should include the following components:
CV503/CV506 includes:
• Camera with 3.6mm lens (interchangeable)
• Camera Breakout Cable (Power/RS485/Audio)
• 12V Power Supply
CV344/CV346 includes:
• Camera with CS/C mount (lens sold separately)
• Camera Breakout Cable (Power/RS485/Audio)
• C-Mount Lens Adapter (only used when using C-Mount lens)
• 12V Power Supply
The CV503/506 ships with a 3.6mm (72°AOV) M12 lens installed and is interchangeable to any
number of Marshall M12 lenses.
The CV344/346 Camera utilizes a CS/C lens mount and does not include a stock CS/C Lens. CS/C
mount lenses are sold separately, as well as adapters to other lens mount types.
Each camera comes set to default at 1920x1080p @ 30fps out of the box; which can be changed in
the OSD Menu to a variety of resolutions and framerates.
If the camera is accidentally changed to a resolution or framerate that your monitor or equipment
doesn’t accept, please follow the instructions below to reset camera to factory default:
1. Plug the camera into power source and connect breakout cable to rear camera panel (locking
connection), Power LED should illuminate.
2. Push OSD joystick button UP, DOWN, UP, DOWN and PUSH and HOLD for five seconds.
3. Camera should reset to 1920x1080p @ 30fps.
4. If camera does not reset, repeat steps after a power-cycle.
1. General Information
CV503/CV506/CV344/CV346 Manual
www.marshall-usa.com3 4
.
SETUP SUB MENU SUB MENU
WB CONTROL
ATW
ONE PUSH
INDOOR
OUTDOOR
MANUAL
BLUE
RED
AE CONTROL
AUTO
AGC MAX
SENS UP
AE BRIGHT
FLK CONTROL
LENS MODE (DC IRIS ONLY)
SHUT FIX
SHUTTER
AGC MAX
SENS UP
AE BRIGHT
FLK CONTROL
AGC FIX
AGC
AE BRIGHT
FLK CONTROL
LENS MODE (DC IRIS ONLY)
MANUAL
SHUTTER
IRIS
AGC
FLK CONTROL
LENS MODE (DC IRIS ONLY)
DAY / NIGHT
DAY
NIGHT NIGHT COLOR
AUDIO
MIC/LINE
AUDIO LEVEL
MIC ATTENUATOR
SETUP SUB MENU SUB MENU
AUDIO
SAMPLE BITS
IMAGE CONTROL
LENS SHADING
CONTRAST
BRIGHTNESS
SATURATION
HUE
EDGE ENHANCE
AUTO SATURATE
AUTO EDGE
BLACK WHITE LEVEL
GAMMA CORRECT
DNR
DNR MODE
DNR LEVEL
SPECIAL
DZOOM
DEFOG
DIS
BACKLIGHT
BINNING
DEFECT PIXEL
DISP FUNCTION
WDR
FLICKER DETECT
PRIVACY
SETUP
CAM TITLE
COMMUNICATION RS-485/ID
SYSTEM INFO
OUTPUT FORMAT
RESET USER/FACTORY
EXIT
