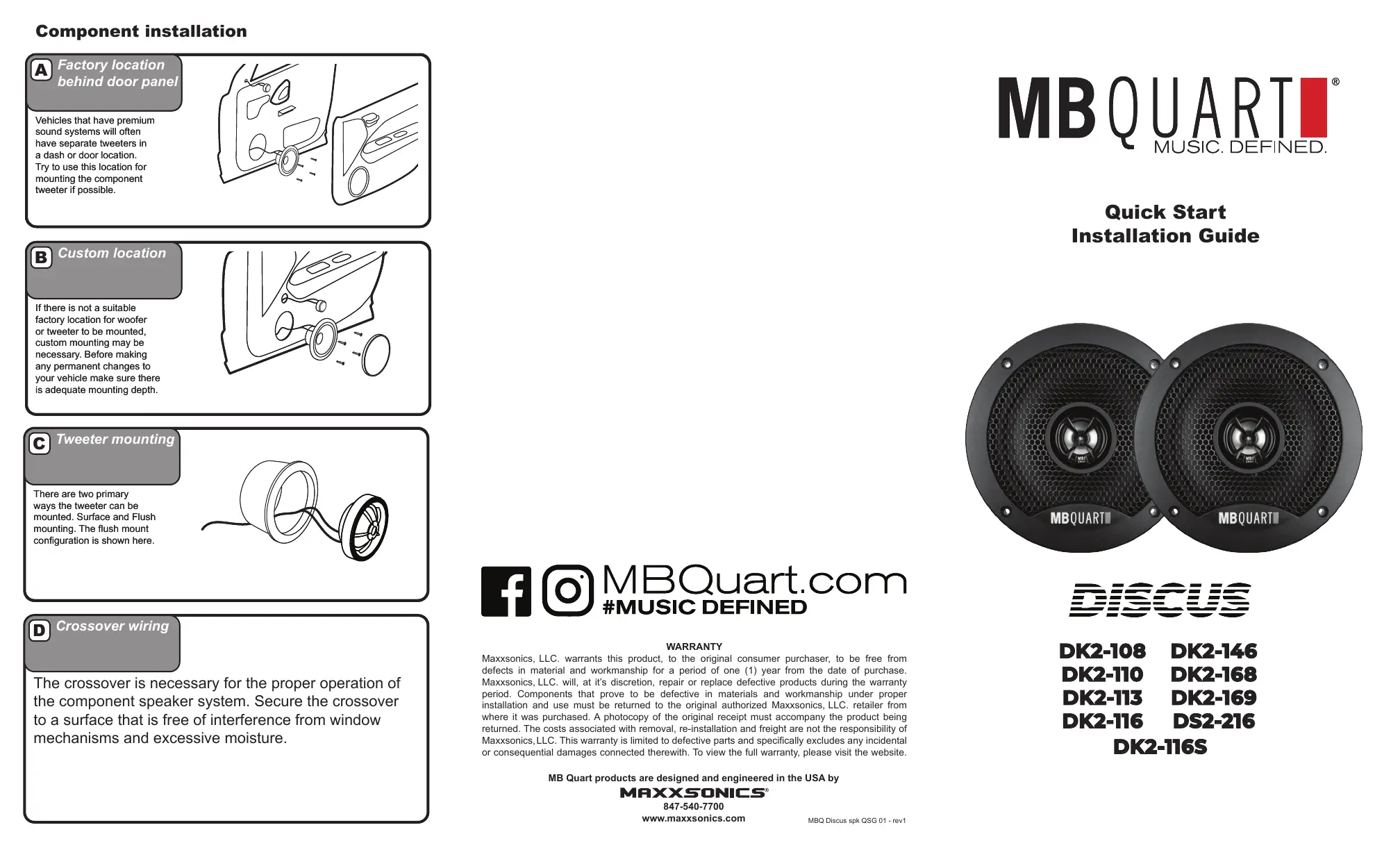

Quick Start
Installation Guide
MB Quart products are designed and engineered in the USA by
847-540-7700
www.maxxsonics.com
MBQ Discus spk QSG 01 - rev1
Vehicles that have premium
sound systems will often
have separate tweeters in
a dash or door location.
Try to use this location for
mounting the component
tweeter if possible.
If there is not a suitable
factory location for woofer
or tweeter to be mounted,
custom mounting may be
necessary. Before making
any permanent changes to
your vehicle make sure there
is adequate mounting depth.
Factory location
behind door panel
Custom location
A
B
Component installation
DK2-108DK2-108
DK2-110DK2-110
DK2-113DK2-113
DK2-116DK2-116
DK2-146DK2-146
DK2-168DK2-168
DK2-169DK2-169
DS2-216DS2-216
There are two primary
ways the tweeter can be
mounted. Surface and Flush
mounting. The ush mount
conguration is shown here.
The crossover is necessary for the proper operation of
the component speaker system. Secure the crossover
to a surface that is free of interference from window
mechanisms and excessive moisture.
Tweeter mounting
Crossover wiring
C
D
DK2-116SDK2-116S
