Sida 1/24

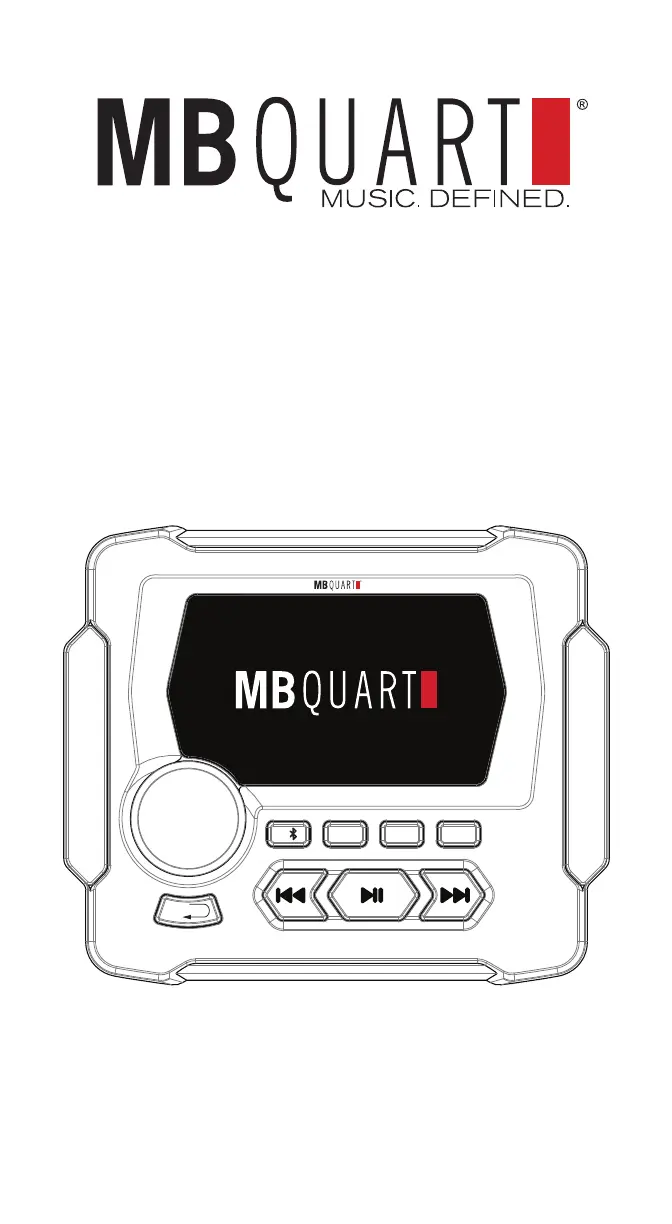

Operator’s Guide and
Installation Instructions
GMR-LED
AM/FM/USB/Bluetooth®
Multimedia Controller
for Off-Road and Marine
1/ 2/INT 3/RPT 4/RDM
Source
2
Congratulations for choosing the AM/FM/USB Bluetooth
Multimedia Controller by MB Quart. For more detailed
information about the product, please visit MBQuart.com
CAUTION
Always consider consulting a professional audio installation
technician before installing any mobile audio components. Be
careful and take your time. Do not let wires make contact with
metal edges, sources of moisture or hot engine components.
General Information
Powersports and Marine Multimedia Source Unit
AM/FM, Weather Band Radio, USB, Bluetooth
® and AUX sources
160 Watts Peak Power with Pre Amplier Line Outputs
Marine Certied to IPX67 for Water and Dust Intrusion
Auxiliary A/V Sources
Quick Connect Bluetooth Audio USB Audio Input w/Charging
Auxiliary RCA Stereo Preamp Input Weather Band Radio
Composite Video Camera Input Composite Video Output
AM / FM / Weather band Section
USA Frequency: FM87.9 – 107.9MHz / AM530-1710kHz
Europe Frequency: FM87.5 – 108MHz / AM522 – 1620kHz
NOAA NWR Weather Band Frequency: 162.400-162.550MHz
Intermediate AM/FM Frequency: 10.7MHz
Intermediate Frequency Rejection: 50dB
Noise Limit Sensitivity: >5uV
USB / AUX / Bluetooth Audio Section
RCA S/N: >81dB Powered Outputs S/N: >74dB
USB A/D Conversion: 16bit Frequency Response: 20Hz – 20KHz
Audio Section & Other Features
Power Output: 4 x 40 Watts Max (160 Watts Peak Power)
Load Impedance: 4 - 8 Ohms / Channel
Preamp Output Voltage: 4 volts
Dual Zone Capability between Preamp Outputs and Built-in Power
Independent Subwoofer Level Control with Selectable Low Pass Filter
8-Band Graphic EQ (62, 125, 250, 500, 1K, 4K, 10K and 16K)
Installation Specications
4” / 100mm - Total Mounting Depth Required (Incl. U-Bracket)
3” / 76.2mm - Cut Out Diameter
3

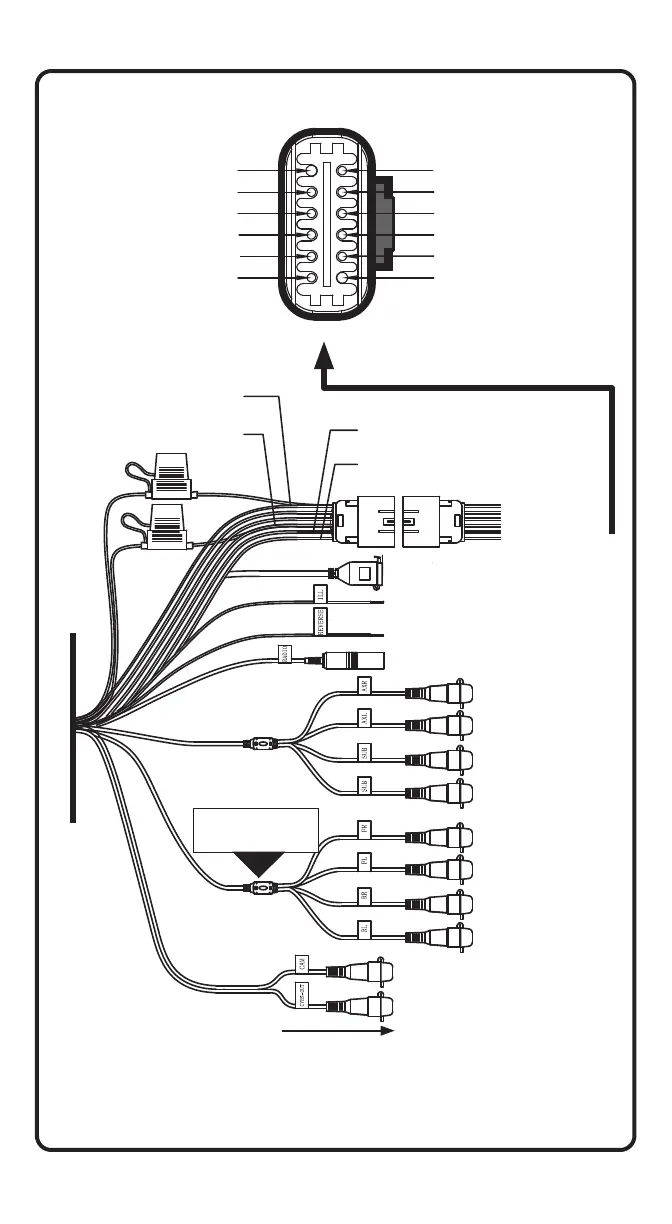

Wiring and Connections
(M) Yellow
(L) White/Black
Water Tight Plug Face Shown (Wires to Connect Exit Rear)
(K) White
(J) Red
(H) Purple/Black
(G) Purple
(F) Gray
(E) Gray/Black
(D) Green/Black
(C) Green
(B) Blue
(A) Black
Yellow (+12v Constant)
Red (+12v Accessory)
Water
Tight Plug
USB Connector
Orange (Illumination)
Purple/White (Reverse)
AM/FM Antenna
AUX Input
SUB Outputs
FRONT Preamp
Outputs*
REAR
Preamp Outputs*
Camera Input
CVBS Video Output
(Mirrors Unit’s Screen)
Black (Chassis Ground)
Blue(Amp Turn-On)
*Works with
ZONE Control
Note: See wiring chart on next page for connection tips, wire
colors and functions. Also note preamp level output connections
if using external ampliers and ZONE control capability.
See page 19 for Video Output details
