Installation Manual

 Type：EDR DIN rail power supply（Series：EDR-75, EDR-120, EDR-150）

EDR-75-12 INPUT: 100-240VAC 1.6A 50/60Hz OUTPUT: 12V 6.3A

EDR-75-24 INPUT: 100-240VAC 1.6A 50/60Hz OUTPUT: 24V 3.2A

EDR-75-48 INPUT: 100-240VAC 1.6A 50/60Hz OUTPUT: 48V 1.6A

EDR-120-12 INPUT: 100-240VAC 2.6A 50/60Hz OUTPUT: 12V 10A

EDR-120-24 INPUT: 100-240VAC 2.6A 50/60Hz OUTPUT: 24V 5A

EDR-120-48 INPUT: 100-240VAC 2.6A 50/60Hz OUTPUT: 48V 2.5A

EDR-150-24 INPUT: 100-120VAC 2.6A 50/60Hz OUTPUT: 24V 5.2A

200-240VAC 1.65A 50/60Hz 24V 6.5A

 Introduction

EDR is a DIN rail power supply series with an economical price and slim design. Like other Mean Well’s DIN series,

they can be mounted on a TS35 Standard DIN rail.

 Installation

（1）Always allow good ventilation clearances, 5mm left and right, 40mm above and 20mm below, around the unit

in use to prevent it from overheating. Also a 10-15 cm clearance must be kept when the adjacent device is a

heat source.

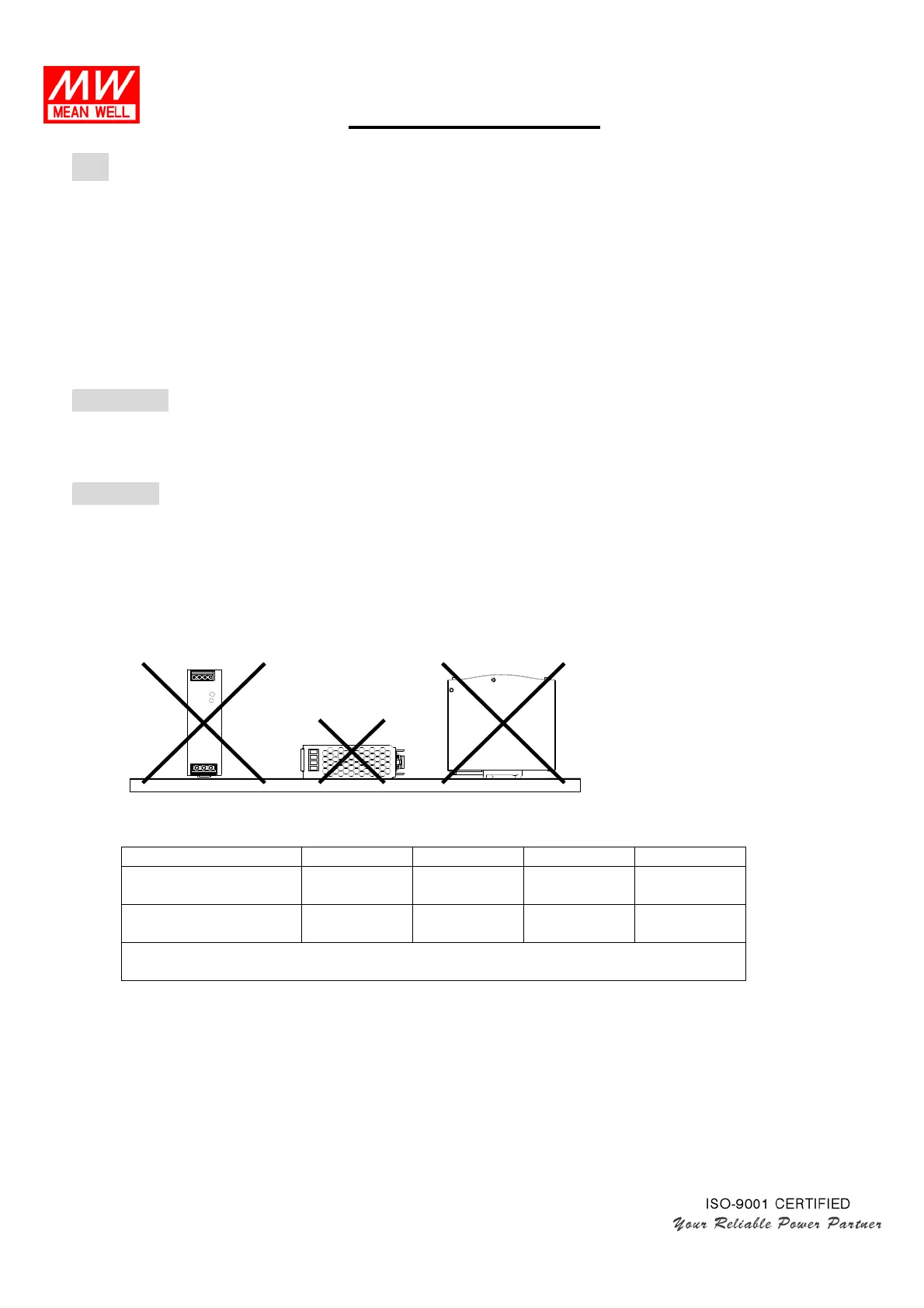

（2）The appropriate mounting orientation for the unit is vertical, the input terminals at the bottom and output on

the top. Mounting orientations other than that, such as upside down, horizontal, or table-top mounting, is not

allowed.

（3）Use copper wire only, and recommended wires are shown as below.

AWG 18 16 14 12

Rated Current of

Equipment (Amp)

7A 10A 15A 20A

Cross-section of

Lead(mm

)

0.8 1.3 2.1 3.3

Note: Current each wire carries should be de-rated to 80% of the current suggested

above when using 5 or more wires connected to the unit.

Make sure that all strands of each stranded wire enter the terminal connection and the screw terminals are

securely fixed to prevent poor contact. If the power supply possesses multi-output terminals, please make

sure each contact is connected to wires to prevent too much current stress on a single contact.

（4）Use wires that can withstand temperatures of at least 80°C, such as UL1007.

（5）Recommended wire strapping length is 5mm (0.197”).

（6）Recommended screwdriver is 3mm, slotted type.

Produktspecifikationer

Varumärke:	Mean Well
Kategori:	Inte kategoriserad
Modell:	EDR-75-12
Vikt:	480 g
Bredd:	32 mm
Djup:	102 mm
Höjd:	125.2 mm
Uteffekt:	75 W
Spänning:	90 - 264 V
Antal per förpackning:	28 styck
Hållbarhetscertifiering:	RoHS
Utgångsspänning:	12 V
