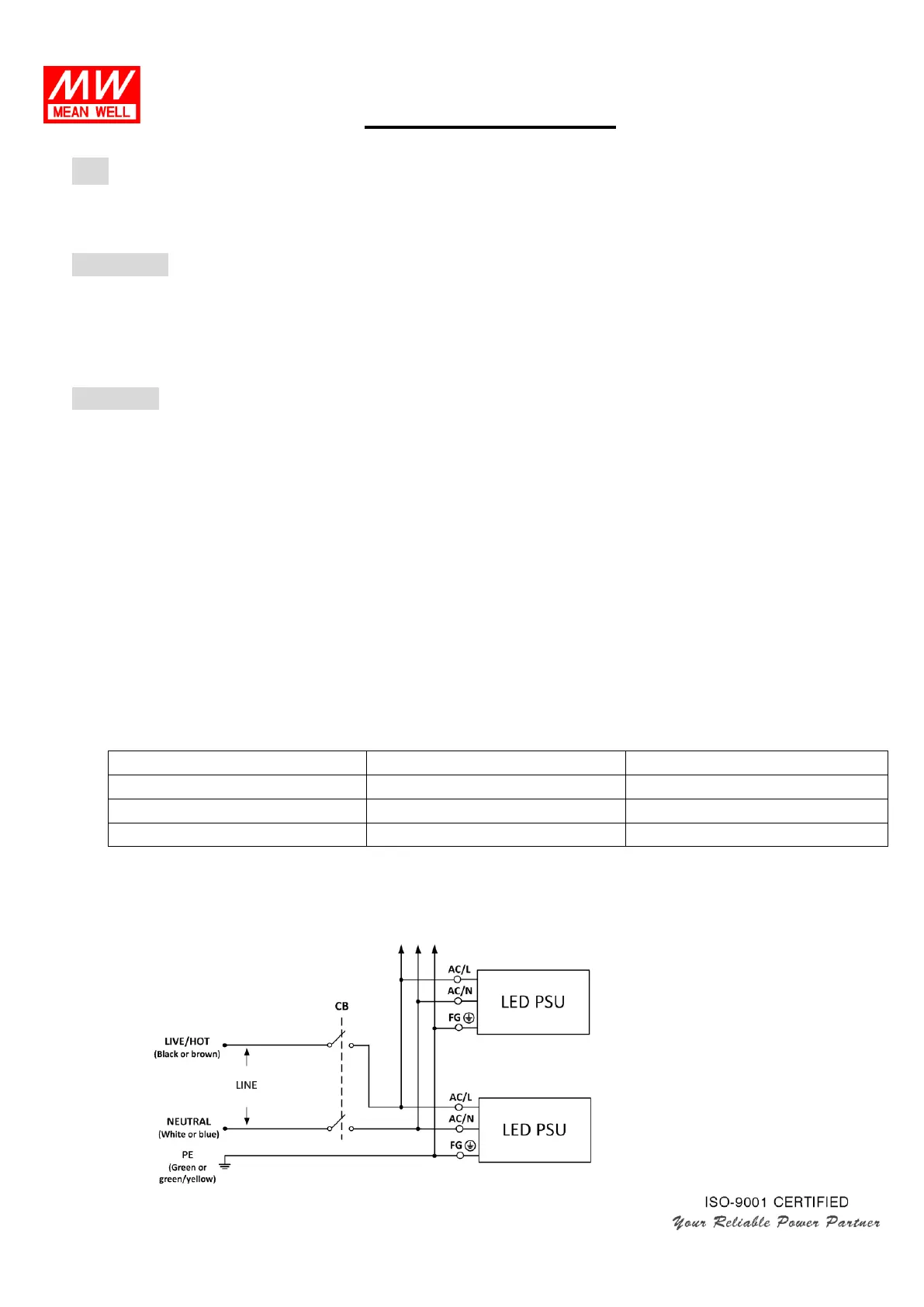

Installation Manual

 Type：LED Power Supply

（Families：AP, CEN, CLG, ELG, ELN, GSC, HBG, HLG, HLN, HLP, HSG, HVG, LCM, LP, LPF, PLC, NPF, OWA, PCD,

PLC, PLD, PLM, PLN, PLP, PWM, ULP）

 Introduction

The LED power supply is a dedicated LED driving device that delivers a constant current/voltage or generates an

adjustable current controlled by an external dimmer to LEDs. Depending on its types or design concept, some of

them not only have PFC capability but also can be located in a harsh environment such as dusty, humid places.

Mean Well’s LED power supplies include metal case, plastic case, and PCB types.

 Installation

（1）Before commencing any installation or maintenance work, please disconnect the power supply from the utility.

Ensure that it cannot be re-connected inadvertently!

（2）Keep proper ventilation around the unit and do not stack any object on it. Also a 10-15 cm clearance must be

kept when the adjacent device is a heat source.

（3）Mounting orientations other than standard orientation or operate under high ambient temperature may

increase the internal component temperature and will require a de-rating in output current. Please refer to

the specification sheet to receive the optimum mounting position and information about the de-rating curve.

（4）Current rating of an approved primary /secondary cable should be greater than or equal to that of the unit.

Please refer to its specification.

（5）For LED power supplies with waterproof connectors, verify that the linkage between the unit and the lighting

fixture is tight so that water cannot intrude into the system.

（6）For dimmable LED power supplies, make sure that your dimming controller is capable of driving

these units. For ELN series, either “D” or “P” type, require 40mA each unit; for those with “3 in 1” dimming

function, e.g. HLG and LPF series, require 0.15mA each unit.

（7）Wiring: The wire color will vary by country, please refer to the table below.

North America

European Harmonized

Live and ACL

Black

Brown

Neutral and ACN

white

Blue

PE and FG (Class I only)

Green

Green/yellow

（a）Connect the FG wire (green or green/yellow) of the LED power supply to PE (green or green/yellow), this

step can be skipped when the unit is marked class II, ungrounded.

（b）Connect the ACL wire (black or brown) of the LED power supply to Live (black or brown).

（c）Connect the ACN wire (white or blue) of the LED power supply to Neutral (white or blue).
