MXASB9
ALL WEATHER CLAMP MOUNT SOUND BAR
CONTACT US
122 GAYOSO AVE, MEMPHIS, TN. 38101
TECH SUPPORT: 800.489.2300
WWW.MEMPHISCARAUDIO.COM
@MEMPHISCARAUDIOUSA
@MEMPHISCARAUDIO
#MEMPHISAUDIO
ESTABLISHED NINETEEN SIXTY-FIVE // MEMPHIS TENNESSEE // UNITED STATES OF AMERICA
MXA
MEMPHIS XTREME AUDIO
Memphis Audio built a 50 year legacy in the audio industry engineering the highest quality products to produce
the best possible listening experience for our fans and loyal supporters. To fully appreciate our products we
recommend taking the time to read and follow the instructions in this manual. As always, we recommend all
installations and service be performed by an authorized Memphis Audio dealer.
Built in Bluetooth receiver
Resistant to water and elements (IPX7 rated)
Dual adjustable clamp fits bars and UTV bracket
Self powered Plug & Play for quick installation
AUX input
2-Channel output
• 4 Speaker system: 2 - 3” speakers and 2 - 1“ tweeters
• Total Power: 100 Watts
• Dimensions: 8.9” x 3.7” x 3.5”
• Handle bar clamps fit: 0.75” - 1.25” bars
• UTV bar clamp fit: 1.25” - 2.25” bars
For optimal performance, Memphis recommends using only Memphis Connection accessories. Outfitting
your system with properly sized Memphis Connection wire and accessories will dramatically boost your
listening experience and increase the durability of your Memphis Audio products.
MXASB9
CONTROLS
Bluetooth pairing:
Hold the power button to turn the unit on. The indicator light will begin flashing blue. Go to your device and search
for “MXASB9” and click connect. The blue light will stay solid blue when connected.
Bluetooth Operation:
POWER BUTTON: HOLD for power ON/OFF. QUICK PRESS to select between Bluetooth and AUX in modes
PLAY PAUSE: Pauses and Plays the music. (Mutes music when in Aux-in mode)
TRACK FORWARD/BACK: Skips tracks forward and back
V+/V-: Controls the volume of the internal amplifier
STATUS LIGHT:
BLUE FLASHING - Bluetooth Discovery mode.
BLUE SOLID - Paired and Connected to device.
GREEN SOLID - in AUX mode.
REQUIRED WIRING
OPTIONAL WIRING
GREEN FEMALE 3.5MM JACK: To be used for an optional Auxiliary input to connect any audio device via 3.5mm jack
BLACK FEMALE 3.5MM JACK: Is a 2.5v low level audio output designed to drive external amplifiers. This allows the
MXASB9 to be used as the main source while adding more audio components to your system.
SPECIFICATIONS
FEATURES
READY TO TURN IT UP? READ THIS FIRST!
RED – 12V+ constant, should be connected directly to the vehicle positive battery terminal
BLACK – 12V negative, should be connected directly the vehicle chassis where the paint is removed or directly to the
negative battery terminal
BLUE – 12V switched, This should be connected to the vehicle ignition or external switch. When this wire
is connected to +12V the soundbar will turn on.
The Memphis MXASB9 Sound bar is designed to make it easy to bring Memphis sound to virtually any vehicle. The
easy to install, all in one unit is transforms your Bluetooth enabled device into the controls for your entire audio
system. The multiple mounting options allow the MXASB9 to fit on nearly any personal watercraft, UTV, boat, golf
cart or anything with a bar to mount the unit onto. The MXASB9 was designed to be resistant to the outdoor
elements, so get ready to enjoy that Memphis sound wherever you are!
MOUNTING
• Included are 2 sets of mounting hardware. One set for handlebar mounting and one set for UTV mounting.
• Handlebar mounting will use the multi-position brackets that can be secured directly into the enclosure threaded
inserts or slide rail as shown below.
• The slide rail can be mounted on the back or bottom of the enclosure
• Handle bar brackets can be mounted to a .75” bar using the smaller “U” bolt, 1” bar larger “U”bolt and spacer, and
1.25” using the larger “U” bolt.
• UTV Installation: Use bracket top half and tighten down over bar using the both included bolts.
• Surface mount installation: Use the 2 provided flat plates to mount on the inside of you desired surface. Then thread
the bolts through and secure using the supplied nuts.
NO OUTPUT
WEAK OUTPUT
• Check Bluetooth device volume level.
TROUBLESHOOTING
• Confirm all wiring is firmly connected: Both +12V must have +12 Volts present and GND must be connected to chassis’
ground or to the negative battery terminal.
• Confirm the signal source is connected via Bluetooth or the auxiliary cable is connected to both the source and the MXASB9
UNWANTED NOISE
• Whine that increases and decreases with engine speed - confirm the Amp & Source unit are grounded properly.
• Clicking or popping noise at a rate that follows engine speed - this is often induced by the vehicles ignition system. Con
that the vehicle is equipped with resistor spark plugs and wires. The ignition system may need service.
• Noise can be caused by routing speaker input wires too close to the light wires and other accessory wires in the vehicle.
Re-route wires to avoid unwanted interference.
RED LED IS ILLUMINATED
• Speaker or wire is shorted • Battery voltage too low
• Battery voltage too high •Amplifier has overhe ated due to improper ventilation
If above steps do not improve/reduce noise, the system should be checked by a professional audio installer at a Memphis
Authorized Dealer.

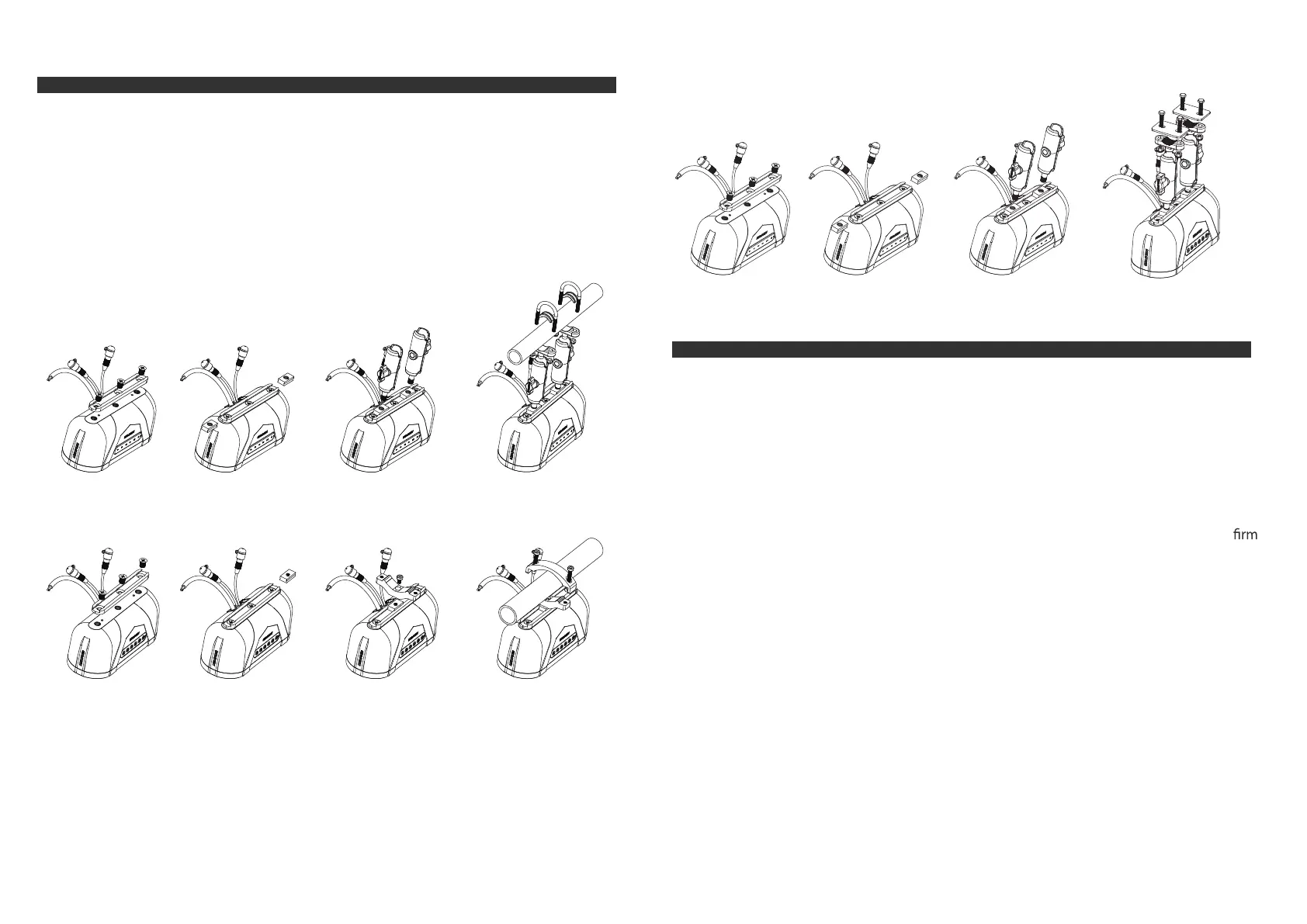

Attach bracket to desired mounting
location using provided screws
Slide mounting points into the
channel
Screw mounting posts into
threaded mounting points
Use appropriate U bolt to connect
the MXASB9 to the bar
Attach bracket to desired mounting
location using provided screws
Slide mounting points into the
channel
Screw UTV bracket into threaded
mounting points
Using bolts provided, tighten top UTV
bracket to bottom UTV bracket around bar
Screw mounting posts into Use flat plates, on the inside of
the surface then thread the
bolts though and tighten using
the supplied nuts
threaded mounting points
Slide mounting points into the
channel
Attach bracket to desired mounting
location using provided screws
