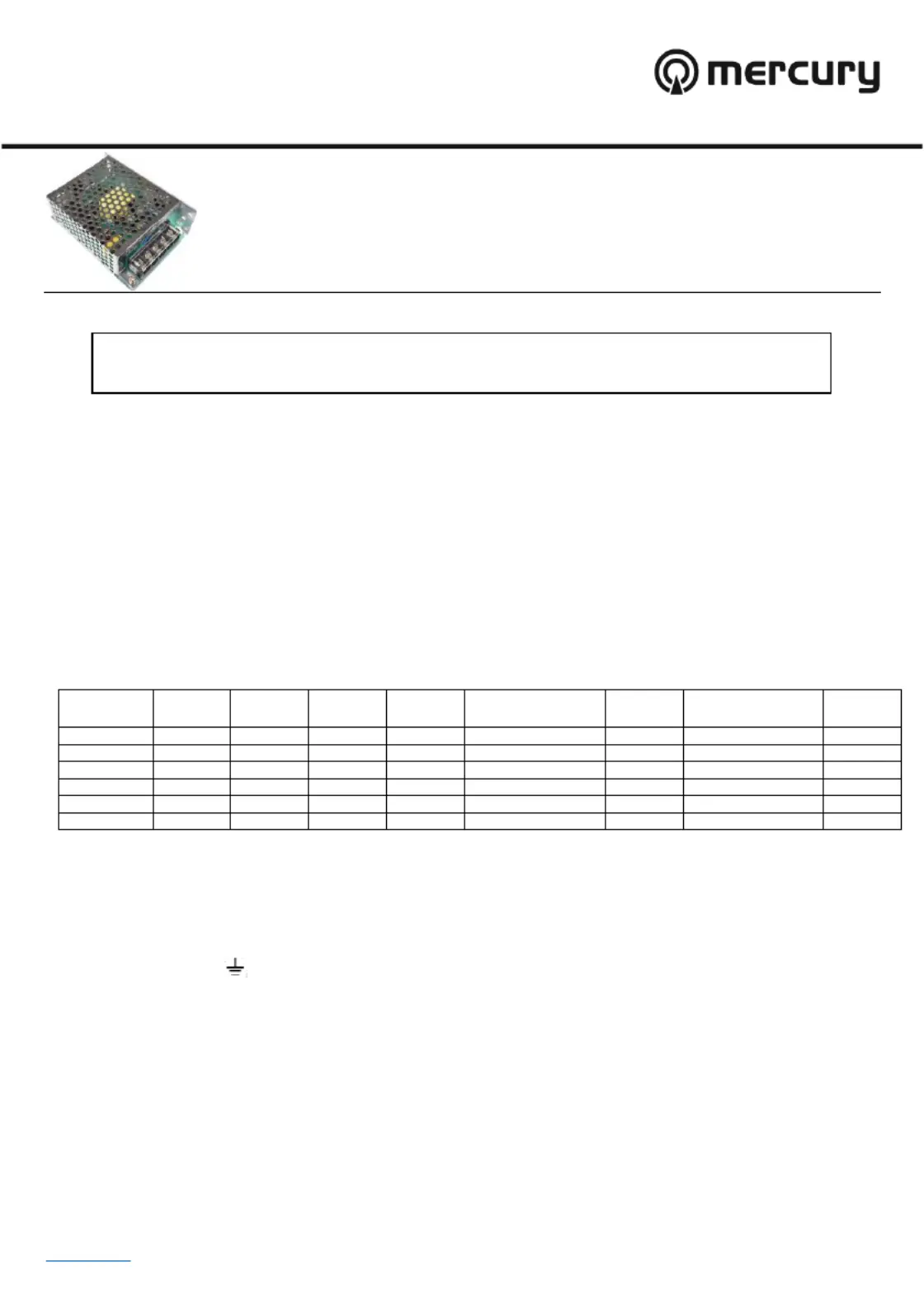

13.8Vdc Switch Mode Power Supplies
User Manual
Series of 13.8Vdc switching power supplies. Ideal use for radio equipment, security systems, alarm systems, access
control systems, 12Vdc LED Lighting systems and central monitoring systems. For indoor use only.
Features:
• Short circuit protection.
• Overload protection.
• Auto reset.
• Easy installation, screw terminals.
• Fan cooling for higher power models.
• Higher power models with 2 or outputs to facilitate easier wiring of multiple devices. 3
Specifications:
Item R ef
Output
Voltage
Output
Current
Max.
Power
IP
Rating
Power
Supply
Outputs
Dimensions
Weight
650.755UK
13.8V
3.6A
49.68W
IP20
240Vac/1.3A, 50Hz
1
110 x 35 x 80mm
0.22kg
650.756UK
13.8V
5.4A
74.52W
IP20
240Vac/1.3A, 50Hz
1
110 x 35 x 80mm
0.22kg
650.759 UK
13.8V
15A
207W
IP20
240Vac/2.5A, 50Hz
2
200 x 38 x 100mm
0.54kg
650.7 61UK
13.8V
25A
345W
IP20
240Vac/4A, 50Hz
3
220 x 50 x 115mm
0.85kg
650.7 62UK
13.8V
30A
414W
IP20
240Vac/4A, 50Hz
3
220 x 50 x 115mm
0.85kg
650.764 UK
13.8V
43.5A
600.3W
IP20
240Vac/6A, 50Hz
3
240 x 65 x 125mm
1.15kg
Key Markings:

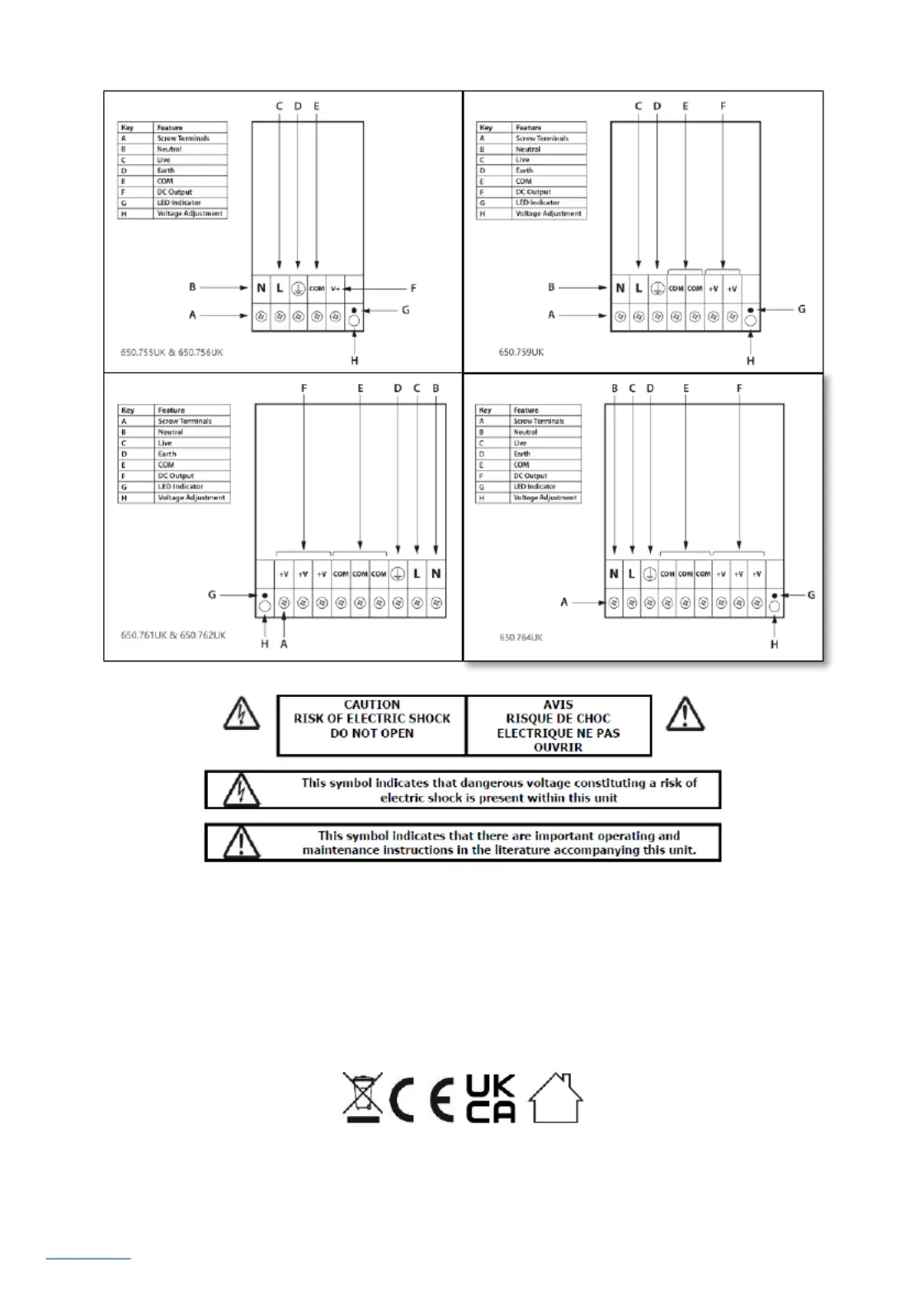

1. AC input connections: “live” and “neutral”, the markings are displayed as “L”, “N”.
2. DC output connections “positive” and “negative”, the markings are displayed as “+V”, “-V”.
3. The markings of multi- DC output voltage are “+V1”, “+V2”, “+V3”, “+V4” “ V1”, “ V2”, “ V3”, “ V4”. - - - -
4. The common interface marking for multiple outputs is “COM”.
5. The earth symbol is
6. Green LED indicator indicates power on.
7. Adjust voltage marking is displayed as “+V ADJ”. Voltage adjustment range is 10% (12.42V-15.18V).
Before Power On:
1. Please check the input and output wires are wired correctly: live, neutral, earth wire for AC; positive, negative DC.
2. Check whether the current rating of connecting cables is large enough.
3. Please check the connection of screws are secure.
4. Please check the earth wire is firmly connected for safety.
5. When using large electrical equipment, please consider installing an AC filter.
6. Full load working temperature is -10~40℃. Above this temperature will reduce the output power, i.e at 70℃ the
output power will not exceed 50%. Below - 10℃, the unit will not power on.
Please read through this manual thoroughly before use, any damage
cause by misuse of product will not be covered by warranty.d
