Receiver Wiring Adaptor
120 70-1388
Revision 04/07/16
STEP 1 -- MATCH & CONNECT WIRES
*120701388*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2016 Crutchfield Corporation

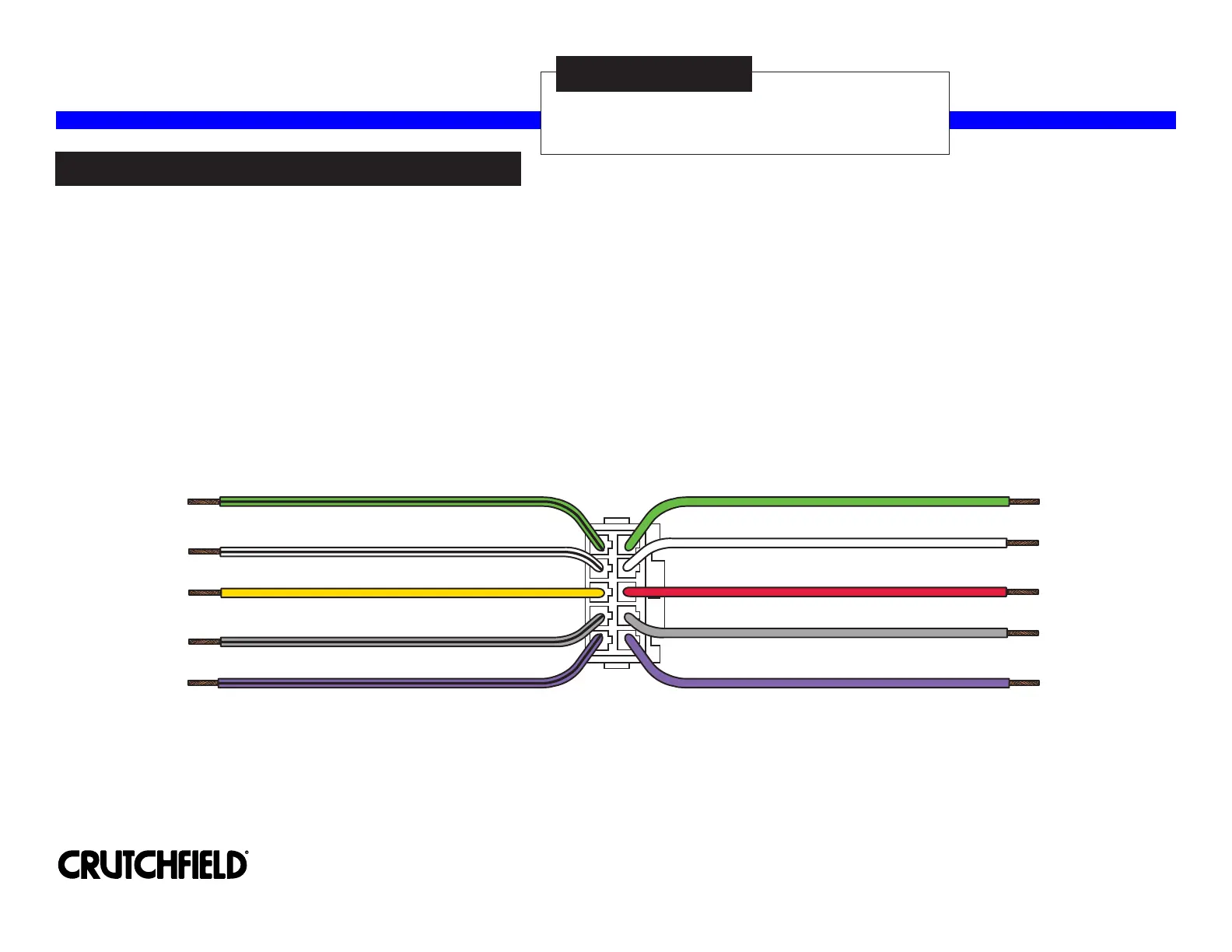

Yellow - 12 Volts Constant Power Red - 12 Volts Switched Power
White - Left Front Speaker Positive
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Violet/Black - Right Rear Speaker Negative
Green/Black - Left Rear Speaker Negative
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Individually tape off any unused wires.
Connect the Black (Ground) wire from new receiver to vehicle chassis.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.

Receiver Wiring Adaptor Connections
120 70-1388
Page 2
STEP 2 -- CONTINUED
A. Strip wires back 1/2”.
B. Twist wires together and
insert in crimp cap.
C. Squeeze middle of cap
for tight connection.
Copyright 2016 Crutchfield Corporation
STEP 3 -- APPLICATION
When ready to install the receiver, plug
the Wiring Adaptor from the new receiver
or receiver assembly into the factory
radio harness(es) in the vehicle dash.
D. Complete crimp connections
for all necessary wires.
E. Be sure to wrap any wires from
the Wiring Adaptor that are
not necessary (wires with no
match from the new receiver)
with electrical tape.
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts
Required
Wire Stripper/Crimp Tool Crimp Caps
Unused Wire (tape over bare wires)
Receiver Wiring Adaptor
Generic Illustration
Generic Illustration
