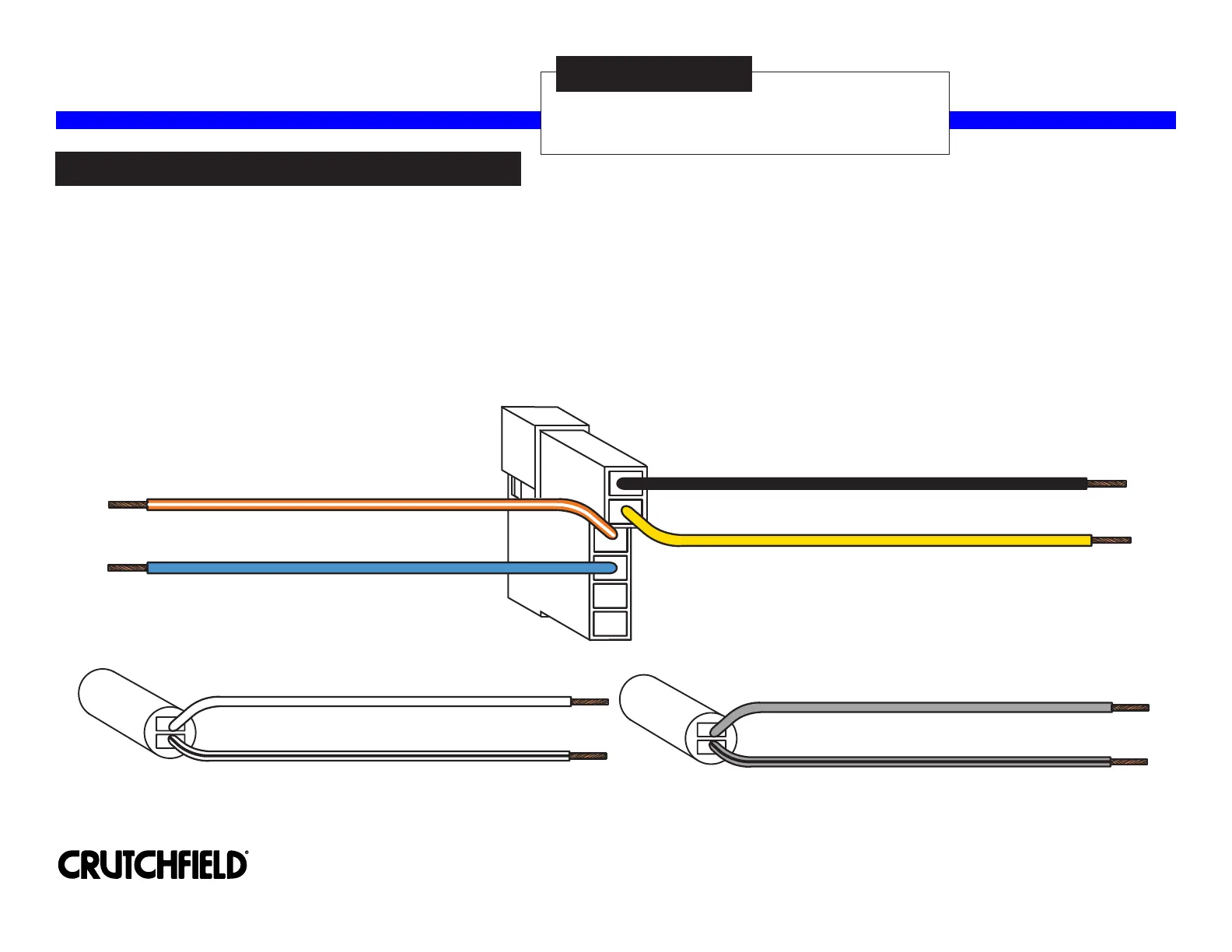

Yellow - 12 Volts Constant Power
Blue - Power Antenna
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by
function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
Receiver Wiring Adaptor
120 70-1618
Revision 12/08/14
STEP 1 -- MATCH & CONNECT WIRES
*120701618*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call
Crutchfield at 1-888-955-6000.
A.
B.
C.
D.
Copyright 2014 Crutchfield Corporation
Orange/White - Illumination
IMPORTANT: Audi and VW do not supply a switched 12 Volt source
for the receiver. The 12 volt constant and 12 volt switched wires of
your receiver can be wired to the yellow of this harness or the fuse
block may be used for a 12 volt switched source.
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Black - Chassis Ground
White - Left Front Speaker Positive
Gray - Right Front Speaker Positive
