Sida 1/2

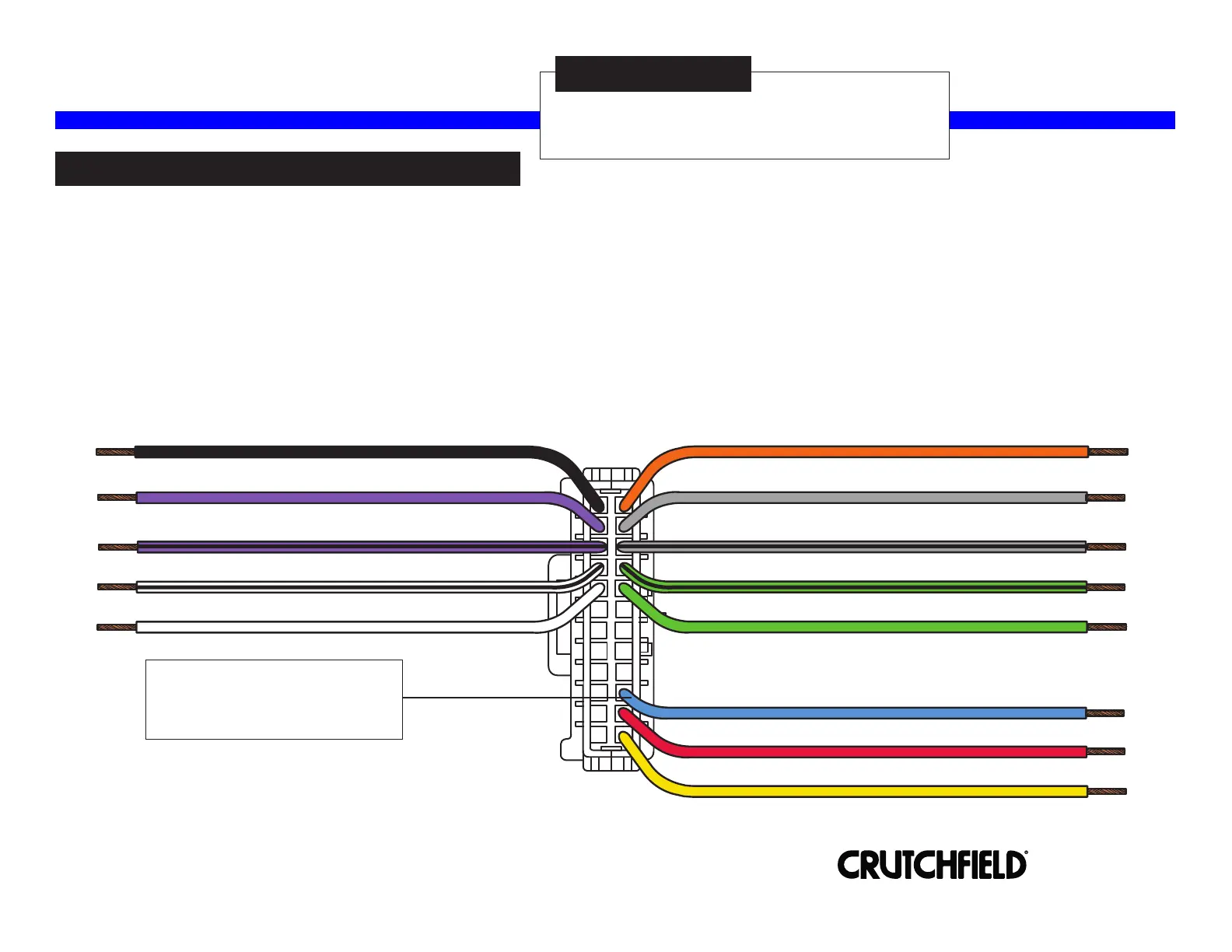

White - Left Front Speaker Positive
Violet/Black - Right Rear Speaker Negative
Red - 12 Volts Switched Power
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Yellow - 12 Volts Constant Power
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Orange - Illumination
White/Black - Left Front Speaker Negative
Black - Chassis Ground
*120702003*
Blue - Power Antenna
120 70-2003
Revision 12/16/13
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
If your receiver does not have an Illumination wire, tape off the Orange wire.
Connect Black wire to Ground wire of new receiver.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
STEP 1 -- MATCH & CONNECT WIRES
A.
B.
C.
D.
E.
Receiver Wiring Adaptor
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2013 Crutchfield Corporation
In the 2003-'06 Kia Sorento, Hyundai
Sonata and Santa Fe, the Blue wire is
used as Amplifier Turn-On and as
Antenna Remote.
Receiver Wiring Adaptor Connections
120 70-2003
Page 2
STEP 2 -- CONTINUED
A. Strip wires back 1/2”.
B. Twist wires together and
insert in crimp cap.
C. Squeeze middle of cap
for tight connection.
STEP 3 -- APPLICATION
When ready to install the receiver, plug
the Wiring Adaptor from the new receiver
or receiver assembly into the factory
radio harness(es) in the vehicle dash.
D. Complete crimp connections
for all necessary wires.
E. Be sure to wrap any wires from
the Wiring Adaptor that are
not necessary (wires with no
match from the new receiver)
with electrical tape.
STEP 2 -- CRIMP CONNECTIONS
Tools & Parts
Required4
Wire Stripper/Crimp Tool Crimp Caps
Unused Wire (Taped Off)
Receiver Wiring Adaptor
Generic Illustration
Generic Illustration
Copyright 2013 Crutchfield Corporation
