REV. 9/8/2015 INST95-3017B

CAUTION: Metra recommends disconnecting the negative battery

terminal before beginning any installation, unless the vehicle

manufacturer recommends against so. Please check with your

local Dealership for more information. All accessories, switches,

climate controls panels, and especially air bag indicator lights

must be connected before reconnecting the battery or cycling

the ignition. Also, do not remove the factory radio with the key

in the on position, or the vehicle running. It would be best to

remove the key from the ignition and then wait a few seconds

before removing the factory radio.

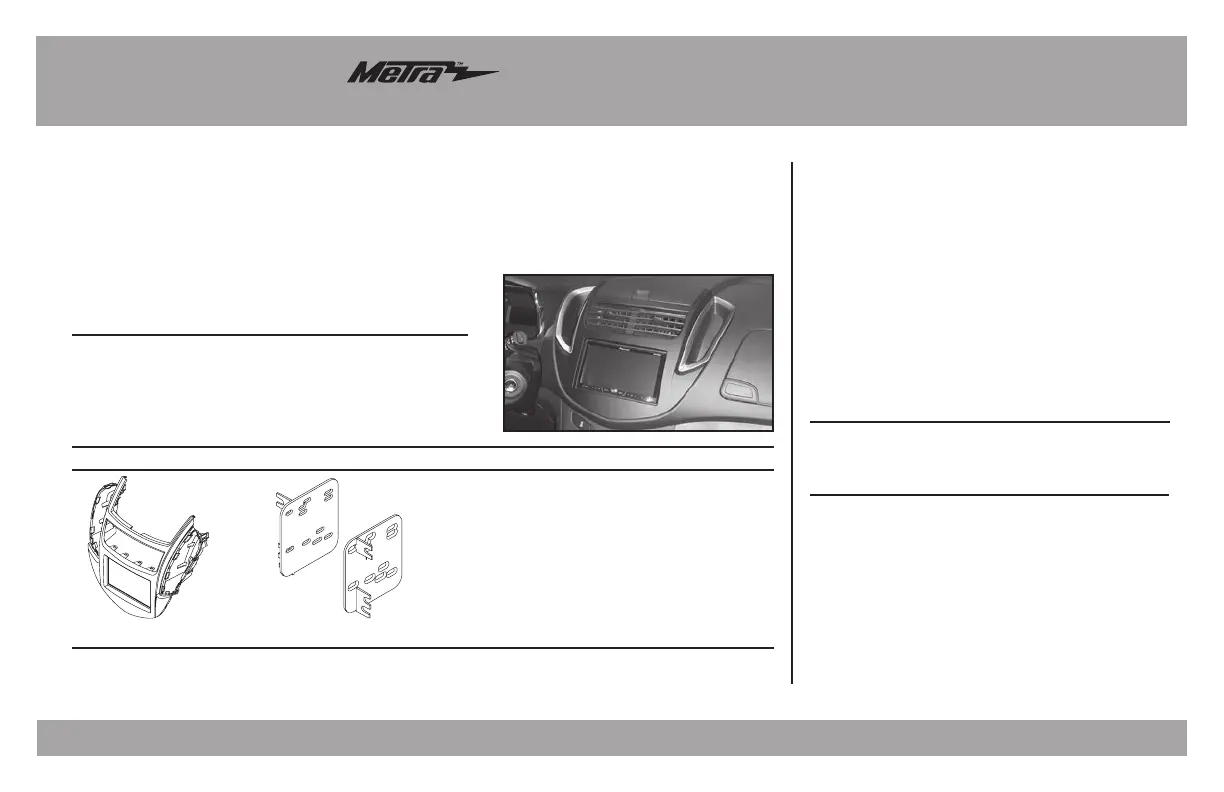

Installation instructions for part 95-3017B

• A) Radio trim panel • B) Radio brackets

20;*64765,5;:

>0905.(5;,55(*655,*;065: (sold separately)

Wiring Harness: • LC-GMRC-044 or AX-ADBOX2 and AX-ADGM04

Antenna Adapter: • 40-EU55

• Panel removal tool • Phillips screwdriver

• Socket wrench

;663:9,8<09,+

Chevrolet Trax 2015-up

95-3017B

A B

Dash Disassembly ................................................. 2

Kit Assembly

– ISO DDIN radio provision ...................................... 3

Table of Contents

• ISO DDIN radio provision

• Painted to match factory finish

20;-,(;<9,:

95-3017B

Dash Disassembly

(Figure A) (Figure C)

(Figure B) (Figure D)

1. Unclip and remove the panel

surrounding the factory radio

including the a/c vents. (Figure A)

2. Remove (4) 9/32” screws securing

the radio chassis. (Figure B)

3. Remove (2) screws securing the

a/c vents to the factory radio trim

panel and keep for kit assembly.

(Figure C)

4. Unclip and remove the (9) metal

panel clips from the factory panel

and keep them for kit assembly.

5. Unclip and remove the (2) small

pockets on either side of the a/c

vents and keep for kit assembly.

(Figure D)

Note: Remember the process

when removing these pockets

as you will need to reinstall

them into the 99-3017B radio

panel the same way.

Continue to kit assembly

95-3017B

Kit Assembly

(Figure A)

ISO DDIN radio provision

1. Clip the (2) small pockets into the

95-3017B .radio trim panel

2. Attach the (9) metal panel clips to

the 95-3017B .radio trim panel

3. Attach the a/c vents to the

95-3017B with the radio trim panel

factory hardware.

4. Secure the radio brackets to the

radio using the screws supplied

with the radio. (Figure A)

5. Locate the factory wiring harness

and antenna connector in the

dash, and complete all necessary

connections to the radio. Metra

recommends using the proper

mating adapter from Metra and/or

AXXESS. Re-connect the negative

battery terminal and test the radio

for proper operation.

6. Mount the new radio assembly into

the dash and reassemble the dash

in reverse order of disassembly

using the 95-3017B radio

trim panel.
